Monitor SKYZONE 5 inch M5 FPV with DVR

Product detailed description

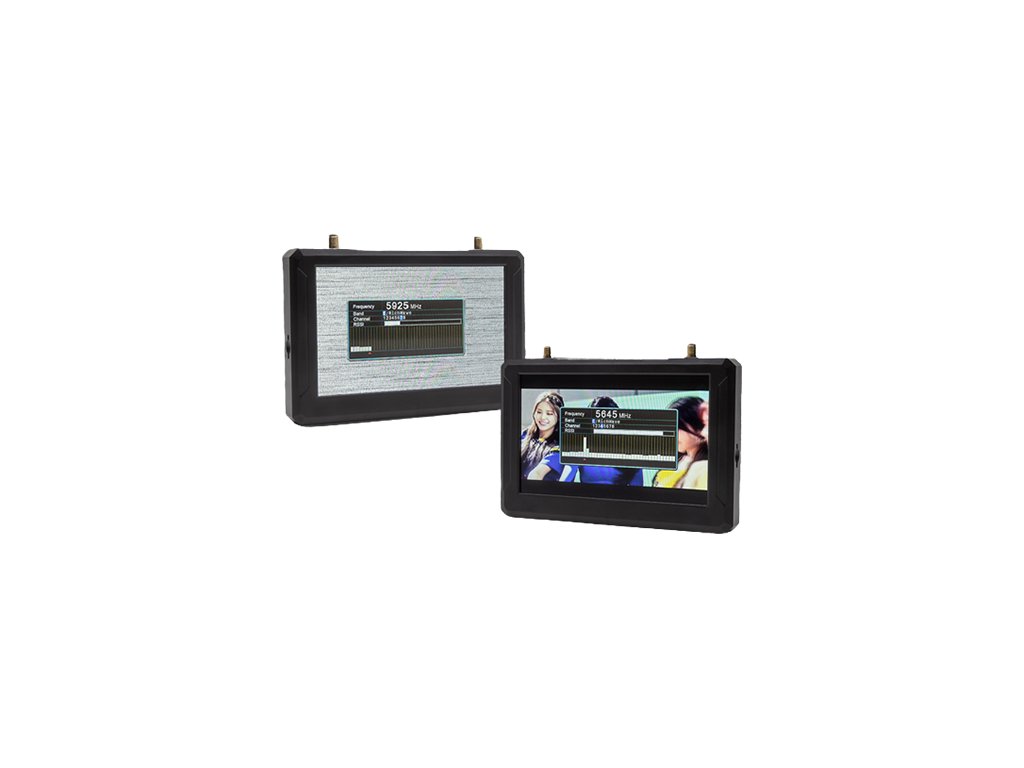

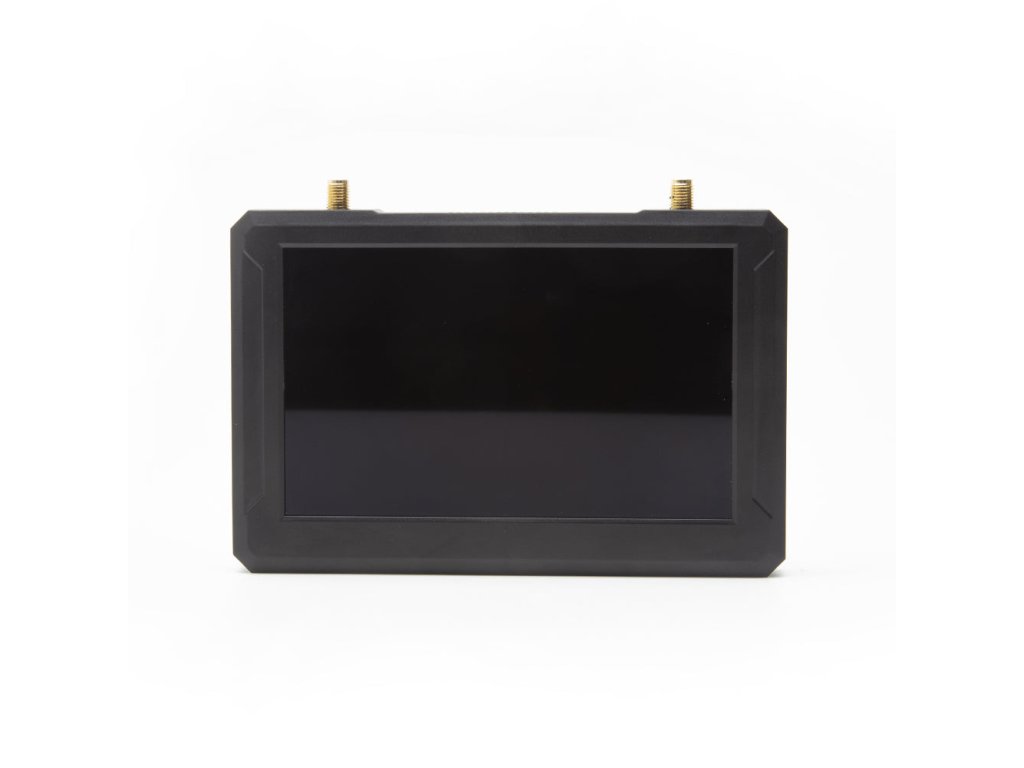

SKYZONE M5 FPV Monitor with DVR

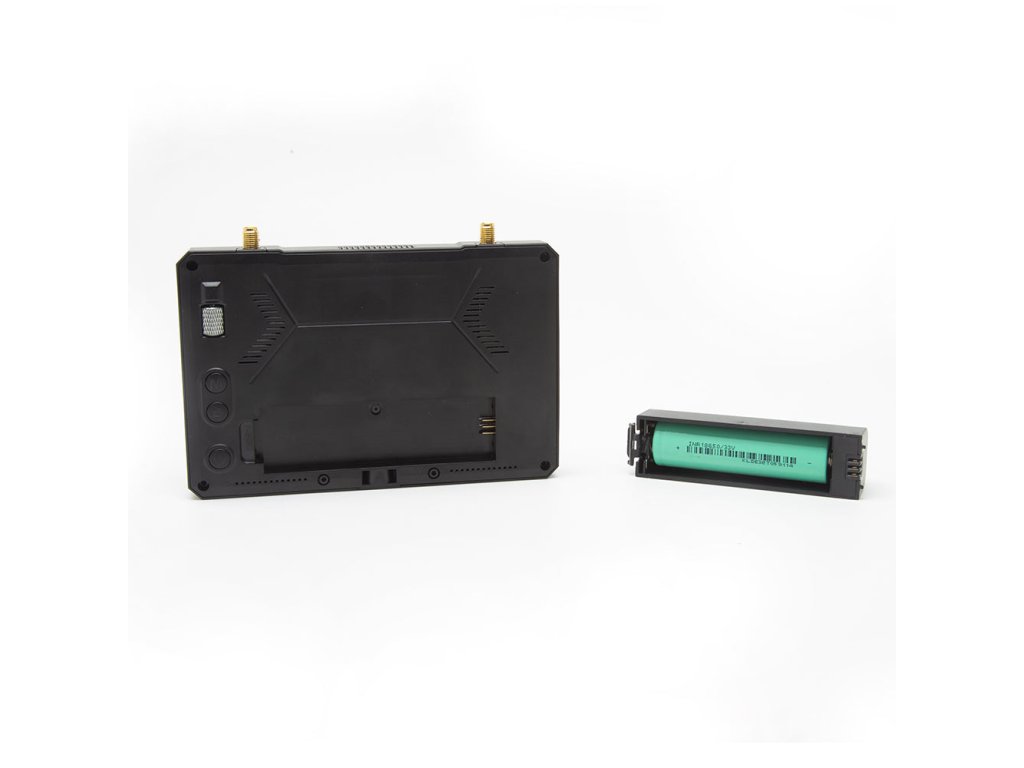

The SKYZONE M5F 5.8 GHZ FPV monitor with DVR is a high-brightness 5-inch monitor integrated with a Steadyview receiver. The receiver merges two signals into one, avoids image tearing and rolling, and makes an image more stable and clear. The monitor supports a 1cell 18650 battery and also supports 2-6S Lipo.

Features:
- Built-in with heat-sink fan
- Channel scanning
- Type C connector to upgrade the firmware or power goggles
- Support Chinese and English
- Shuttle Wheel Control
- Built-in Steadyview Receiver
- Multiple power supply

Specifications:
Name: Skyzone M5F
Screen: 5inch LCD
Resolution: 800x480
Steadyview Receiver: 5.8G 48CH
FOV: up to 50°
Latency: <20ms
Power supply: 2S-6S DC IN; 18680 Lion; Type-C USB
DVR: MJPEG 60FPS
Antenna: LHCP
Dimension: 135x88x16mm
Weight: 165
