Stack RushFPV RUSH BLADE F722 30x30 FC V2 & 60A BLHeli_32 4-in-1 128 ESC - Extreme Edition & RUSH Tank II VTX Combo
Code: DD25-DE17-DE11-DA05-Product detailed description

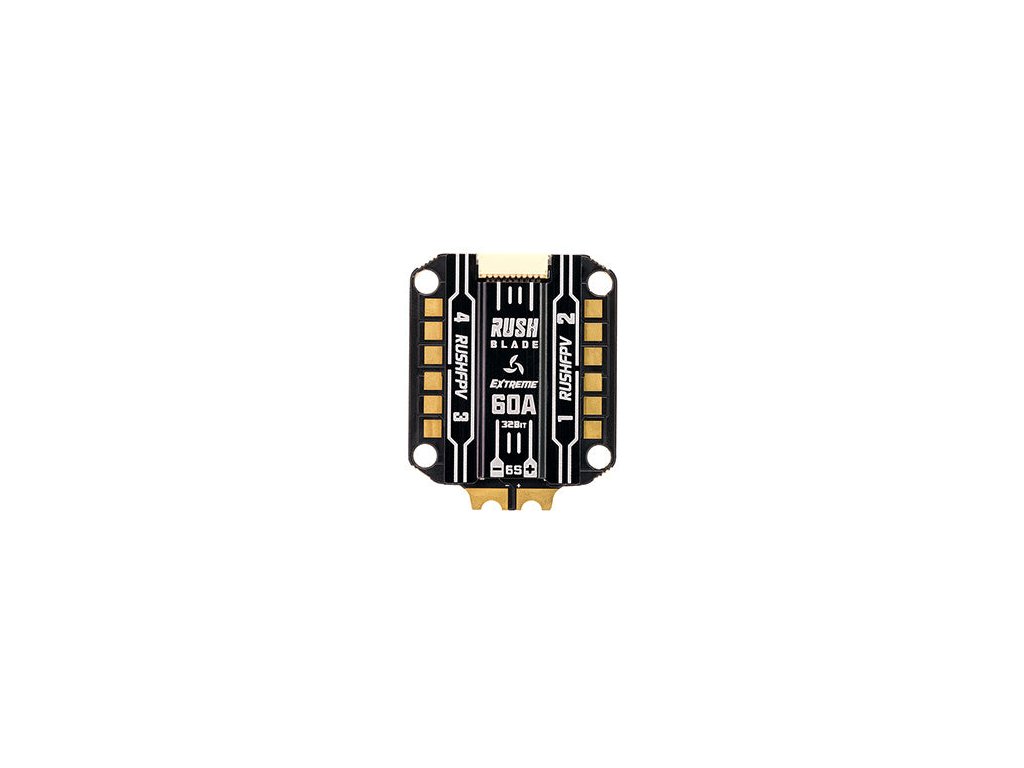

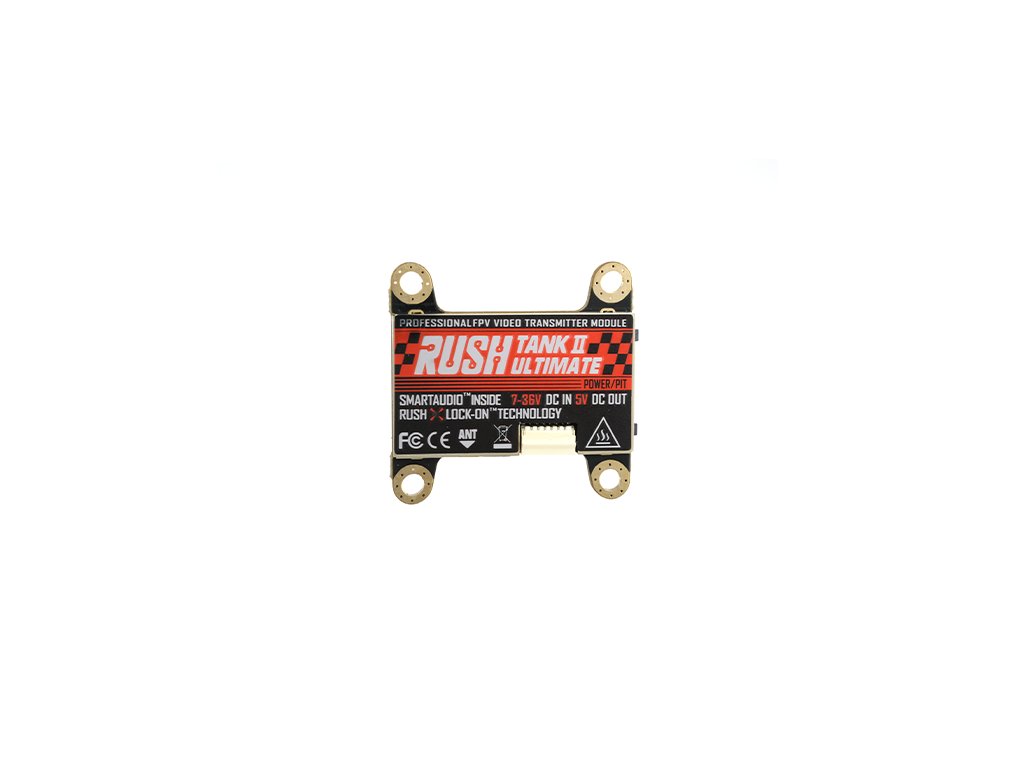

RUSHFPV RUSH BLADE F722 30x30 Flight Controller V2 Version & 60A BLHeli_32 30x30 4-in-1 128Khz ESC - Extreme Edition & RUSH Tank II VTX Stack/Combo Specifications Item: 60A BLHeli_32 30x30 4-in-1 128Khz ESC Extreme Edition Rated Current: 60A Peak Current: 80A Input Voltage: 3-6S Lipo MCU: F4 @ 200MHz PWM FREQ: 24-128KHz LED Color: Orange Weight: 16.5g Dimension: 45x36.5x7.5mm BL32 FW: RUSH_BLADE_EXTREME Item: RUSH BLADE F722 30x30 Flight Controller For Analog V2 MCU: STM32F722RET6 GYRO: ICM42688P BEC: INPUT 7-36V / 3-6S LIPO，OUTPUT 5V 3A OSD: AT7456E CVBS OSD BLACKBOX: 16MB FLASH TARGET: RUSH_BLADE_F7 PORT: 8×PWM 5×UART 1×I2C ADC: V-BATT / CURR-ESC LED: WS2812 LED STRIP BARO: BMP280 MOUNTING HOLES: 30.5x30.5mm SIZE: 36.5x37x5.2mm WEIGHT: 11g(without cable) Item: Rush Tank II Input Voltage: 7-36V DC Output Voltage: 5V 1A 12V Input Current: 40mA@Pitmode, 95mA@25mW, 185mA@200mW, 250mA@500mW, 380mA@800mW Channels: 48CH Power: PIT/25/200/500/800 mW Audio: Support audio input Dimensions: 36x36x4.5 mm Weight: 6.8g(including cable) Package includes: 1x RUSH BLADE F722 30x30 Flight Controller For Analog V2 1x 60A BLHeli_32 30x30 4-in-1 128Khz ESC Extreme Edition 1x RUSH Tank II VTX
Additional parameters
| Category: | Stacks |
|---|---|
| Mounting Size: | 30.5x30.5mm |
| Power Supply: | 3-6S |
| Continuous Current: | 60A |
| Processor Type: | F722 |
