Antenna 4Hawks Raptor XR for Smart Controller

Product detailed description

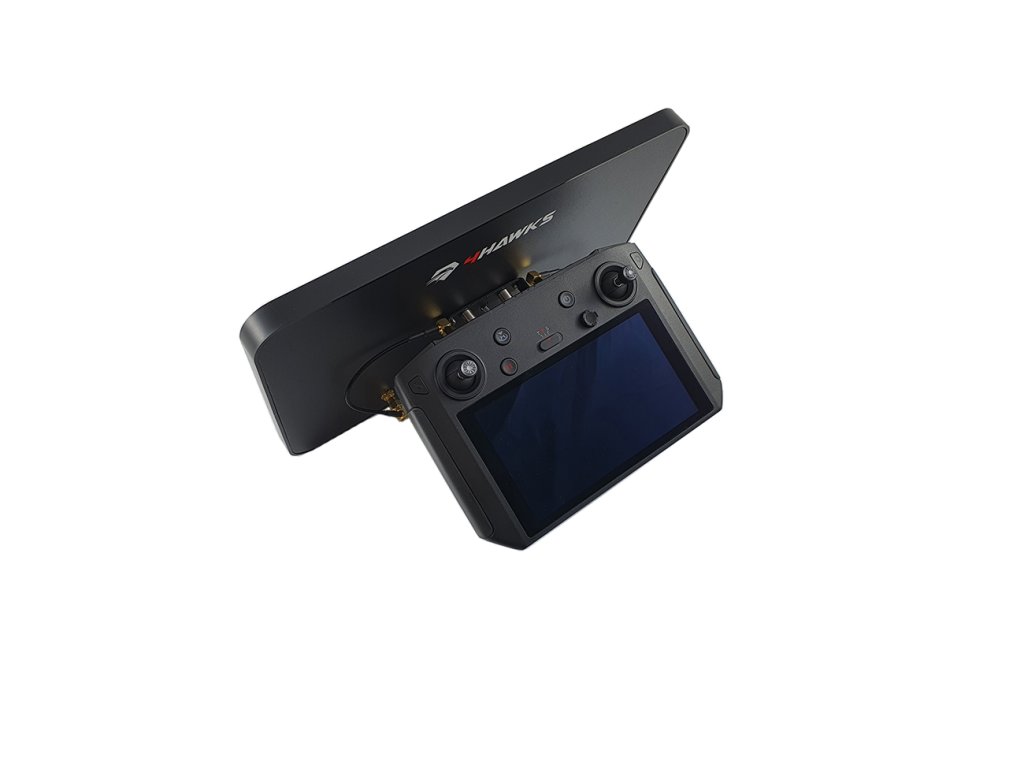

Raptor XR for DJI Smart Controller

4Hawks antenna for DJI Smart Controller is highly advanced, operating in both 2.4GHz as well as 5GHz frequencies. The entire construction is 100% UV-protected to assure the longevity of the equipment. The mounting is made of stainless steel for rock-solid stability. Changing the direction of the antenna doesn't cause any difficulties, as the system was designed in a way that allows quick position change with just a single “click”. This way you can be sure that you do not lose the connection with your drone.

Features:

- Concurrent dual band 2.4 & 5GHz
- Long range extension without external boosters
- Complete solution
- Controller NOT included
- Compatible with the Mavic 3 series, Mavic 2 series, Mavic Air 2S, Mavic Air 2, Mini 2, Phantom 4 Pro v2.0, Matrice series (300)

Specification:

Frequencies
Port 1: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Port 2: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Gain
Port 1: 11 dBi  (+/- 1 dBi) & 14 dBi  (+/- 1 dBi)
Port 2: 11 dBi  (+/- 1 dBi) & 14 dBi  (+/- 1 dBi)
VSWR
Port 1: < 1.50  (max. < 2.00)
Port 2: < 1.50  (max. < 2.00)
Beamwidth
Port 1: 70°/40° & 40°/25°
Port 2: 70°/40° & 40°/25°
Polarization
Port 1: Vertical
Port 2: Vertical
Impedance
Port 1: 50 Ω
Port 2: 50 Ω

Mechanical parameters:
Material Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Material Mounting: Stainless steel + paint
Weight: 520g (450g Antenna + 70g Mounting)
Dimensions: 29.2 x 18.2 x 2.1 cm
Connection: RP-SMA female
Tilt adjustment: 5 tilt positions, OnClick system
Mounting type: On SMA connectors (Permanent)
