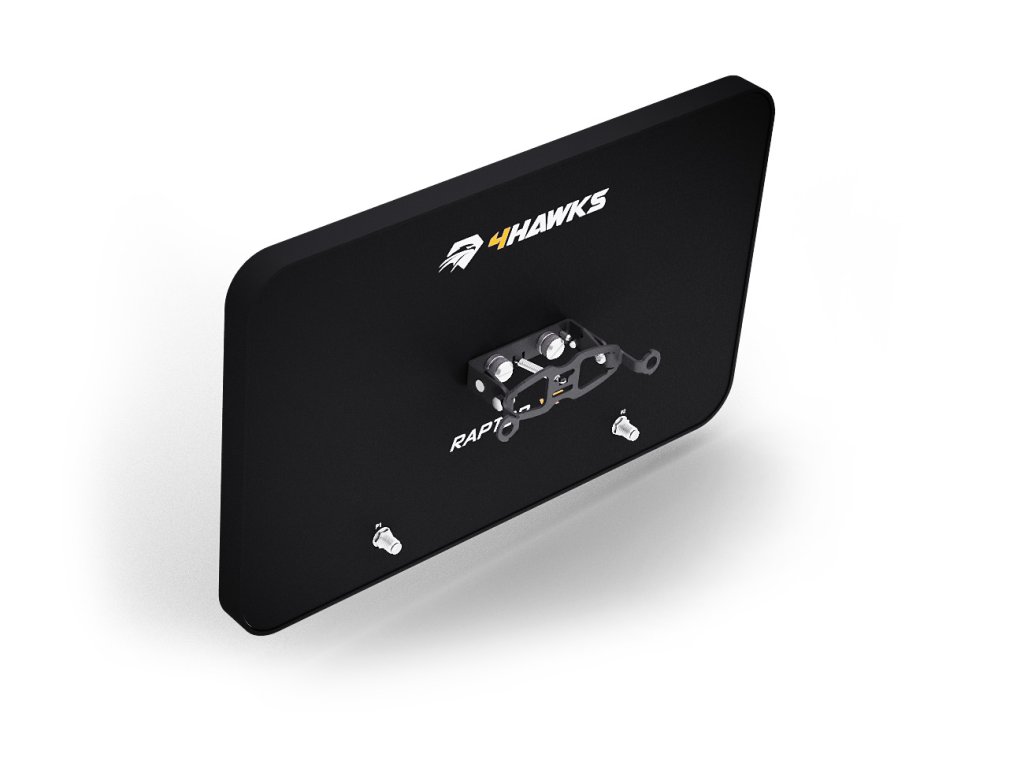

Antenna 4Hawks Raptor XR for Mavic Mini

Product detailed description

Raptor XR for DJI Mavic Mini

4Hawks antenna for the DJI Mavic Mini model is highly advanced, operating in both 2.4GHz as well as 5GHz frequencies. The entire construction is 100% UV-protected to assure the longevity of the equipment. The mounting is made of stainless steel for rock-solid stability. The entire set is lightweight and uniform (without any loose equipment pieces). Changing the direction of the antenna shouldn’t cause any difficulties, as the system was designed in a way that allows quick position change with just a single “click”. This way you can be sure that you do not lose the connection with your drone.

Features:

- Maximize performance
- Concurrent dual band 2.4 & 5GHz
- No modification to the drone itself
- Long range extension without external boosters
- Design does not contain any removable parts
- Complete solution
- Controller NOT included

Specification:

Frequencies
Port 1: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Port 2: 240 - 2.50 GHz & 5.00 - 5.80 GHz
Gain
Port 1: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)
Port 2: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)
VSWR
Port 1: < 1.50  (max. < 2.00)
Port 2: < 1.50  (max. < 2.00)
Beamwidth
Port 1: 70°/40° & 40°/25°
Port 1: 70°/40° & 40°/25°
Polarization
Port 1: Vertical
Port 2: Vertical
Impedance
Port 1: 50 Ω
Port 2: 50 Ω

Mechanical parameters:
Material Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Material Mounting: Stainless steel + paint
Weight: 520g (450g Antenna + 70g Mounting)
Dimensions: 29.2 x 18.2 x 2.1 cm
Connection: RP-SMA female
Tilt adjustment: 3 tilt positions, OnClick system
Mounting type: On SMA connectors (Permanent)

Package includes:
1x Range extender antenna
1x Stainless steel mounting kit
2x RP-SMA male RG316 black pigtails
2x Dedicated for Mavic U.FL pigtails
2x screwdriver (Torx T6 & Philips) + 8mm wrench
1x Additional Mavic tools
