Motor iFlight R5 2207 2050KV

Product detailed description

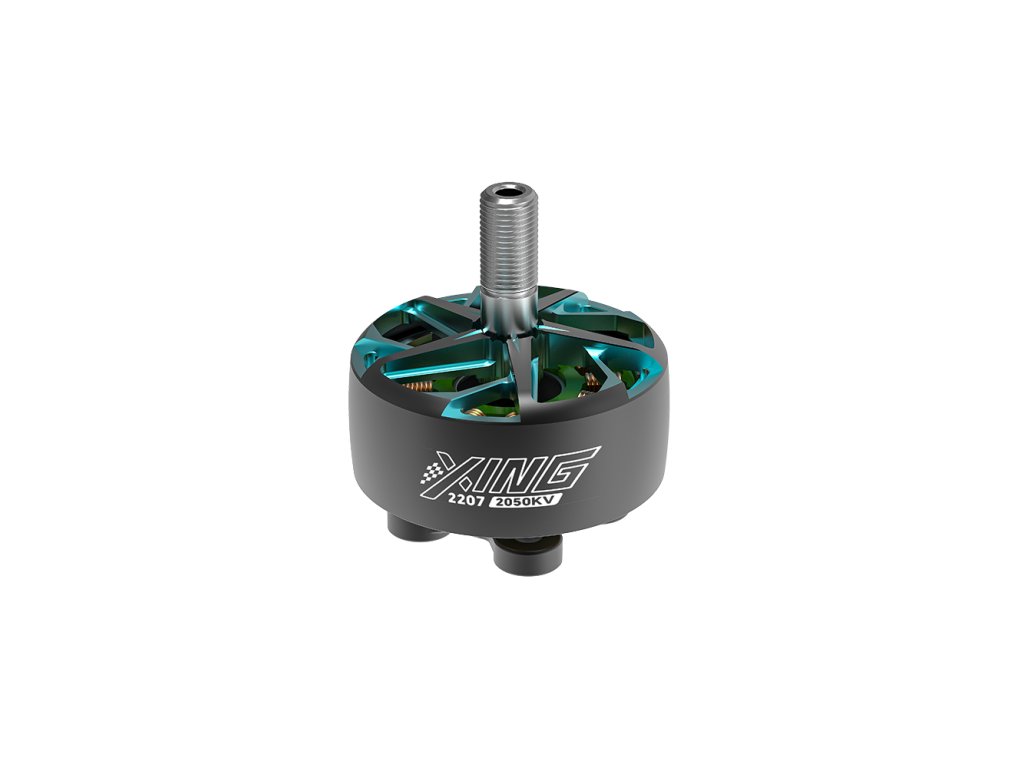

R5 2207 2050KV FPV motor

This motor is designed specifically for race drones like the Mach R5 Racing drone.

Upgraded with new center-slotted N52H curved arc magnets, it delivers smoother, more reliable, and more powerful performance than ever before.

With high-quality materials and a durable bell and shaft joint, the motor minimizes magnet air gap and stator lamination, maximizing efficiency and power.

Specifications:
Model: R5 2207 Motor
KV: 2050KV
Weight(included wire): 34.6g
Dimension: 28.2*31.5mm
Interphase Resistance: 56.3mΩ
Input Volts: 25.2V
Peak Current: 49.53A
Max Watt: 1166.4W
Mounting Holes: 16*16 φ3mm
Shaft Diameter: 5mm
Shaft Protruding Length: 12.5mm
Lead: 150mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: φ9*φ4*4
Winding: Single Strand copper winding

Package Includes:
1 x Xing 2207 2050KV Brushless Motor
4 x M3*8 screws
1 x M5 Flanged Nylon Insert Lock Nut
