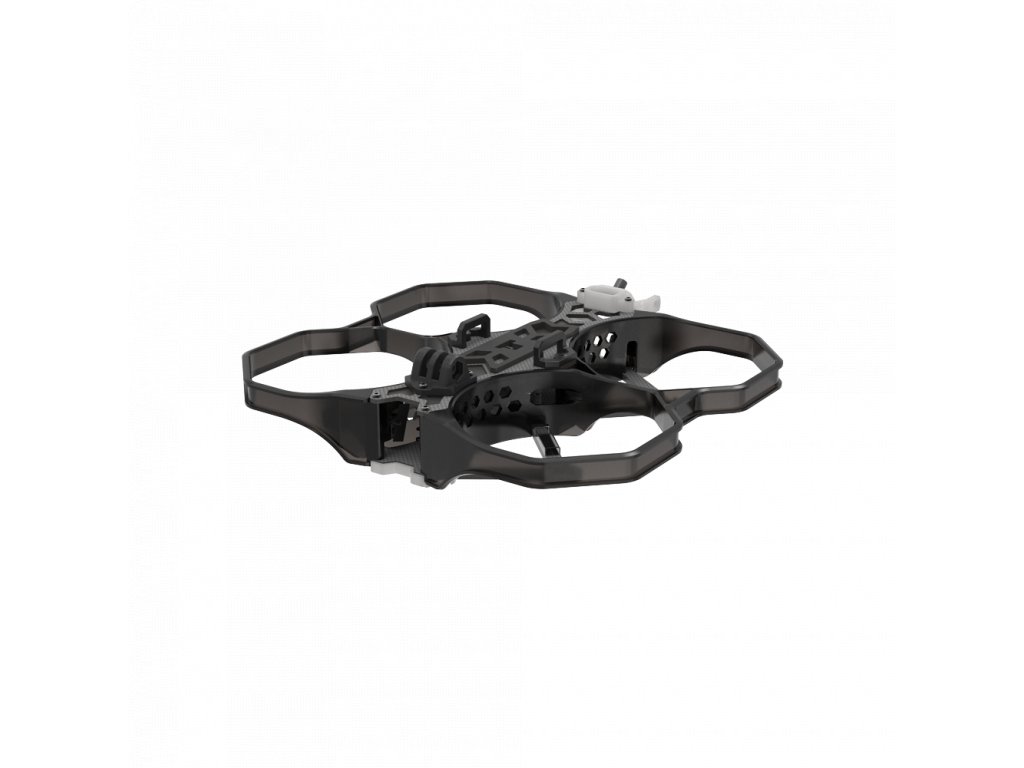

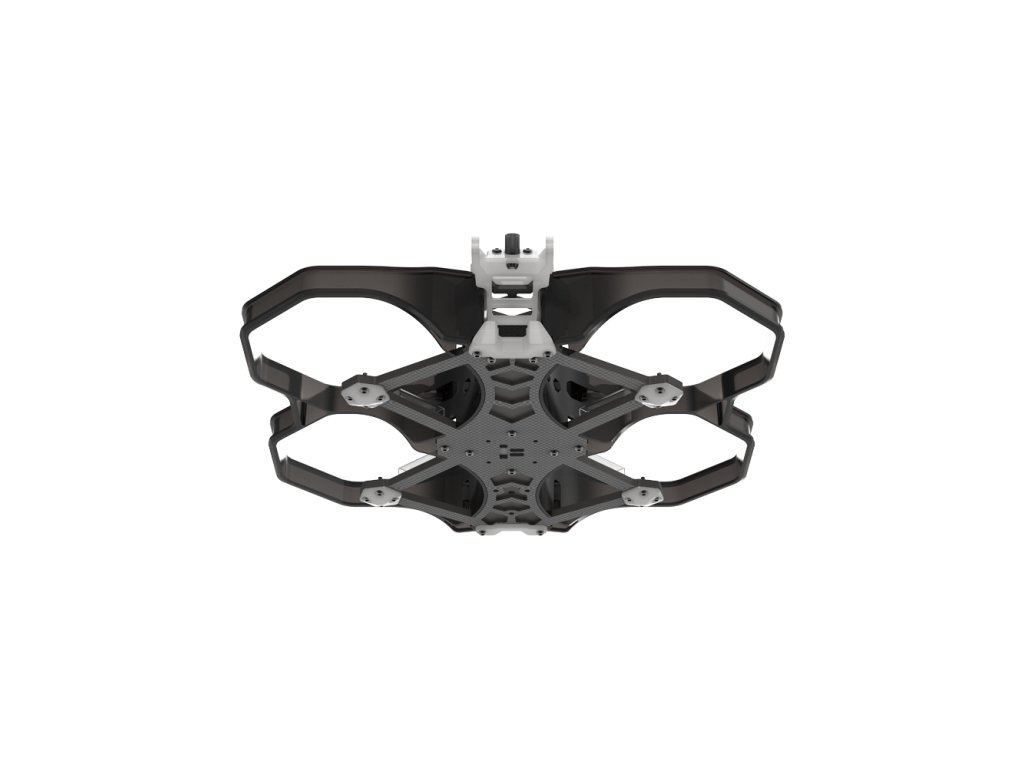

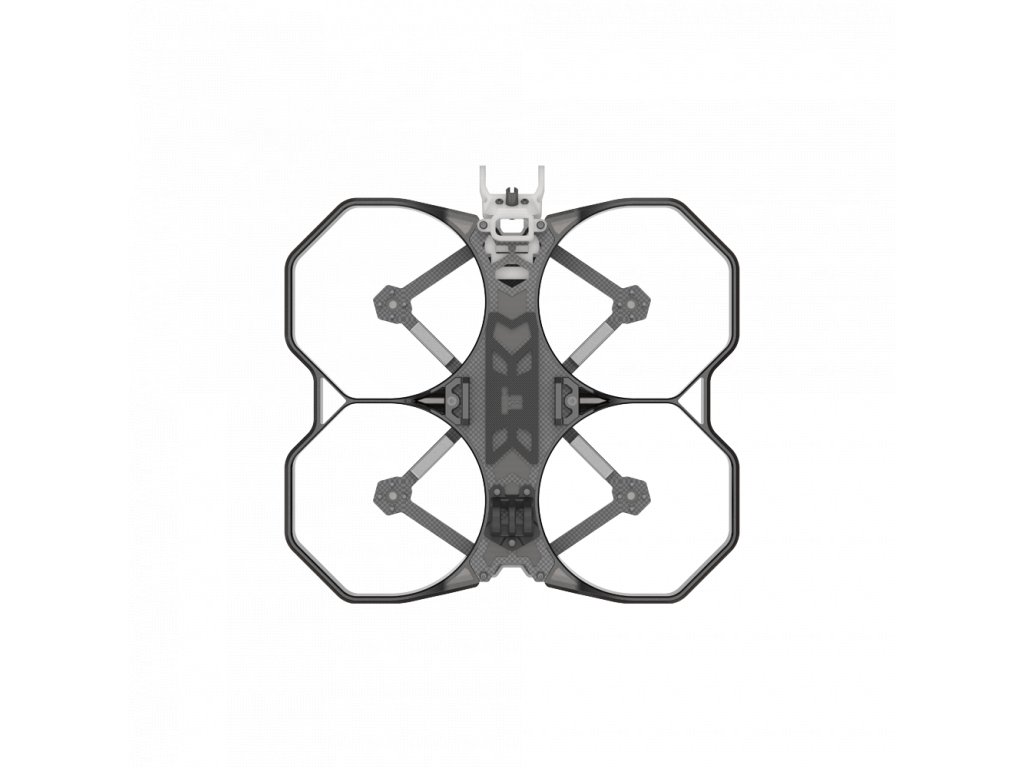

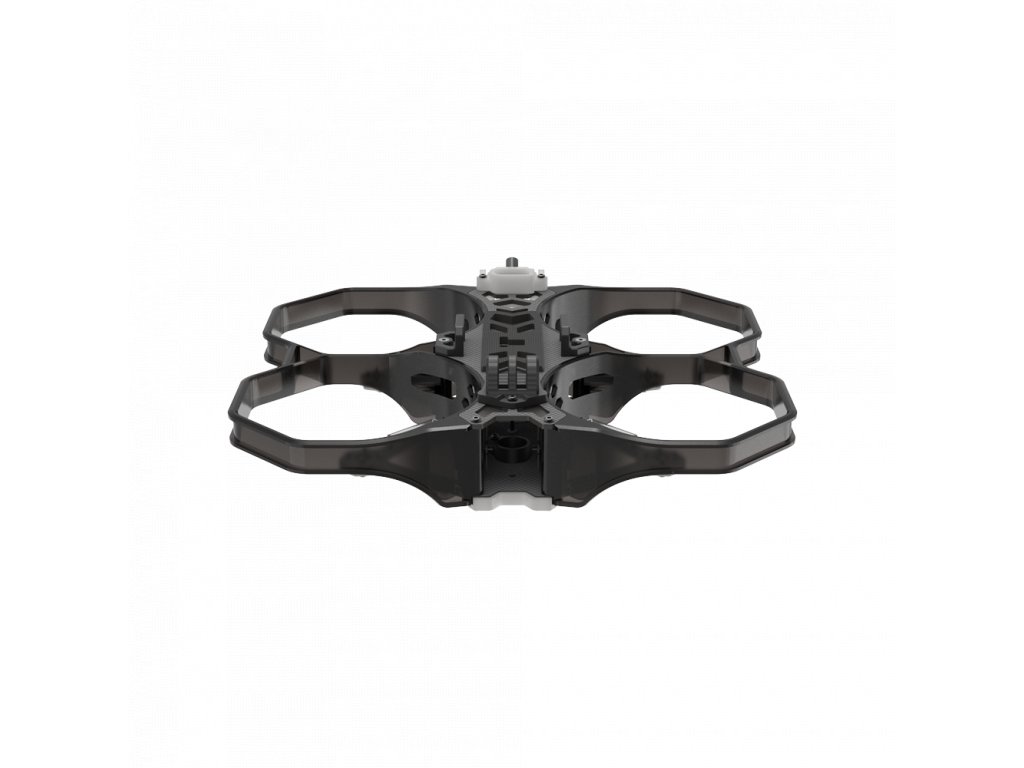

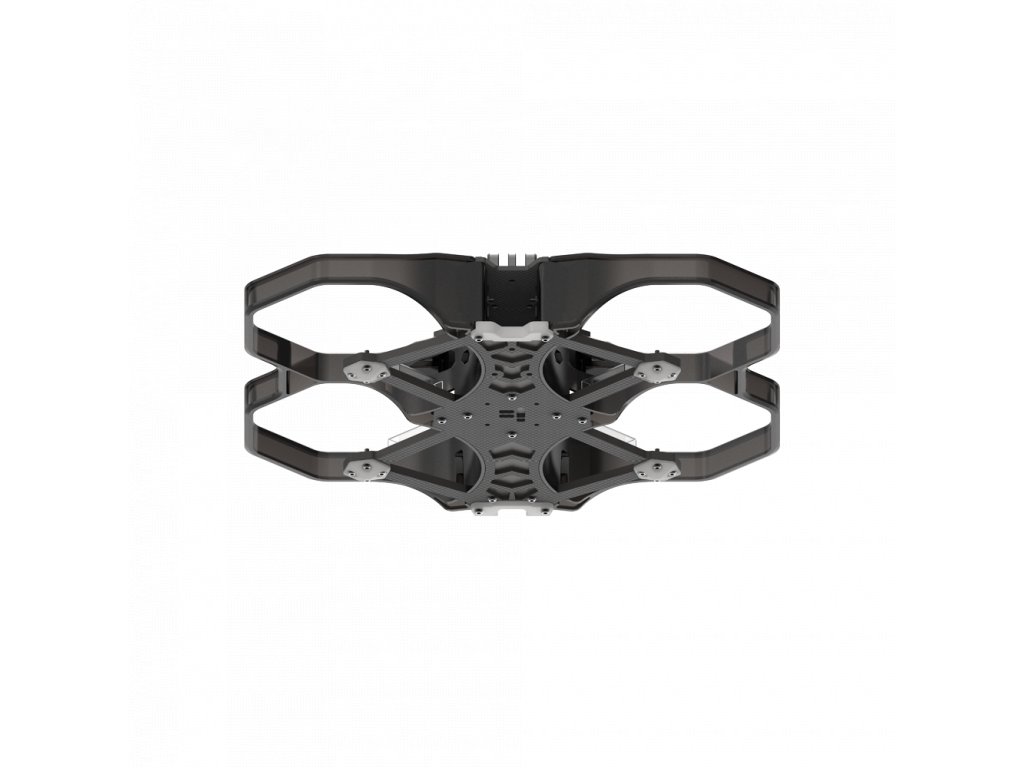

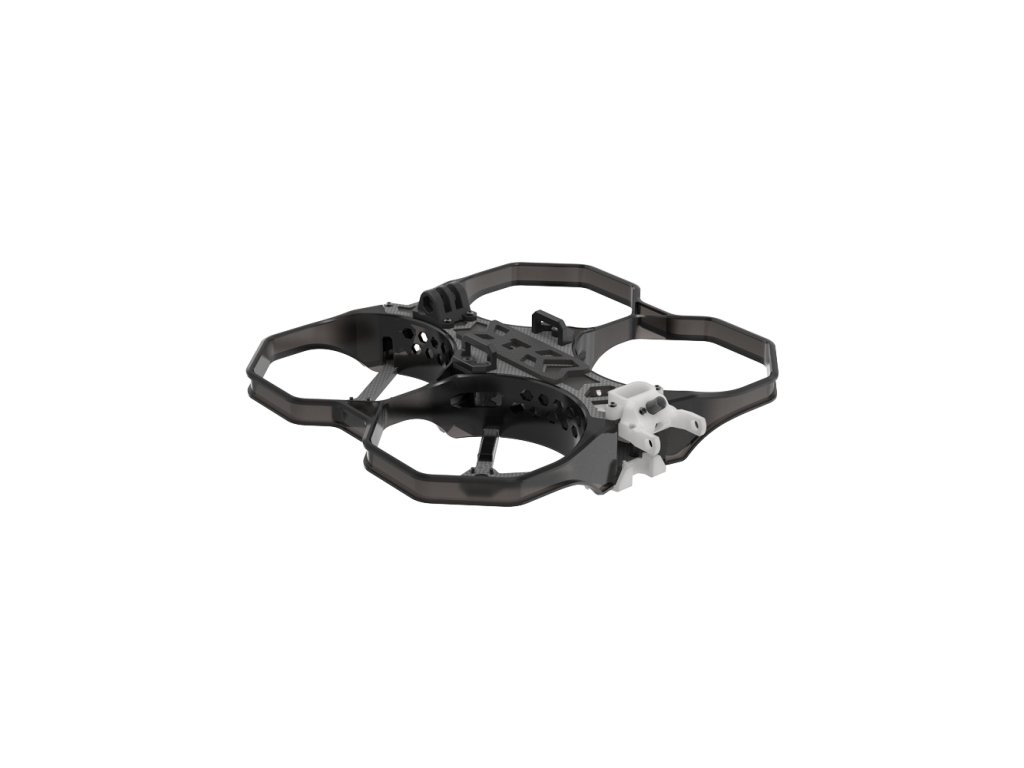

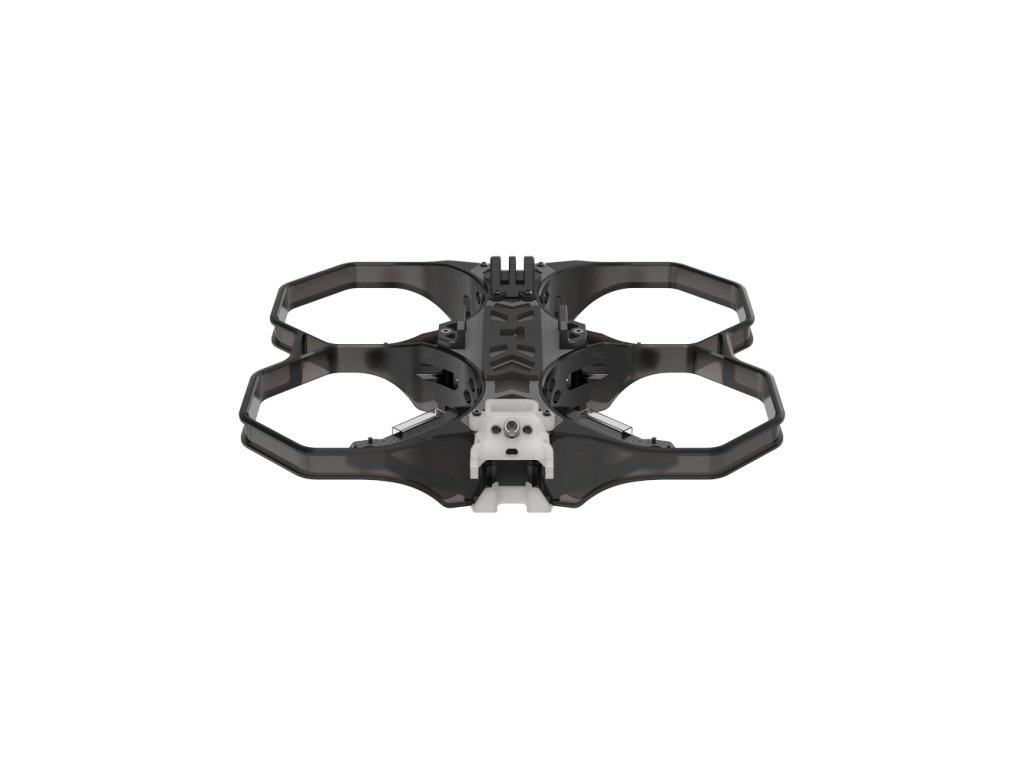

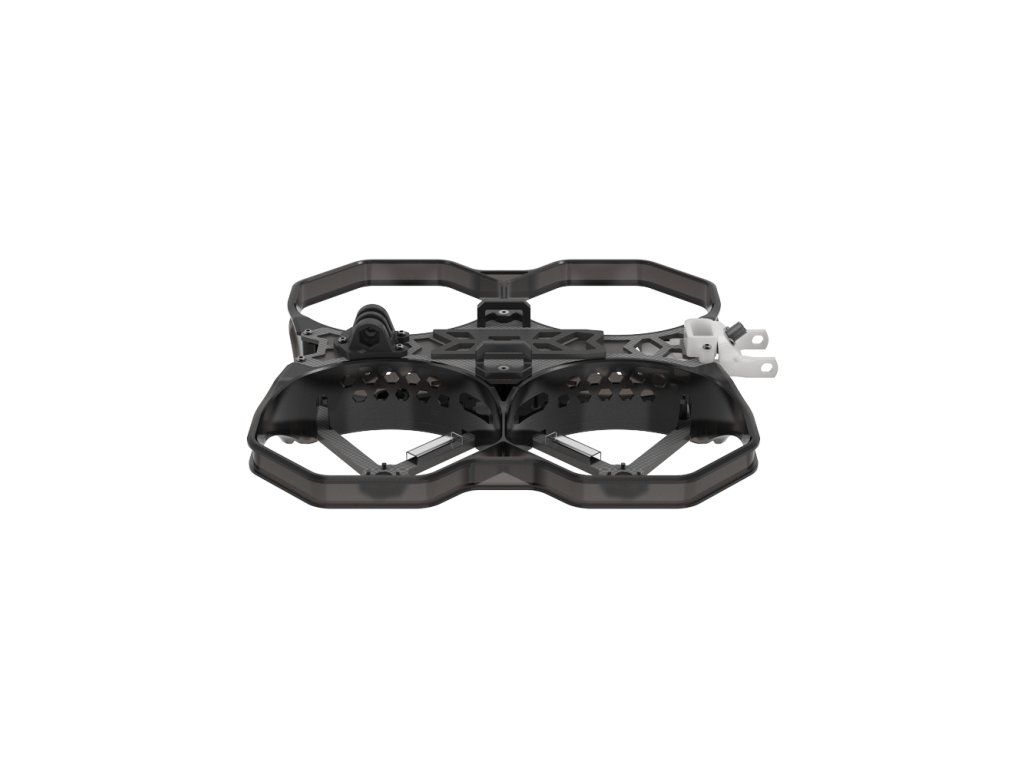

Frame iFlight ProTek35 V1.4
Code: C014376Related products
Product detailed description
ProTek35 V1.4 Frame Kit Features: - No Props or frame in view! - CNC bracket - Easy to install battery straps. - Secured Battery Plug. - T700 Quality Carbon - 40% more tensile strength compared to common 3K carbon. - Lightweight one-piece frame design - Less flexibility, more Rigid, more Durable. - Low Resonance frame construction - Less Jello, more Cinematic footage. Specifications Product Name: ProTek35 V1.4 Frame Kit Wheelbase: 151mm Frame Dimension: L217*W194*H32.5mm Bottom Plate Thickness: 3.5mm Top Plate Thickness: 2mm Arm Thickness: 3.5mm Motor Mounting: 12x12mm Max Stack Height: 27mm VTX Mounting: 25.5*25.5/Φ2mm / 20*20/Φ2mm Weight: 213.5grams Compatible with: Vista HD system BLITZ mini 600mW VTX DJI O3 air unit Packing List: 1x ProTek35 V1.4 Frame 1x TPU set 1x Screw pack 2x Battery Strap
Additional parameters
| Category: | FPV Frames |
|---|---|
| Camera Mounting: | Micro (19mm) |
| Drone Type: | CineWhoop |
| Material: | Carbon fiber |
| Motor Size: | 2205 |
| Size: | 3.5 inch |
| Wheelbase: | 151mm |
| The item has been sold out… | |
