Stack Pilotix F405 V3 ICM42688 60A BLS ESC

Product detailed description

Pilotix Stack F405 V3 ICM42688 60A BLS ESC

The Pilotix  F405 V3 60A Stack is an advanced flight controller and electronic speed controller (ESC) combination designed for high-performance drone applications. The F405 processor offers fast and precise flight control for smooth and stable flight maneuvers. The 60A ESC provides ample power for a wide range of motors and propeller combinations, ensuring reliable and efficient performance.

FC Specifications

CPU: STM32F405RGT6
Gyro: ICM42688
Baro: BMP280
OSD: Support
BlackBox: 16MB

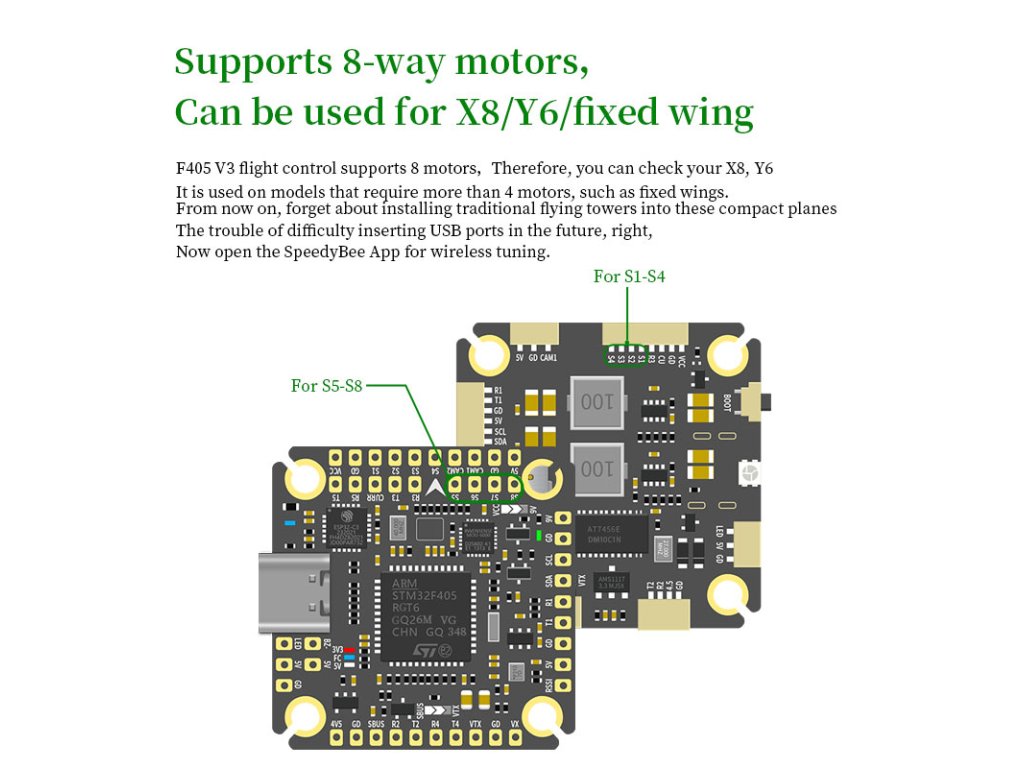

Motor output: 8-way optional
LED light strip: support
Buzzer: support
Receiver Protocol:  ELRS/CRSF/S.BUS/Frsky/Futaba/flysky/TBS Crossfire/DSMX
Universal serial port: 5-way optional
Output power supply: 5V/2.5A  9V/2A
USB Connector: Type-C
DJl/Vista Digital Sky End: support
Camera switching: support
Sbus and VTX jumper switching: support
9V and VCC jumper switching: support

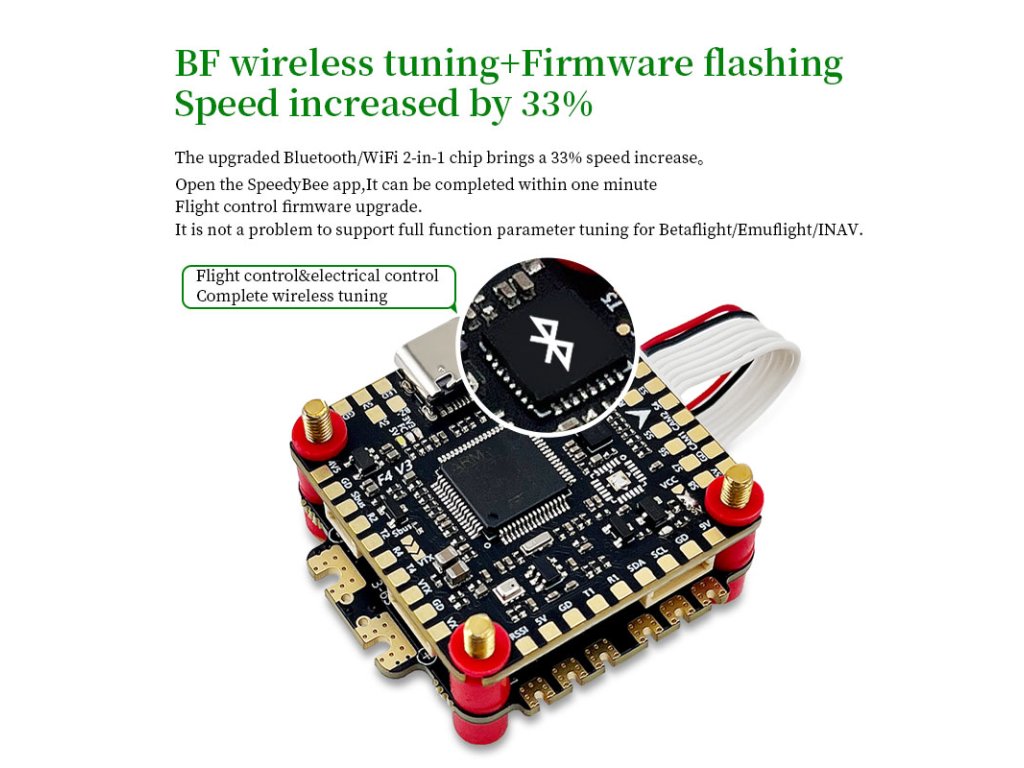

Bluetooth: support
Weight: 9.6g
Mounting Hole: 30.5x30.5mm,M3
Size: 36x36 mm
FC Firmware: AOCODARCF405V3/AOCODARCF405V3SD

ESC Specifications

Continuous Current: 60A X4
Burst Current: 70A X4
Power Supply: 3-6S Lipo
Default protocol: 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
ESC Telemetry: No output
Current sensor: support
ESC Firmware: Bluejay H-H50
Weight: 10.4g
Size: 40x 40.7mm
Mounting Hole: M3 30.5×30.5mm

Package Includes:
1x Pilotix F405 V3 ICM42688 60A BLS ESC stack
