S99 Soldering Iron SEQURE ( simple version with B1 tip)
Code: LTS9900B1Product detailed description
Product Description:
- Compatible with C245 series soldering iron tips, temperature adjustable range 50℃-500℃/122℉-932℉.
- Working power supply: support PD2.0/3.0, QC2.0/3.0, PPS, DC Max 21V.
- Intelligent temperature control algorithm, supports temperature compensation and temperature self-calibration.
- The shell is made of industrial special materials, which is extremely resistant to high temperature and has effective anti-static treatment.
- 128*32 OLED display, built-in buzzer for work reminder.
- Sensitivity can be set to reject interference from environmental factors.
- Support ℃/℉ switch, left and right hand screen flip, firmware upgrade.
-Available in three languages： Chinese, English, and Russian
The resistance of the shipped soldering iron tip is about: 5.5 Ω
S20/S60/S60P/S99 parameter comparison
Model
S20
S60
S60P
S99
Maximum Voltage
9V
12V
21V
21V
Maximum Power
20W
60W
60W
150W（2.5Ω），75W（5.5Ω）
Fastest Melting Tin Time
3s
2s
2s
2s（2.5Ω），5s（5.5Ω）
Working Temperature
50-500℃
50-500℃
50-500℃
50-500℃
Screen Size
128*32 OLED
128*32 OLED
128*32 OLED
128*32 OLED
Interface Type
Type-C
Type-C
Type-C
Type-C
Power Supply
PD，QC，DC
PD，QC，DC
PD，QC，DC，PPS
PD，QC，DC，PPS
Protocol Selection
not support
not support
support
support
Host Size
116*13*15mm
118*13*15mm
118*13*15mm
124*13*15mm
Host Weight
22g
22g
22g
22g
Soldering Iron Tip Length
45mm
80mm
80mm
99mm
Soldering Iron Tip Weight
1g
2g
2g
5g
Host+Soldering Iron Tip Size
135*13*15mm
145*13*15mm
145*13*15mm
165*13*15mm
Host+Soldering Iron Tip Weight
23g
24g
24g
28g
Application
Nano welding, chip flying lead
Mobile computer repair
Mobile computer repair
Drone, RC model welding

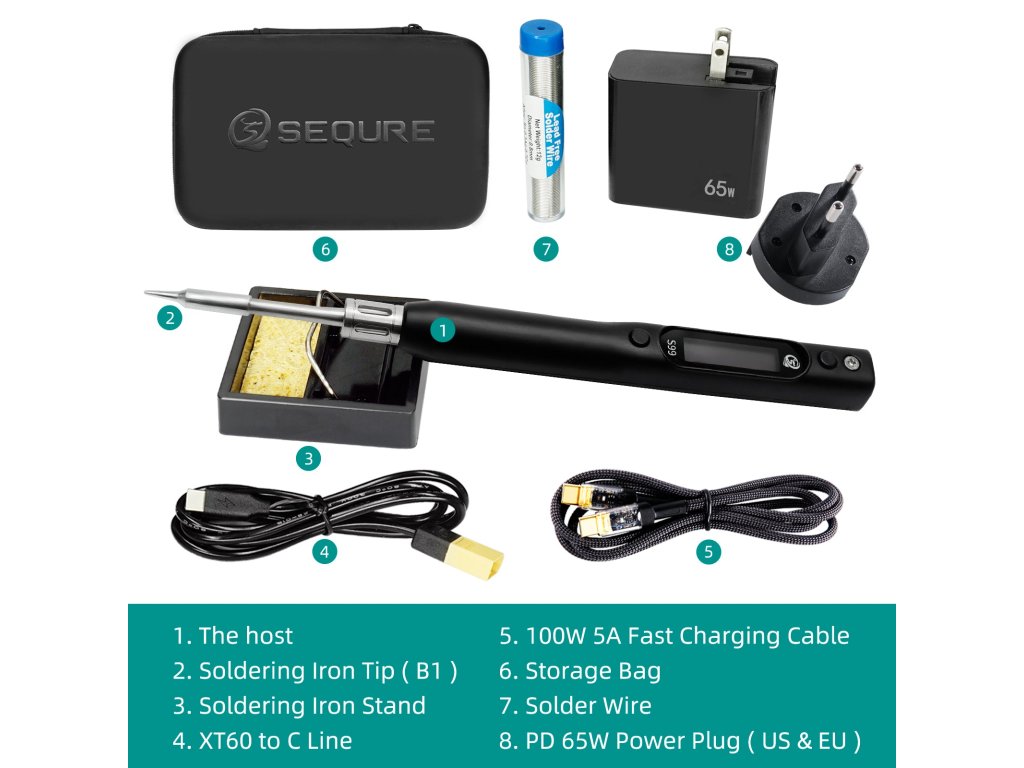

Package included:
-
Host × 1
-
Soldering iron tip × 1
Overall Dimension:
S99（K/I/B1/BC2）
- Product Size: 124*13*15mm
Net Weight Of Product: 22g
- Package Size: 125*35*23mm
Packing Weight: 44g
- Package Size (Including Outer Carton)：205*115*40mm
Packing Weight (Including Outer Carton)：85g
