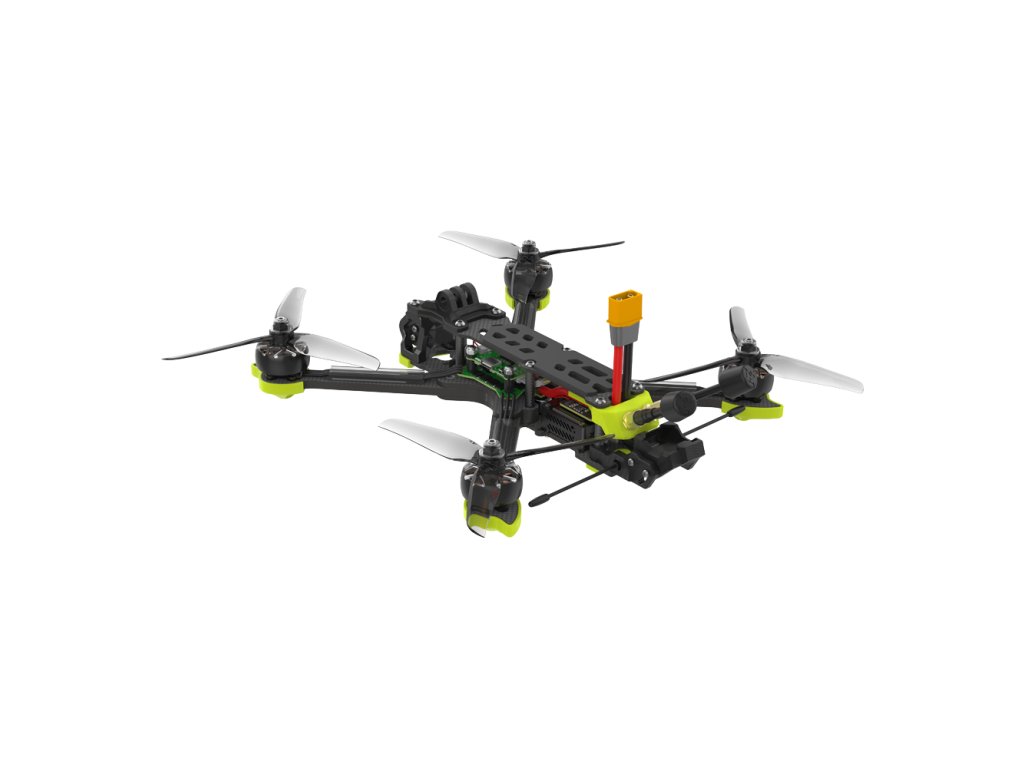

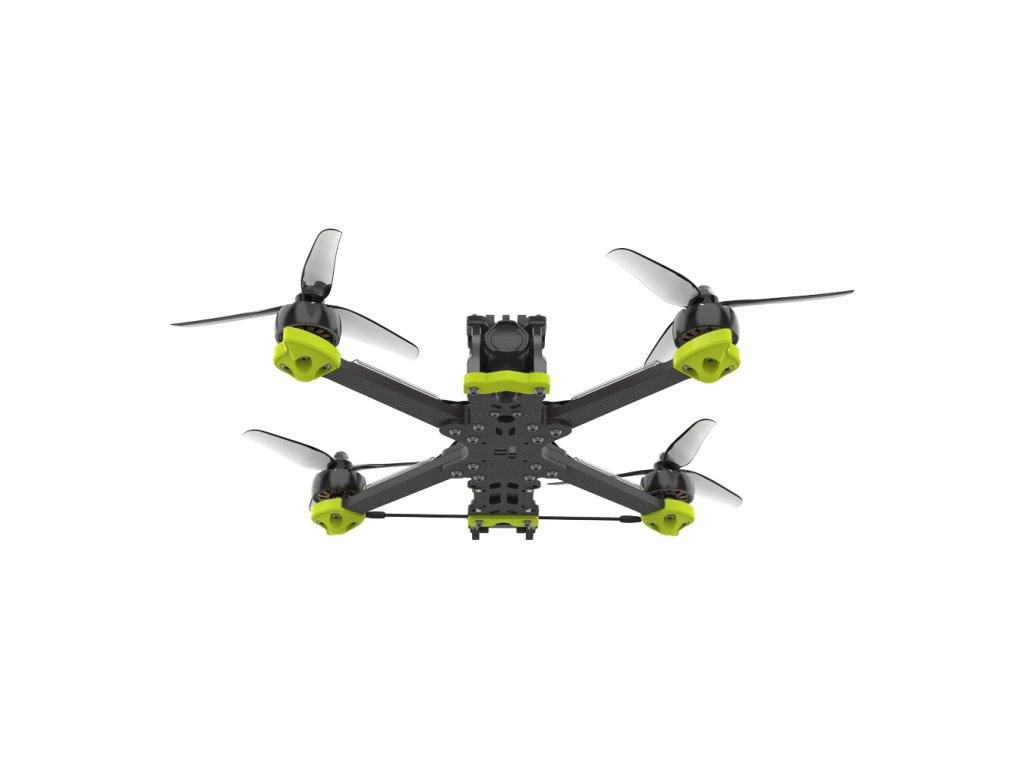

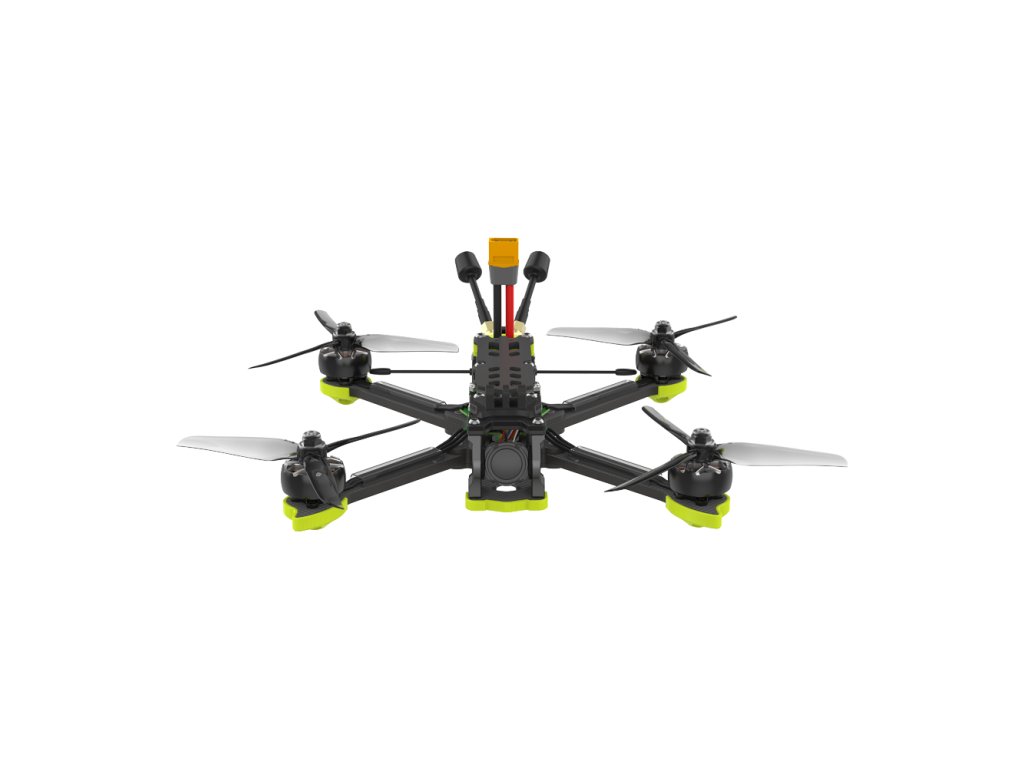

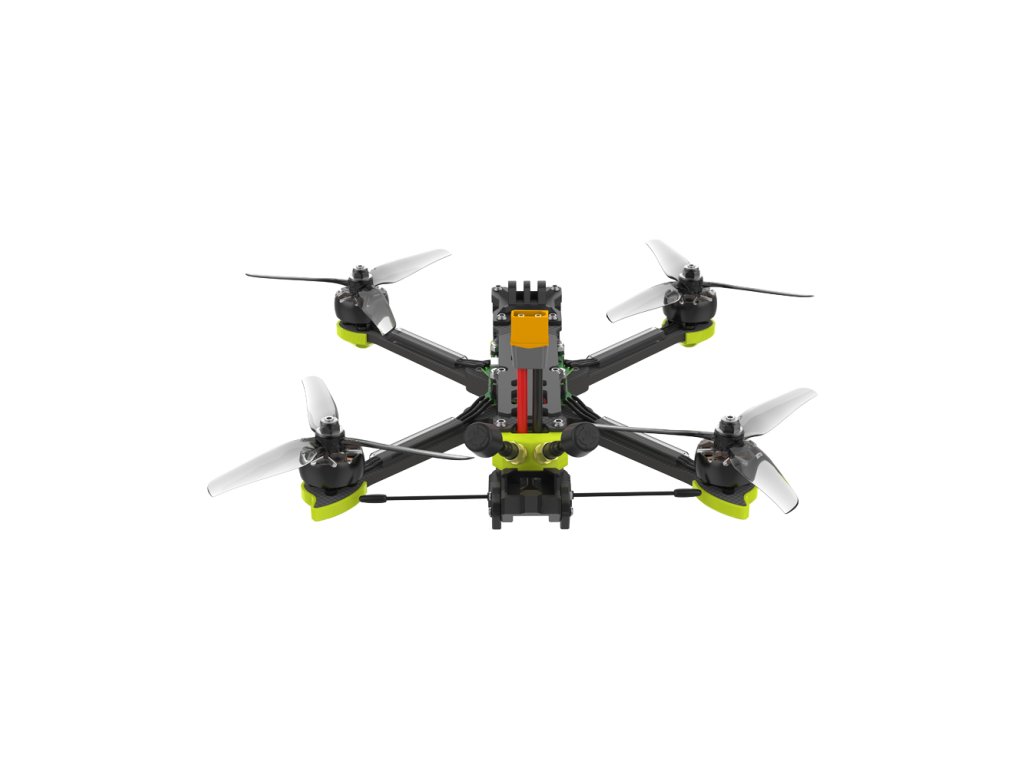

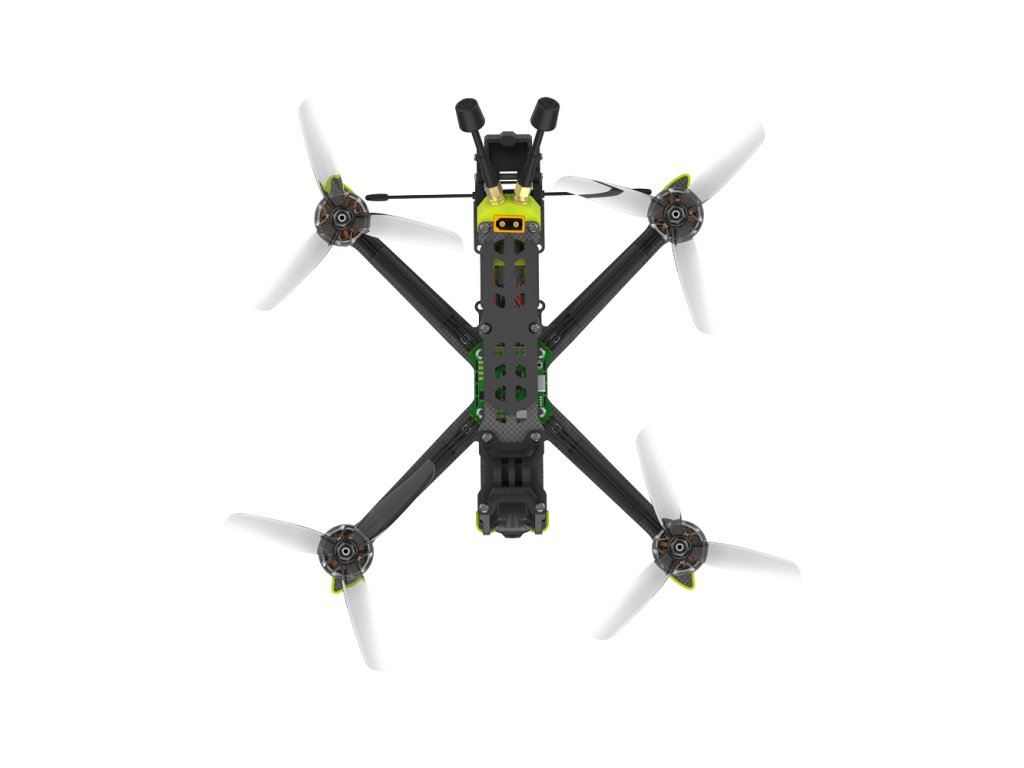

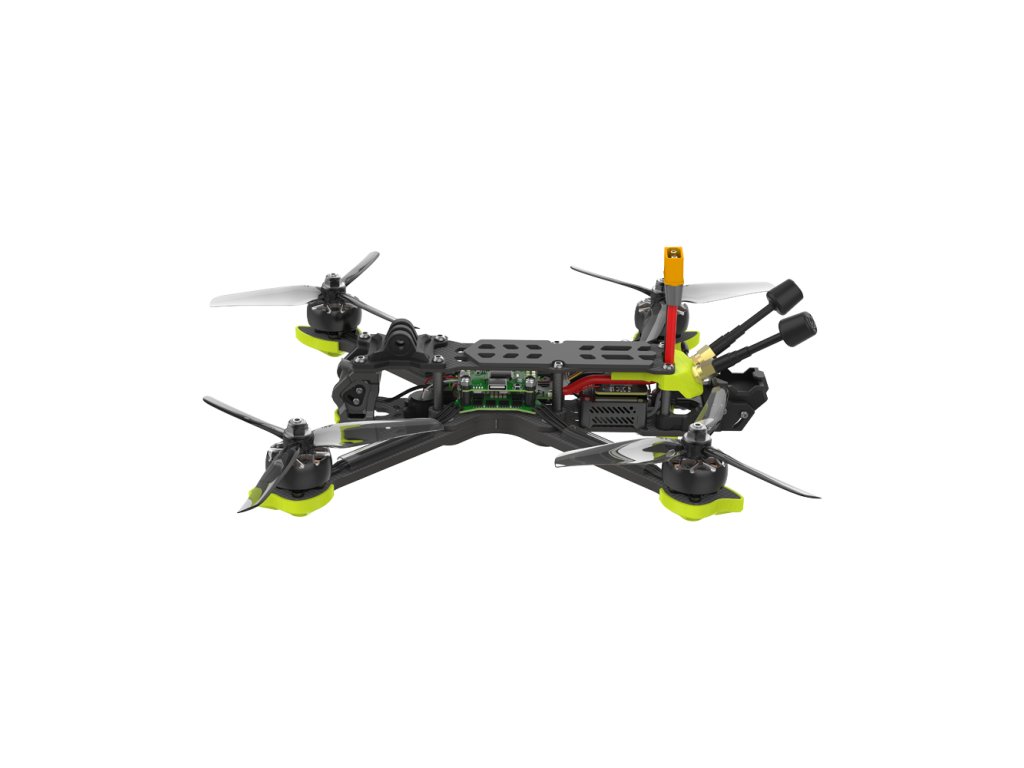

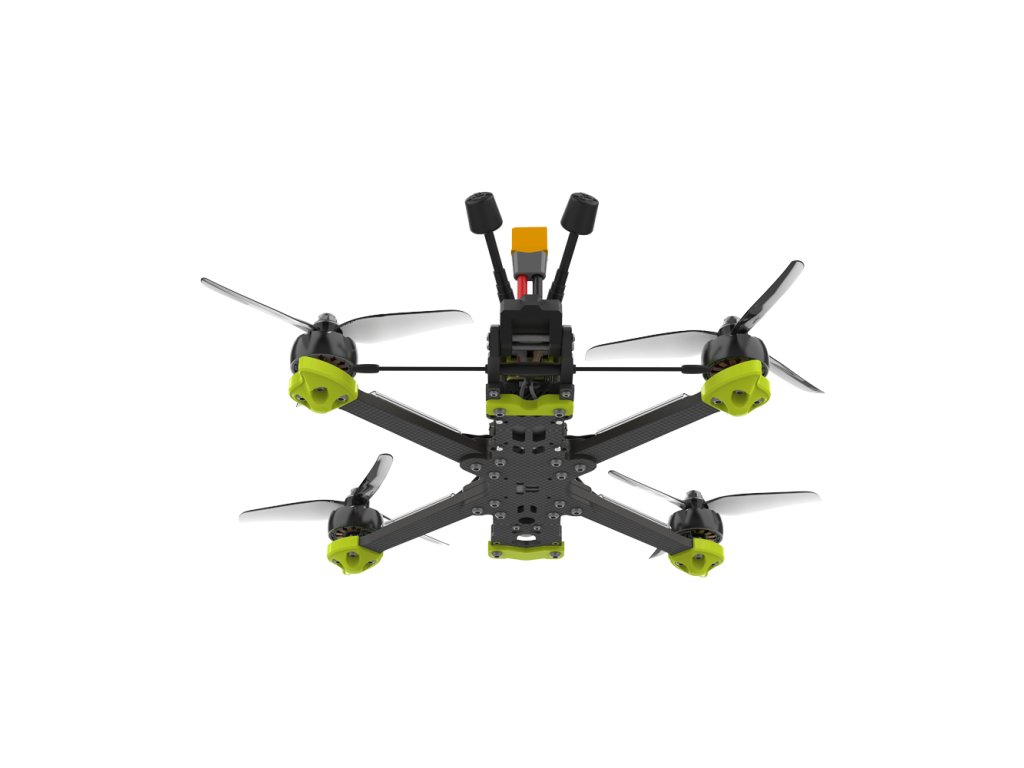

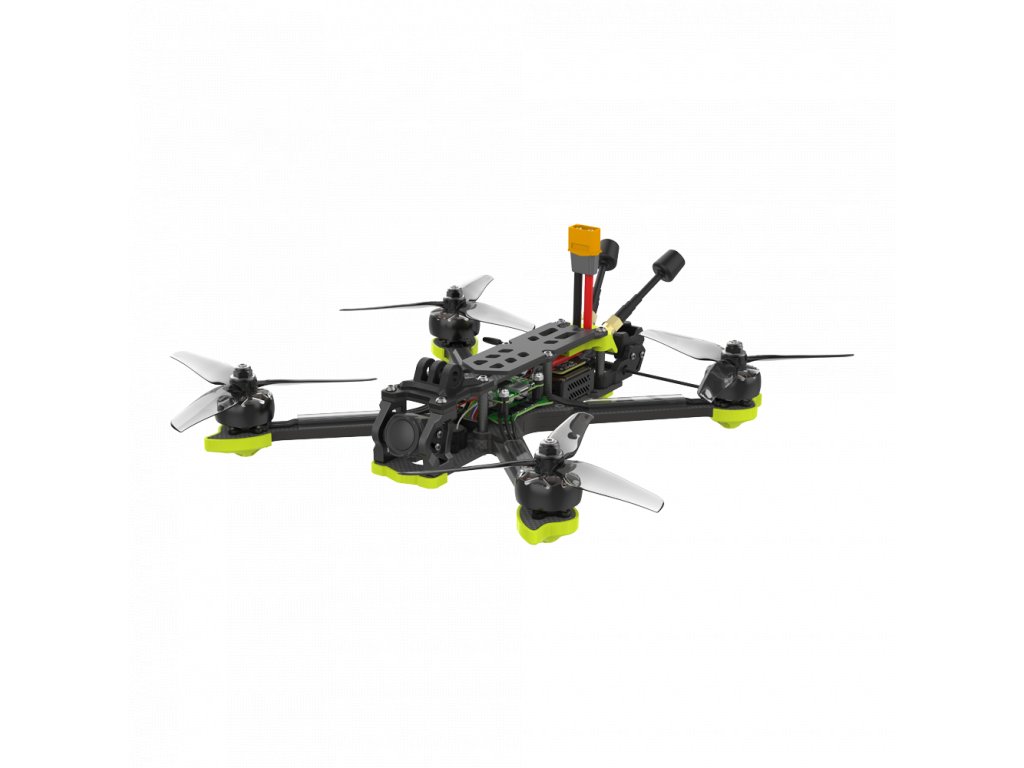

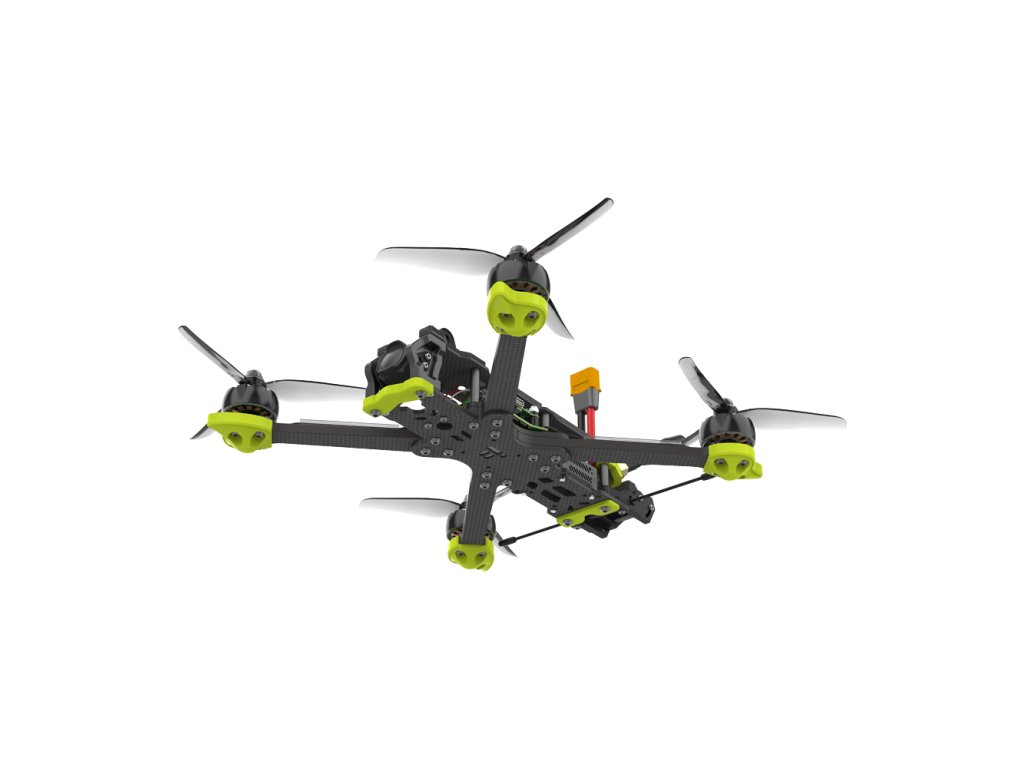

FPV Drone iFlight Nazgul5 V3 HD 6S BNF ELRS 2.4GHz
Code: F013440Product detailed description
Nazgul5 V3 HD 6S BNF (ELRS 2.4GHz) Features: - XING-E 2207 motors and NAZGUL 5140 props - 5" version also fits 5.1" style propellers - Fits both 30.5x30.5 and 20x20 stacks - DJI O3 HD System - 5mm arm design for more durability - Popular True-X configuration - LED illuminated Logo - TPU crash-guards - Easy-Swap arms Specifications Product Name: Nazgul5 V3 6S HD Geometry: Squashed-X FC: BLITZ F722 FC ESC: BLITZ E55S 55A 4-IN-1 ESC Video Transmission: DJI O3 Air Unit Frame: 245mm wheelbase Motor: XING-E Pro 2207 motors Prop: Nazgul F5 propellers Takeoff Weight: Approx. 457 g Dimensions (L×W×H): 173×173×34±2 mm Max Speed: 190 Km/h (Manual Mode) Maximum Takeoff Altitude: 3200 m Max Hover Time: Approx. 7.5 mins Max Flight Distance: 5 km Max Wind Speed Resistance: Level 7 Operating Temperature Range: -10° to 40° C (14° to 104° F) Antennas: 2 Antenna GNSS: GPS+SBAS+Galileo+QZSS+Glonass(Optional) Receiver Option: iFlight ELRS 2.4GHz RX Video Transmission Product Name: DJI O3 Air Unit Weight: Approx. 36.4 grams (headband included) Dimensions (L×W×H): L32.5 * W30.5 * H 14.5mm Communication Bandwidth: Max 40 MHz FOV (single screen): 155° Communication Frequency: 2.400-2.4835 GHz; 5.725-5.850 GHz End-to-End Latency With DJI FPV Goggles V2: -810p/120fps Video Transmission Quality: The latency is lower than 28 ms. -810p/60fps Video Transmission Quality: The latency is lower than 40 ms. With DJI Goggles 2 -1080p/100fps Video Transmission Quality: The latency is as low as 30 ms. -1080p/60fps Video Transmission Quality: The latency is as low as 40 ms. Max Video Transmission Bitrate: 50 Mbps Max Video Transmission Range: 10 km (FCC), 2 km (CE), 6 km (SRRC) Operating Temperature Range: -10º to 40º C (14° to 104° F) Power Input: 7.4-26.4 V Audio Transmission: N/A Package includes: 1 x Nazgul5 V3 O3 HD BNF (ELRS2.4) 2 x Antennas 2 x Battery pads 2 x Prop(Pairs)
