Frame iFlight Nazgul5 V3

Product detailed description

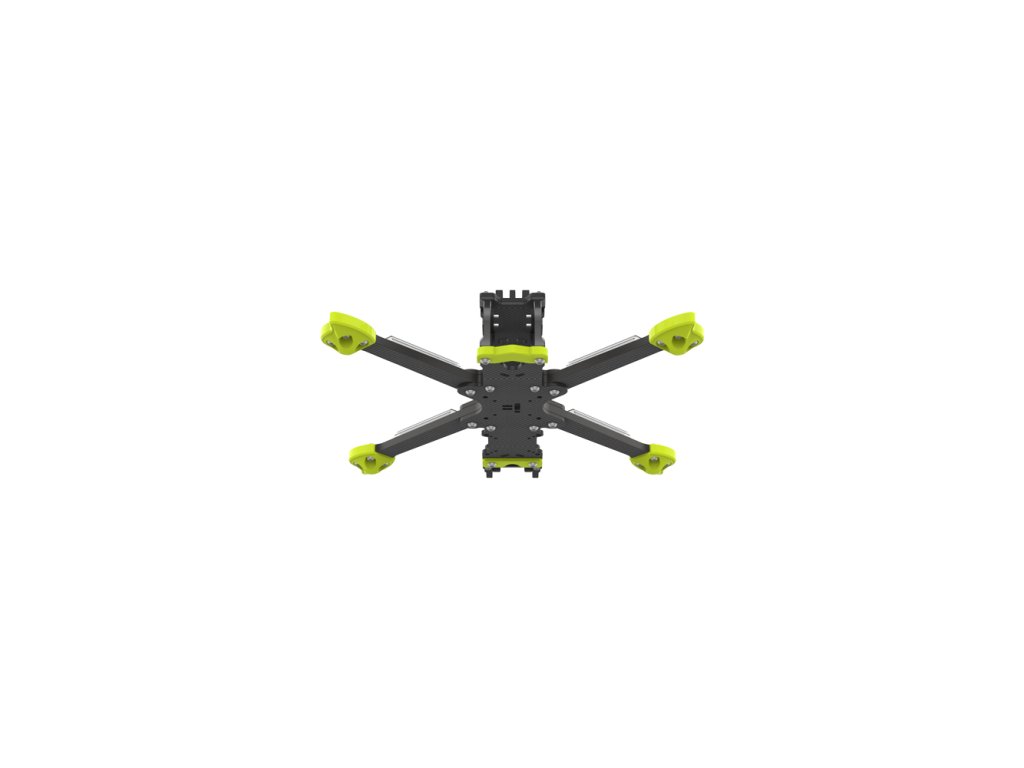

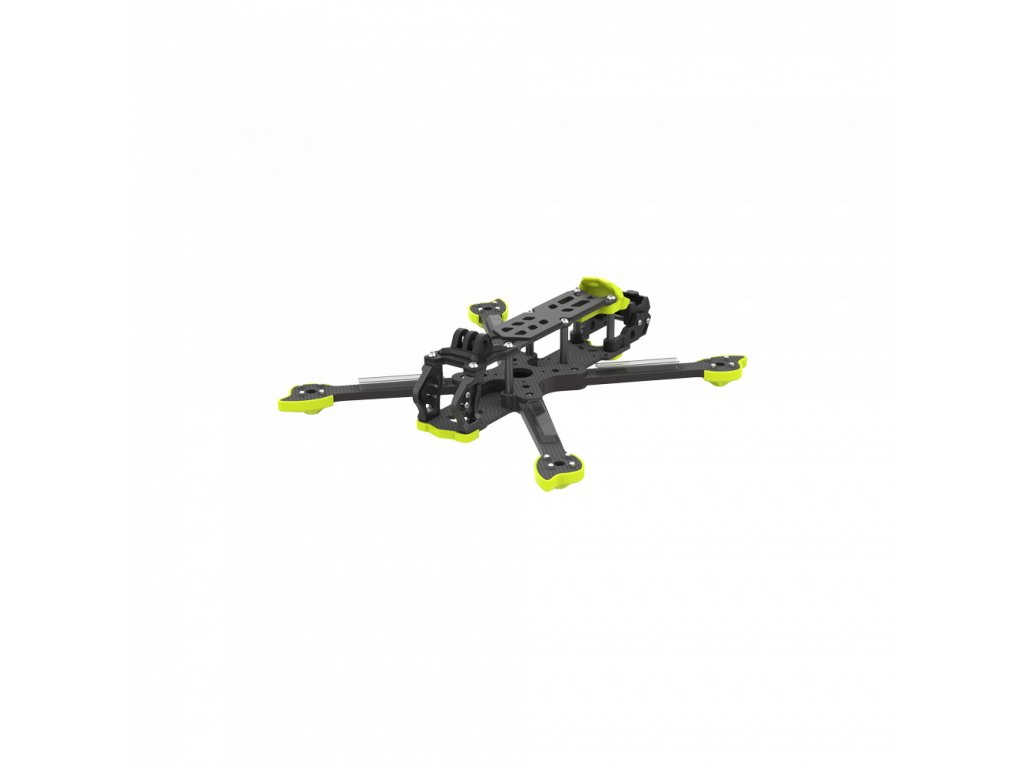

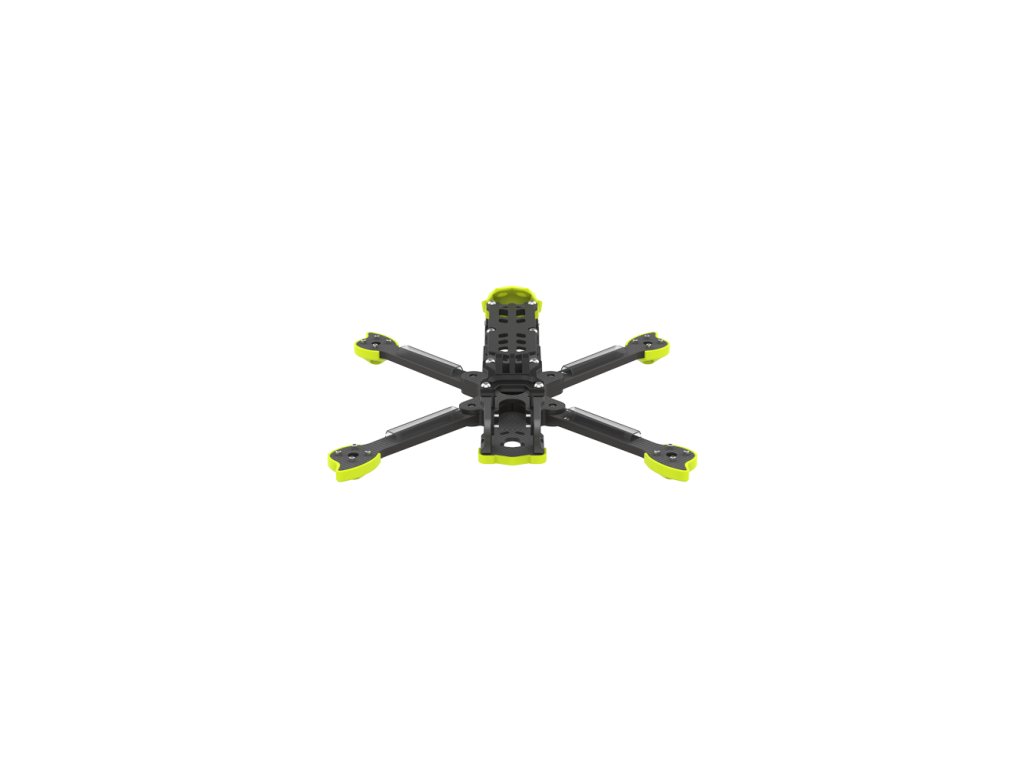

Nazgul5 V3 Frame Kit

The iFlight Nazgul5 V3 frame is a 5" freestyle frame. Made from a super-stiff carbon for minimum resonance and recommended 2207 motors for maximum 5" prop control.

Specifications:
Product Name: Nazgul5 V3 Frame Kit
Geometry: Squashed-X
Wheelbase: 245mm
Frame Dimension: L173*W173*H36.5 mm
Frame Body Dimension: 36.5mm
Arm Thickness: 5mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2.5mm
Upper Plate Thickness: 3mm
Camera Plate Thickness: 3mm
Max Flight Stack Height: 21mm
Max VTX Height: 29mm
Motor Mounting: 16x16mm
VTX Mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm
Weight: 130grams (Included no TPU Parts)

Packing List:
1 x Nazgul5 V3 Frame Kit
1 x GoPro TPU Base Mount
1 x Screw Bag
4 x TPU Armguard
1 x Bottom Plate Front Protection TPU
1 x Bottom Plate Rear Protection TPU
1 x Anti-slip Battery Pad
4 x Motor Wire Shield Tube
2 x Battery Strap(20*250mm)
