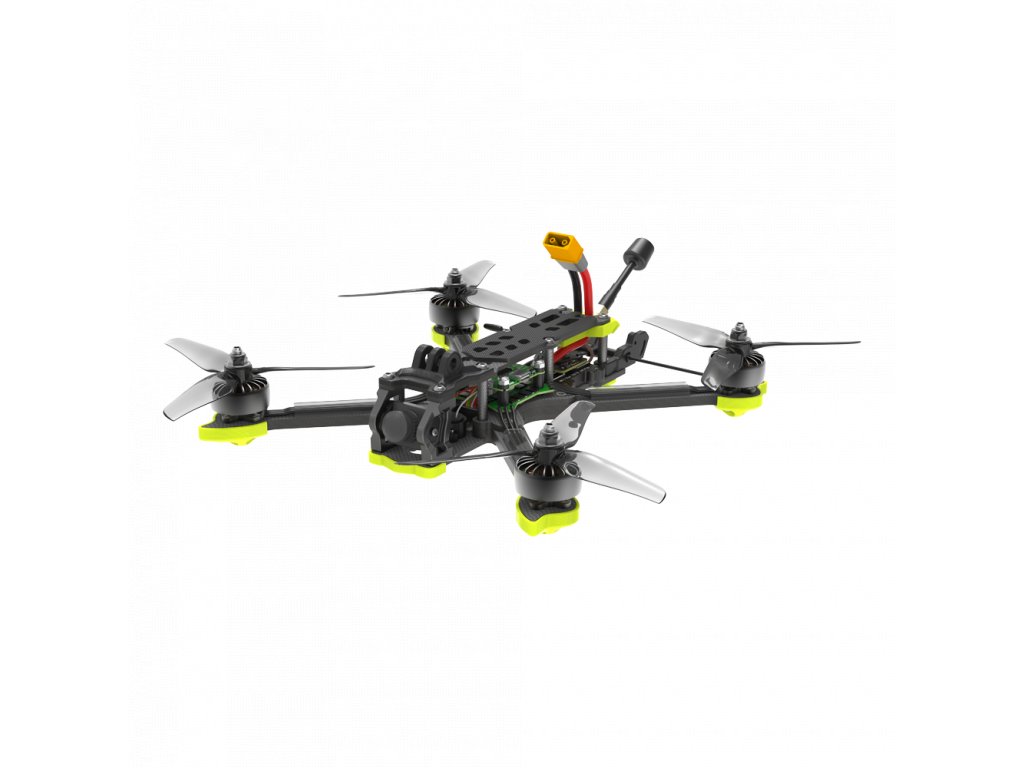

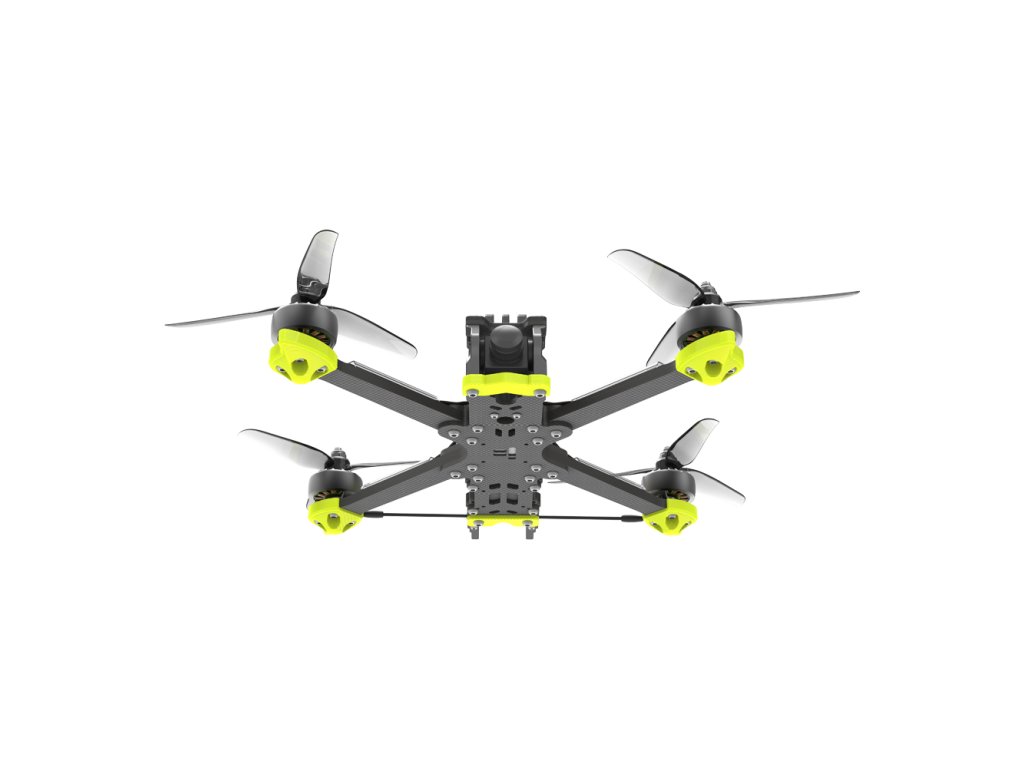

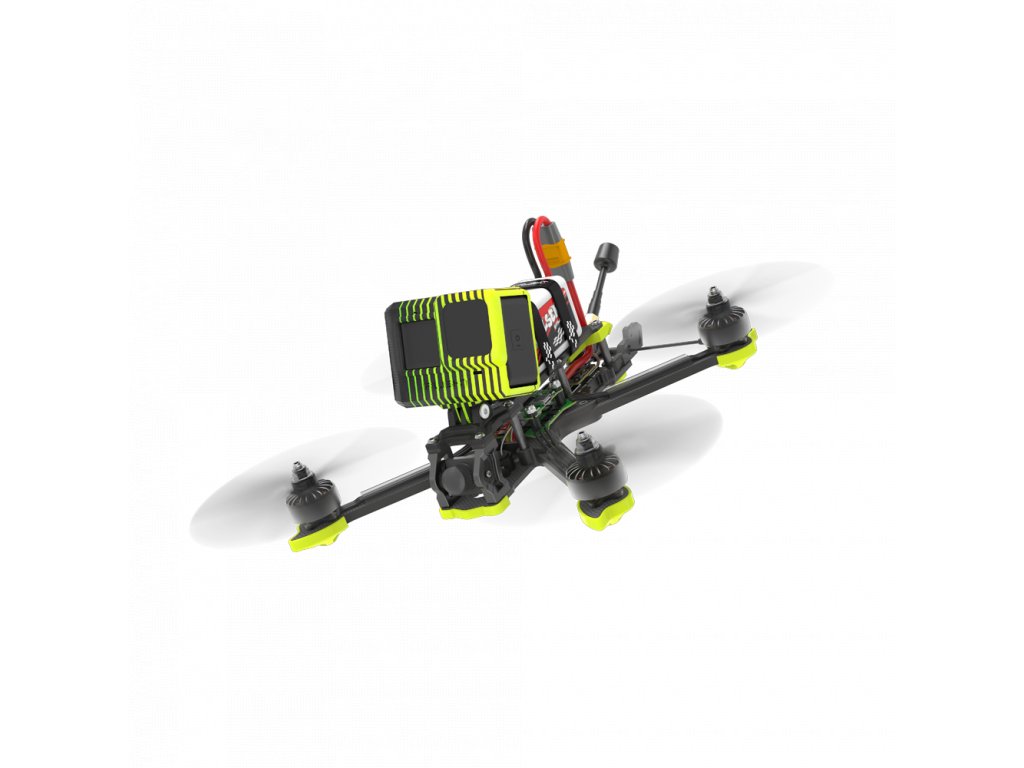

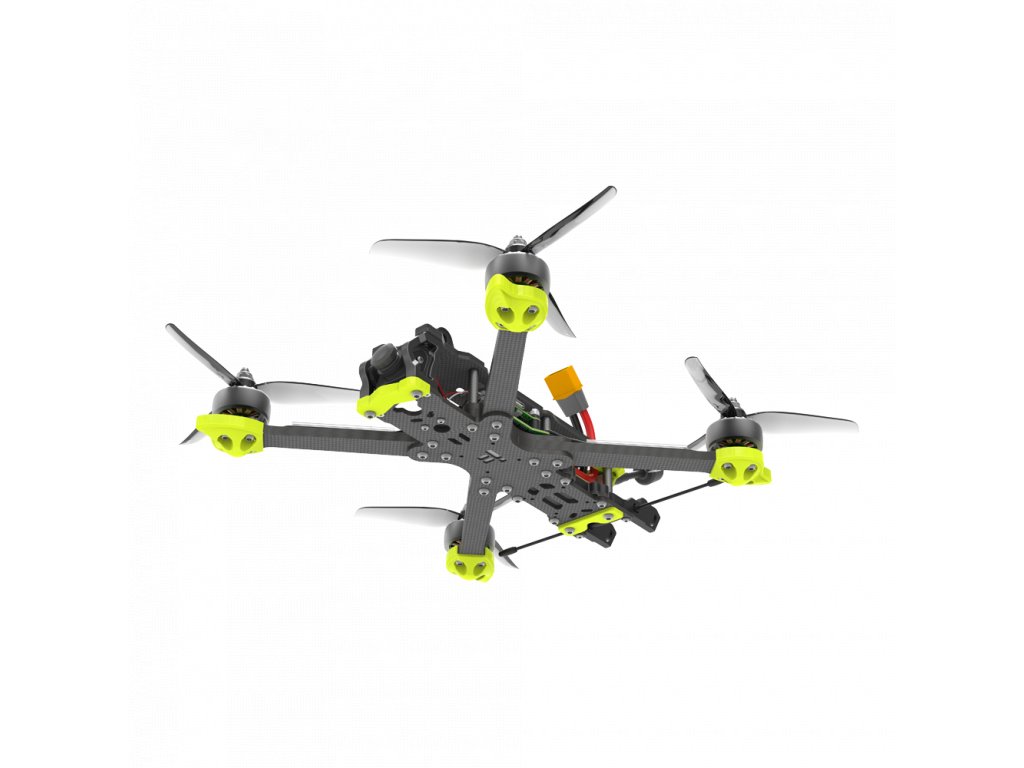

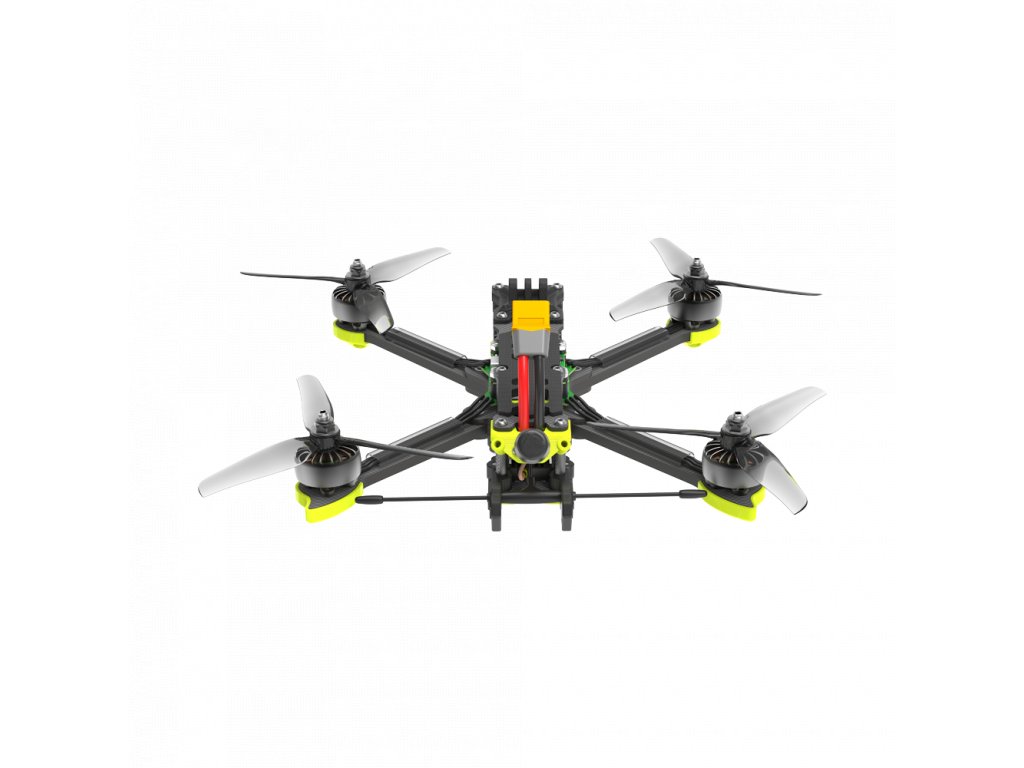

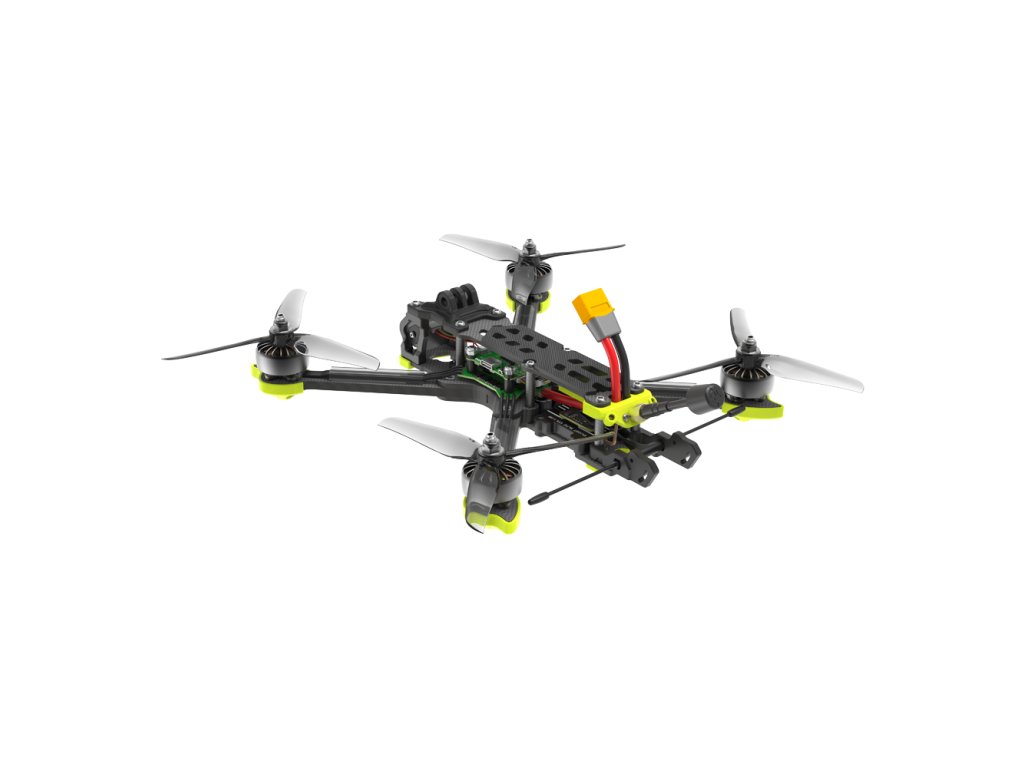

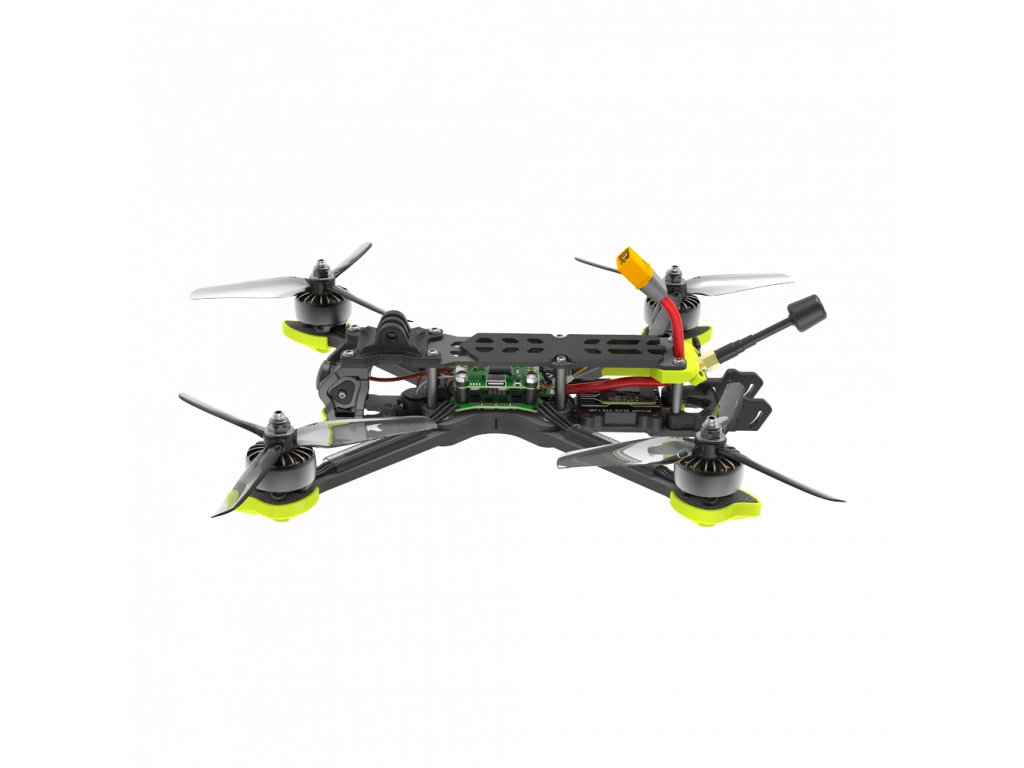

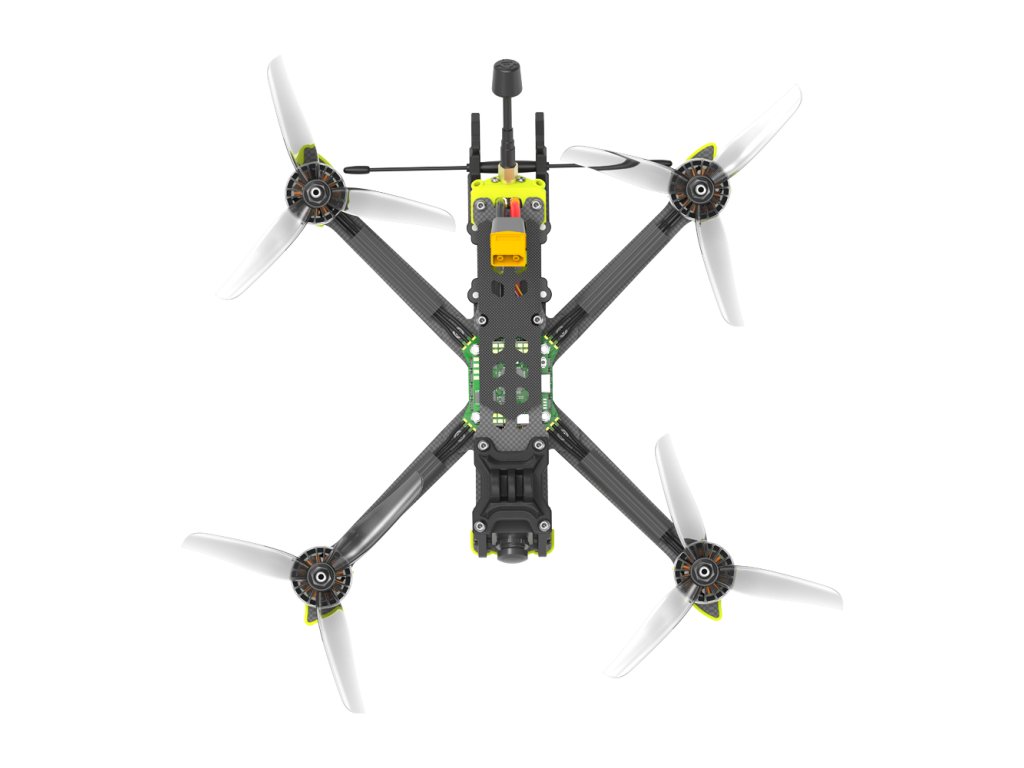

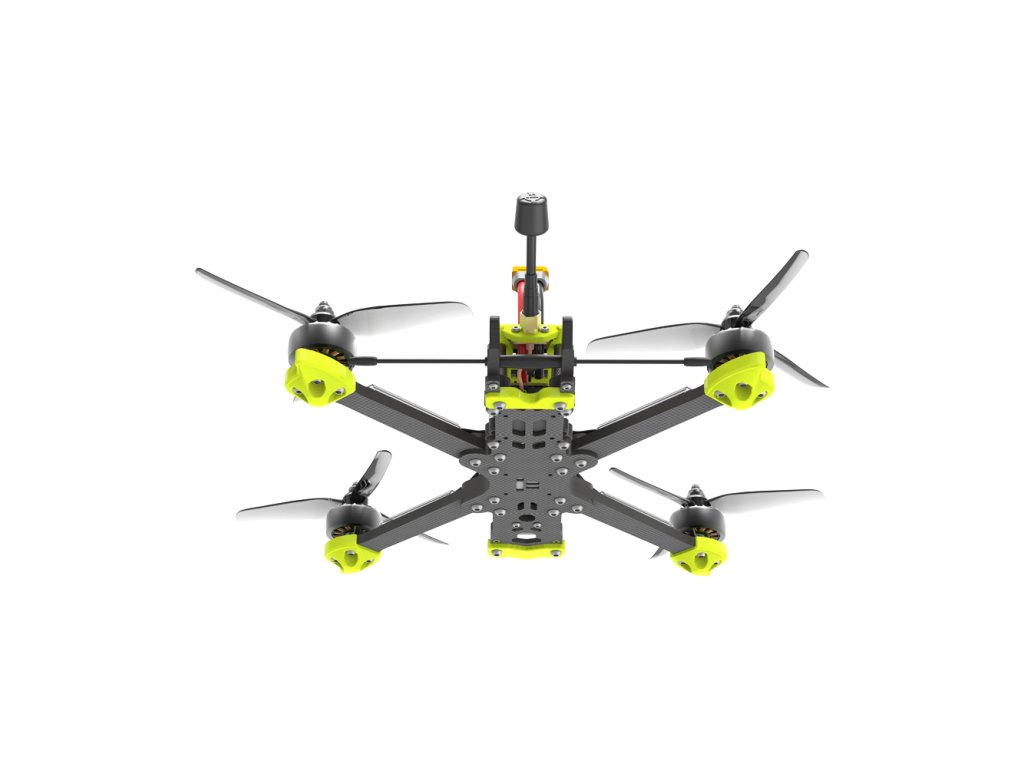

FPV Drone iFlight Nazgul5 V3 Analog 6S (PNP)

Product detailed description

Nazgul5 V3 Analog 6S (PNP)

Features:

- XING-E Pro 2207 motors and NAZGUL F5 props
- 5" version also fits 5.1" style propellers
- Fits both 30.5x30.5 and 20x20 stacks
- 5mm arm design for more durability
- Popular True-X configuration
- LED illuminated Logo
- TPU crash-guards
- Easy-Swap arms

Specifications
Product Name: Nazgul5 V3 6S Analog
FC: BLITZ F722 FC
ESC: BLITZ E45S 45A 4-IN-1 ESC
Video Transmission: BLITZ 1.6W VTX
Frame: 245 ±2 mm wheelbase
Motor: XING-E Pro 2207 motors
Prop: Nazgul 5 inch propellers
Takeoff Weight: Approx. 435g / 660±10g (With 6S 1400mAh Battery)
Dimensions (L×W×H): 173×173×34±2 mm
Diagonal Distance: 245mm
Max Speed: 190 Km/h (Manual Mode)
Maximum Takeoff Altitude: 3200 m
Max Hover Time: Approx. 7.5 mins (No Load with 6S 1400mAh Battery)
Max Flight Distance: 5 km
Max Wind Speed Resistance: Level 7
Operating Temperature Range：-10° to 40° C (14° to 104° F)
Antennas: Single Antenna
Camera: RaceCam R1 Mini 1200TVL
Receiver Option: PNP

Video Transmission
Product Name: BLITZ Whoop 1.6W VTX
Input voltage: 7V-34V
Interface: MMCX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 30.5x30.5mm/Φ3
Lightweight: 18.9g (excluding antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
RC Tramp VTX table values: 25mW/400mW/800mW/1600mW

Package includes:
1 x Nazgul5 V3 6S Analog PNP
1 x Antennas
2 x Battery pads
2 x Nazgul F5 Prop(Pairs)
