FPV Drone iFlight Nazgul Evoque F6X V2 HD 6S BNF (TBS)

Product detailed description

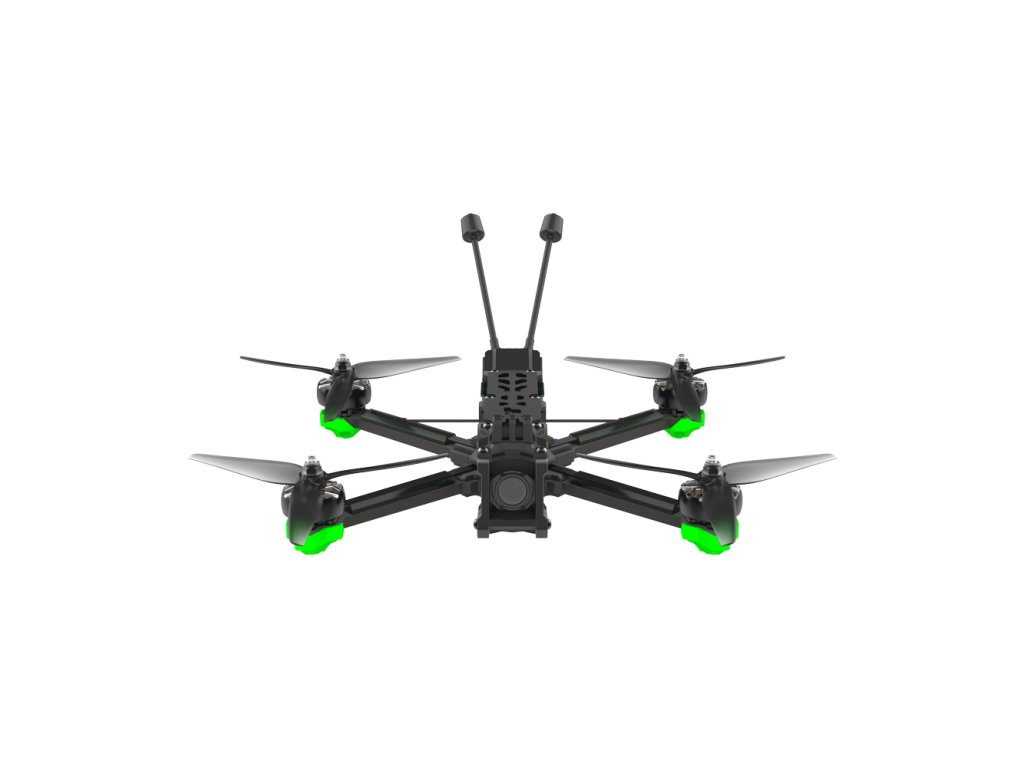

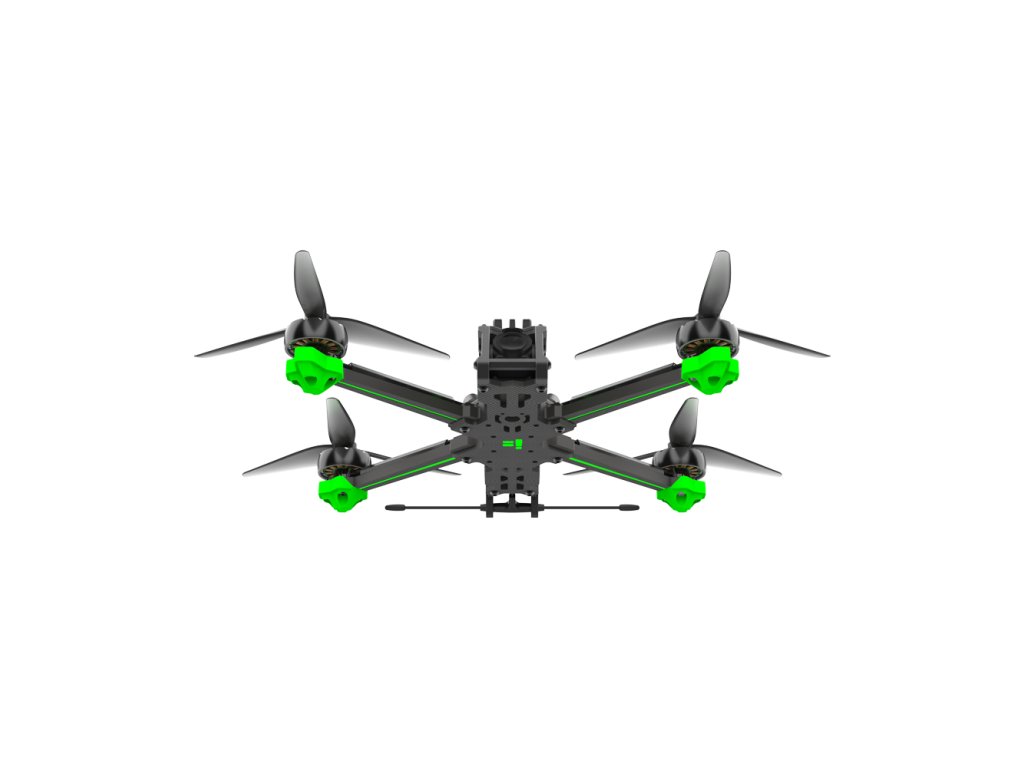

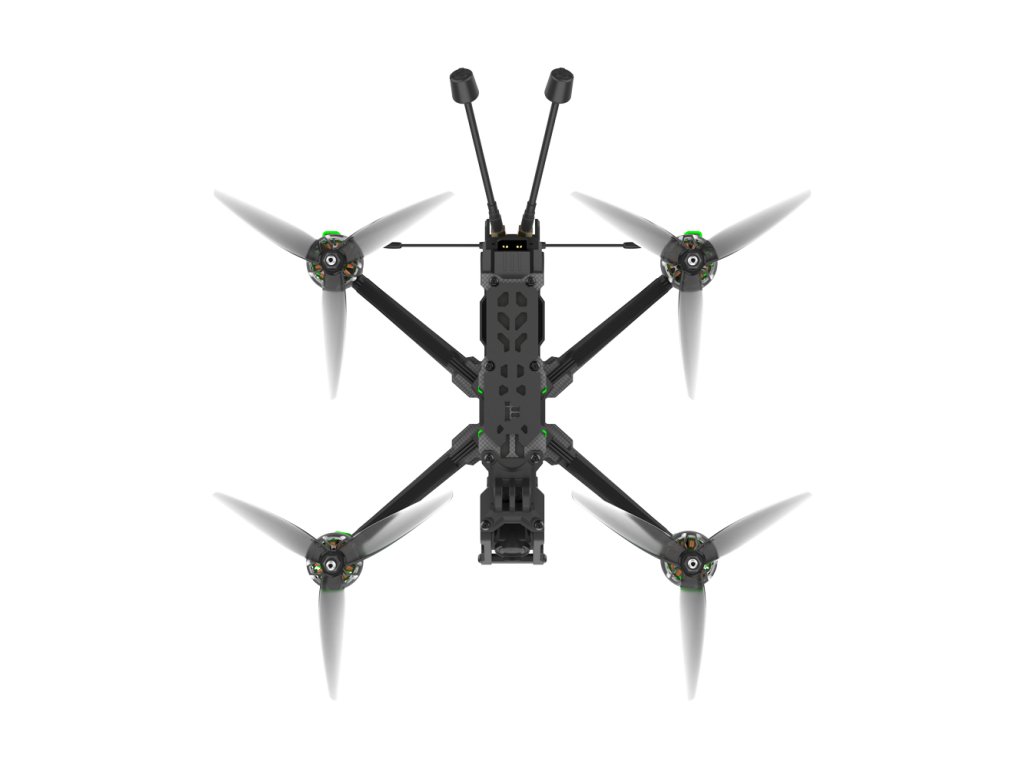

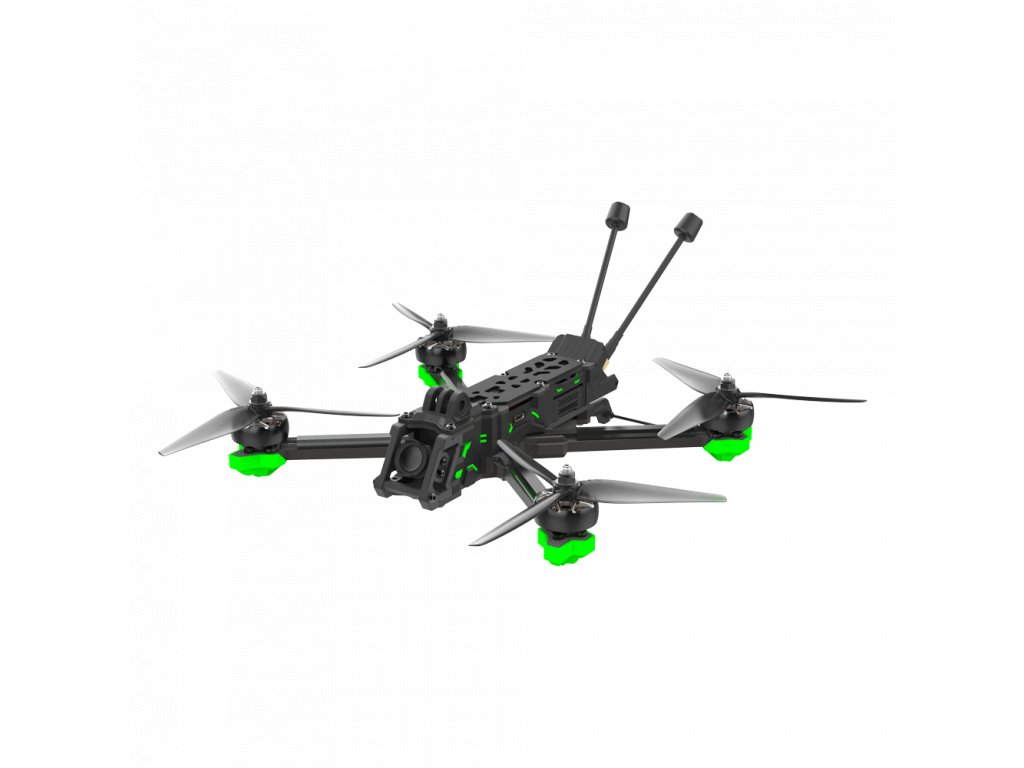

Nazgul Evoque F6X V2 HD 6S BNF (TBS)

The Nazgul Evoque F6X V2 6S HD is a high-performance 6-inch freestyle drone built on the Squashed X frame, offering improved agility and speed. The Evoque F6X V2 offers 4 receiver options: TBS Crossfire Nano RX, ELRS 868/915MHz, ELRS 2.4GHz, or Without an additional receiver, for use DJI FPV Remote Controller 2. It provides flexibility for different preferences. A 6-inch drone features longer flight time with a bigger battery and more efficiency with the lower KV motors. This version has a pre-install GPS Module.

Features:

-Smooth and Powerful XING2 Motors-
Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash-resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and the XING O-ring bushing gap protection.

-Latest Nazgul Frame for Maximum Protection-
The latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

-DJI O3 HD Air Unit Low-Latency digital transmission-
Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)

-4K Stabilized Video with 155° Ultra-Wide Angle-
Together with high-grade imaging performance, it delivers exceptional visuals. (Source DJI)

-Secured Battery Plug with Anti-Spark Filter-
Added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

-Specially Designed Heatsink for DJI O3 HD Air Unit-
Improved cooling performance for the high power draw of the DJI O3 video transmitter. We’ve added a custom CNC heatsink for excellent heat dissipation without overheating, even on high power levels.

Specifications:

Product Name: Nazgul Evoque F6X V2 HD 6S BNF
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
Video Transmission: DJI O3 Air Unit
Frame wheelbase: 255mm (Squashed X)
Motor: XING2 2506 1500KV motors
Prop: 6-inch propellers
Weight: 480 grams
Takeoff Weight: Approx. 680 g
Dimensions (L×W×H): 196×164×36±2mm (Squashed X)
Diagonal Distance: 120 mm
Max Speed: 180 Km/H (Manual Mode)
Maximum Takeoff Altitude: 3200 m
Max Hover Time: Approx. 8 mins (With 1400mAh battery)
Max Flight Distance: 5 km
Max Wind Speed Resistance: Level 57
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual Antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Receiver Option: TBS Crossfire NANO RX

Video Transmission
Product Name: DJI O3 Air Unit
Weight: Approx. 36.4 grams (headband included)
Communication Bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication Frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
End-to-End Latency
With DJI FPV Goggles V2
-810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
-810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
-1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
-1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Power Input: 7.4-26.4 V
Audio Transmission: N/A

Package includes:
1 x Evoque F6 6S HD BNF
2 x Antennas
1 x Battery pad
2 x propeller(Pairs)
2 x Battery strap
