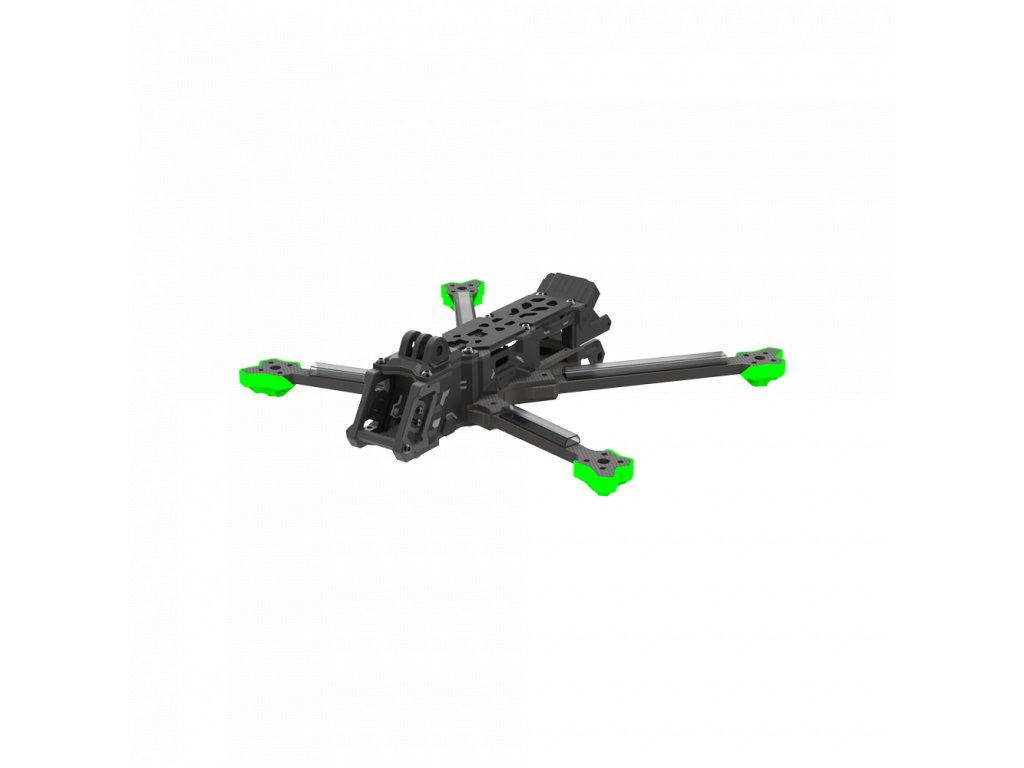

Frame iFlight Nazgul Evoque F5D V2

Product detailed description

Nazgul Evoque F5D V2 Frame kit

Features:
- Version V2 was upgraded for the DJI O3 HD Air Unit Digital Transmission.
- Specially Designed Heatsink for DJI O3 Air Unit.
- New Camera Mount for a wider camera FOV with TPU damping inserts.
- New Side Panels to perfectly fit the O3 Air Unit in the back.
- New Dual 5.8G VTX Antenna TPU mount.
- Latest Nazgul Frame Upgrades for Maximum Protection.

Specifications:
Product Name: Evoque F5 V2 Frame Kit
Frame wheelbase: 223 mm (DeadCat)
Frame Dimension: L190*W136*H36 mm (DeadCat)
Frame Body Dimension: 36mm
Arm Thickness: 6mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Camera Plate Thickness: 3mm
Max Flight Stack Height: 22mm
Max VTX Height: 23mm
Motor Mounting: 16x16mm
VTX Mounting: 25.5*25.5/Φ1.6mm
Weight: 240grams

Packing List:
1 x Evoque F5 V2 Frame Kit
1x O3 Air Unit Heatsink
2x O3 IPEX to RP-SMA Antenna Pigtails
1 x O3 Dual Antenna TPU
1 x GoPro TPU Base Mount
1 x Screw Bag
4 x TPU Armguard
1 x Front Bumper TPU
1 x Rear Bumper TPU
2 x Anti-slip Battery Pad
2 x Battery Strap (20*250mm)
