FPV Drone iFlight Nazgul Evoque F5D V2 Analog BNF (ELRS 868/915MHz)

Product detailed description

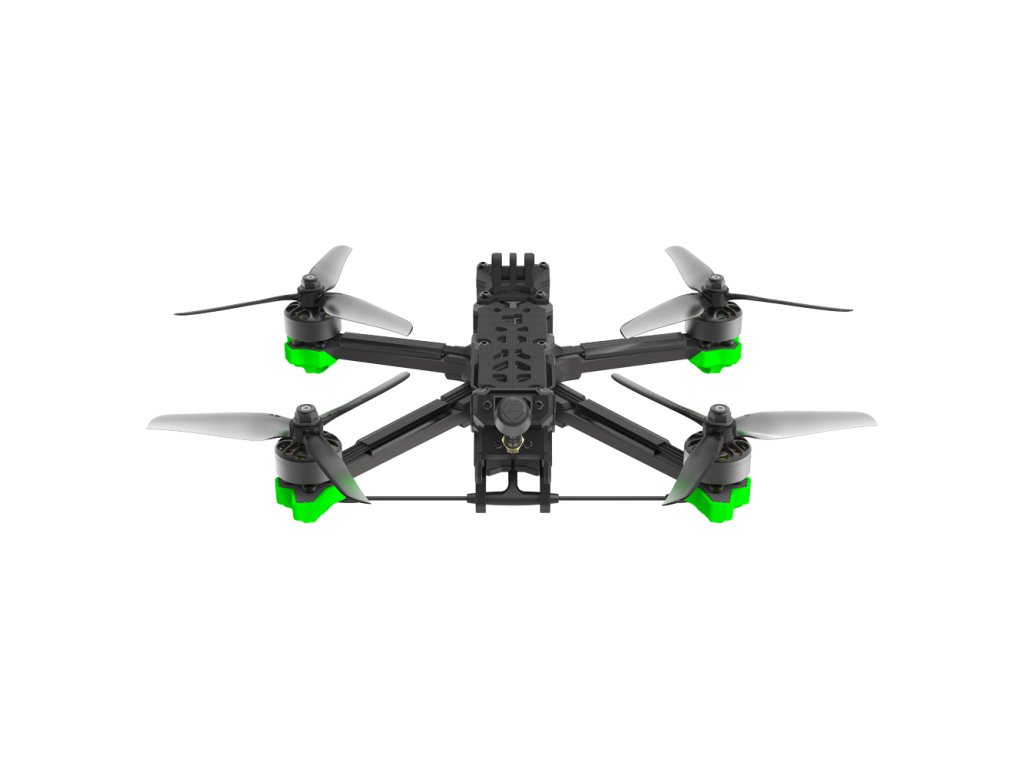

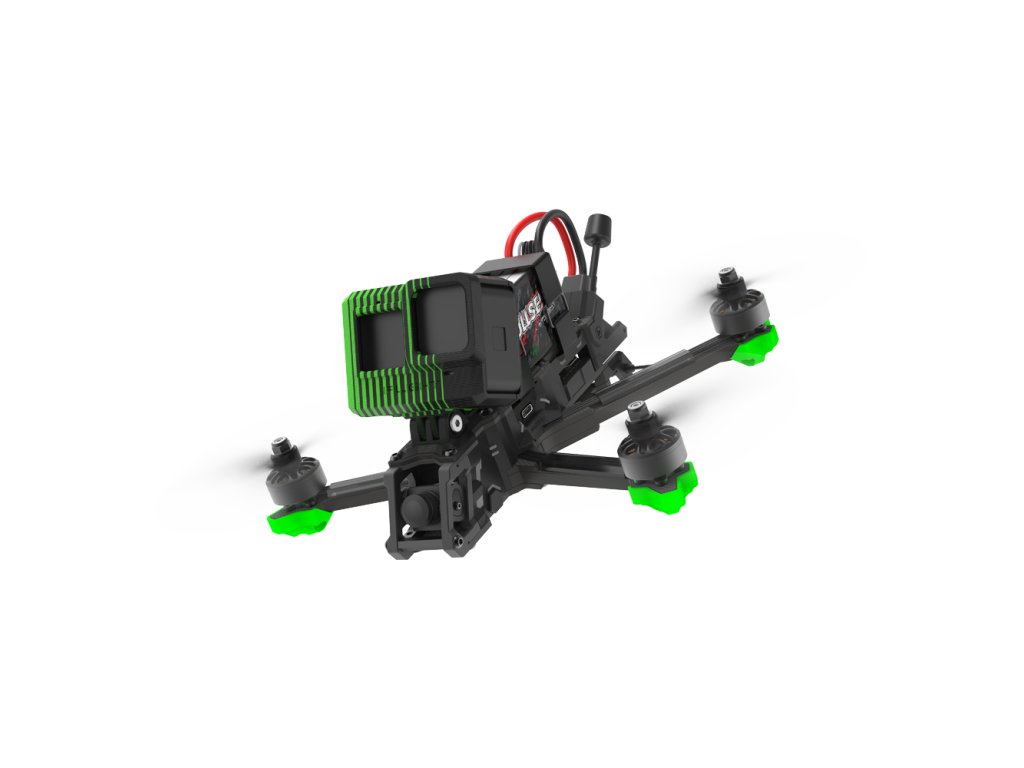

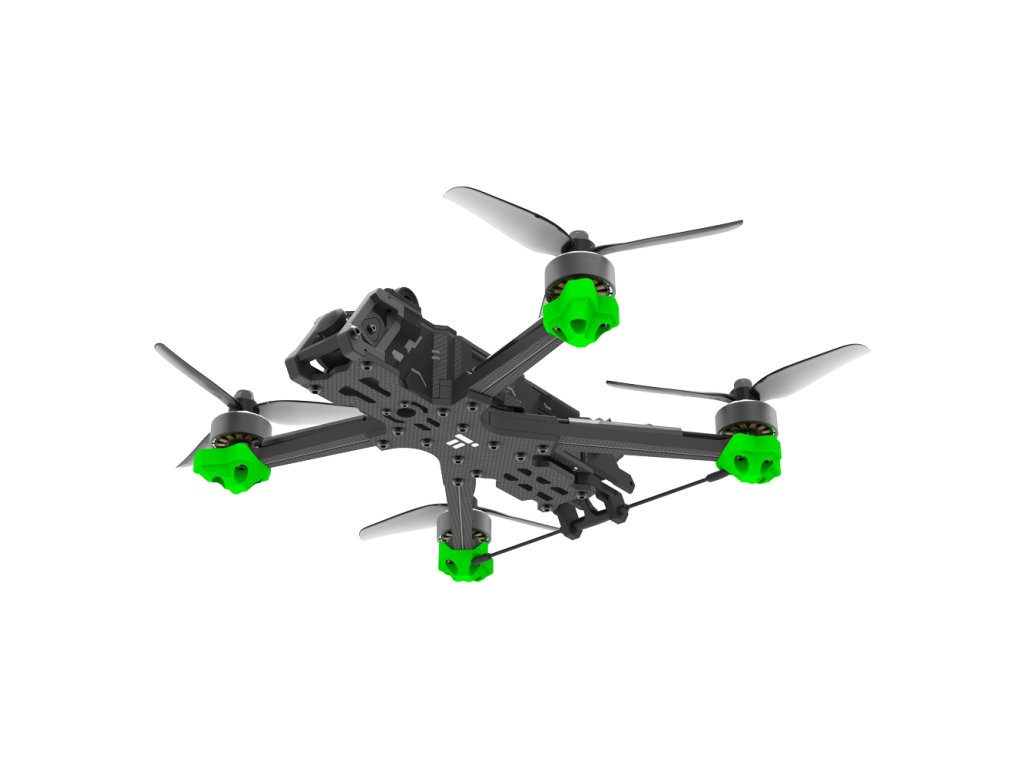

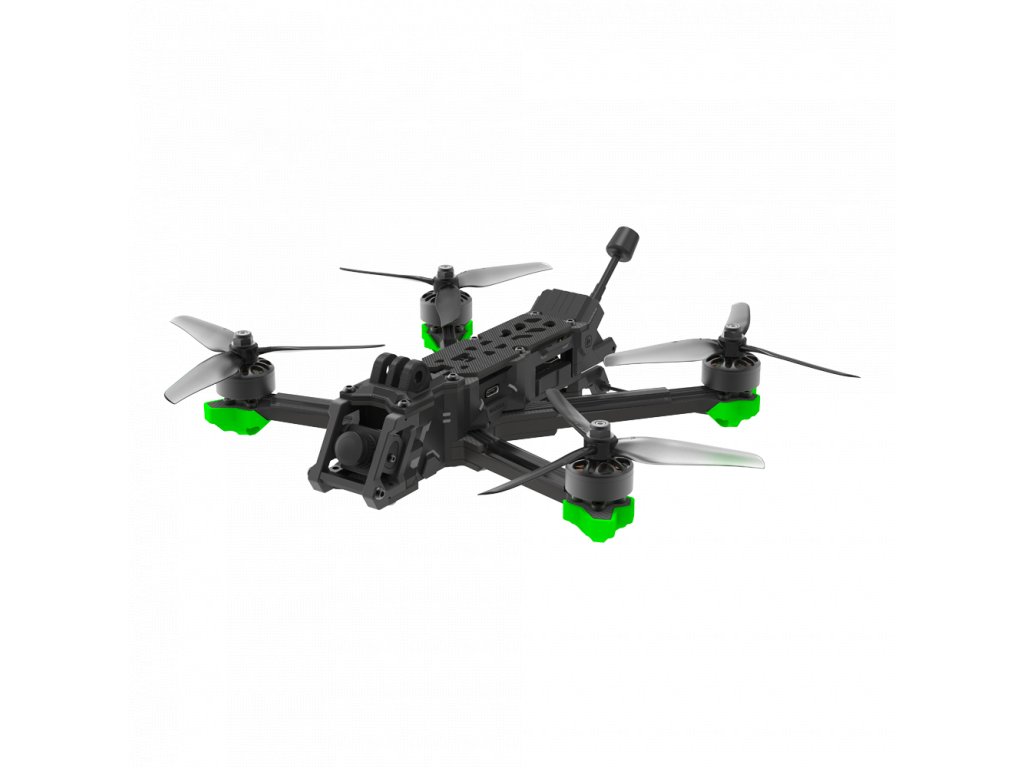

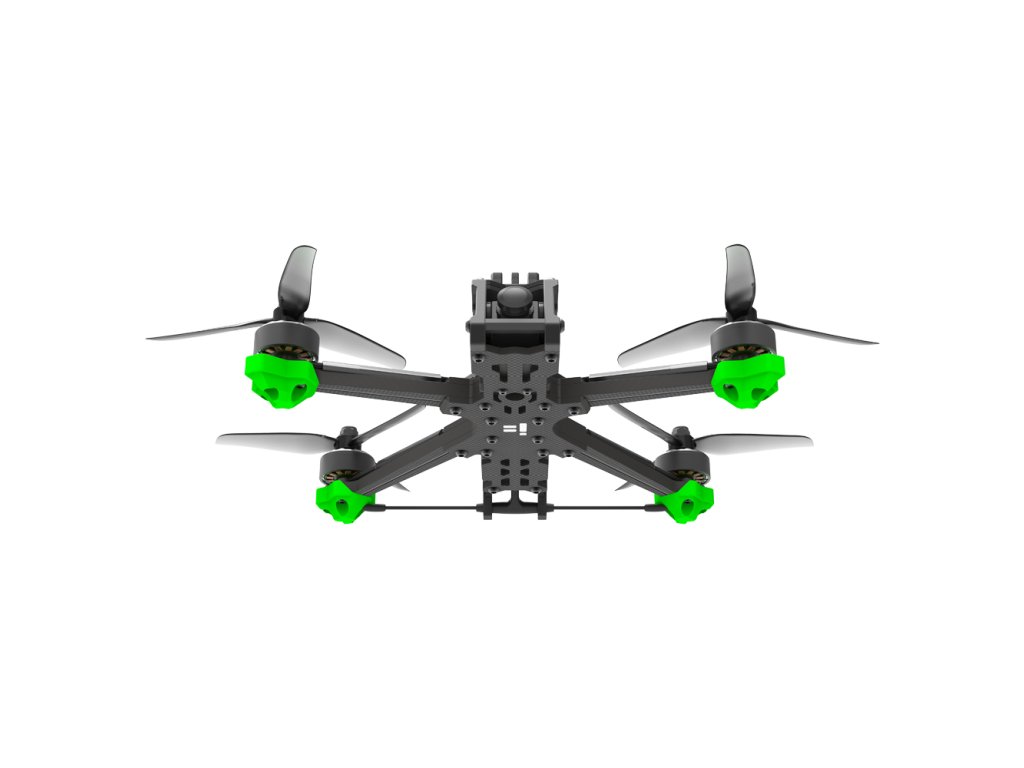

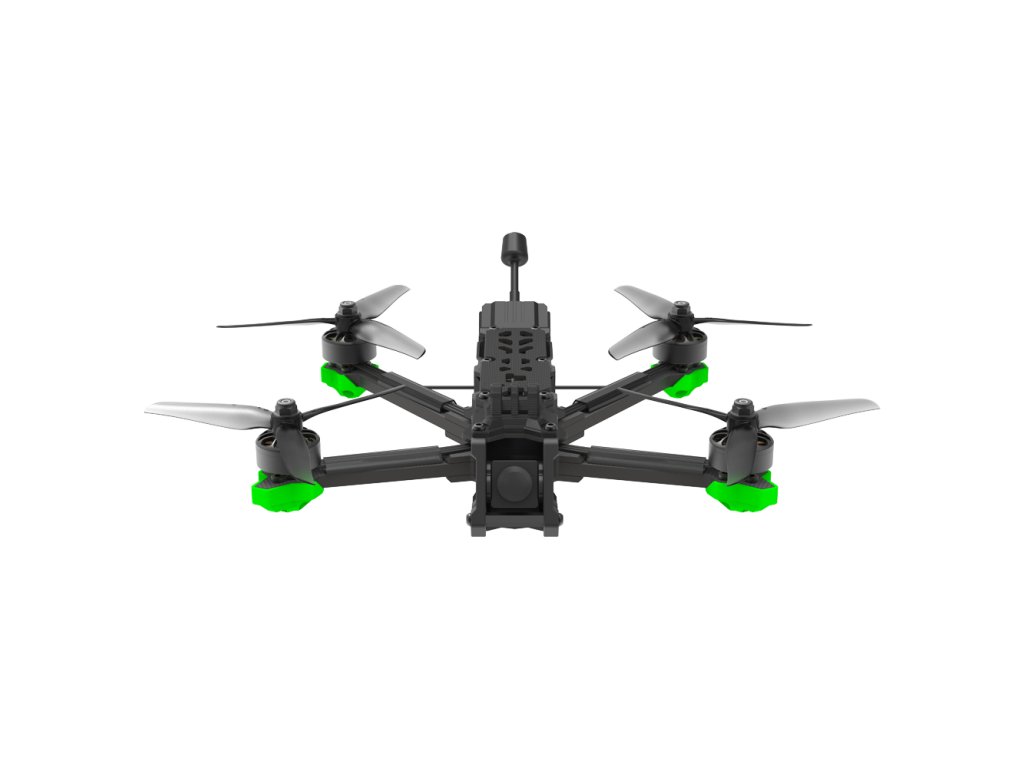

Nazgul Evoque F5D V2 Analog BNF (ELRS 868/915MHz)

The Nazgul Evoque F5D V2 Analog is a high-performance freestyle drone built on the DeadCat (DC) frame, offering improved agility and speed. Equipped with RaceCam R1 Mini 1200TVL camera. The Evoque F5D offers 4 receiver options: TBS Crossfire Nano RX, ELRS 868/915MHz, ELRS 2.4GHz, or Without RX (PNP). It provides flexibility for different preferences.

-Latest Nazgul Frame for Maximum Protection-
The new frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

-Secured Battery Plug with Anti-Spark Filter-
Added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Specifications:

Product Name: Nazgul Evoque F5D V2 Analog BNF (ELRS 868/915MHz)
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
Video Transmission: BLITZ Whoop 1.6W VTX
Frame wheelbase: 223 mm (DeadCat)
Motor: XING-E Pro 2207 motors
Prop: Nazgul 5 inch propellers
Weight: 436g
Takeoff Weight: Approx. 693 g/695g (With 1400mAh Battery)
Dimensions (L×W×H): 190×136×36±2mm (DeadCat)
Diagonal Distance: 225 mm
Max Speed: 190 Km/h (Manual Mode)
Maximum Takeoff Altitude: 5000 m
Max Hover Time: Approx. 8 mins
Max Flight Distance: 5 km
Max Wind Speed Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Single Antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass (Optional)
Receiver Option: ELRS 868/915MHz RX

Video Transmission
Product Name: BLITZ Whoop 1.6W VTX
Input voltage: 7V～34V
Interface: MMCX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 30.5x30.5mm/Φ3
Lightweight: 18.9g (excluding antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
RC Tramp VTX table values: 25mW/400mW/800mW/1600mW

Battery Recommended: Fullsend 6S 1400mAh Battery

Package includes:
1 x Evoque F5 6S Analog BNF
1 x Antennas
2 x Battery pad
2 x propeller(Pairs)
2 x Battery strap
