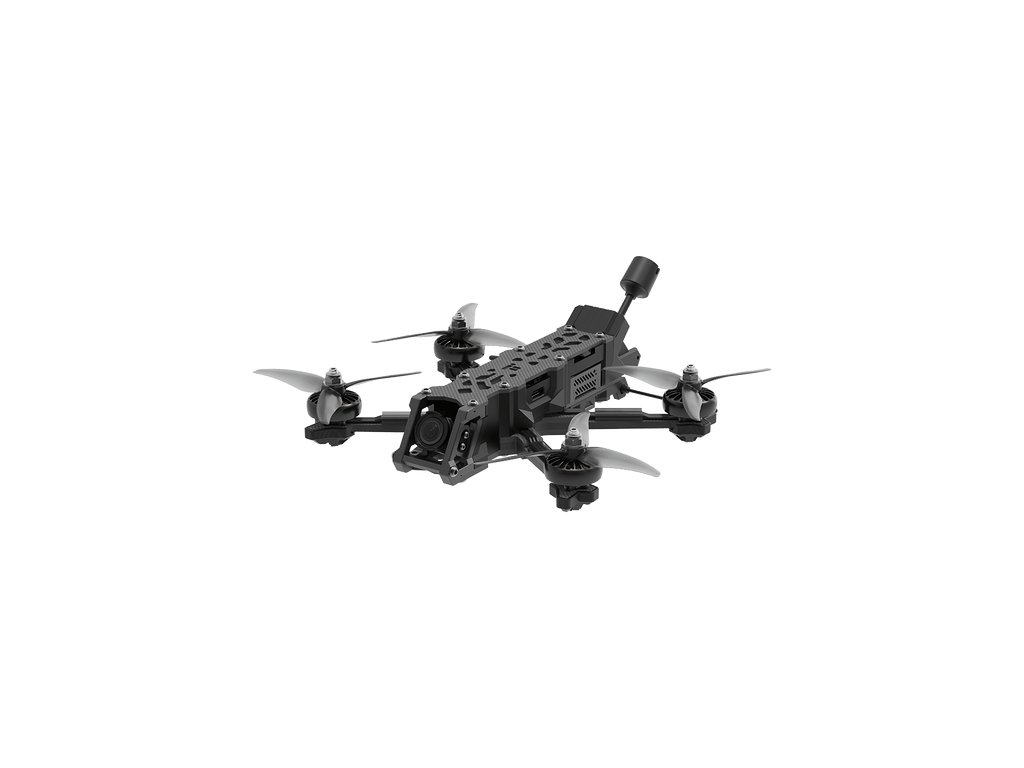

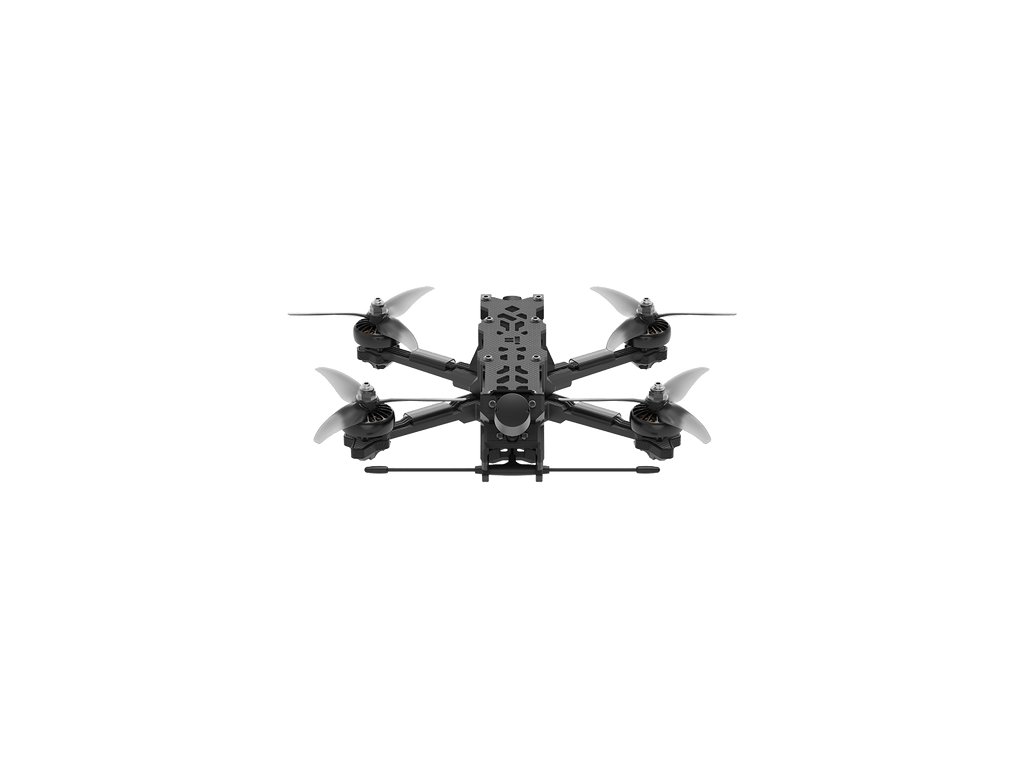

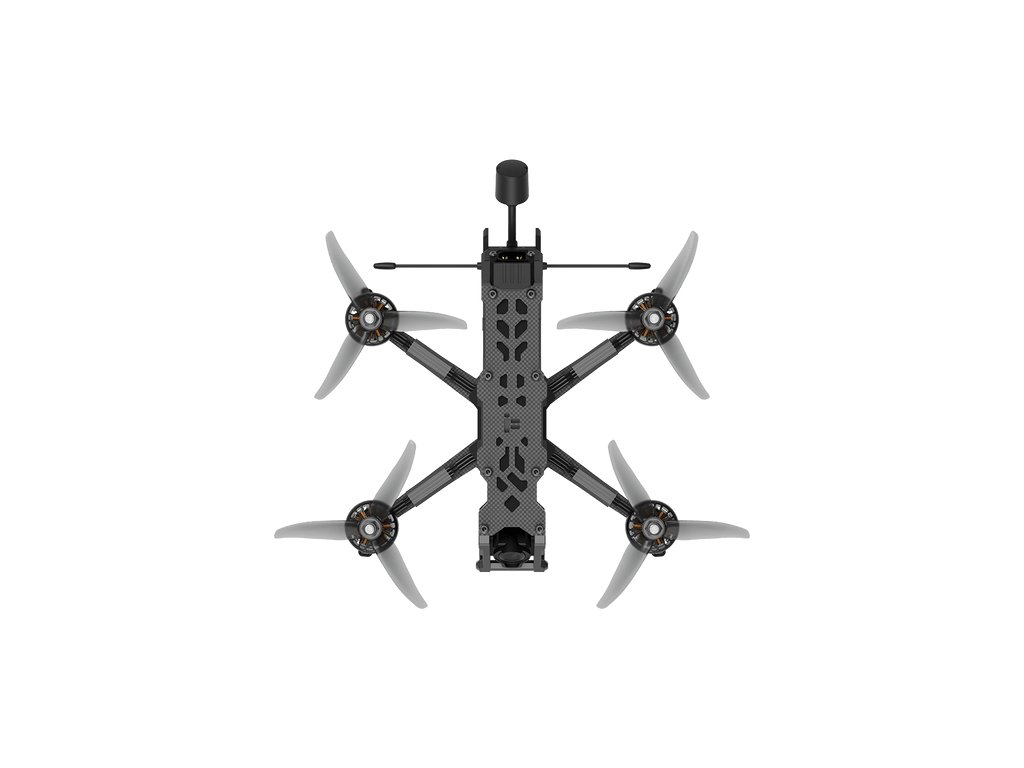

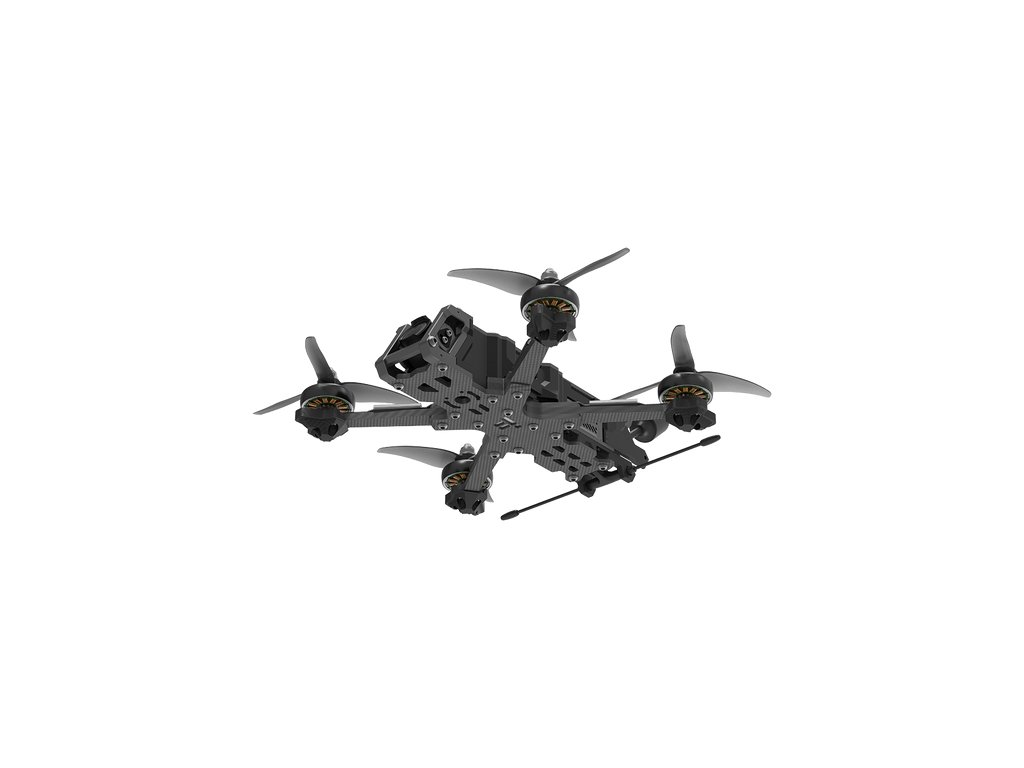

FPV Drone iFlight Nazgul Evoque F4X HD 6S BNF (No receiver)

Product detailed description

Nazgul Evoque F4X HD 6S BNF (No receiver)

Features:

-Latest Nazgul Frame for Maximum Protection-
This frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

-DJI O3 HD Air Unit Low-Latency digital transmission-
Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)

-4K Stabilized Video with 155° Ultra-Wide Angle-
Together with high-grade imaging performance, it delivers exceptional visuals(Source DJI)

-Secured Battery Plug with Anti-Spark Filter-
Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Specifications
Product Name: Evoque F4
FC: BLITZ Mini F7 Flight Controller
ESC: BLITZ Mini E55S 4-IN-1 2-6S 55A ESC
Video Transmission: DJI O3 Air Unit
Frame wheelbase: 185mm
Motor: XING2 2205 motors
Prop: HQ 4*3*3 propellers
Takeoff Weight: Approx. 330 g (Without battery)
Dimensions (L×W×H): 148.5×110×36 mm (Squashed X)
Diagonal Distance: 185 mm
Max Speed: 170 Km/h (Manual Mode)
Maximum Takeoff Altitude: 7000 m
Max Hover Time: Approx. 8 mins
Max Flight Distance: 5 km
Max Wind Speed Resistance: Level 5
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: DJI O3 Air Unit Dual-Band Antenna
GNSS: GPS+Galileo (Optional)
Receiver Option: No RX (For use with DJI RC2)

Recommended batteries:
6S 850mAh Battery
6S 1050mAh Battery
6S 1400mAh Battery

Video Transmission
Product Name: DJI O3 Air Unit
Weight: Approx. 290 grams (headband included)
Dimensions (L×W×H): L167 * W1039 * H 813mm
Screen Size (single screen): 0.49-inch
Resolution (single screen): 1920×1080
Refresh Rate: Up to 100 Hz
Interpupillary Distance Range: 56-72 mm
Diopter Adjustment Range: -8.0 D to +2.0 D
FOV (single screen): 51°
Communication Frequency: 2.400-2.4835 GHz; 5.725-5.850 GHz
Transmission Power (EIRP):
2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC)
5.8 GHz [4]: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)
Max Video Transmission Bitrate: 50 Mbps
Operating Temperature Range: 0° to 40° C (32° to 104° F)
Power Input: 7-9 V (1.5 A)

Package includes:
1 x Evoque F4 6S HD BNF
1 x DJI O3 air unit Antenna
1 x Battery pad
4 x HQ 4x3x3 propeller(Pairs)
2 x Battery strap
