Frame iFlight Nazgul Evoque F4D

Product detailed description

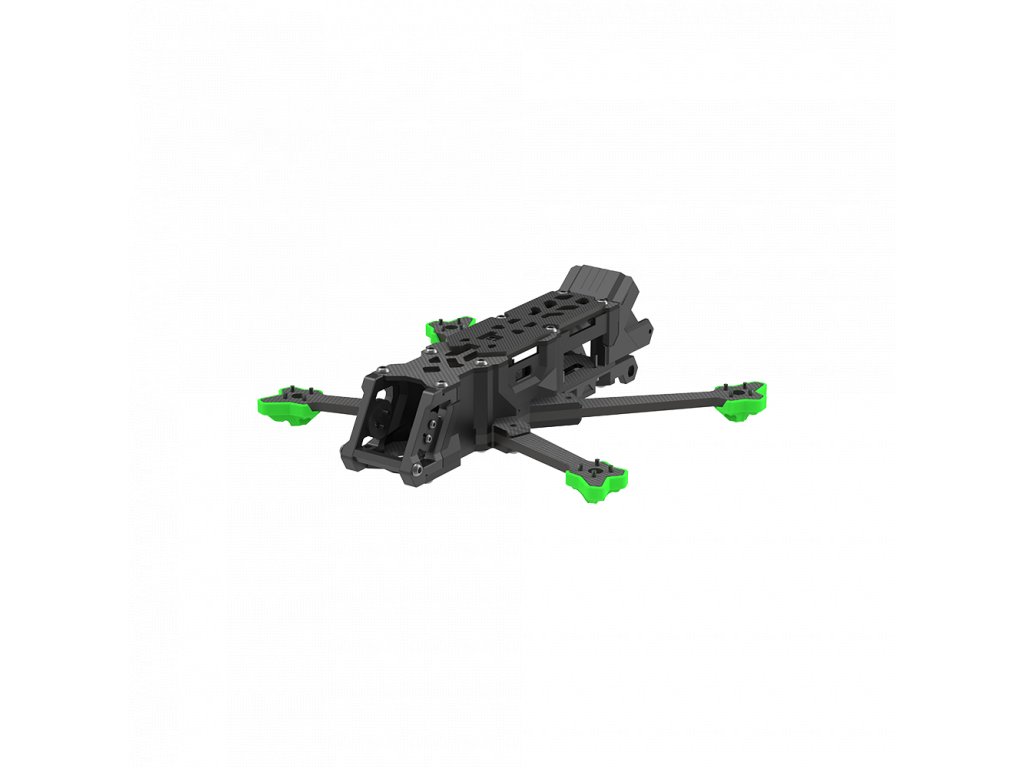

Nazgul Evoque F4D Frame Kit

The newest frame minimizes contamination risks on your flight controller and ESCs, guarding against failures or short circuits. Engineered airflow ensures optimal cooling and cleanliness, without compromising weight or performance. The latest version of the Nazgul Evoque F4, boasts improved performance and a sleeker, more lightweight design.

Specifications:
Product Name: Evoque F4 Frame Kit
Geometry model: Deadcat
Frame wheelbase: 185 mm (DeadCat)
Frame Dimension: L149*W110*H36 mm (DeadCat)
Frame Body Dimension: 36mm
Arm Thickness: 4mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Max Flight Stack Height: 23mm
Max VTX Height: 23mm
Flight Stack Mounting: 20*20/Φ3mm
VTX Mounting: 25.5*25.5/Φ1.6mm
Motor Mounting: 12x12mm/φ2mm
Weight: 163grams

Packing List:
1 x Evoque F4 Frame Kit
1 x TPU Set
1 x GoPro TPU Base Mount
1 x Screw Bag
1 x Anti-slip Battery Pad
2 x Battery Strap
