Frame iFlight Nazgul DC5
Code: FQ15861Related products
Product detailed description

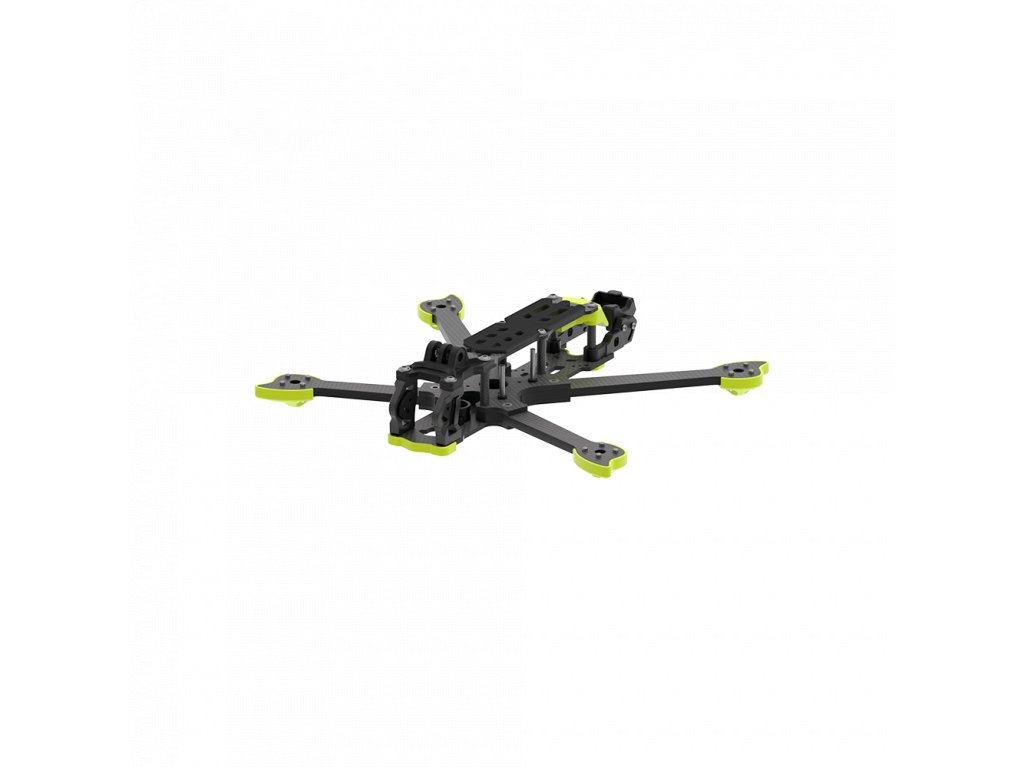

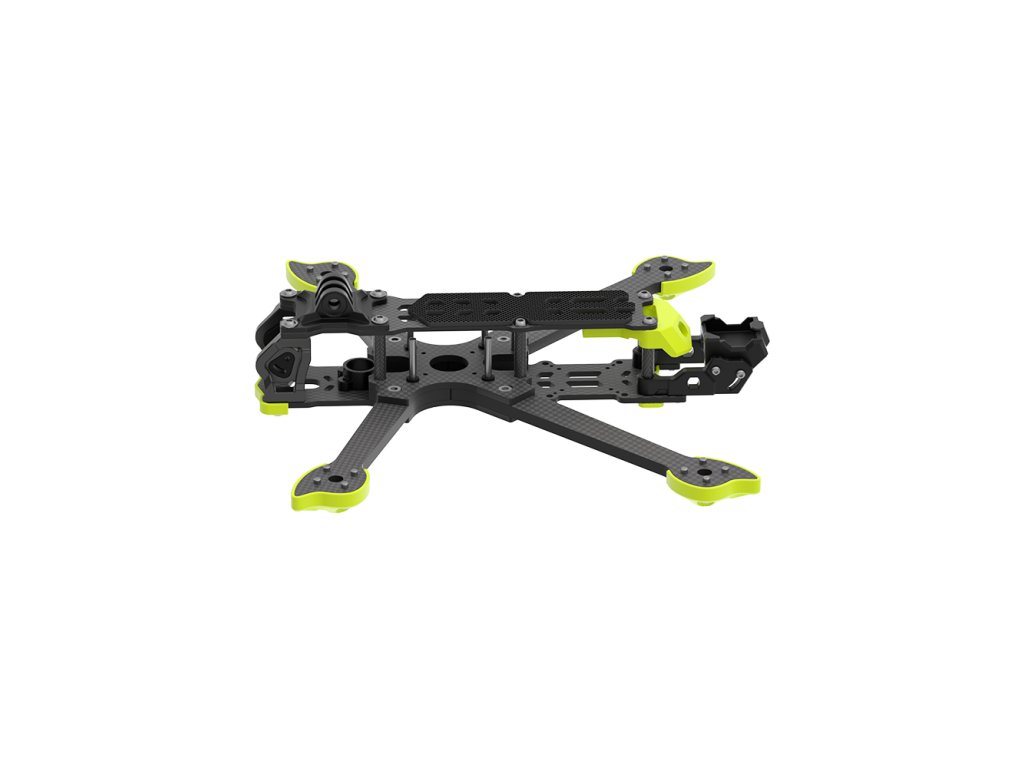

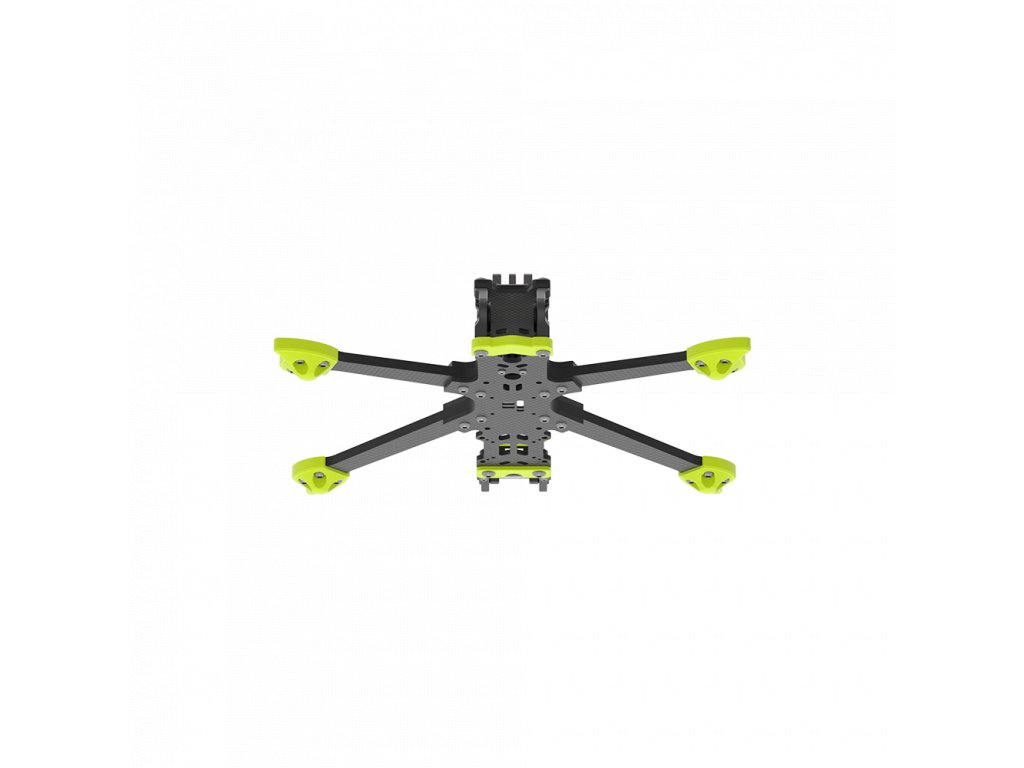

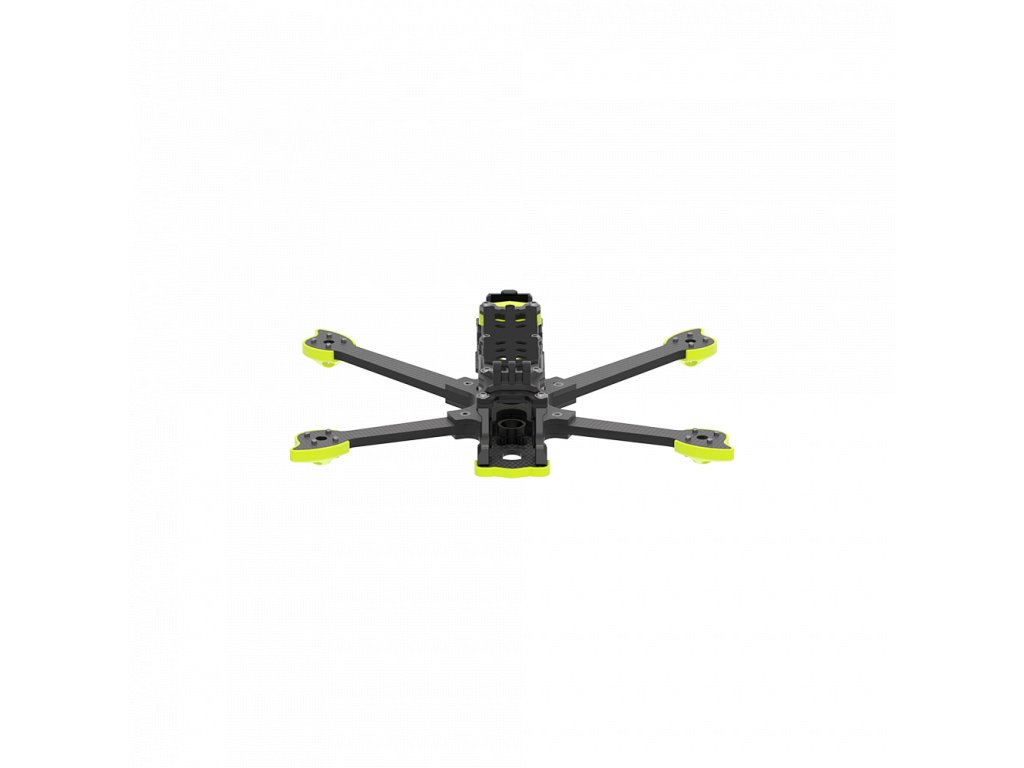

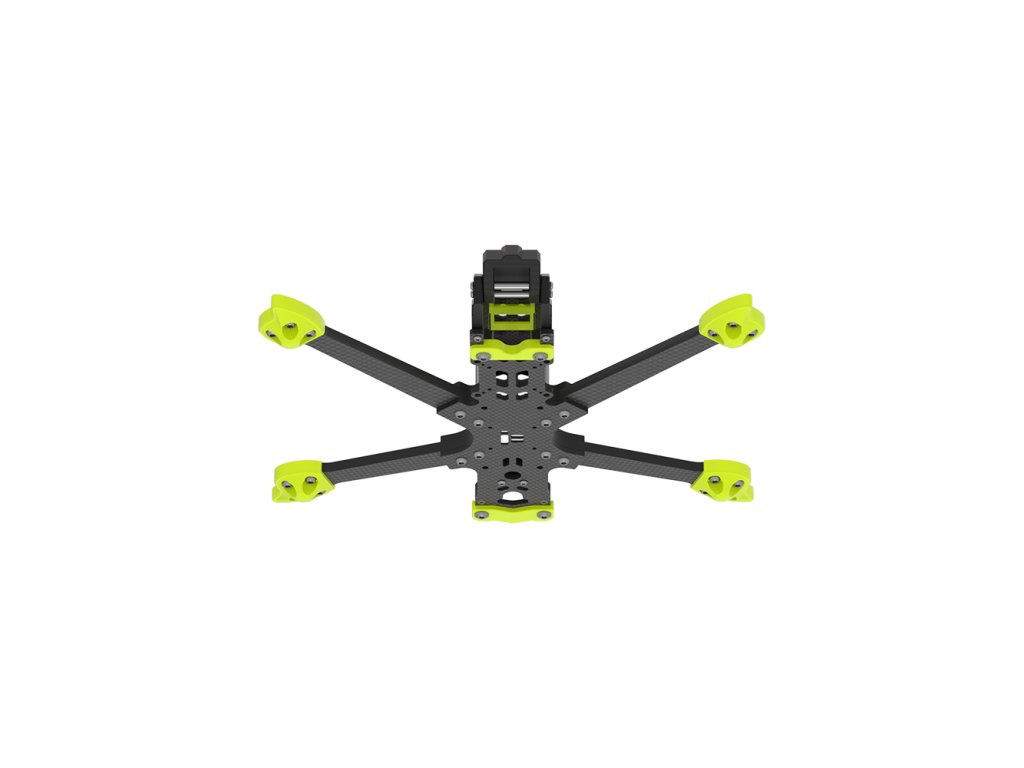

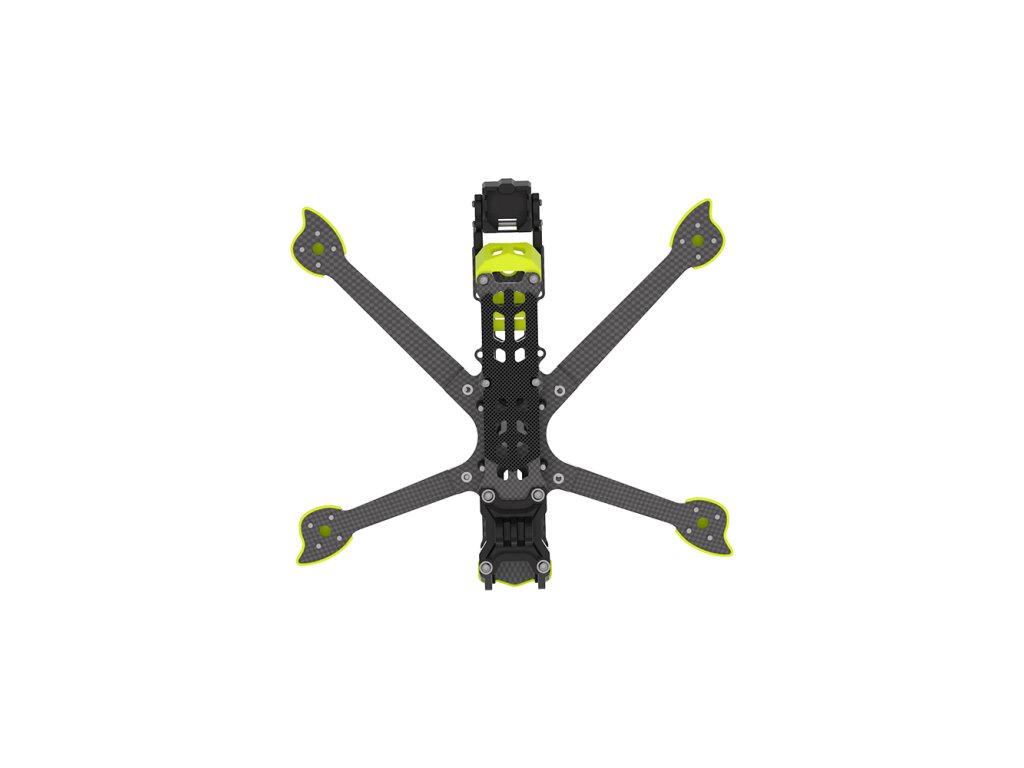

Nazgul DC5 Frame Kit The iFlight Nazgul5 V3 frame is a 5" freestyle frame. Made from super-stiff carbon for minimum resonance and recommended 2207 motors for maximum 5" prop control. Specifications: Product Name: Nazgul5 V3 Frame Kit Geometry: Squashed-X Wheelbase: 245mm Frame Dimension: L173*W173*H36.5 mm Frame Body Dimension: 36.5mm Arm Thickness: 5mm Bottom Plate Thickness: 3mm Top Plate Thickness: 2.5mm Upper Plate Thickness: 3mm Camera Plate Thickness: 3mm Max Flight Stack Height: 21mm Max VTX Height: 29mm Motor Mounting: 16x16mm VTX Mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm Weight: 130grams (Included no TPU Parts) Packing List: 1 x Nazgul5 V3 Frame Kit 1 x GoPro TPU Base Mount 1 x Screw Bag 4 x TPU Armguard 1 x Bottom Plate Front Protection TPU 1 x Bottom Plate Rear Protection TPU 1 x Anti-slip Battery Pad 4 x Motor Wire Shield Tube 2 x Battery Strap(20*250mm)
Additional parameters
| Category: | FPV Frames |
|---|---|
| Drone Type: | Freestyle |
| Material: | Carbon fiber |
| Motor Size: | 2207 |
| Size: | 5 inch |
| Wheelbase: | 245mm |
| The item has been sold out… | |
