Motor T-Motor AT4125 KV540

Code: AT4125
Not rated
Brand: T-Motor
827 P 1556529385278
Loading...
140,35 € 115,99 € excl. VAT
In stock (20 pcs)
Delivery to:
26/03/2025
Delivery offer

Detailed information

Product detailed description

Motor T-Motor AT4125 KV540

T-MOTOR AT4125 KV540 – a powerful and reliable motor featuring high-quality bearings, high-strength steel, and ultra-powerful neodymium magnets. It supports 6S-12S LiPo with a maximum power of 2200W. Ideal for 8-10kg VTOL and fixed-wing UAVs. Recommended for use with the T-Motor AT115A ESC and FS15*8 folding propeller.

Specifications:

Test Item: Long Shaft KV540
Weight (Incl. Cable): 355g
Motor Dimensions: Φ50*74mm
Internal Resistance: 14mΩ
Lead: Enameled Wire100mm
Configuration: 12N14P
Shaft Diameter: IN: 6mm, OUT: 6mm
Rated Voltage(Lipo): 6S
Idle Current(10V): 2.6A
Peak Current(180s): 85A
Max. Power(180s): 2000W

Package Includes:
1x Motor T-Motor AT4125 KV540

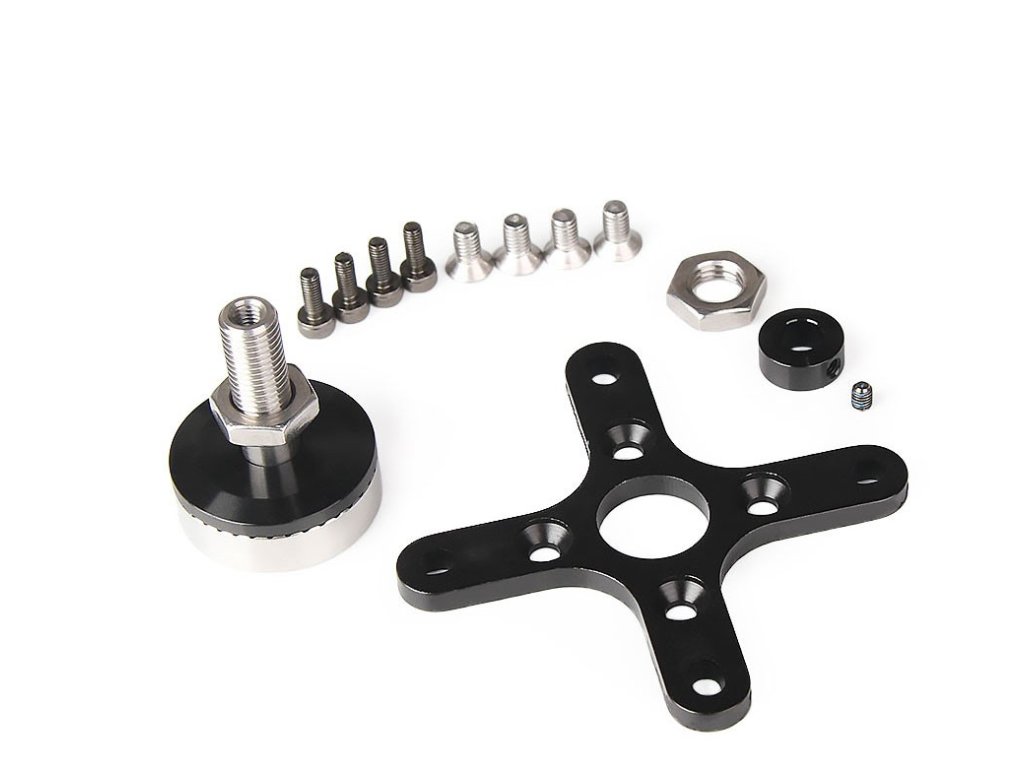

1x Hardware pack

Additional parameters

Category: Fixed Wing Motors
Motor KV: 540KV
Power Supply: 6S
Shaft Diameter: 6mm
Motor Size: 4125
Type: Brushless
