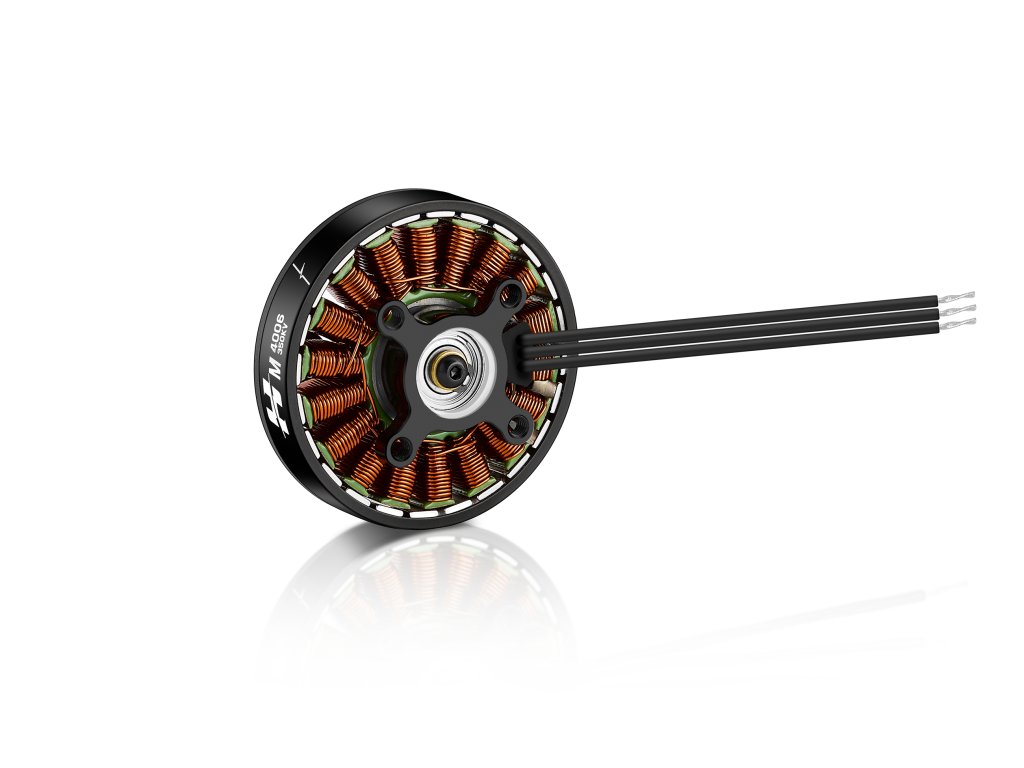

Motor Hobbywing HM-4006-350KV BLACK

Product detailed description

Motor Hobbywing HM-4006-350KV BLACK

The Hobbywing HM-4006-350KV BLACK is a high-performance brushless motor designed for industrial multirotor drones, offering exceptional efficiency and reliability for various aerial applications. Excellent choice for professionals seeking a reliable and efficient power solution for their industrial multirotor drones, ensuring high performance and longevity in demanding aerial operations.

Features:

- High-Quality Construction: Utilizes high-standard silicon steel sheets with rust-proof treatment and 180℃ high-temperature resistance paint-coat for enhanced durability.
- Superior Winding Materials: Equipped with 220℃ rated enameled wires ensuring efficient performance under high temperatures.
- Robust Magnet Design: Incorporates 180℃ rated magnets for consistent magnetic flux and optimal motor performance.
- Enhanced Protection: Achieves an IPX5 protection level, offering resistance against water ingress for reliable operation in various environments.
- Precision Engineering: Maintains a dynamic balance standard of ≤5mg, ensuring smooth and stable motor operation.
- Efficient Cooling: Features an optimized rotor design with improved fan ports, effectively enhancing heat dissipation and prolonging motor lifespan.
- Lightweight Design: Weighing only 66.1g with wires, it contributes to an optimal power-to-weight ratio for multirotor applications.

Specifications:

- Motor Size: Φ44.4 x 19.3mm
- Stator Size: Φ39mm
- KV Rating: 350KV
- Battery Compatibility: 6S LiPo
- No-Load Current: 0.64A
- Maximum Current: 17.3A (at ambient temperature ≤ 25℃)
- Maximum Power: 358W
- Maximum Thrust: 2.5kg
- Resistance: 209.7mΩ
- Wire Length: 60mm
- Weight (with wires): 66.1g
- Protection Level: IPX5
- Slot & Pole Configuration: 18N 24P
- Dynamic Balance Standard: ≤5mg
- Bearing Type: High-quality waterproof bearing
- Motor Axle Diameter: Φ4mm
- Propeller Mounting Dimensions: 4×M3@D12mm
- Motor Mounting Dimensions: 4×M3@D25mm

Package includes:

- 1 х Motor Hobbywing HM-4006-350KV BLACK
