Module Pilotix With 10km Optic Fiber Roll SE

Fiber optic communication is a reliable and efficient solution for ground, underwater and aerial systems where large amounts of video data need to be transmitted with minimal loss or in the absence of radio communication. The Pilotix Fiber Optic Communication Kit includes a 10-kilometer fiber optic cable and the Sky End SE communication module, ensuring fast and stable data transmission.

Features:
- Low latency, critical for real-time control.
- Immune to radio interference, ensuring 100% uninterrupted communication quality.
- High bandwidth, enabling HD video transmission and large data transfers.
- No additional drone receiver or video transmission system required.
- Secure connection, making it difficult to intercept the signal.

This kit is an ideal choice for professional continuous communication and video surveillance applications, especially in challenging environments.

Important notes:

- For reliable communication over distances of 5km, 10km, or 15km, we recommend selecting a transceiver with a range of up to 20km. For 20km communication systems and beyond, a 40km transceiver is recommended.

- Pilotix fiber optic communication modules are only compatible with transceivers of the same series. We do not guarantee compatibility or take responsibility for proper operation when using devices from other series.

Specifications:

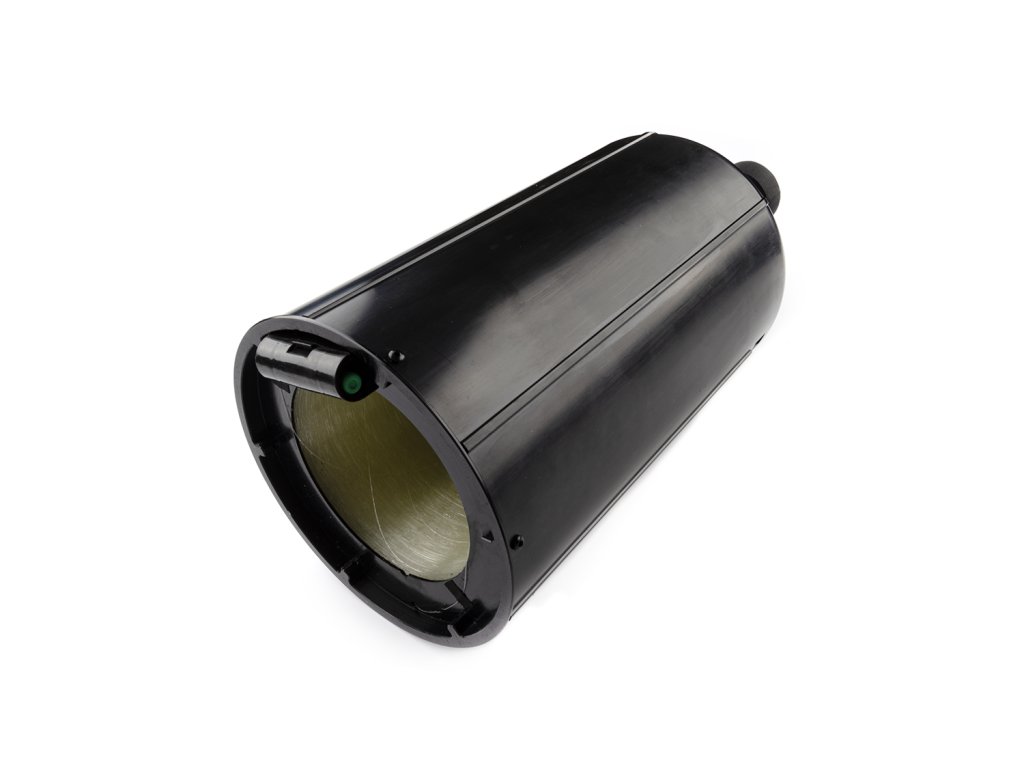

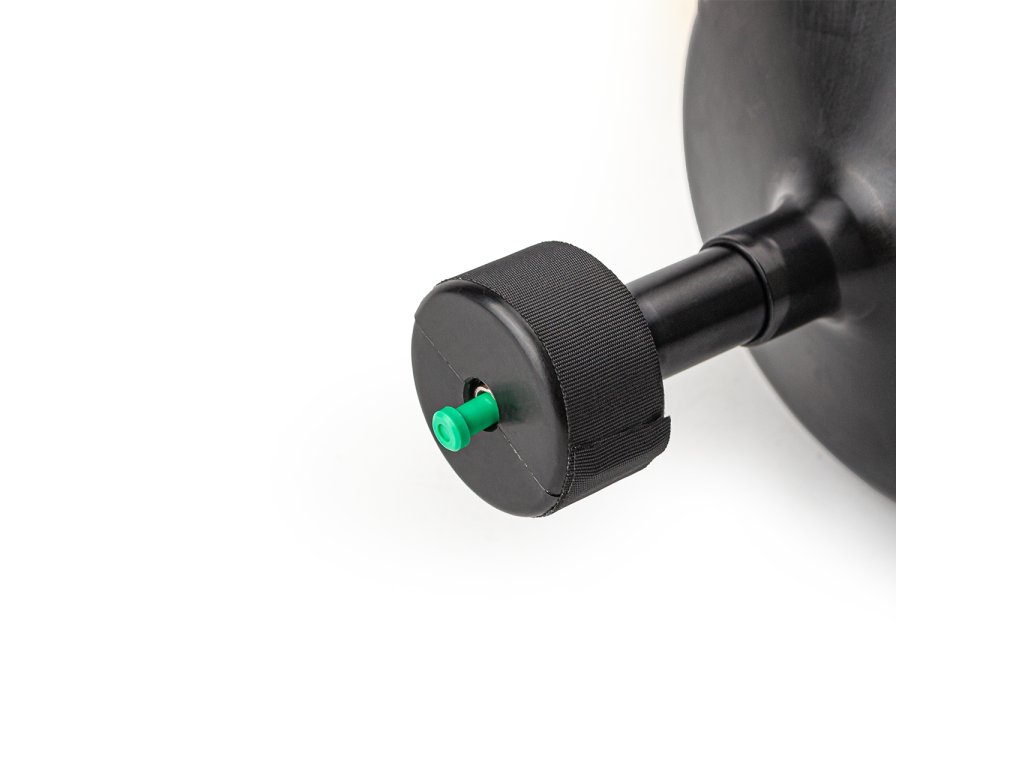

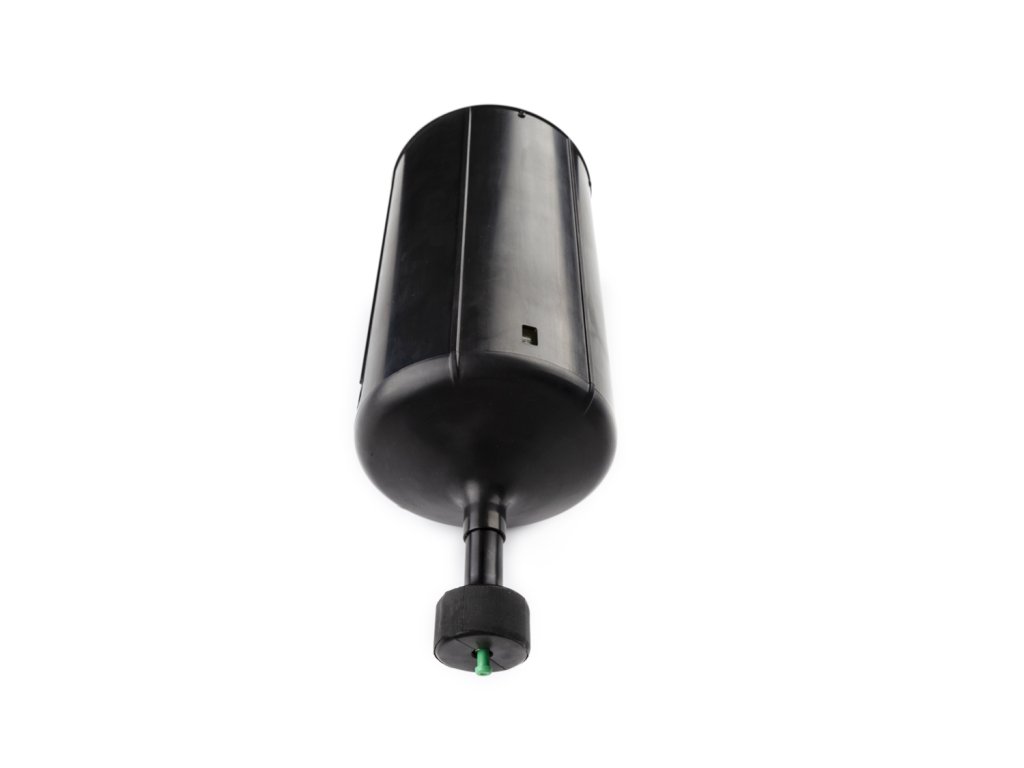

Fiber Optic Cable
Model: 10km Optic Fiber Roll SE
Length: 10.1km
Fiber Diameter: 0.25mm
Decay:
- 1310nm ≤0.35dB/km
- 1550nm ≤0.21dB/km
Weight: 942g ± 10g
Size: D 108mm х L 271.5mm

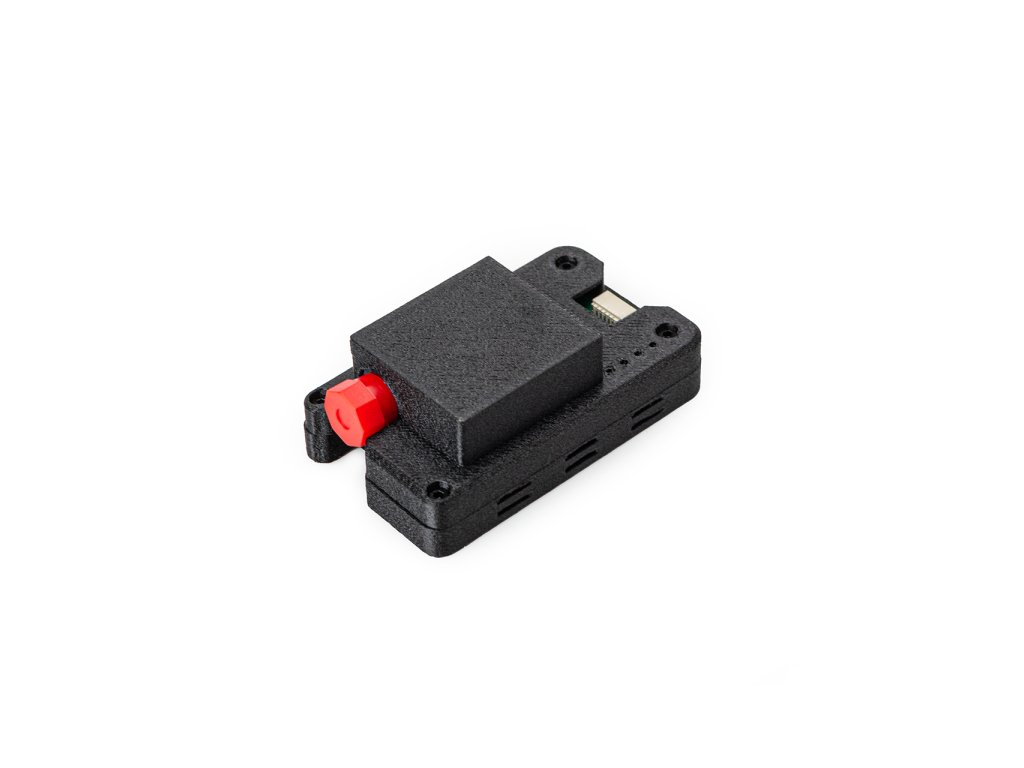

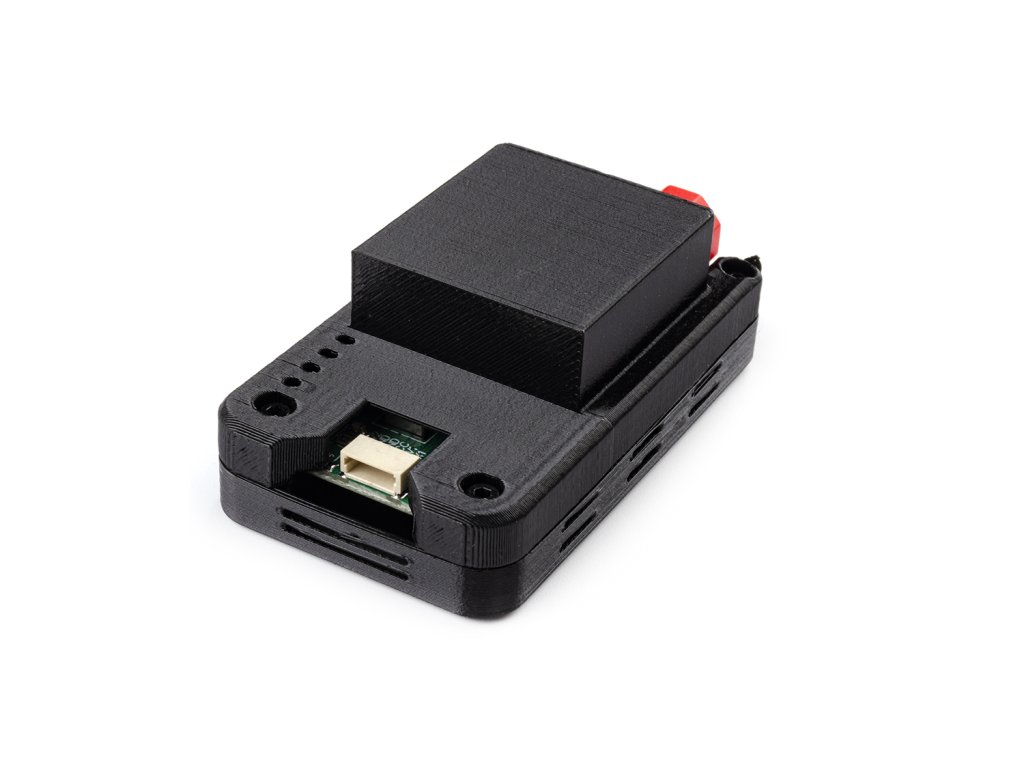

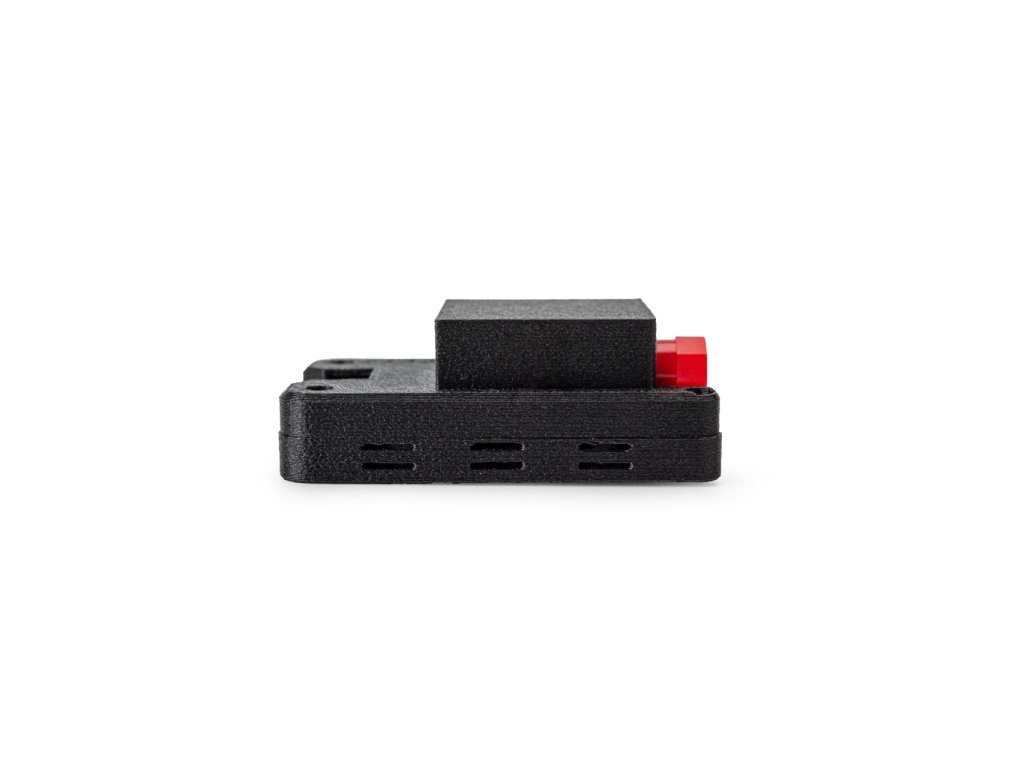

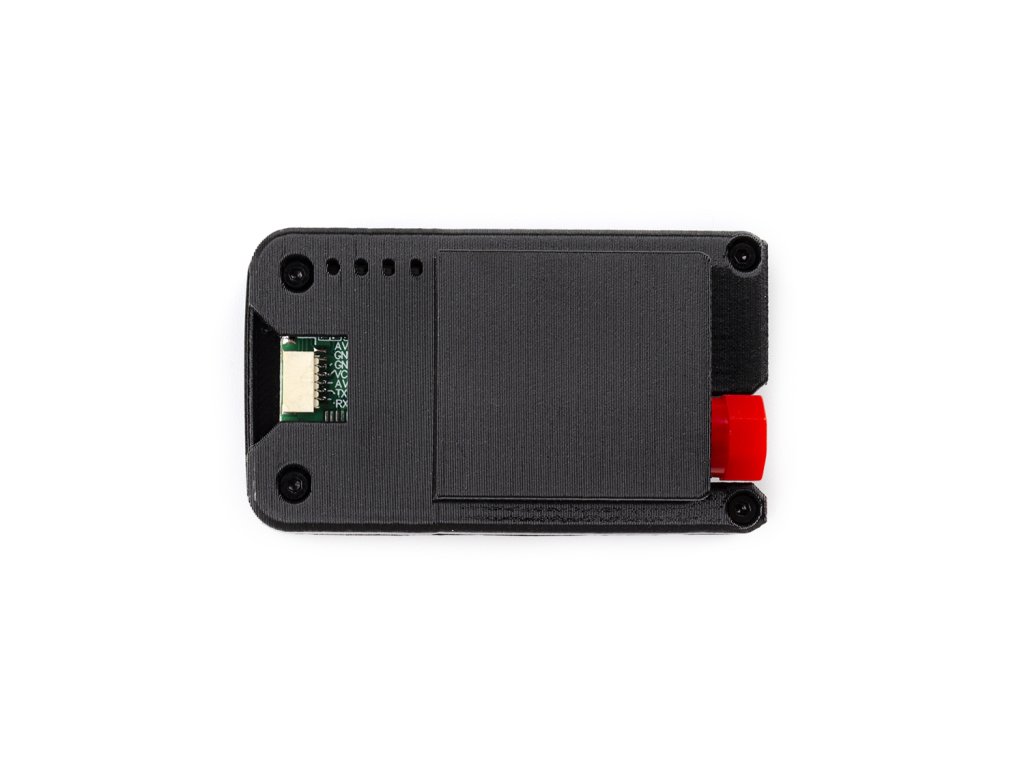

Fiber Optic Digitizing Module
Device Name: Sky End SE
Power Supply: 5.5V~26V
Body size: 63x37x23mm
Body weight: 31±2g

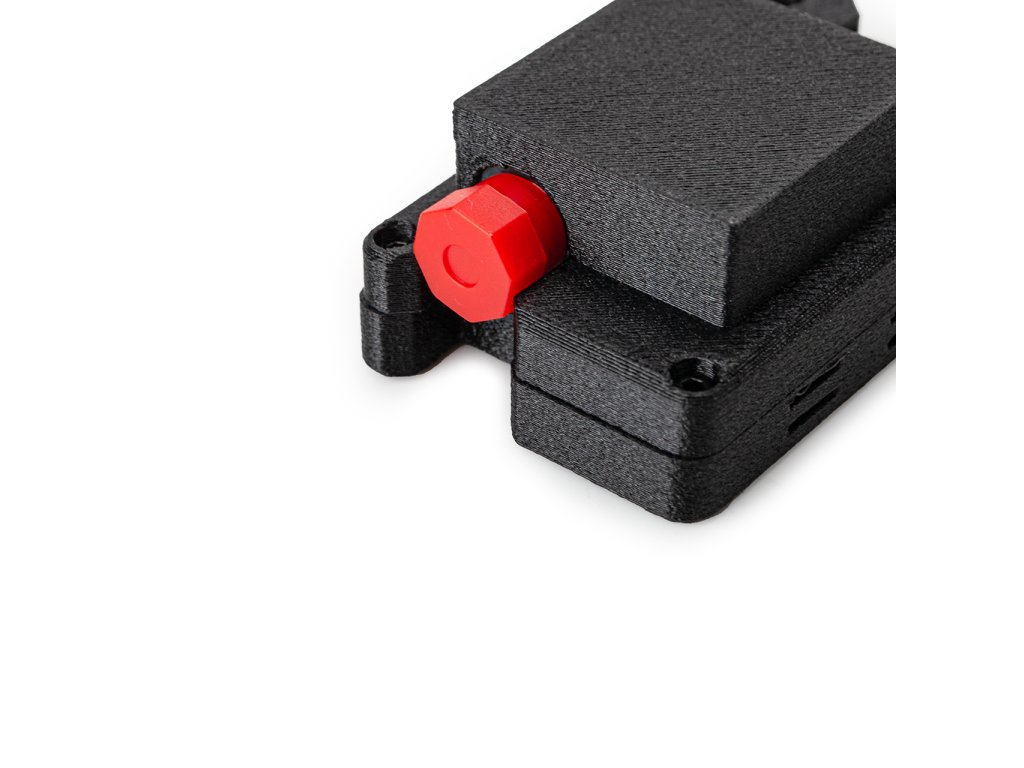

Fiber Optic Interface: FC Interface
Fiber Type: Single Mode - Single Fiber
Data Interface: SH1.0
Video Format: NTSC/PAL/SECAM
Data Direction: Bidirectional
Data format: TTL/SBUS
Speed: 0~1Mbps
Wavelength single mode: 1310 (9/125μm) +1550
Transmission distance: single-mode fiber 0 ~ 20km

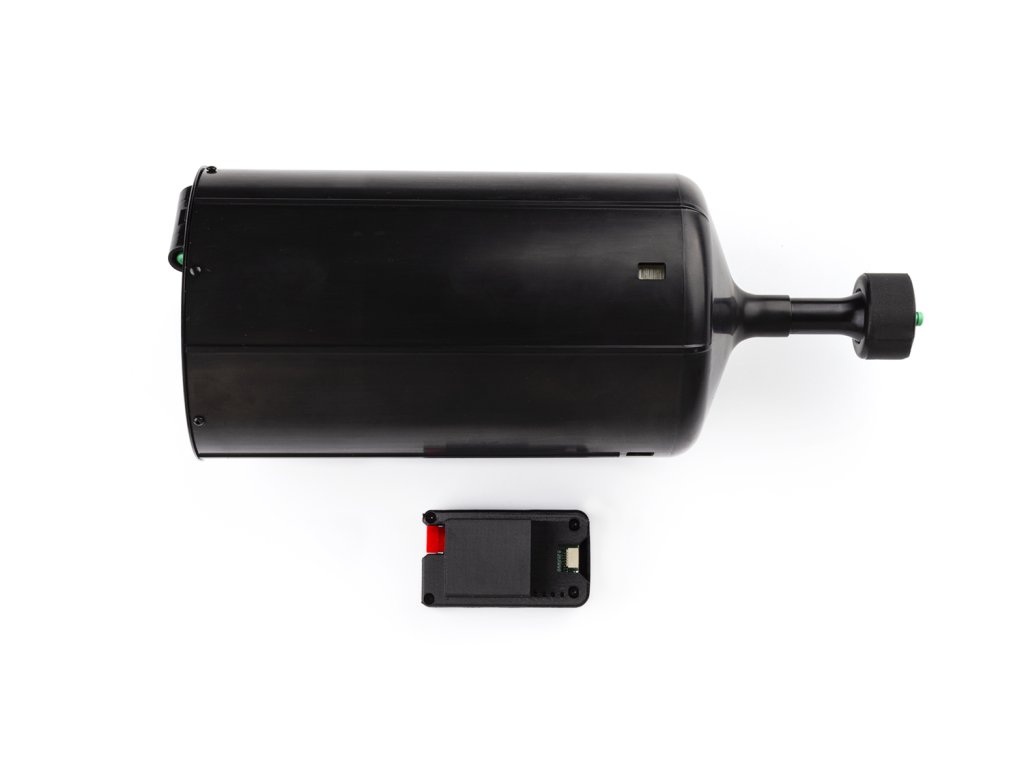

Package includes:

1x Optic Fiber Module Sky End SE
1x 10km Optic Fiber Roll SE
