Frame BETAFPV Meteor85 (Black)

Product detailed description

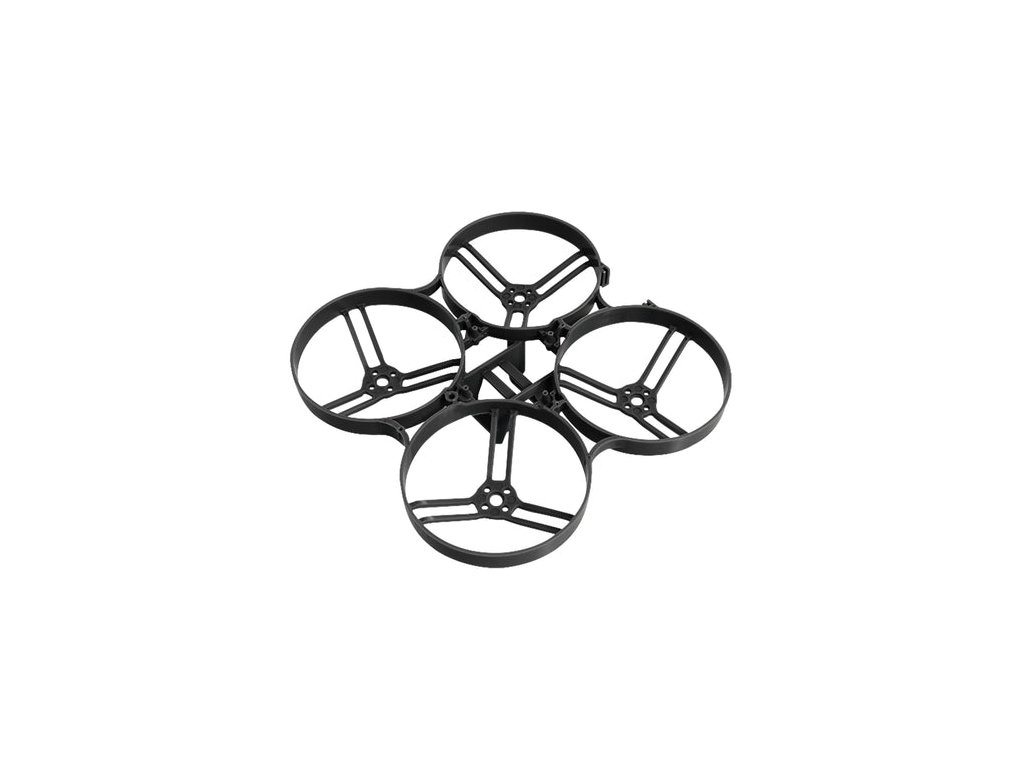

Meteor85 Frame kit (Black)

The frame for Meteor85, Meteor85 HD Digital VTX.

Features :
- The new design frame reserves a battery slot, perfect for the LAVA 2S 450mAh 75C Battery.
- The Meteor85 frame’s motor mounting position uses a triangle bilateral stretch structure, making the frame more aesthetic. It provides a more durable and smoother flight experience.

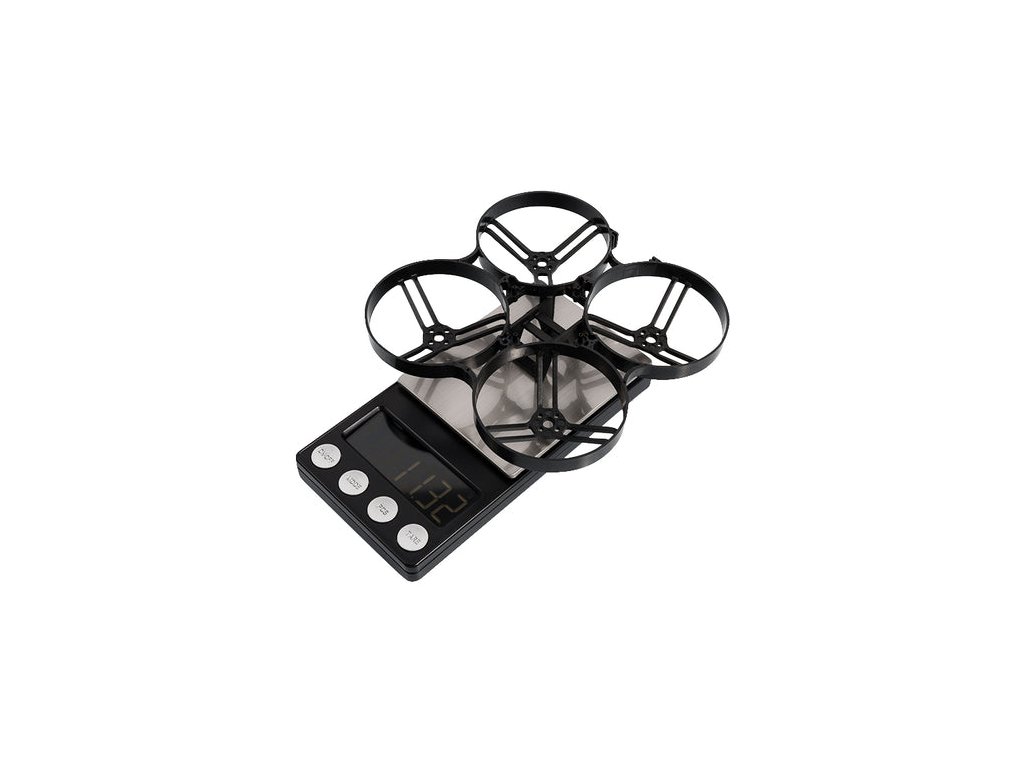

- The ultra-light and durable frame is PP material only 11.32g, which can match the F4 1-2S 12A AIO Brushless Flight Controller.
- The frame is suitable with 2" propellers like Gemfan 2015 2-Blade, and Gemfan 2020 4-Blade props.
- Recommend using BETAFPV canopy for nano HD camera for Caddx ant camera, or other nano cameras. It can also match the lighter BETAFPV canopy for a micro camera and install with a C02 Camera, C03 Camera, and M03 5.8G VTX.

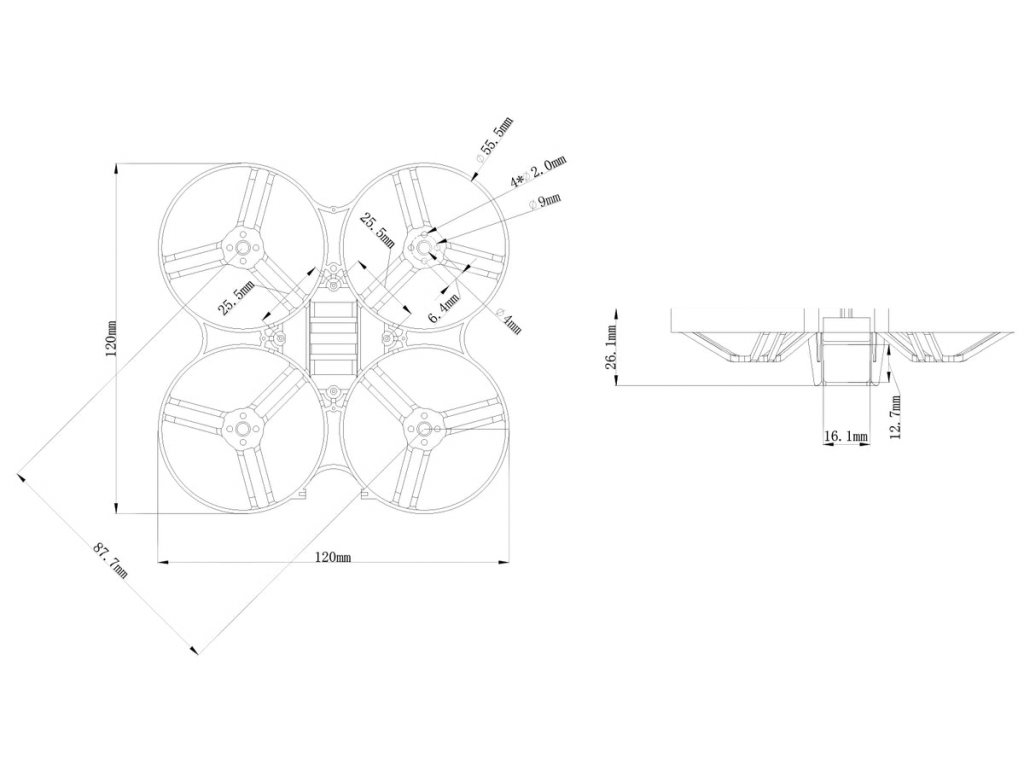

Specification
Material: PP
Wheelbase: 87.7mm
Motor mounting hole: 110x motors, such as 1103 11000KV motors
FC mounting hole: fully compatible with whoop style FC board mounting pattern, 26mm x 26mm
Weight: 11.32g

Recommended Parts

Propellers: Gemfan 2015 2-Blade Props, Gemfan 2020 4-Blade Props
Motors: 1103 11000KV Motors (4 pcs)
Batteries: LAVA 2S 450mAh 75C Battery, 450mAh 2S Battery
Canopy: Micro Canopy for Nano HD Camera, Micro Canopy
Screws: Meteor Series Motor Fixing Screws Pack (40PCS)
FC: F4 1-2S 12A FC

Package
1 * Meteor85 Brushless Whoop Frame (Black)
