Stack Diatone MAMBA MK4 F722MINI F40_128K MINI

Product detailed description

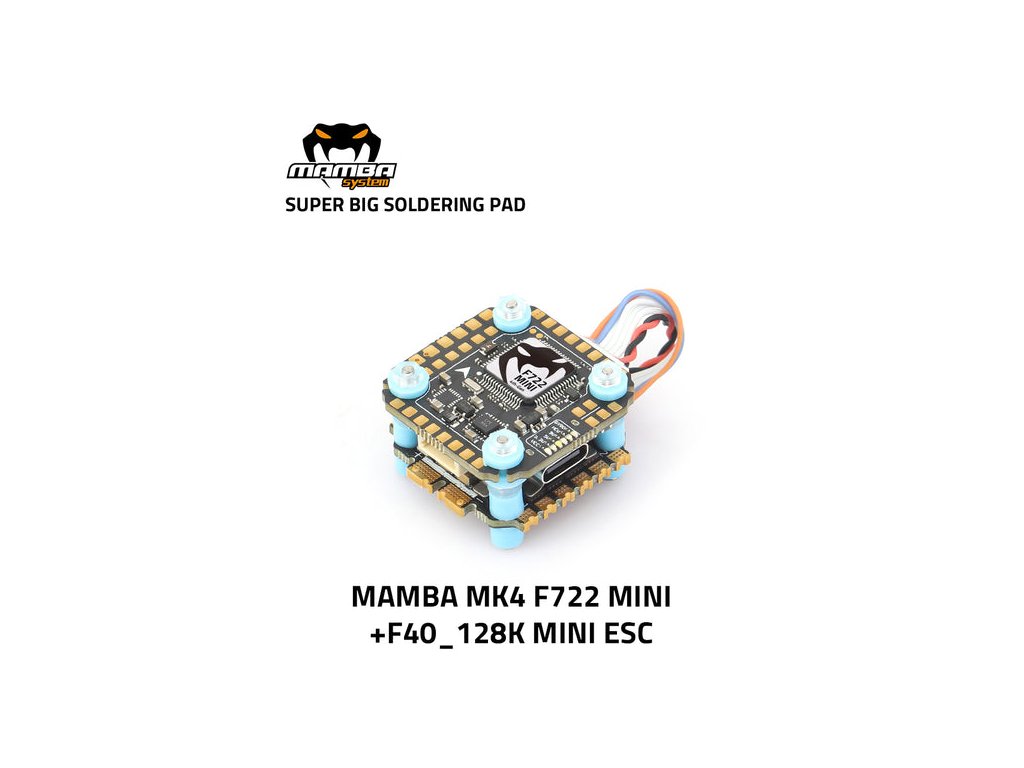

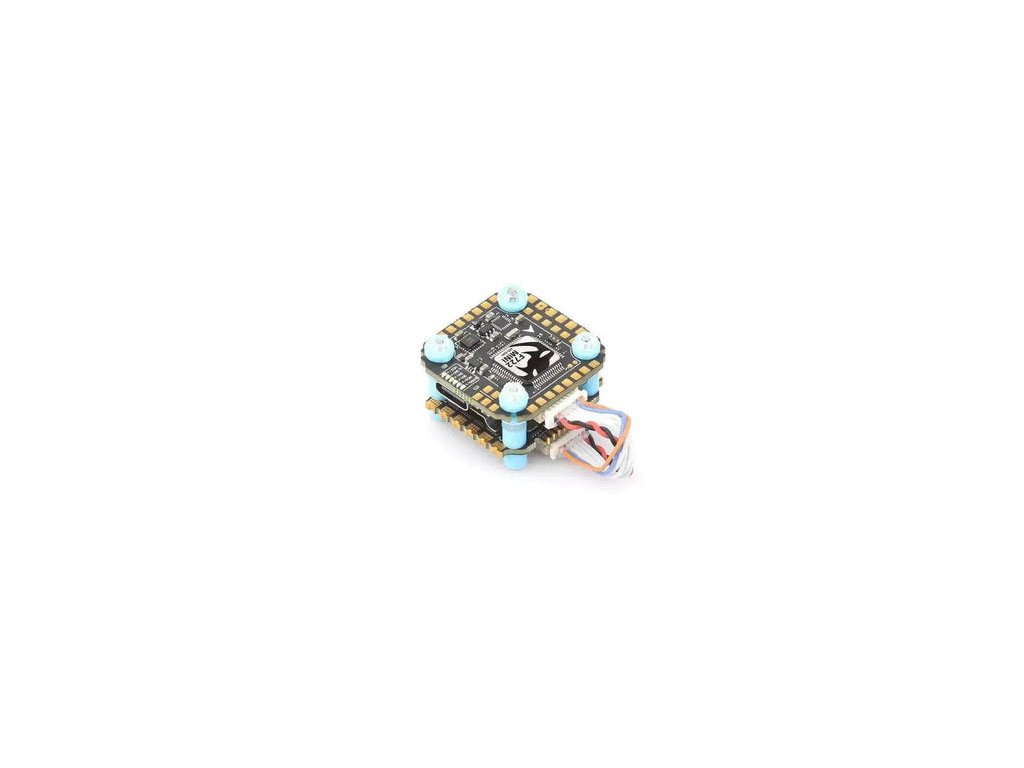

MAMBA MK4 F722MINI F40_128K MINI

Diatone has released their 4th generation F722 mini stack. The MK4 F722 mini 20x20 stack boasts larger soldering pads, wider pad spacing, more UARTs, l2C and is configurable through the Speedy Bee App via built-in Wi-Fi.

Features
- The pad area increased by 30%
- Pad spacing increased by 100%
- MP9943 synchronous rectifier BEC
- MINI series upgrade DJI interface and 5v 15W/9V 18W 2 set BEC
- USB Type C
- 6 Set UART and I2C
- 4 Set Power Protection
- 32Bit ESC all support 128K
- Mini series FC uses 2mm and 3mm mounting holes, w/a special - dampening ring
- Upgrade the twisted pair anti-jamming cable and reinforcement process

Specifications:
Model: Mamba Mini F722 MK4
Input: 6S
MCU: ICM42688P
Barometer: Yes
OSD: Yes
Blacbox: 16M Flash Memory
Uarts: 6Set
Protocol: Dshot300/600/1200
ESC Telemetry: Yes
Power Led: Yes
LED Controller: BF LED
F.Port: Yes
Buzz: Yes
TVS Protection: Yes
BEC: 3.3V 0.5A & 5V 2.5A
Mounting Pattern: 20x20 M3/M2

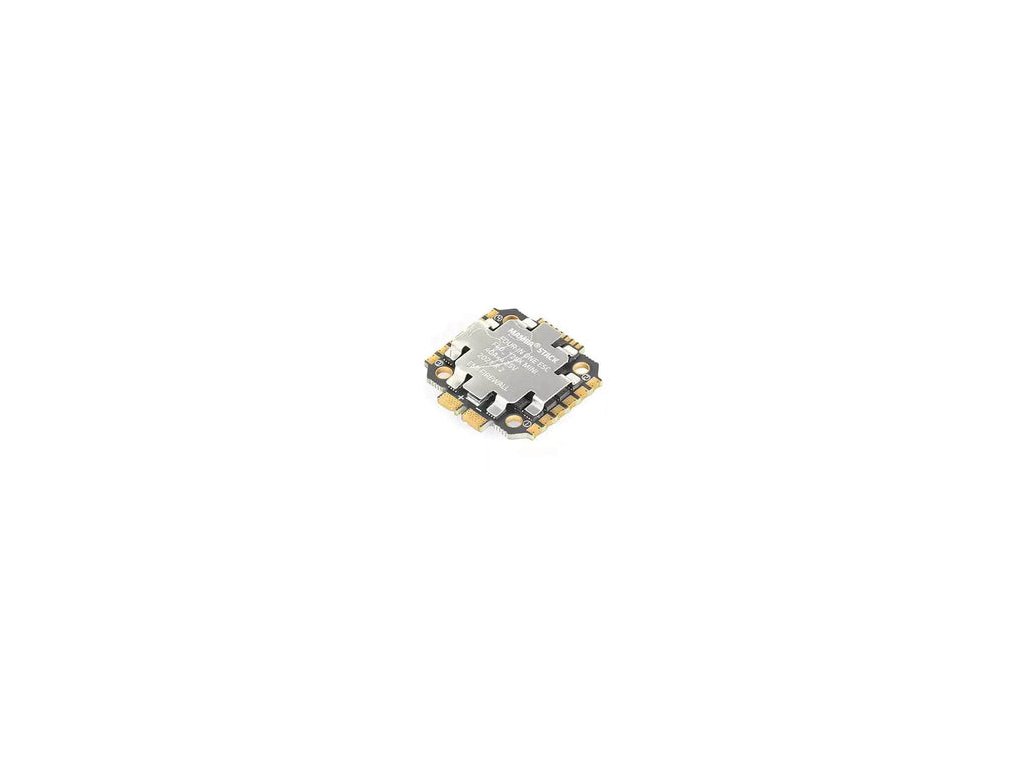

Model: Mamba F40 128k Mini ESC
Input Voltage: 6S Lipo
Max Continuous Current: 40A
Max Burst Current: 45A
Target: BLHeli_32 MAMBA F40_128K_MINI
Protocol: Dshot300/600/1200
PWM Range: 24-128K
Mounting Pattern: 20x20 M2/M3

Package Includes:
1x Diatone Mamba MK4 F722 Mini F40_128k 2-6S 20x20 Stack/Combo
5x M2 Silicone Grommets
5x M3 Silicone Grommets
5x M2 ESC Isolation Columns
5x M3 ESC Isolation Columns
1x 8 Pin single-ended cable for flight controller
2x 8 Pin Cable
1x 6 Pin Air Unit Cable
1x XT60
1x Capacitor
