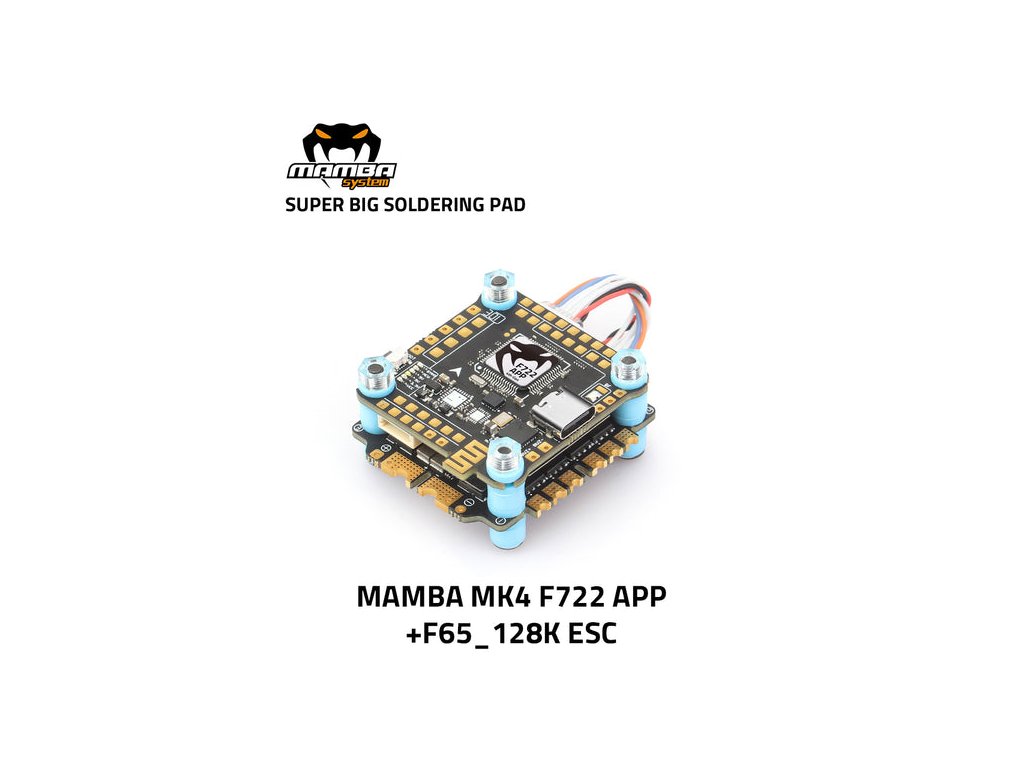

Stack Diatone MAMBA F722 APP FC _F65_128K

Product detailed description

MAMBA F722 APP FC _F65_128K

FC SPECIFICATIONS
MCU: 216MHz STM32F722
GYRO: ICM42688P
OSD: AT 7456E
Blackbox: 16M Flash Memory
Uarts: 6Set
Receiver: TBS/SBUS/IBUS/DSM
I2C: Yes
F.Port: Yes
Buzzer Pad: Yes
CURR Pad: Yes
ESC Signal: 8 set
BEC 3.3V: 0.5V
BEC 5V: 3A
BEC 9V: 3A
MB LED: Yes
BF LED: Yes
Air unit port: Yes
WIFI: SpeedyBee APP
VTX Switch: Yes
BEC Protection: Yes
Receiver protection: Yes
TVS Protection: Yes
Input: 6S Lipo
Soft ware: Betaflight
Mounting: 30.5x30.5mm/M3
Size: 38x40.5x8mm
Weight: 10g

ESC SPECIFICATIONS
Input voltage: 3-6S Lipo
Continue Current: 65A
Burst: 75A
BLHeli_32
Target: F65-128k
Soft: Dshot300/600/1200
Mounting: 30.5mm/M3
PWM: 24-128k

Package includes:
1x FC MK4 F722 APP
1x F65_128k ESC
5x Silicone damper M3
5x M3 ESC insulation column
1x 8pin single-ended cable for FC
2x 8pin cable
1x 6pin cable for air unit
