Frame iFlight iXC13 X-CLASS Racing

Code: FF14831
Not rated
Brand: iFlight
€246,46 €203,69 excl. VAT
In stock (2 pcs)
Delivery to:
26/11/2024
Delivery offer

Detailed information

Product detailed description

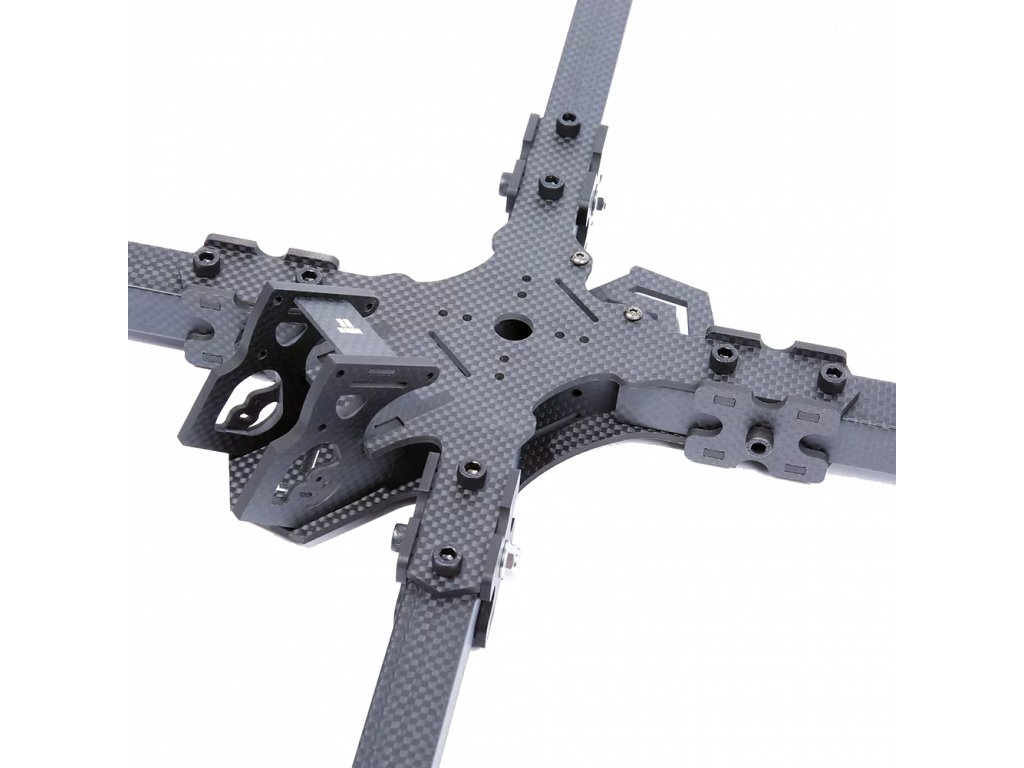

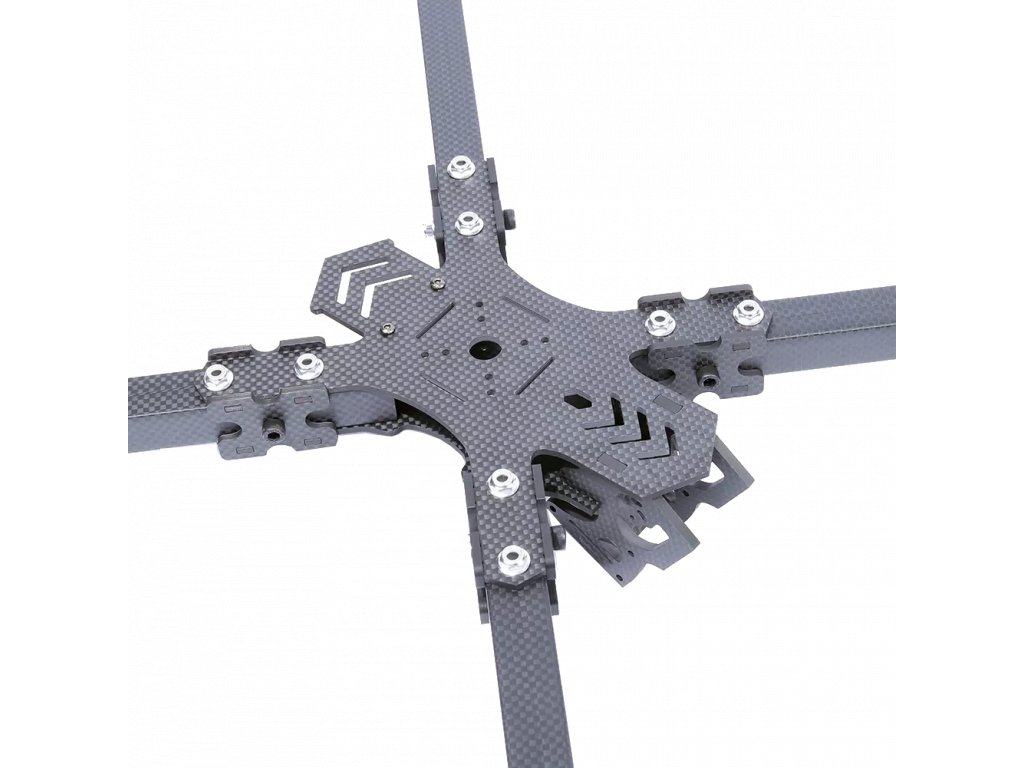

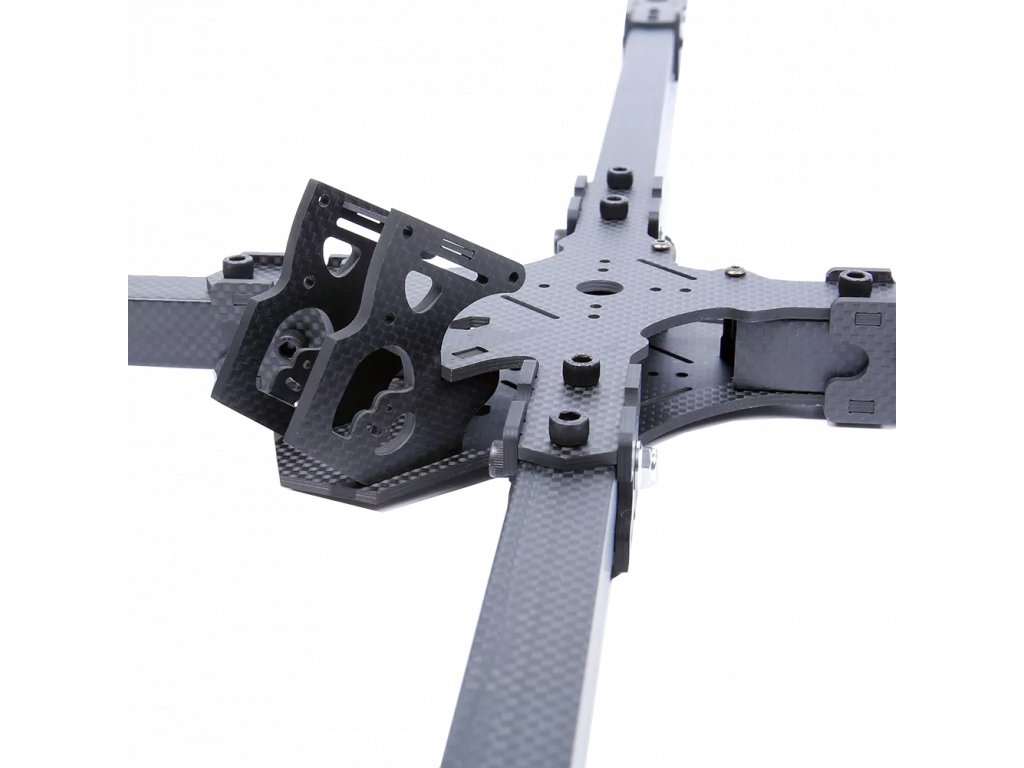

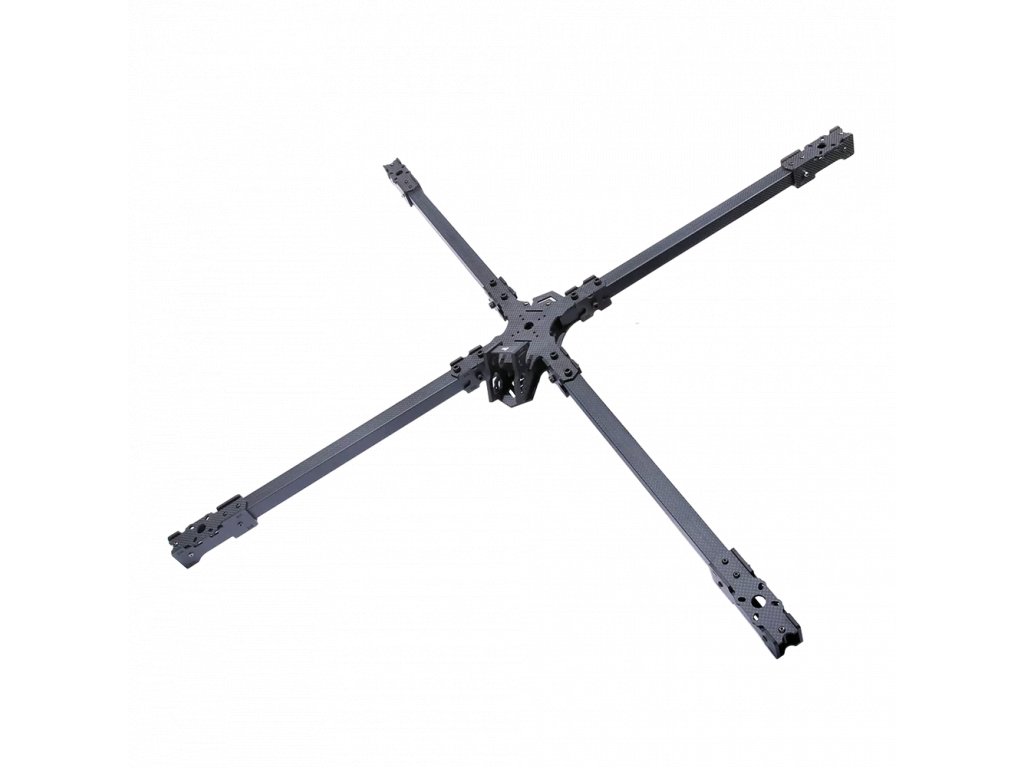

iXC13 X-CLASS Racing Frame Kit

Features:
- Ture X design, pure 3K carbon fiber.
- Comes with GoPro mount, ample equipment installation space.
- Omnidirectional arm locking structure to ensure the connection strength between the arm and the body.

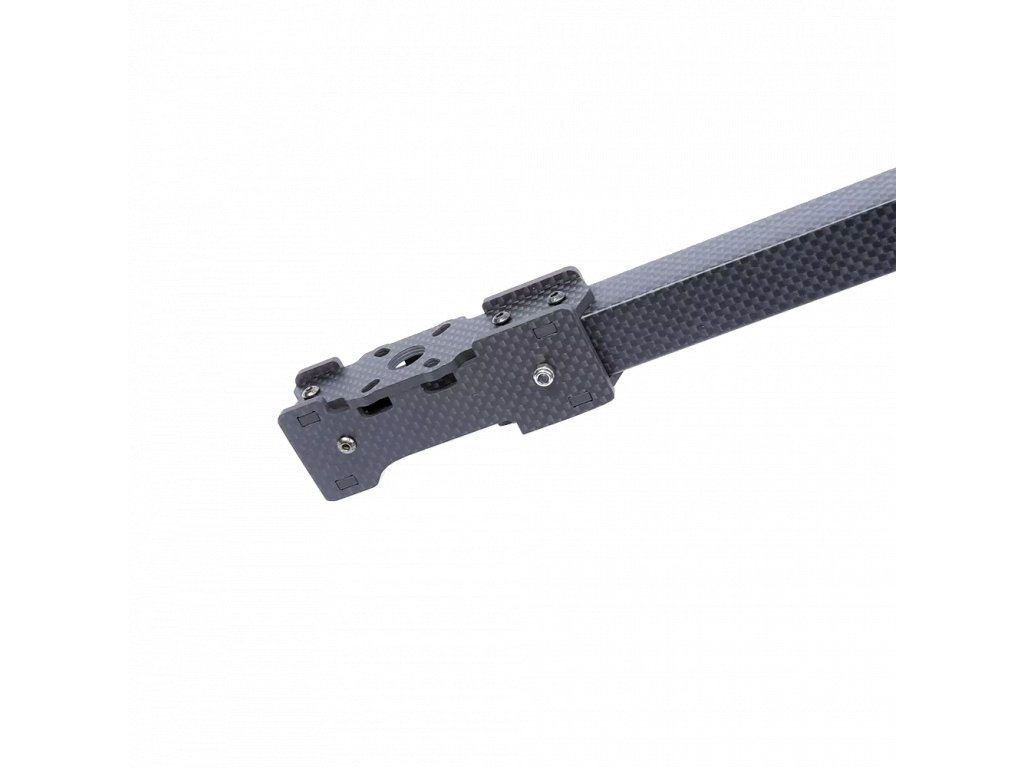

- The unique motor base design ensures installation speed and high strength.

Specifications:

Product Name: iXC13 X Class Frame
Wheelbase: 850mm
Carbon tube arm dimension: 20mm*20mm*375mm
Tube: 20mm (out OD),18mm (inner OD)
Frame Body Dimension: 20mm
Singles Tube Length: 375mm
Arm Thickness: 6mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Camera Plate Thickness: 3mm
Motor Mounting: 19x19mm - 25*25mm
VTX Mounting: 30.5*30.5mm / 20*20mm
Weight: 503.9grams (Included no TPU Parts)

Package includes:
1 x iFlight iXC13 850mm X CLASS Racing Frame only

Additional parameters

Category: FPV Frames
Camera Mounting: Full (28mm)
Drone Type: Cinelifter
Material: Carbon fiber
Motor Size: 4214
Size: 13 inch
Wheelbase: 850mm
