AIO FC GEPRC TAKER F411 8Bit 12A Without ELRS

Code: GP105846
Not rated
Brand: GEPRC
€91,95 €75,99 excl. VAT
Upon request
Delivery offer
The item has been sold out…

Detailed information

Product detailed description

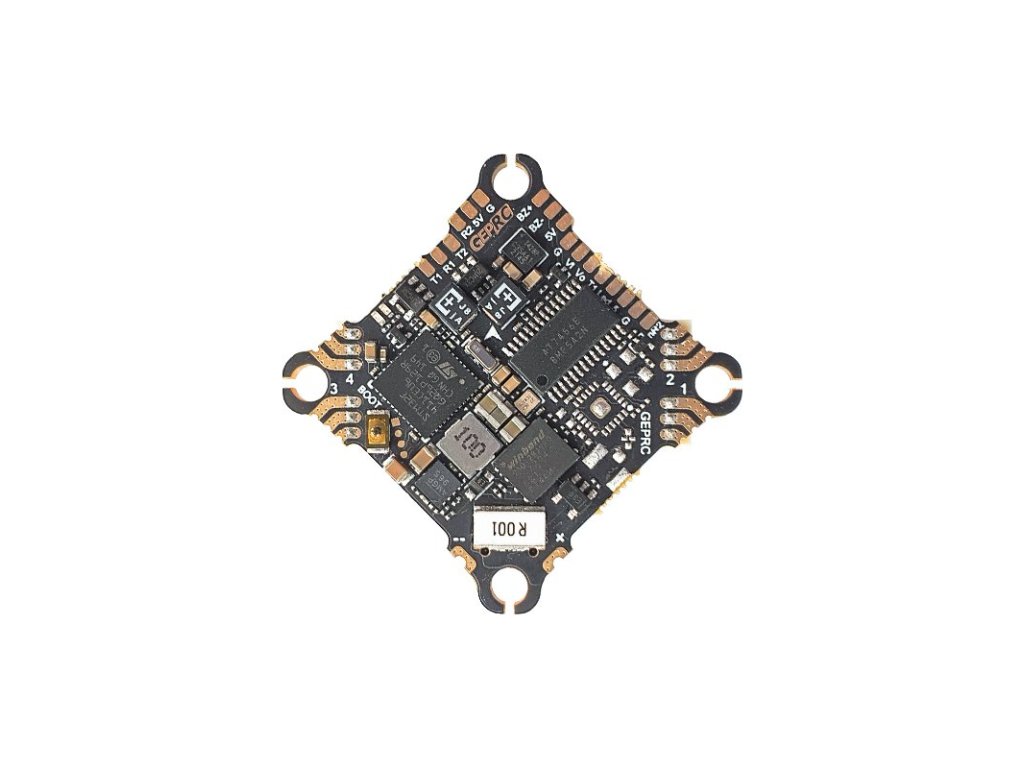

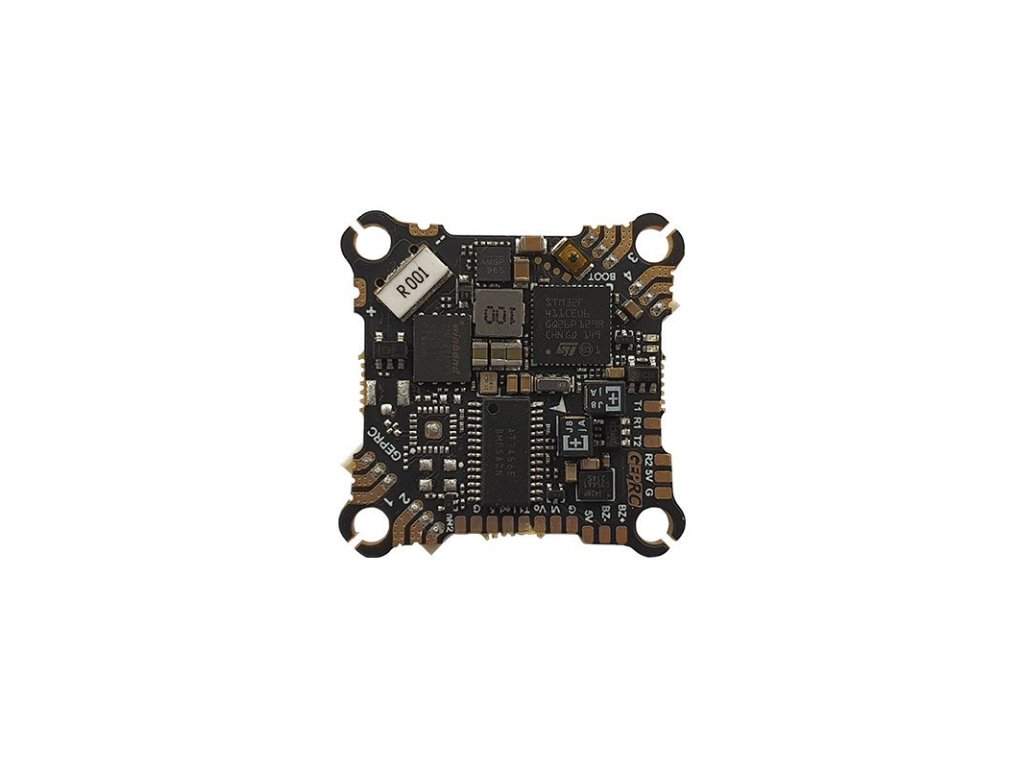

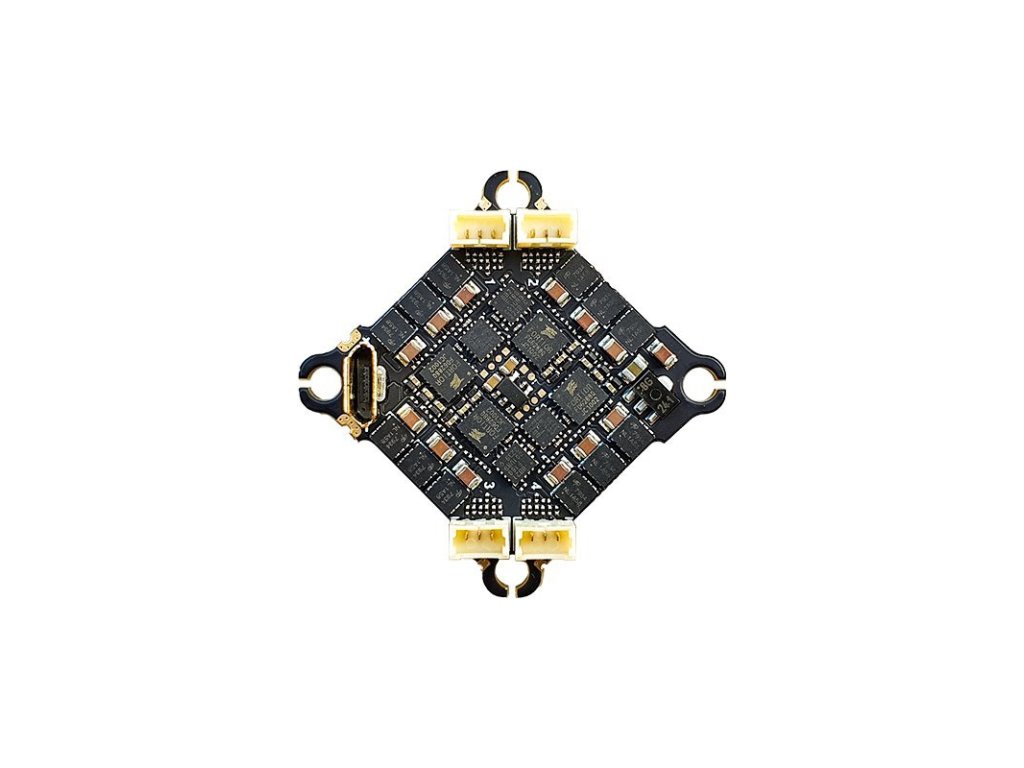

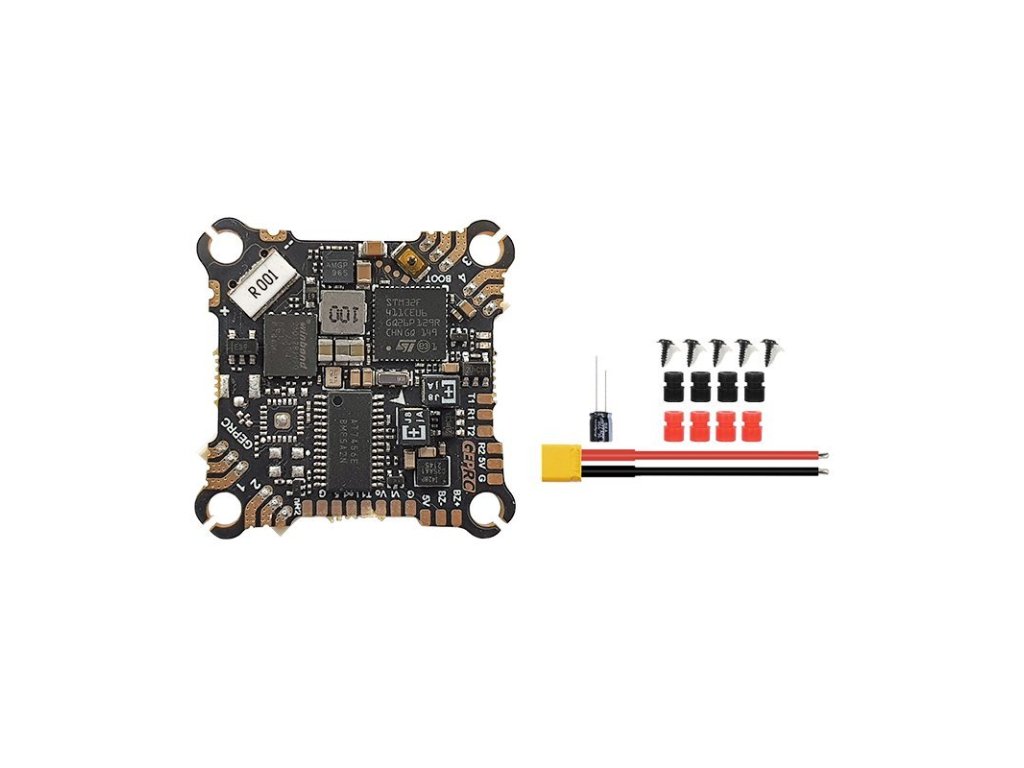

TAKER F411 8Bit 12A AIO Without ELRS

The TAKER F411 8Bit 12A AIO is designed to provide an efficient and lightweight solution for mini FPV drones, making it suitable for various flying styles, including racing and freestyle. It includes an ICM-42688-P gyro for precise and responsive flying, and supports 2-4S batteries. The AIO board also comes with a 16MB onboard black box for parameter adjustment.

Specifications:
Model: TAKER F411 8Bit 12A AIO (without ELRS receiver)
MCU: STM32F411
IMU: ICM42688P
Firmware Target: GEPRC_F411_SX1280
OSD: BetaFlight OSD with AT7456E chip
UART Ports: R1 T1R2 T2
Reverse Port: NR2
Buzzer: YES
LED: YES
USB Port: micro USB
ESC MCU: BB21F16G
Black Box: 16Mb onboard flash memory
Continuous Current: 12A
Peak Current: 13A
Input: 2-4S
ESC Protocol: Dshot300, Oneshot, Multishot
Current Meter: 210
ESC Firmware: G-H-30 – Bluejay, 0.16, 48kHz
Size: 31.2×31.2mm Board
Mounting Holes: 25.5mm x 25.5mm hole, M2 hole
Weight: 7g

Additional parameters

Category: AIO FC
Continuous Current: 12A
Motor Size: 25.5x25.5mm
Power Supply: 2-4S
Processor Type: F411
