Motor GEPRC GEP-GR2207 (2400KV, Red)
Code: GP100223Product detailed description

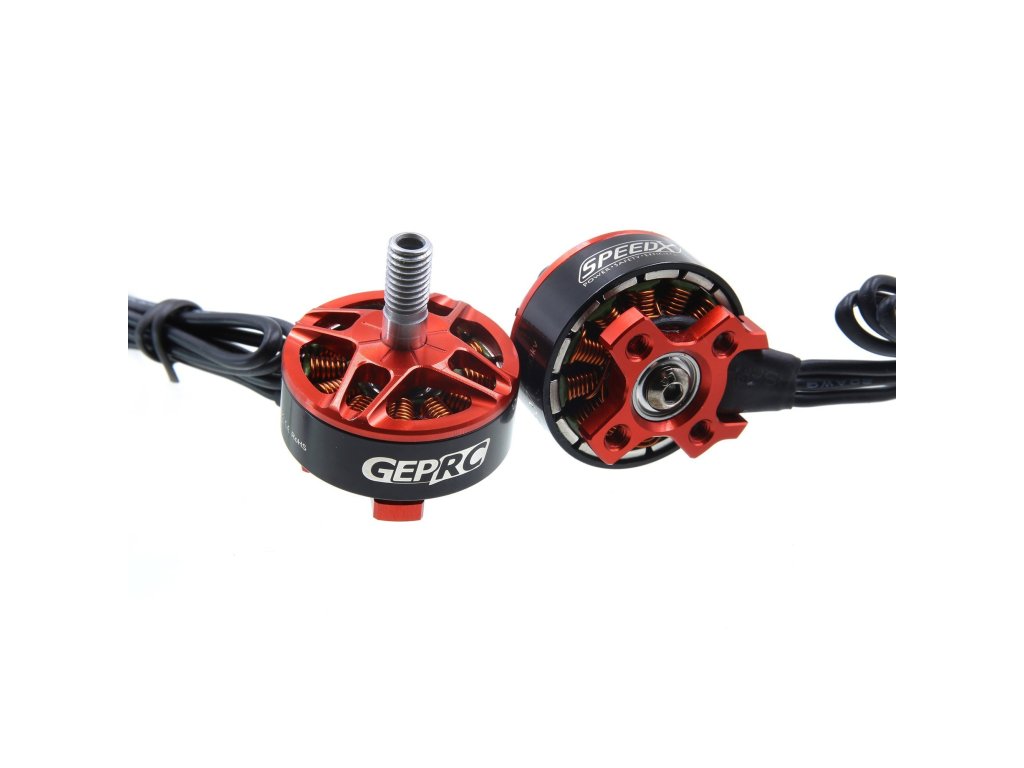

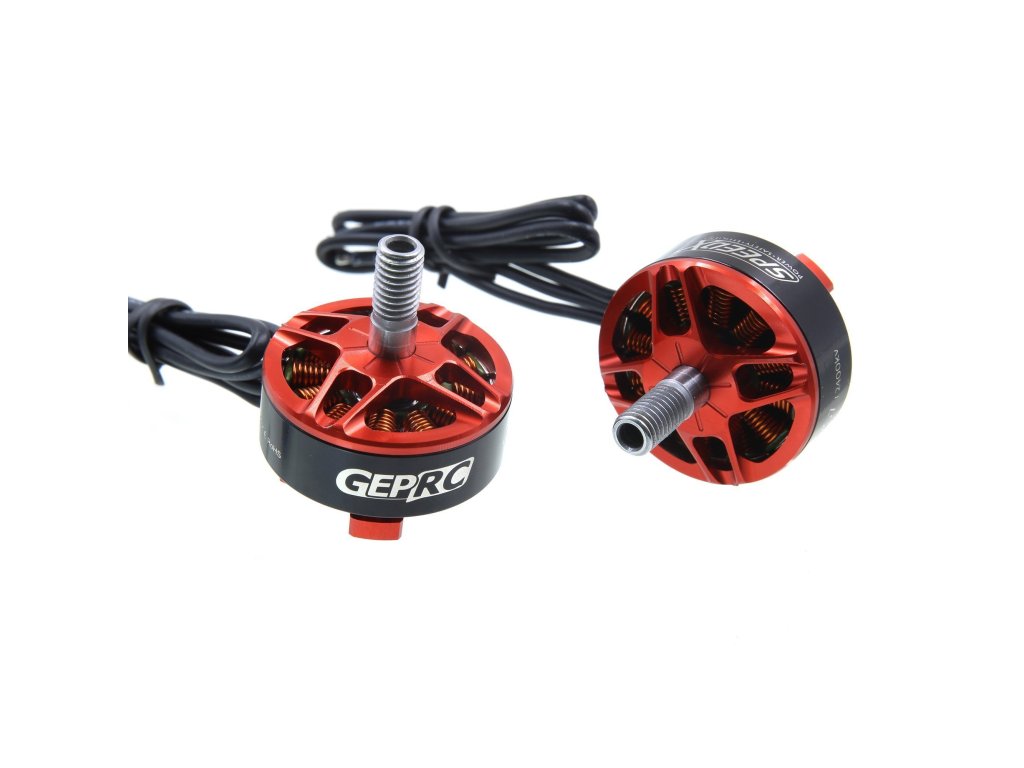

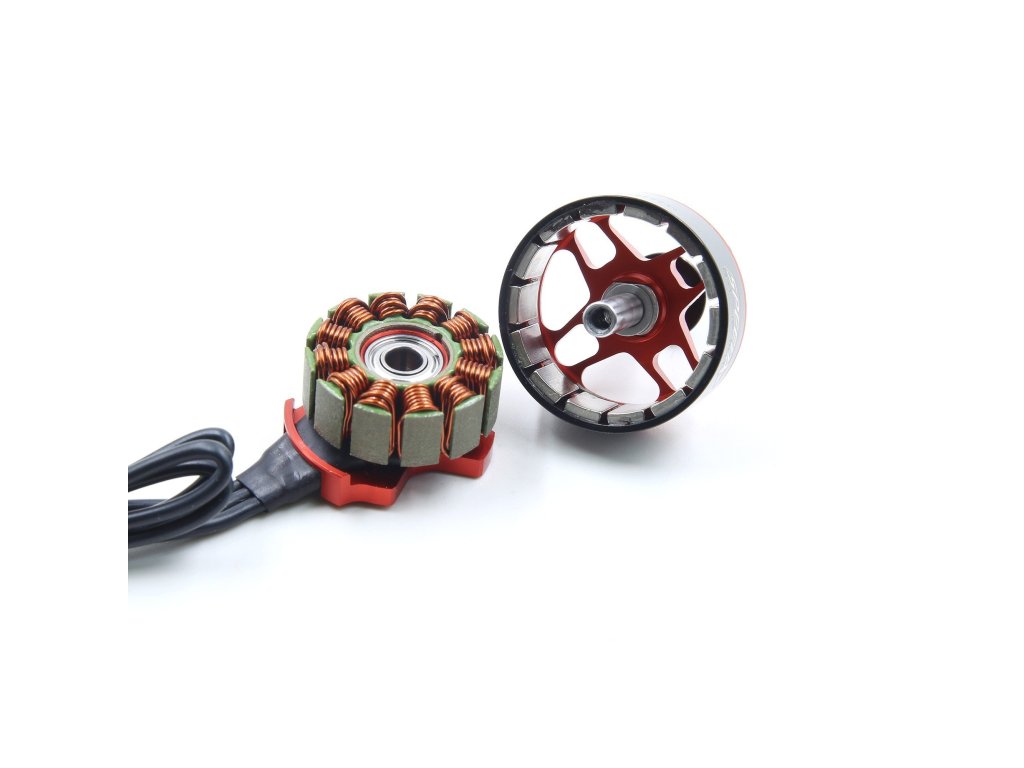

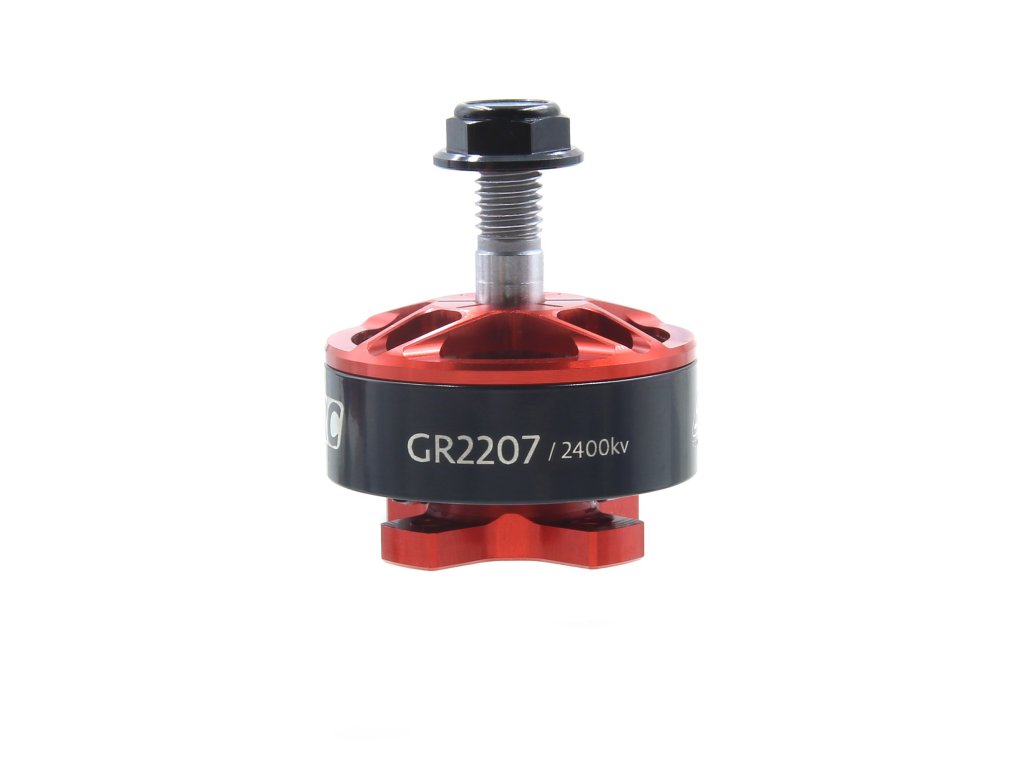

GEP-GR2207 (2400KV, Red) The GR2207 motor is crafted from top-tier 7075 aluminum with high-precision CNC machining. The motor features NSK bearings and N52H arc magnets. GR2207 offers three distinct KV options: 1900KV, 2400KV, and 2700KV. Additionally, GR2207 is available in two colors: red and titanium. Specifications: Item name: GEP-GR2207 KV: 2400KV Color: Red Configuration: 12N14P Stator Diameter: 22mm Stator Length: 7mm Shaft Diameter: 4mm (Hollow) Motor Dimension (Diam. x Len.): 26.7mm x 30.5mm Idle current (10) @10V (A): 2.4 Battery (Lipo): 4-5S Max. Continuous Power (15S): 950W Internal Resistance: 39mΩ Max. Current (30S): 45A Max. Efficiency Current: (3-7A) > 82% Rotor: N52H arc magnets Bearings: NSK Base casing: Al 7075 Wire AWG: 20AWG Weight: 31g
