Motor GEPRC GEP-GR1106 (6000KV)
Code: GP101097Product detailed description

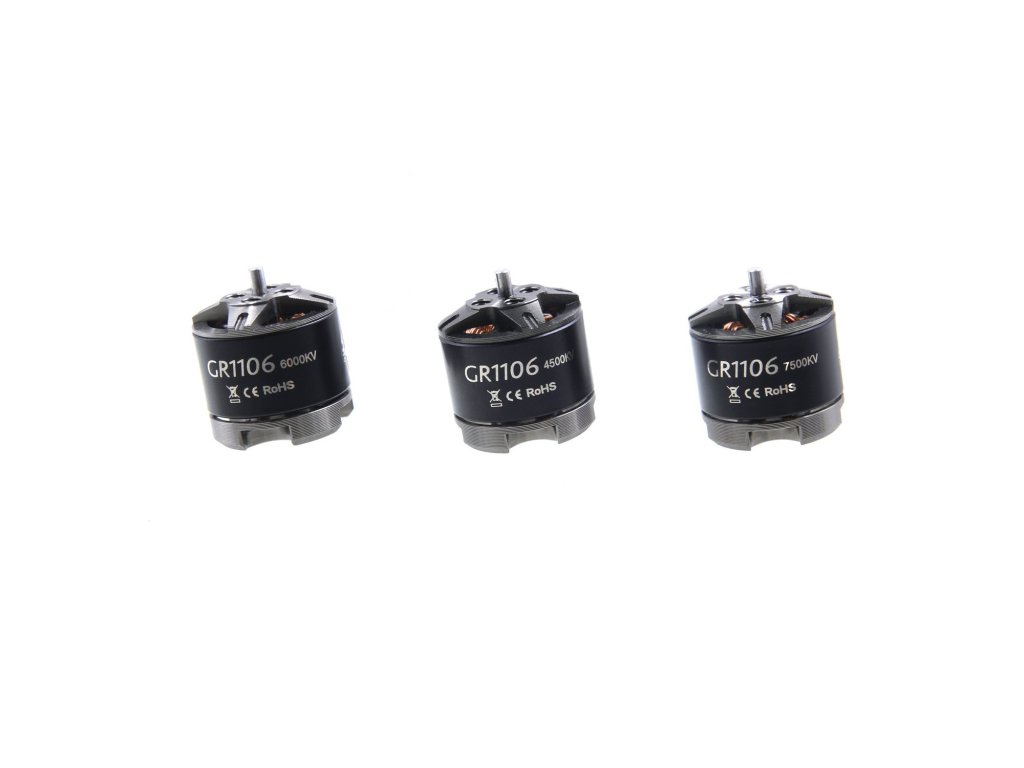

GEP-GR1106 (6000KV) The GEP-GR1106 motor is a compact and versatile option with various KV ratings, making it suitable for a range of applications, including indoor use.: 4500KV, 6000KV, and 7500KV, each tailored for specific purposes: - The 4500KV is recommended for 2-3 inch propellers and 3-4S batteries. - The 6000KV is suitable for 2-2.5 inch propellers and 2-3S batteries. - The 7500KV is for 1.9-2.5 inch propellers and 2S batteries. High-precision CNC machining ensures the motor's accuracy and strength. The use of N50SH magnetic material ensures torque and high-temperature resistance. The motor can generate a maximum pulling force of over 340g+. Japanese NSK bearings guarantee smooth motor operation. Specifications: KV Options: 6000KV Configuration: 9N12P Stator Diameter: 11mm Stator Length: 6mm Shaft Diameter: 1.5mm Motor Dimensions (Diameter x Length): 14.2mm x 14mm Idle Current (A): ≤1.4A@6.4V Number of Cells (LiPo): 2-3S Max Continuous Power: 183W Internal Resistance: 170mΩ Max Current (180S): 15.27A Max Efficiency Current: 3.57 Rotor: N50SH arc magnets Bearings: NSK Base Casing: Al6061 Wire AWG: 28AWG Weight: 7.1g
