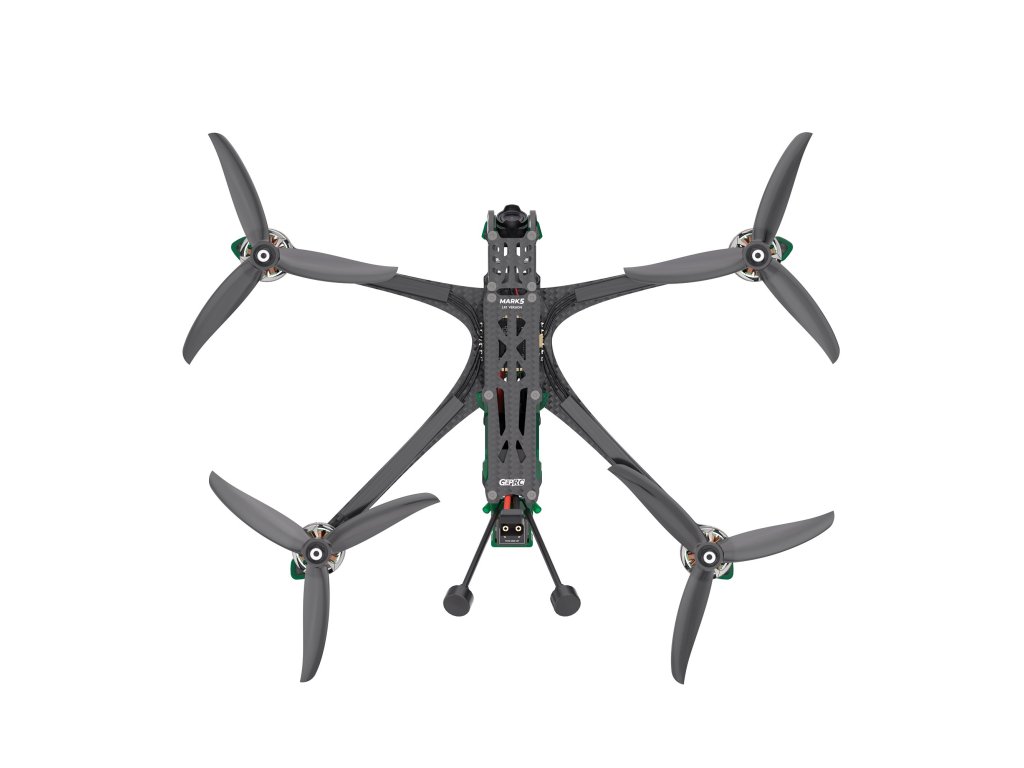

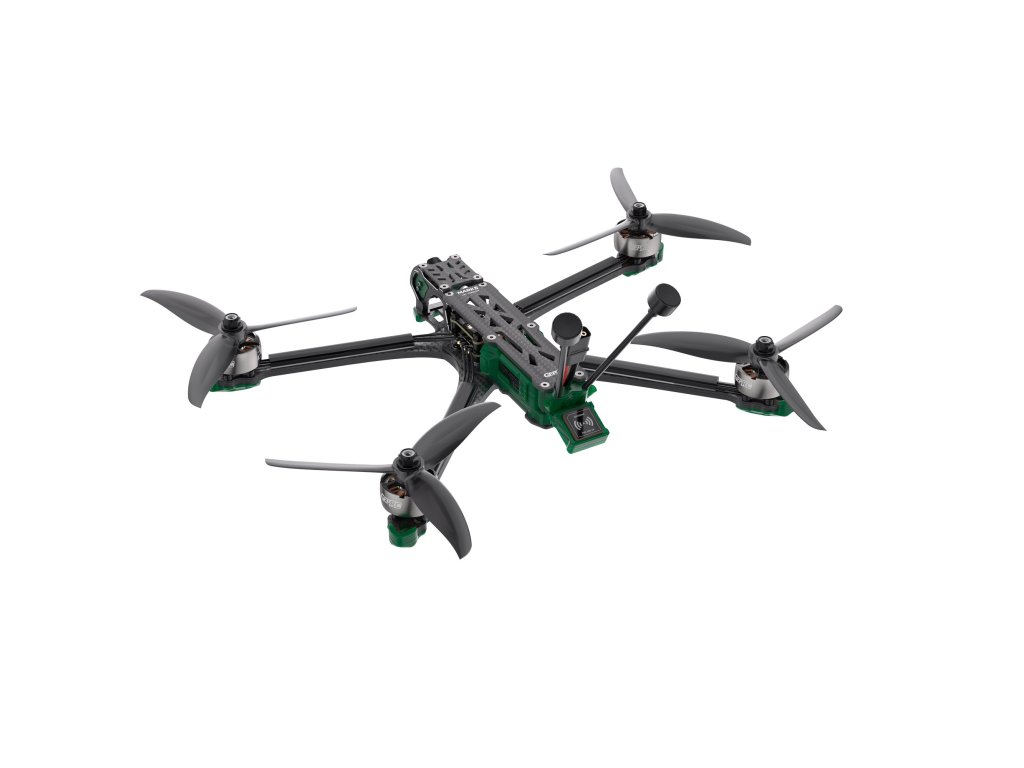

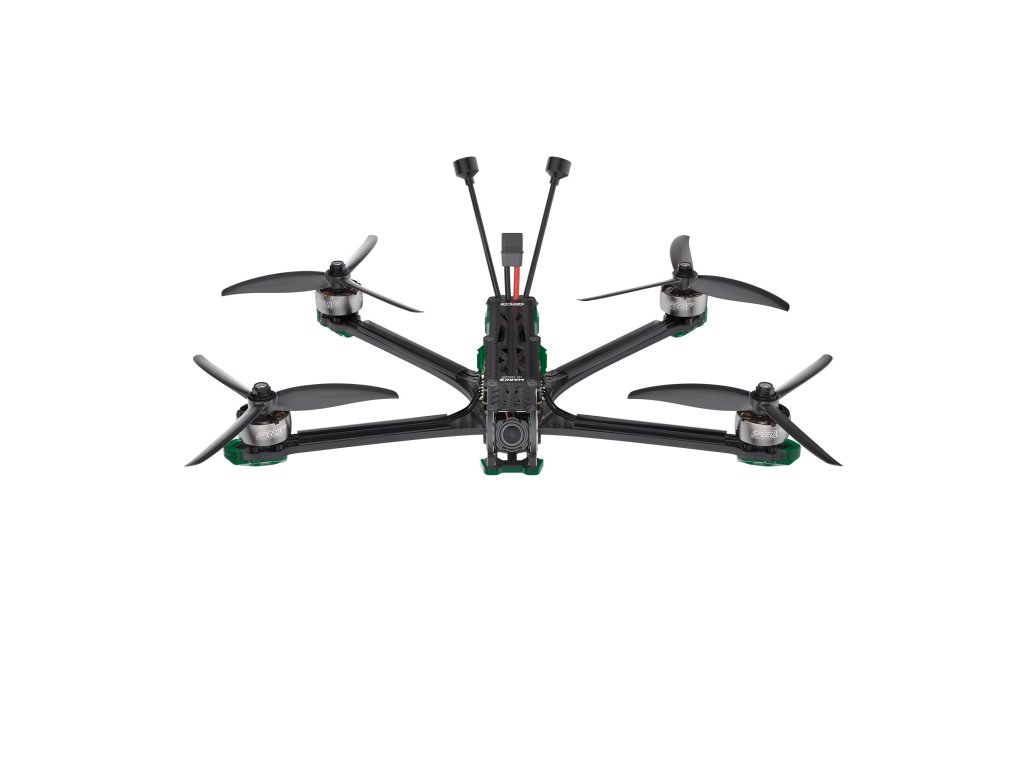

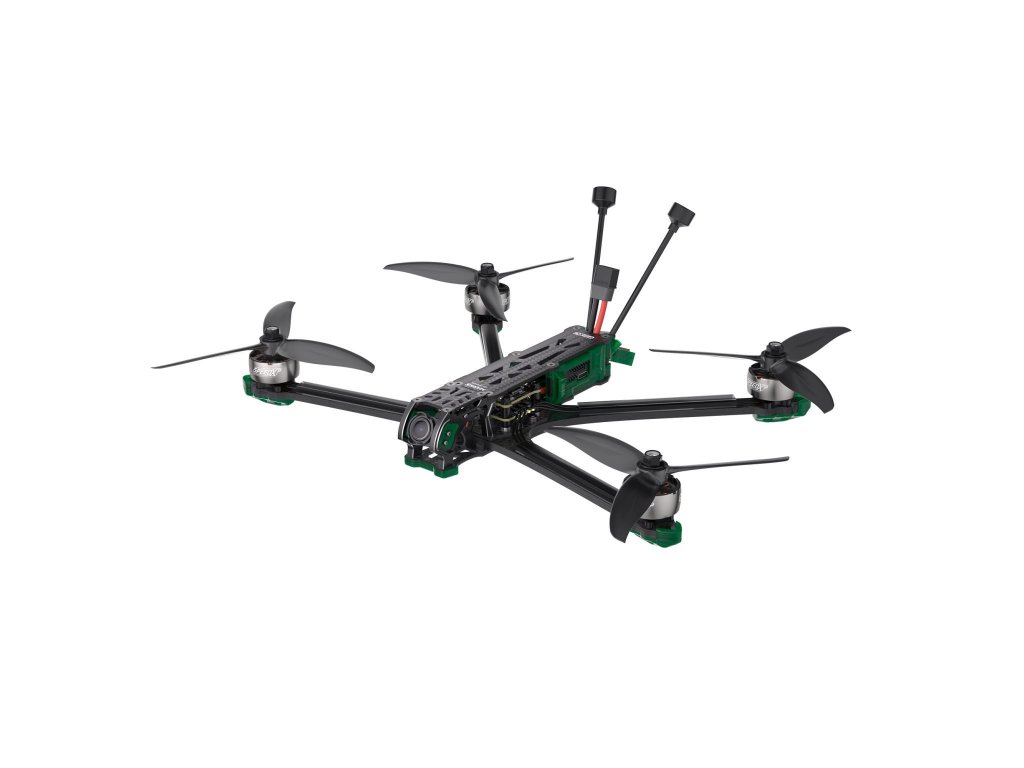

FPV Drone GEPRC MK5D-LR7 HD O3 GPS_PNP

Product detailed description

MK5D-LR7 HD O3 GPS_PNP

MK5D-LR7 is a 7-inch model upgraded on the basis of the MARK5 model:
1. Upgraded lens aluminum alloy side plate, durable and more visual impact.
2. Built-in Bluetooth, supports mobile phone wireless connection for parameter tuning.
3. The strength of the arm is upgraded, without losing the original style, and at the same time, the strength is higher.
4. The HD version uses DJI's new O3 VTX, clear image, stable signal, low latency, long-distance, and supports up to 4K/120fps recording.
5. Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment.
6. Independent capacitor and buzzer compartment, the operating environment of the whole machine is extremely stable, with no shaking, and no jitter.
7. Design two kinds of mounting bases, which can be installed with a full range of GoPro cameras, as well as Naked GoPro 8, Insta 360 GO2, and Caddx Peanut cameras. The shooting effect is stable and clear.
8. With a GEP-VTC6-6000mAh battery, the flight time is 30 minutes, and with GoPro 10, the flight time is 20 minutes.

Specification:

Model: MK5D-LR7
Brand: GEPRC
Frame: GEP-MK5D-LR7
Dimensions: 230mm×350mm
Wheelbase: 335mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Arm plate: 6.0mm
FC system: SPAN F722-BT-HD V2
MCU: STM32F722
ICM：42688-P (SPI)
OSD: BetaFlight OSD w/AT7456E chip
ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
Propeller: HQ Prop 7X4X3 three-blade propeller
Motor: SPEEDX2 2806.5 1350KV (6S version)
GPS: GEP-M10
Antenna: Momoda 5.8G LHCP UFL 175mm x 2
Weight: 585.0g (MK5D-LR7 O3 version includes 3D printing parts)
Receiver version: PNP
Recommended battery: LiPo 6S 6000mAh (6S version)
