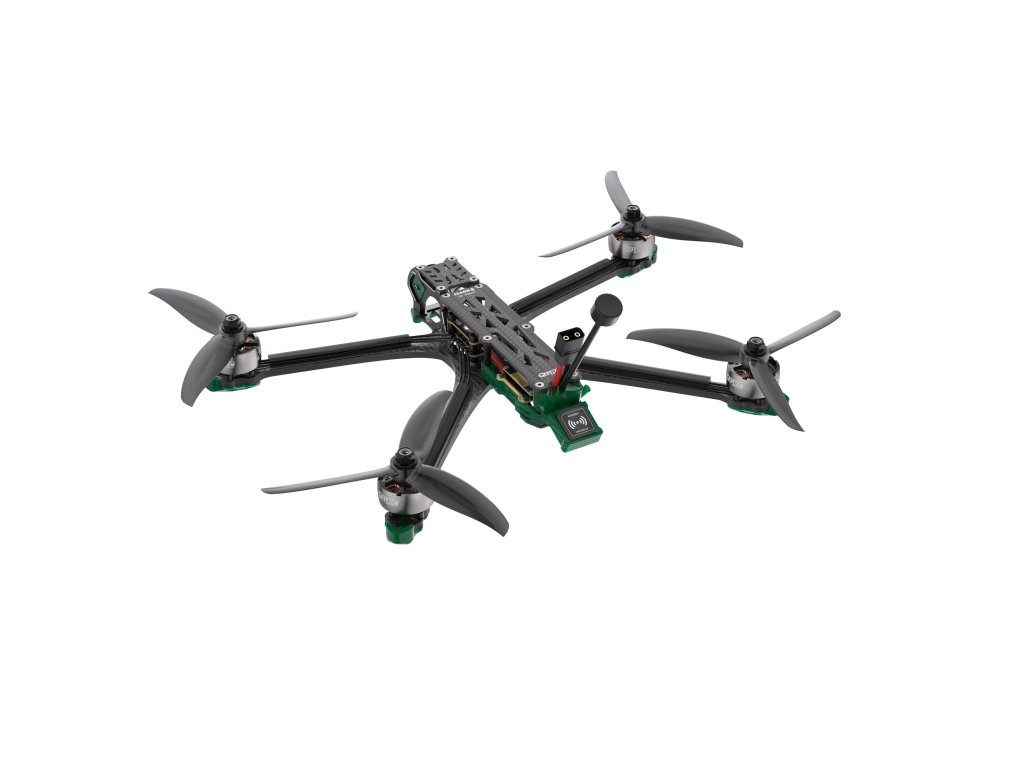

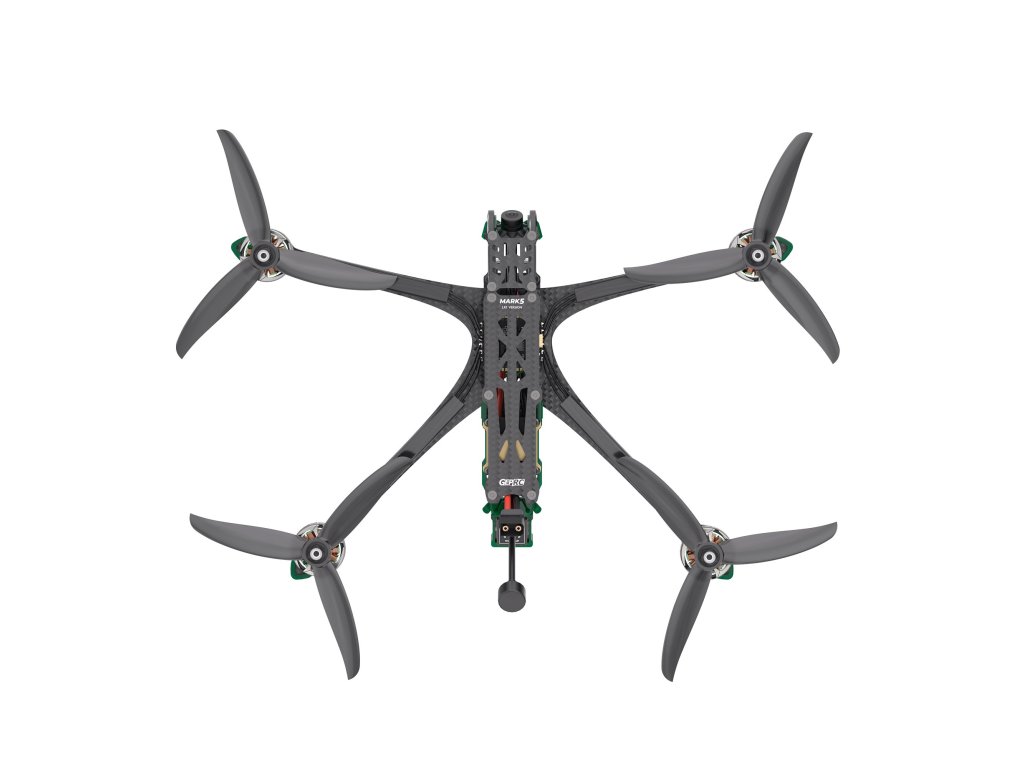

FPV Drone GEPRC MK5D-LR7 Analog GPS_TBSNanoRX
Code: GP105861Product detailed description
MK5D-LR7 Analog GPS_TBSNanoRX MK5D-LR7 is a 7-inch model upgraded on the basis of the MARK5 model. The mainstream video transmission system has four versions: O3 Air Unit, Vista, Walksnail, and the Analog version. The strength of the arm structure is optimized, without losing the original design style, while the strength is higher, and the flight fault tolerance rate is improved. Equipped with GEPRC new small-sized M8U GPS, it provides a strong guarantee for your Long Range flight. MK5D-LR7 uses GEPRC SPAN F722-BT-HD V2 stack. The flight controller is equipped with ICM 42688P gyroscope, which has smooth flight, redundant performance and ports, and supports Bluetooth wireless connection for parameter adjustment. GEP-2806.5 motor, with HQ Prop 7X4X3 propeller, strong power output. Features: 1. Upgraded lens aluminum alloy side plate, durable and more visual impact. 2. Built-in Bluetooth, supports mobile phone wireless connection for parameter tuning. 3. The strength of the arm is upgraded, without losing the original style and at the same time, the strength is higher. 4. Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment. 5. Independent capacitor and buzzer compartment, the operating environment of the whole machine is extremely stable, no shaking, no jitter. 6. Design two kinds of mouting bases, which can be installed with a full range of GoPro cameras, as well as Naked GoPro 8, Insta 360 GO2, and Caddx Peanut cameras. The shooting effect is stable and clear. 7. With GEP-VTC6-6000mAh battery, the flight time is 30 minutes, and with GoPro 10, the flight time is 20 minutes. Specification: Model: MK5D-LR7 Frame: GEP-MK5D-LR7 Dimensions: 230mm×350mm Wheelbase: 335mm Top plate: 2.5mm Bottom plate: 2.5mm Arm plate: 6.0mm FC system: SPAN F722-BT-HD V2 MCU: STM32F722 ICM: 42688-P (SPI) OSD: BetaFlight OSD w/AT7456E chip ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC Propeller: HQ Prop 7X4X3 three blade propeller Motor: SPEEDX2 2806.5 1350KV (6S version) GPS: GEP-M10 Antenna: Momoda 5.8G RHCP MMCX90 100MM Weight: 570g (MK5D-LR7 Analog version includes 3D printing parts) Receiver version: TBS NanoRX Recommended battery: LiPo 6S 6000mAh (6S version)
Additional parameters
| Category: | Long Range Series |
|---|---|
| Drone Power: | 6S |
| Drone Type: | Long Range |
| Receiver Protocol: | TBS |
| Size: | 7 inch |
| Video System: | Analog |
| Weight: | 570g |
| The item has been sold out… | |
