FPV Drone GEPRC MARK5 HD Wasp PNP 4S

Product detailed description

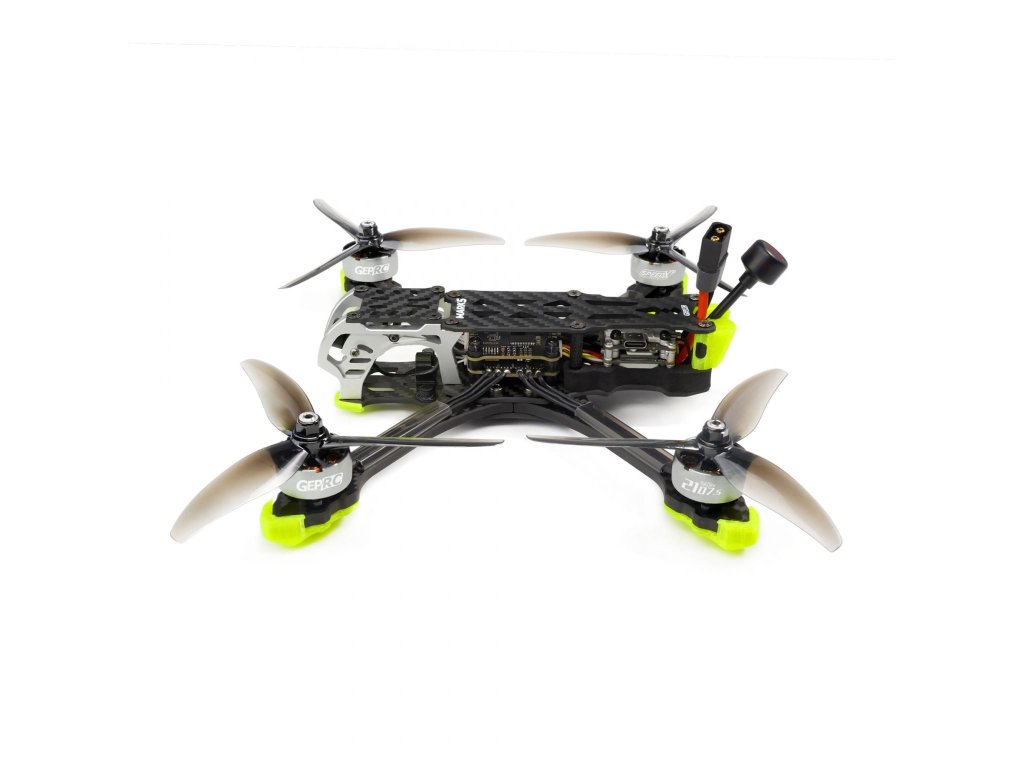

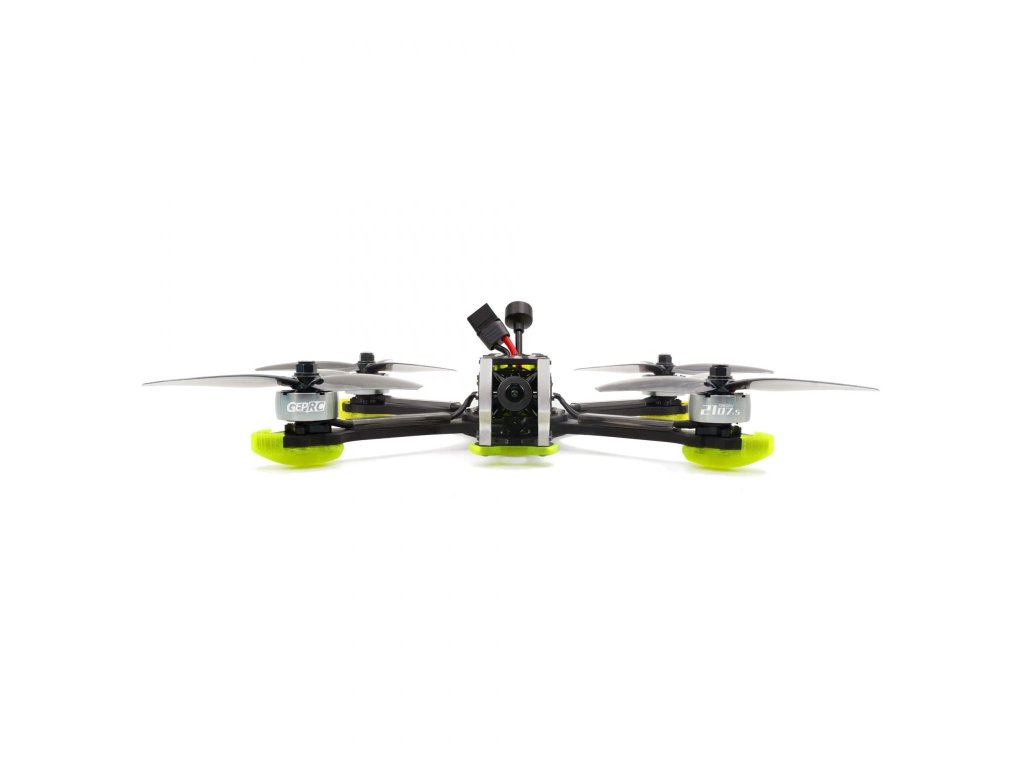

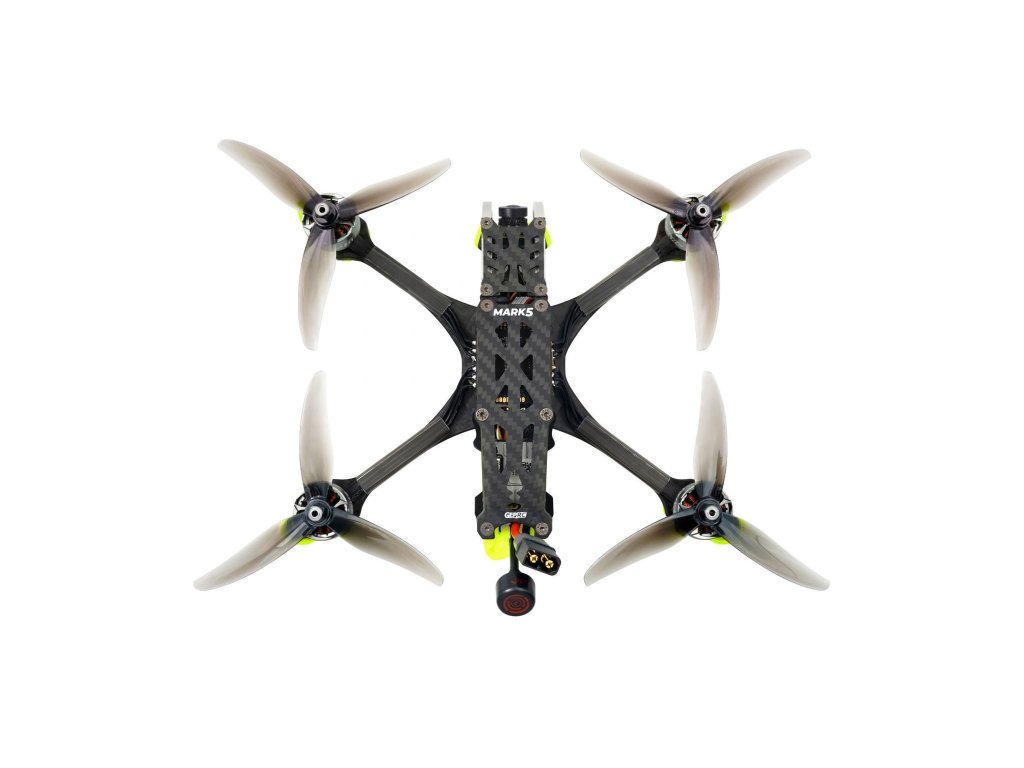

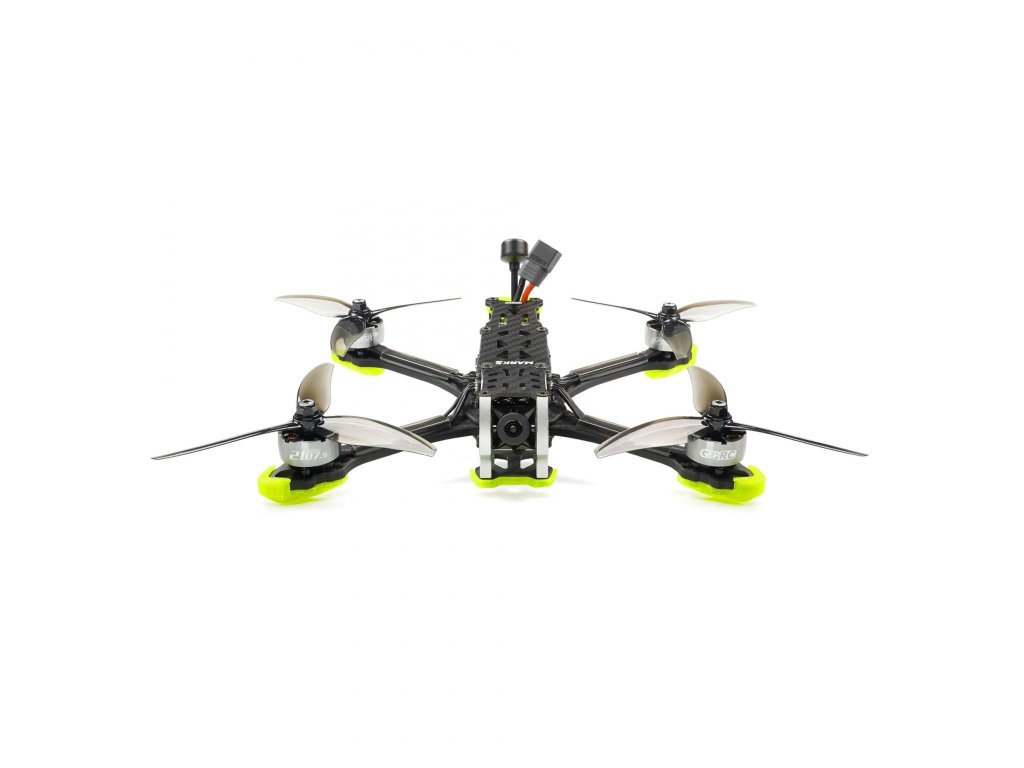

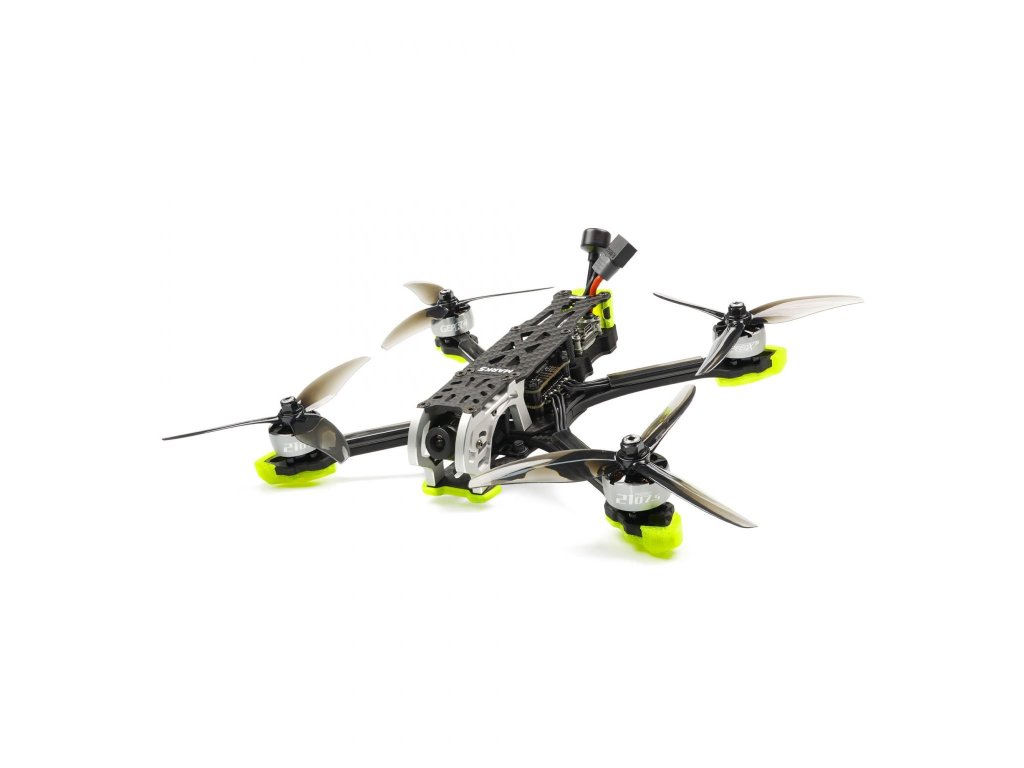

MARK5 HD Wasp PNP (4S)

The MARK5 is engineered for freestyle with its innovative squashed X-arm design. Its unique shock-absorbing structure minimizes vibrations and resonance, providing a stable electronic system environment.

Key Features:

1. Aluminum alloy side plates enhance aesthetics while reducing weight and improving endurance.
2. Supports Bluetooth wireless connection for convenient field tuning.
3. Tailored for freestyle flight with the squashed X-arm design.
4. The HD version features the Caddx Vista HD System & Nebula Pro cam.
5. Offers a variety of receiver options, including the brand new ExpressLRS Rx.
6. Upgraded SPAN G50A BLHeli_32 4IN1 50A ESC, paired with GEPRC's latest 2107.5 motor, delivers powerful performance and rapid response.
7. Smooth flight experience with the new HQ Ethix S5 5×4×3 propellers.

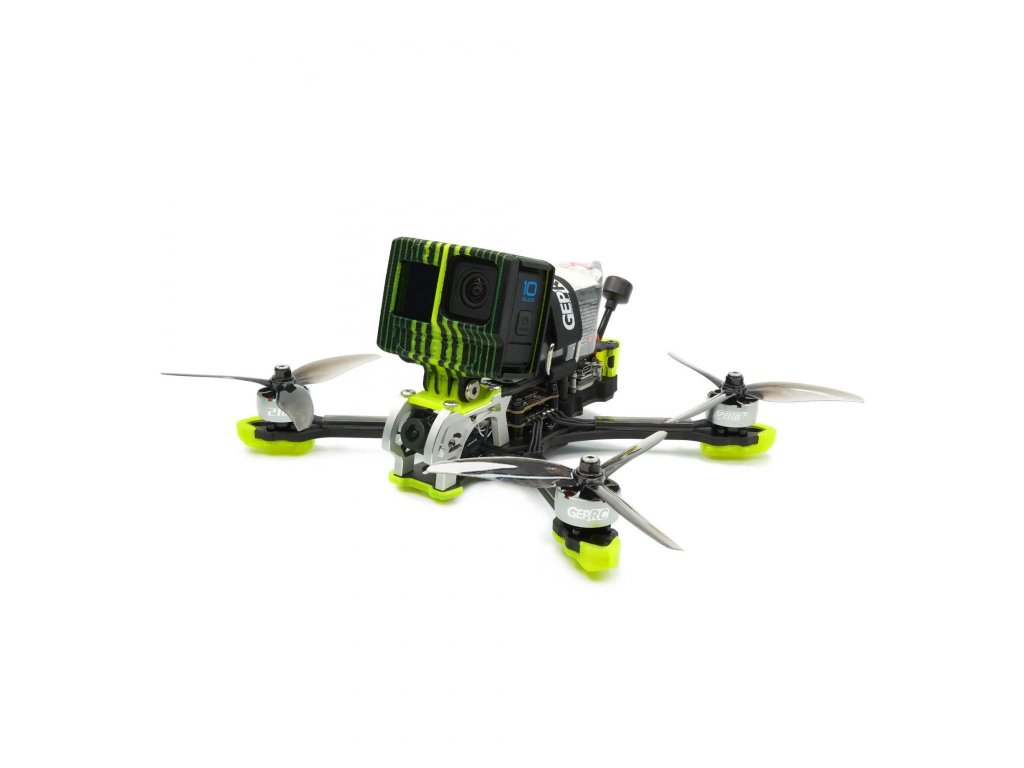

Includes two 3D printed action cam mounts compatible with GP cameras, Naked GP8, Insta 360 GO2, and Caddx Peanut cameras.

Tips: To prevent setting errors, recommend using the latest 10.8.0 betaflight corresponding to the FC Firmware and Factory CLI Dump.

Specifications
Model: MARK5 HD Vista Quadcopter
Brand: GEPRC
Frame: GEP-MK5
Wheelbase: 225mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Arm plate: 5mm
FC system: SPAN F722-BT-HD V2 (No barometer but more stable)
MCU: STM32F722
Gyro: 42688-P
OSD: BetaFlight OSD w/AT7456E chip
ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
VTX: VISTA
Camera: Nebula Pro
Charge connector: XT60
Propeller: HQ Ethix S5 5×4×3
Antenna: GEPRC Momoda 5.8G UFL LHCP 85mm
Motor: SPEEDX2 2107.5-2450KV (4S Version)
Weight: 385.5g (MARK5 HD VISTA 6S PNP including 3D print)
Receiver: PNP
Recommended Battery: LiPo 4S 1300mAh-1800mAh (4S Version)
