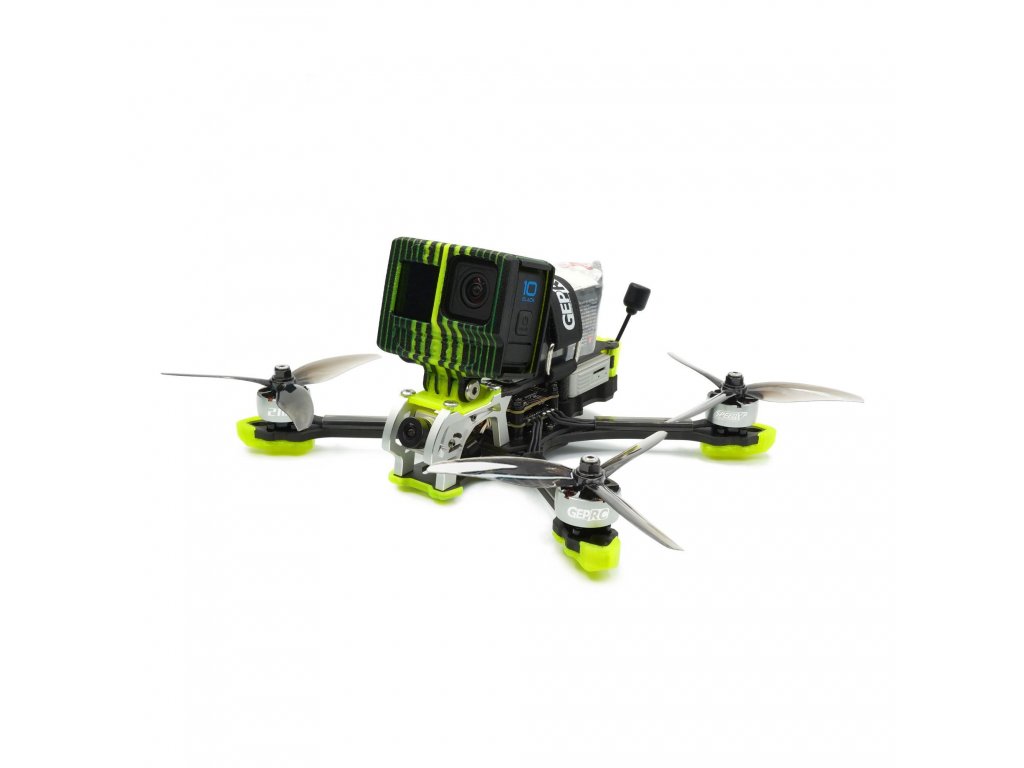

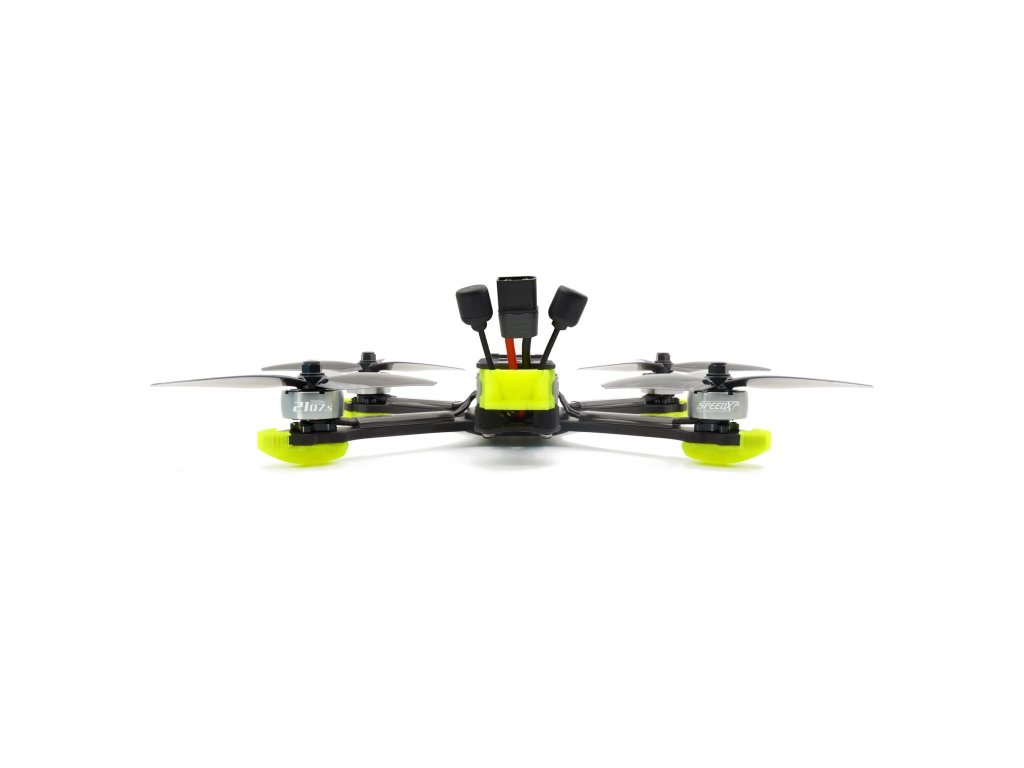

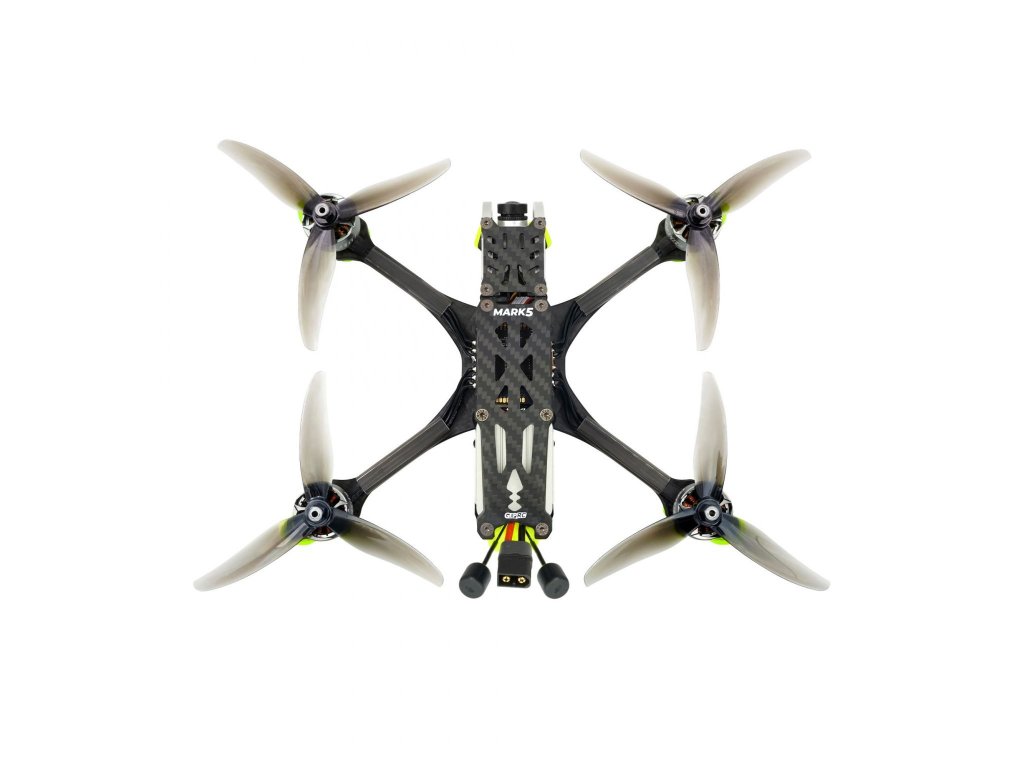

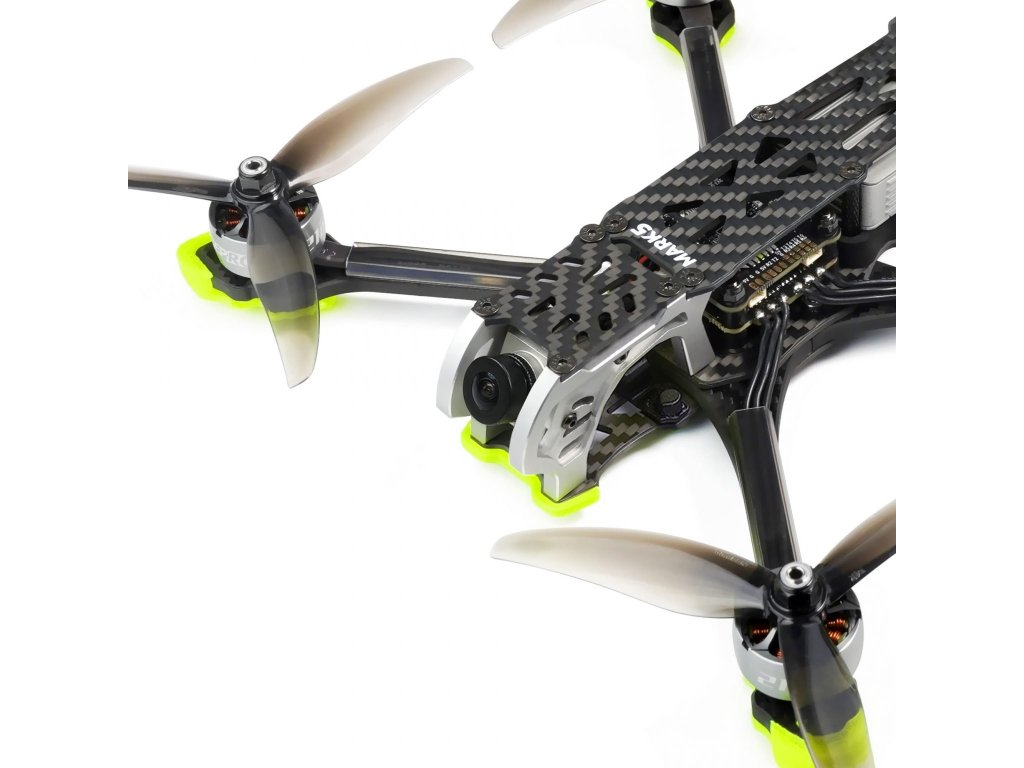

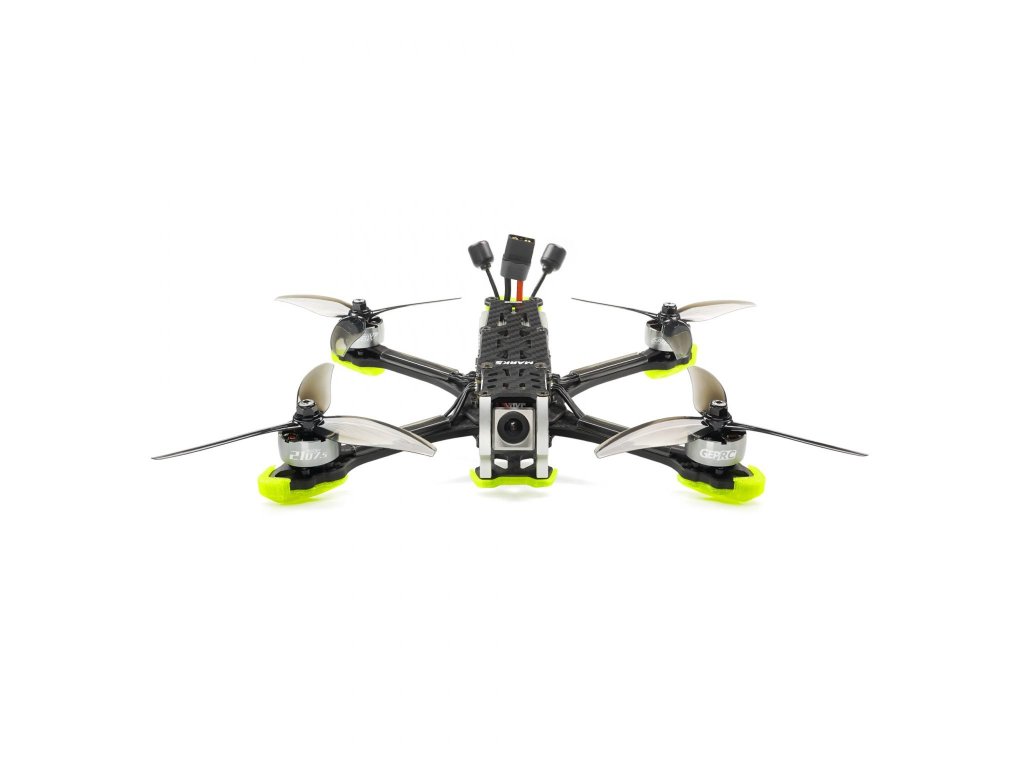

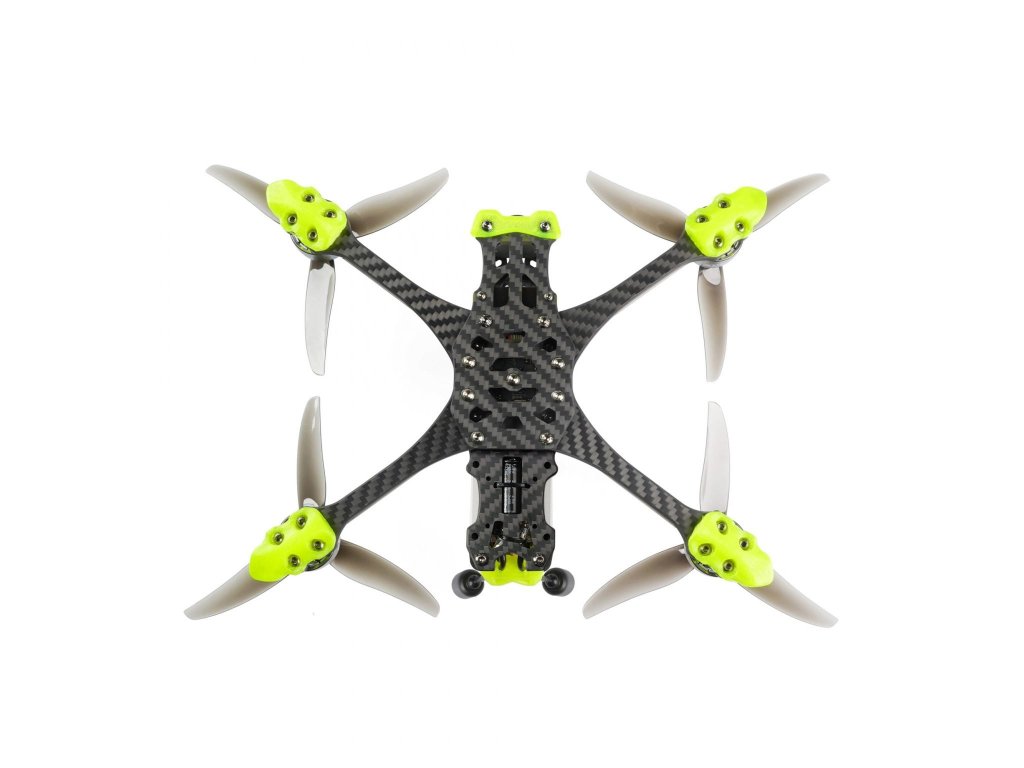

MARK5 HD DJI Air Unit TBS NanoRX (6S)

The MARK5, GEPRC's cutting-edge freestyle drone, is purpose-built for freestyle enthusiasts with its innovative squashed X-arm design. Its unique shock-absorbing structure minimizes vibrations and resonance, providing a stable electronic system environment.

Key Features:

1. Aluminum alloy side plates, enhance aesthetics, reducing weight and boosting endurance.
2. Support for Bluetooth wireless connection, simplifying tuning.
3. Tailored for freestyle flight with a squashed X-arm design.
4. HD version equipped with the Caddx Air Unit HD System & Caddx cam.
5. Wide variety of receiver choices, including the brand new ExpressLRS Rx.
6. Upgraded SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC, coupled with GEPRC's latest 2107.5 motors, delivers impressive power and rapid response.
7. A smooth flight experience with the new HQ Ethix S5 5×4×3 propellers.
8. Includes two 3D printed action cam mounts, compatible with GP cameras, Naked camera GP8, Insta 360 GO2, and Caddx Peanut cameras.

Specifications:

Model: MARK5 HD AIR UNIT Quadcopter
Brand: GEPRC
Frame: GEP-MK5
Wheelbase: 225mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Arm plate: 5mm
FC system: SPAN F722-BT-HD V2 (No barometer but more stable)
MCU: STM32F722
Gyro: 42688-P
OSD: BetaFlight OSD w/AT7456E chip
ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
VTX: AIR UNIT Module
Camera: Caddx Camera
Charge connector: XT60
Propeller: HQ Ethix S5 5×4×3
Antenna: AIR UNIT Antenna or you can use GEPRC Momoda 5.8G LHCP MMCX Antenna Long Version
Motor: SPEEDX2 2107.5-1960KV (6S Version)
Weight: 405.7g (MARK5 HD AIR UNIT 6S PNP including 3D print)
Receiver: TBS Nano RX
Recommended Battery: LiPo 6S 1050mAh-1550mAh (6S Version)

Additional parameters

Category: Freestyle Series
Drone Power: 6S
Drone Type: Freestyle
Receiver Protocol: TBS
Size: 5 inch
Video System: HD DJI
Weight: 405.7g
