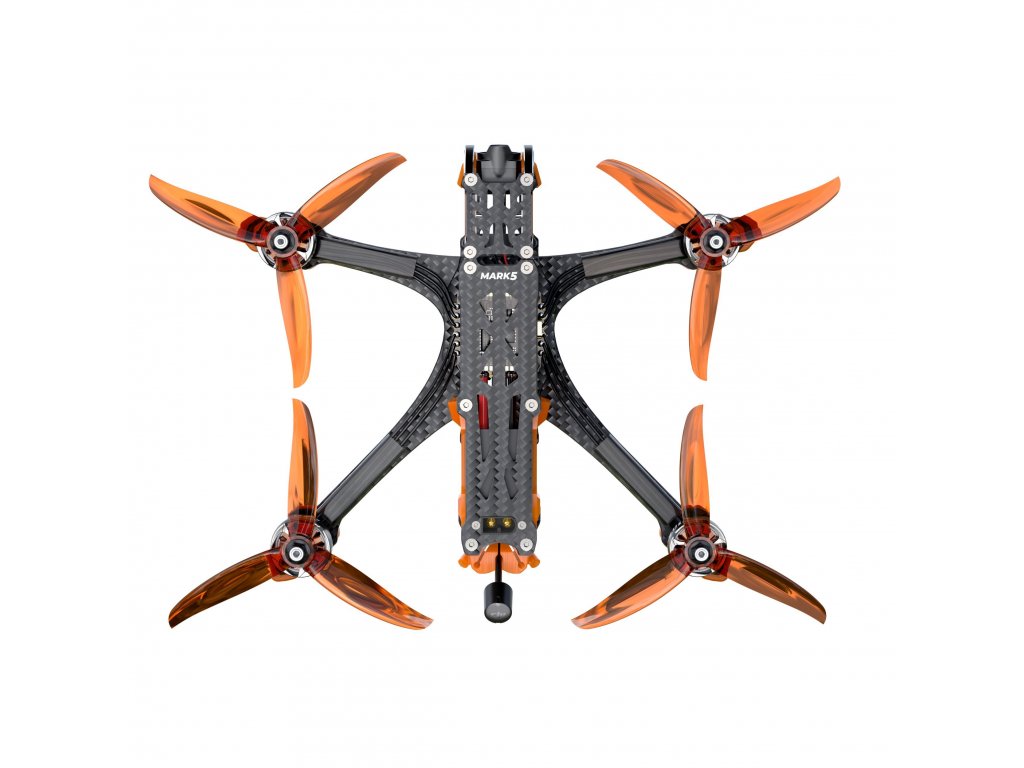

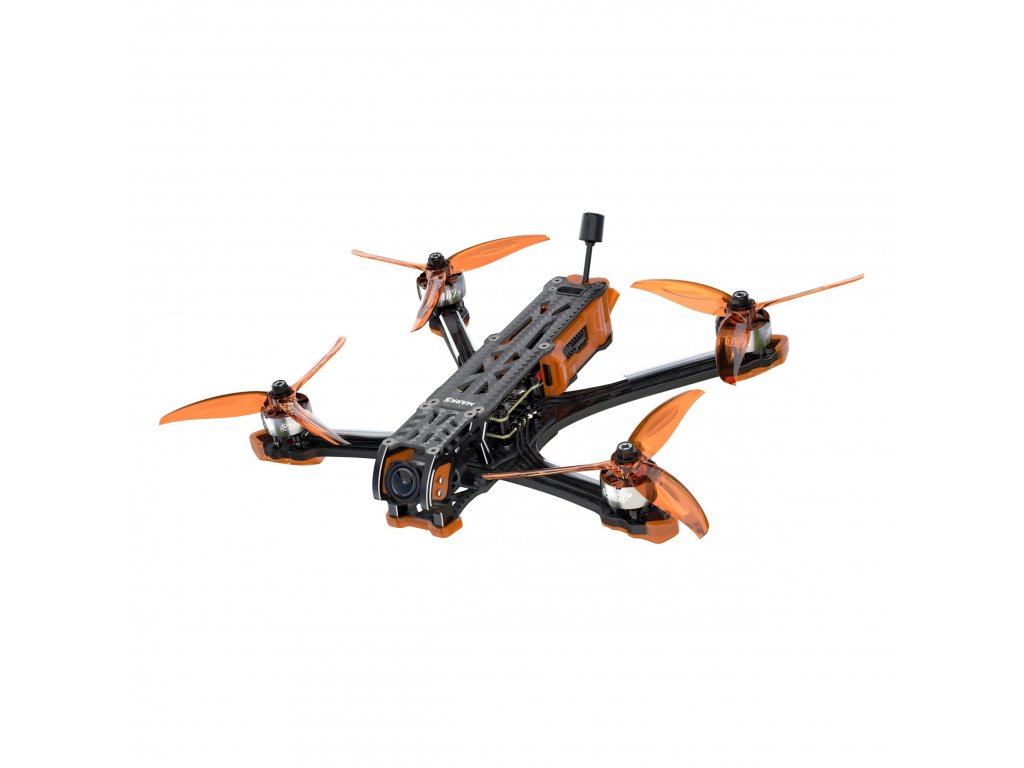

FPV Drone GEPRC Mark5 DC HD O3, 4S TBSNanoRX Coral Orange

Product detailed description

MARK5 DC O3 TBS Nano RX (4S/Orange)

The upgraded camera aluminum alloy side plate 7075-T6 aluminum alloy is strong and durable. It can be fully adapted to DJI’s new O3 air unit camera, with a field of view (FOV) of 155°, and the recording specification can support up to 4K 60FPS. Specially designed TPU fixing parts for the O3 VTX module and equipped with an air inlet cooling port, which is conducive to adequate heat dissipation at the air unit. MARK5 O3 uses GEPRC’s latest SPAN F722-BT-HD V2 stack, with ICM 42688P gyroscope for smooth flight, redundant performance, and ports. Supports Bluetooth wireless connection for tuning. The SPAN BLHeli_32 50A ESC with GEPRC 2107.5 motor, and uses new strong power Gemfan 5136 propellers. The DC structure has a wide and unobstructed viewing angle during flight, which is suitable for O3 internal video recording and direct output. MARK5 O3 is shipped with two different camera mounts, which can be mounted with a full range of GP action cameras, as well as Naked camera GP 8/10, Insta 360 GO2 and Caddx Peanut, etc.

Specifications
Model: MARK5 DC HD O3 Quadcopter
Frame: GEP-MK5D O3/GEP-MK5X O3
Wheelbase: 225mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Arm plate: 5mm
FC system: SPAN F722-BT-HD V2
MCU: STM32F722
Gyro: 42688-P (SPI)
OSD: BetaFlight OSD w/AT7456E chip
ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
VTX: DJI O3 Air Unit
Camera: DJI O3
Propeller: Gemfan 5136
Antenna: DJI O3 antenna
Motor: SPEEDX2 2107.5-1960KV (6S Version) / SPEEDX2 2107.5-2450KV (4S Version)
Weight: MK5D - 426.0g, MK5X - 404.9g (MARK5 HD O3 including 3D printed parts)
Receiver: PNP, Frsky R-XSR, TBS Nano RX, ELRS 2.4G
Recommended Battery: LiPo 4S 1300mAh-1800mAh (4S Version) / LiPo 6S 1050mAh-1550mAh (6S Version)
