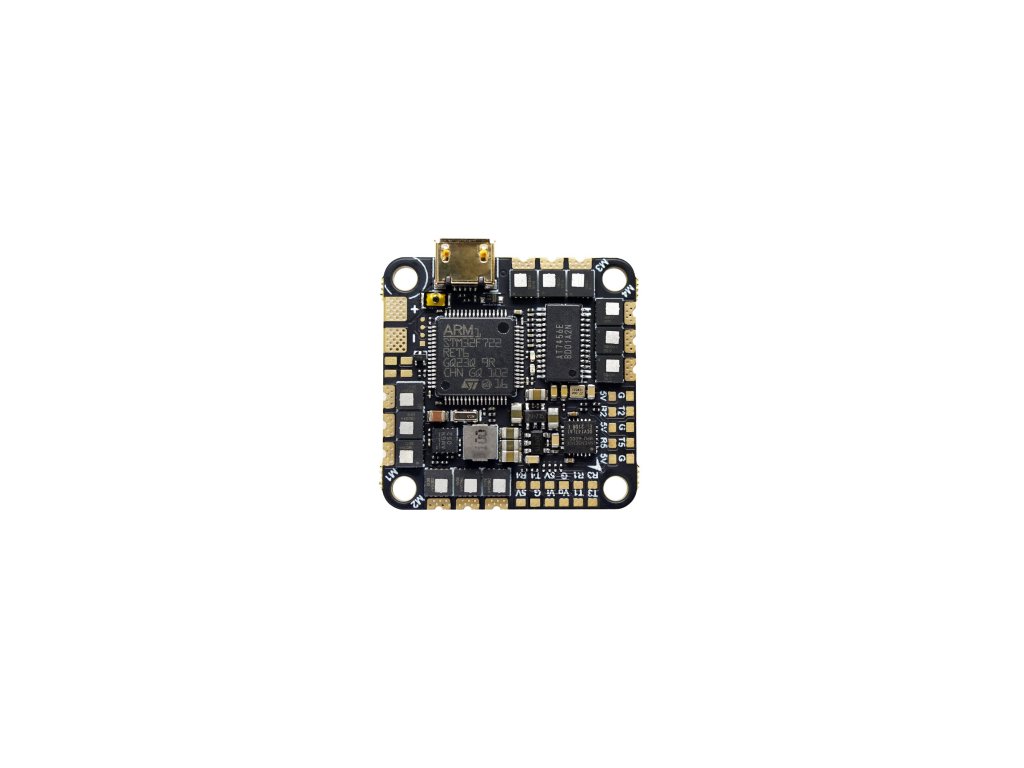

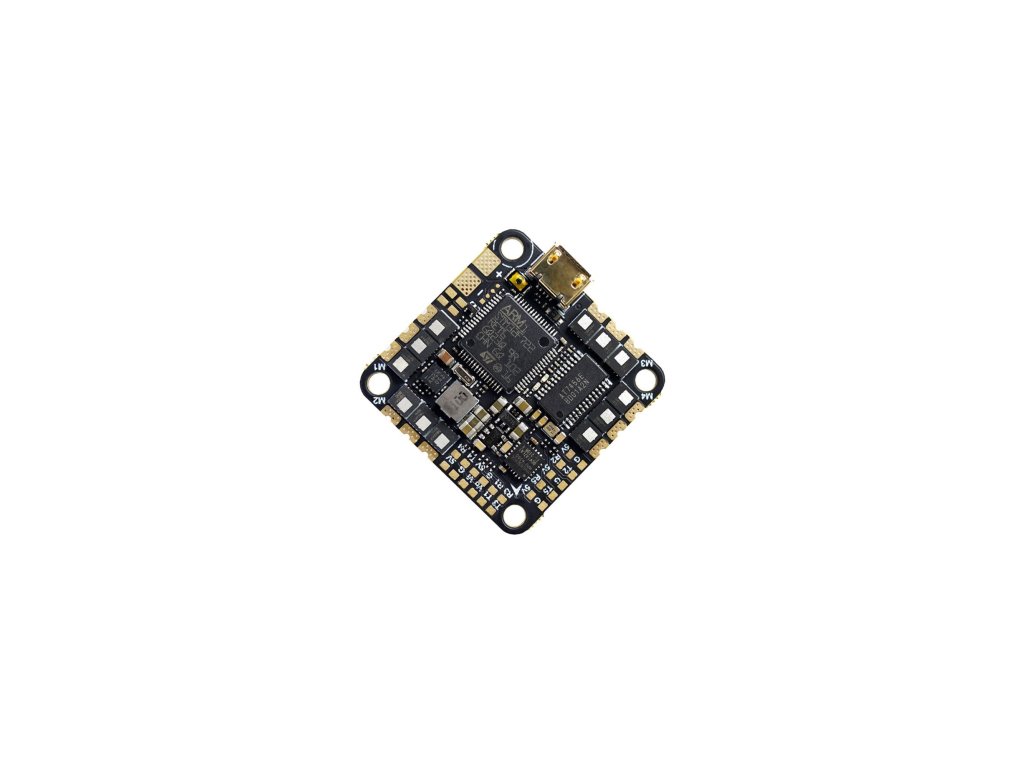

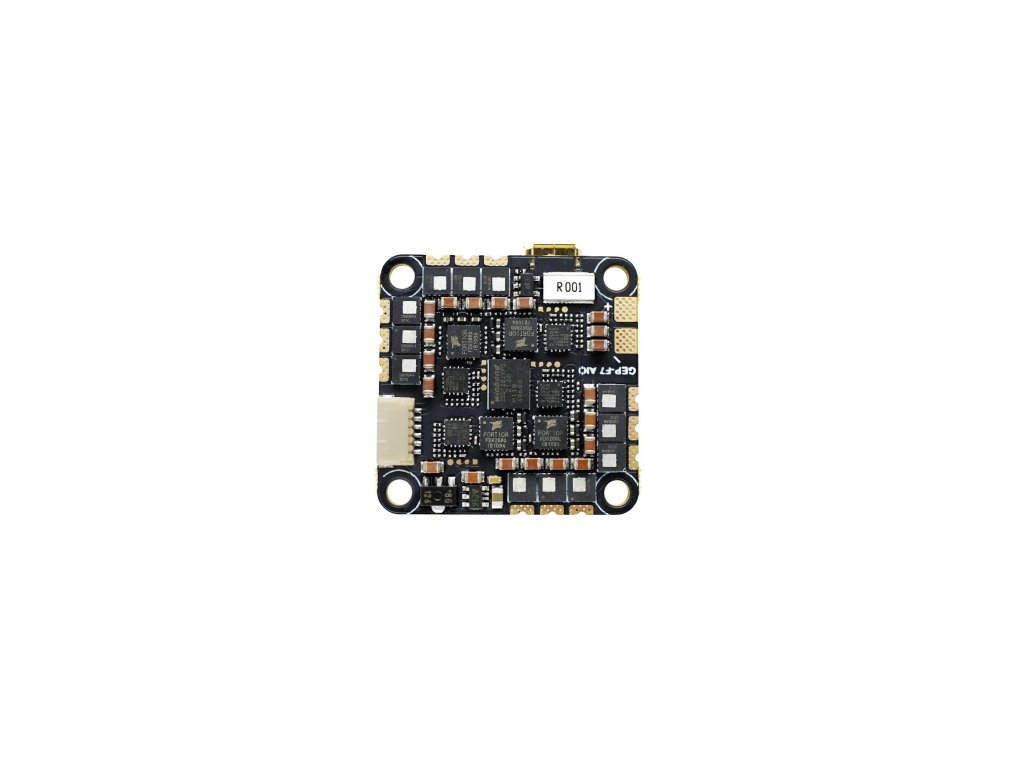

AIO FC GEPRC GEP-F722-45A
Code: GP104944Product detailed description
GEP-F722-45A AIO The GEP-F722-45A AIO V2 is a flight controller and ESC combination designed for drones. The MCU is STM32F722, offering powerful performance and high computing speed. It provides five full UART ports for connecting external devices and a 6-pin connector for easy plug-and-play compatibility with the DJI AIR UNIT MODULE. The BLheili_S 45A ESC is capable of handling 45A continuous current (55A burst) and supports 2-6S LiPo batteries, enhancing drone flight performance. It also supports OSD parameter adjustment, buzzer, LED, and other functions. This AIO is lightweight at 8.8g and features a 25.5mm * 25.5mm mounting hole, making it suitable for most frames available in the market. Specifications: Model Name: GEP-F722-45A AIO V2 MCU: STM32F722 IMU: 42688 gyro/accelerometer (SPI) Firmware Target: GEPRC_F722_AIO OSD: Betaflight OSD w/ AT7456E UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5 Beeper: YES LED: YES USB: Micro USB BEC Output: 5V @ 1A Integrated LC Filter ESC MCU: 8BB21F16G Continuous Current: 45A MAX Current: 55A (10s) Input: 2-6S Supports: Dshot600, Oneshot, Multishot BlackBox: 16Mb Target: G_H_30 Size: 32x32mm Board Mounting Hole: 25.5×25.5mm Weight: 8.8g
Additional parameters
| Category: | AIO FC |
|---|---|
| Continuous Current: | 45A |
| Motor Size: | 25.5x25.5mm |
| Power Supply: | 2-6S |
| Processor Type: | F722 |
