Frame GEPRC GEP-ST35 for SMART35 Drone

Code: GP104635
Not rated
Brand: GEPRC
€52,45 €43,35 excl. VAT
Upon request
Delivery offer
The item has been sold out…

Detailed information

Product detailed description

GEP-ST35

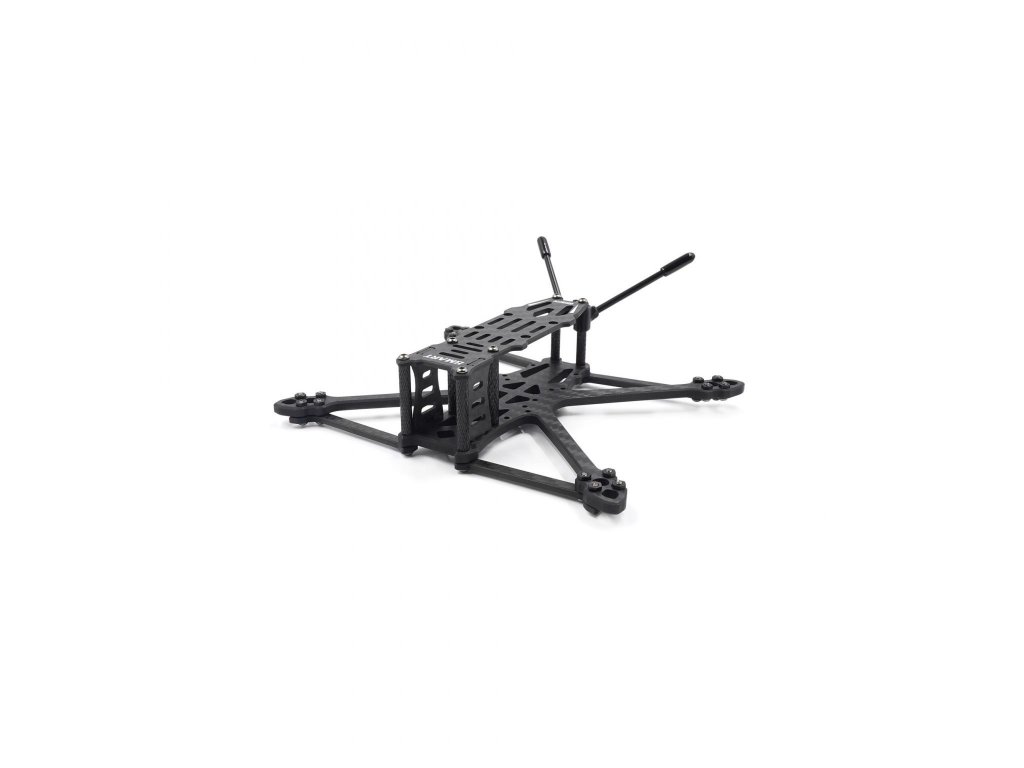

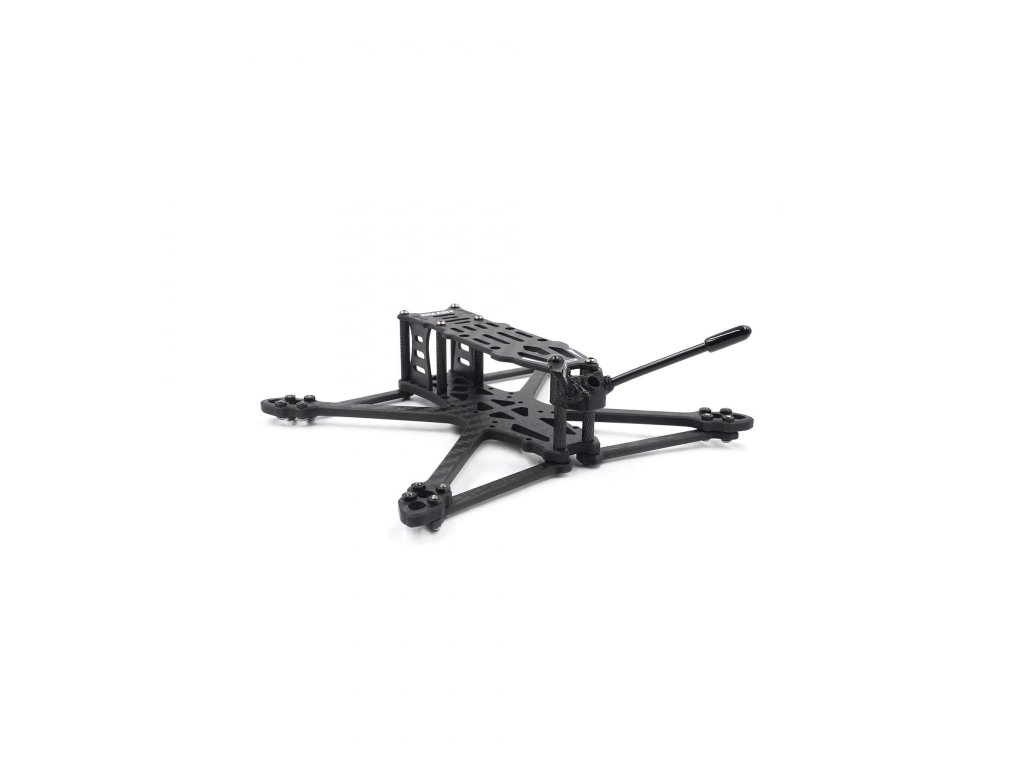

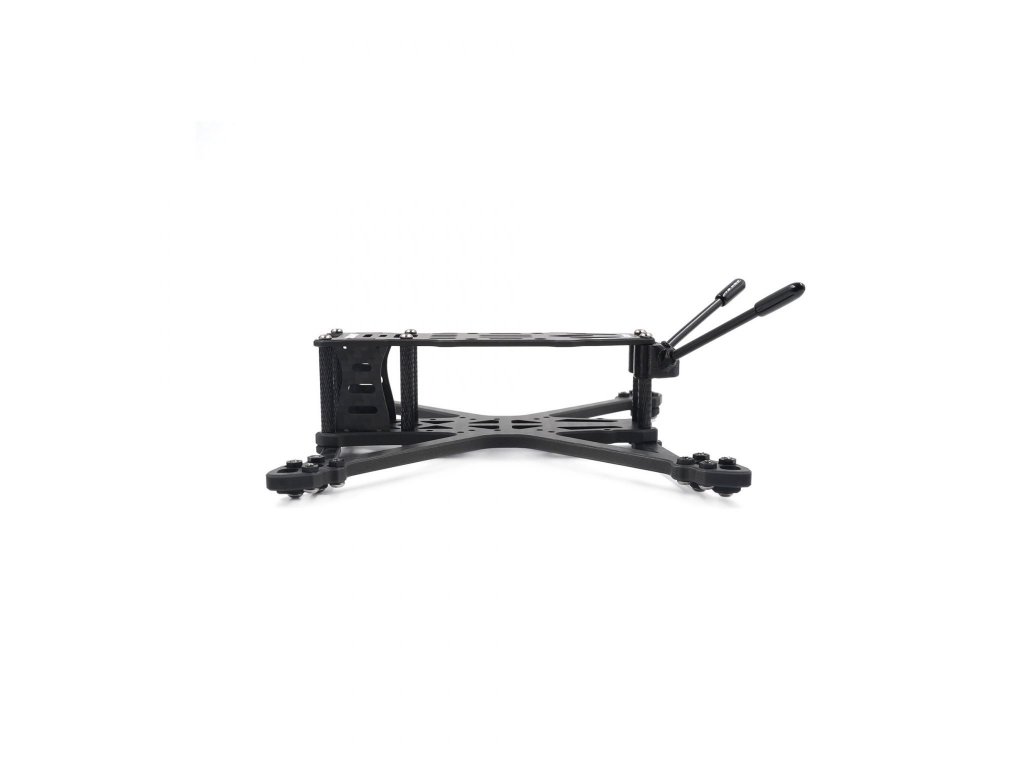

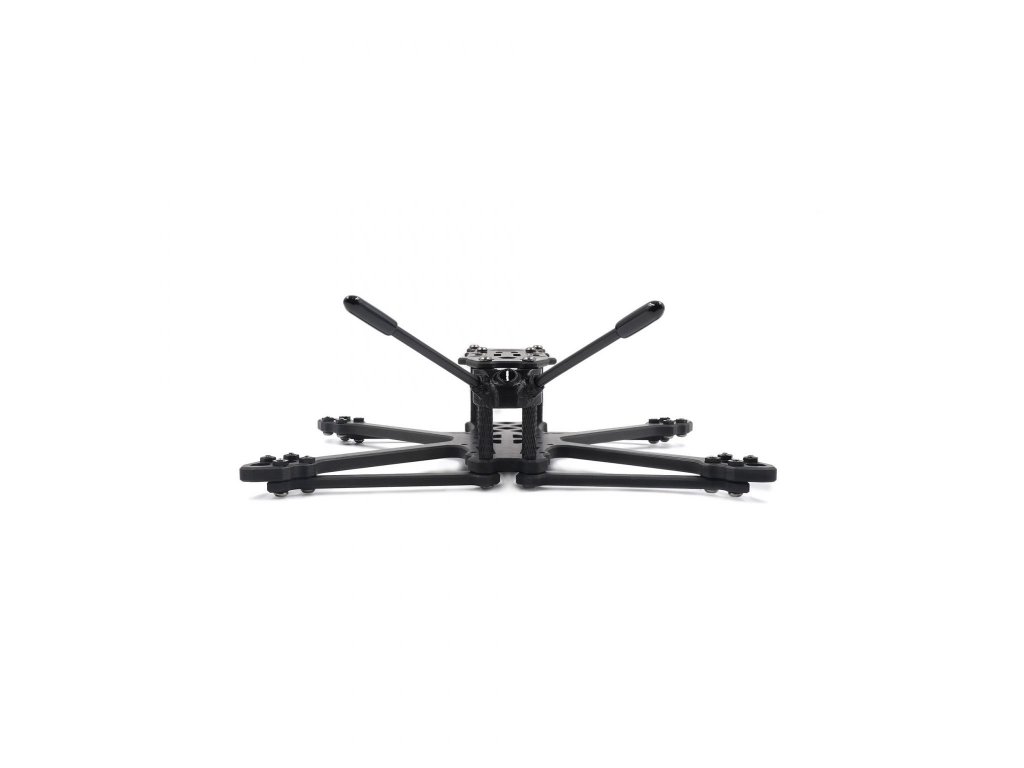

The GEP-ST35  is a 3.5-inch freestyle frame. It features multiple mounting holes for the installation of various FC and VTX options. It can accommodate motors with hole sizes ranging from 8mm to 13mm and is compatible with Naked GP8 and Insta 360 Go2 cameras when using a GP camera mount. The frame is constructed with 4mm arms and can also be equipped with 2mm reinforced arms, ensuring ultra-high strength.

Specification:

Brand name: GEPRC
Model: GEP-ST35
Wheelbase: 155mm
Top Plate: 2.0mm
Bottom Plate: 4.0mm
Arm Plate: 4.0mm
Reinforced arm: 2.5mm
FC mounting holes: 26.5x26.5mm / 20x20mm
VTX mounting holes: 20x20mm
Motor mounting holes: 9x9mm / 12x12mm
Size: 142x118x36mm
Weight: 47.9g (With 3D prints and reinforced Arm)

Additional parameters

Category: FPV Frames
Camera Mounting: Micro (19mm)
Drone Type: Freestyle
Material: Carbon fiber
Size: 3.5 inch
Wheelbase: 155mm
