Frame GEPRC GEP-MOZ7 for MOZ7 Drone

Code: GP105934
Not rated
Brand: GEPRC
€117,77 €97,33 excl. VAT
Upon request
Delivery offer
The item has been sold out…

Detailed information

Product detailed description

GEP-MOZ7

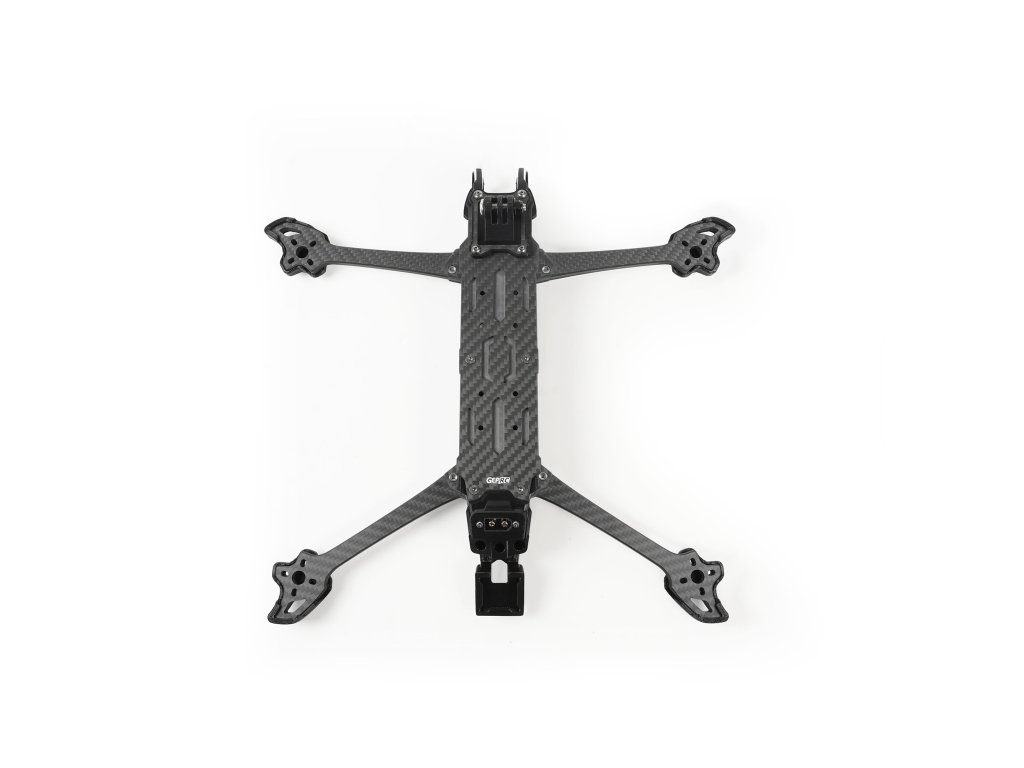

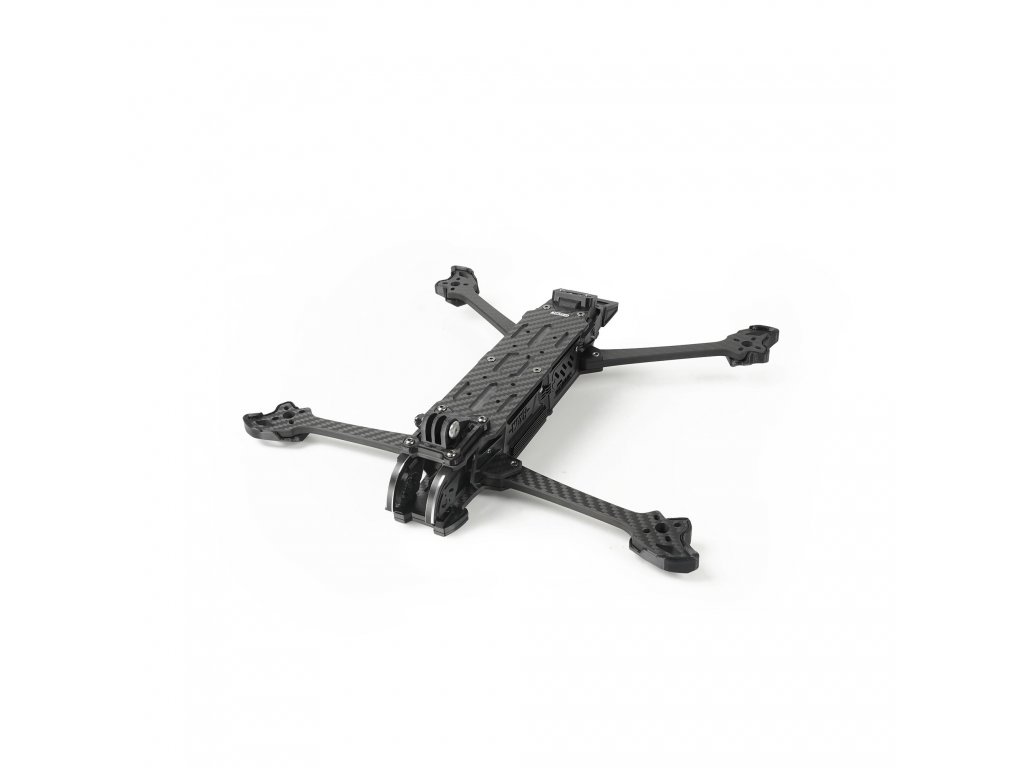

The GEP-MOZ7 frame is a traditional model with a personalized protection side plate. MOZ7 supports a maximum of 30.5mm×30.5mm stack installation and is compatible with various VTX and customized cooling systems. Innovative camera fixing method, the left and right alternate camera aluminum parts installation position can realize the switching between 19mm and 20mm size.

Features
1. The camera uses a CNC aluminum alloy side plate, strong and sturdy, compatible with 19mm and 20mm camera mounts.
2. H-shaped frame design, smooth flight experience, stable attitude, suitable for long-range flight.
3. Compatible motor hole position, support 16mm×16mm and 19mm×19mm motor installation.
4. Added VTX cooling fins to ensure stable operation during flight.
5. Can mounted with a full range of GoPro cameras, Insta 360 Go2, and Caddx Peanut cameras.

Specification:

Model: MOZ7
Frame: GEP-MOZ7
Dimensions: 280×310mm
Wheelbase: 320mm
Top plate: 3.0mm
Bottom plate: 3.0mm
Arm plate: 6.0mm
Splint plate: 3.0mm
Camera mount: 2.0mm
VTX cover: 1.5mm
FC mounting hole: 30.5x30.5mm
VTX mounting: 20x20mm / 25.5x25.5mm / 30.5x30.5mm (the maximum external size supports 30x30mm)
Camera installation size: 19mm / 20mm
Propeller: 7-7.5 inches
Weight: 310.0g (without battery)

Additional parameters

Category: FPV Frames
Camera Mounting: Micro (19mm)
Drone Type: Long Range
Material: Carbon fiber
Size: 7 inch
Wheelbase: 320mm
The item has been sold out…

Be the first who will post an article to this item!

Do not fill out this field:

GEPRC is a team of over 100 specialists who are committed to providing users with high-quality FPV drones. There are drones for fun, freestyle, racing, and commercial purposes. Through years of experience accumulation, GEPRC has developed a variety of products, and the company is committed to creating high-quality FPV drones and parts (electronics, motors, frames, etc.) to help more people get into the FPV hobby.
