Frame GEPRC GEP-MK5X-O3-PRO for MARK5 Drone

Code: GP105766
Not rated
Brand: GEPRC
€79,22 €65,47 excl. VAT
Upon request
Delivery offer
The item has been sold out…

Detailed information

Product detailed description

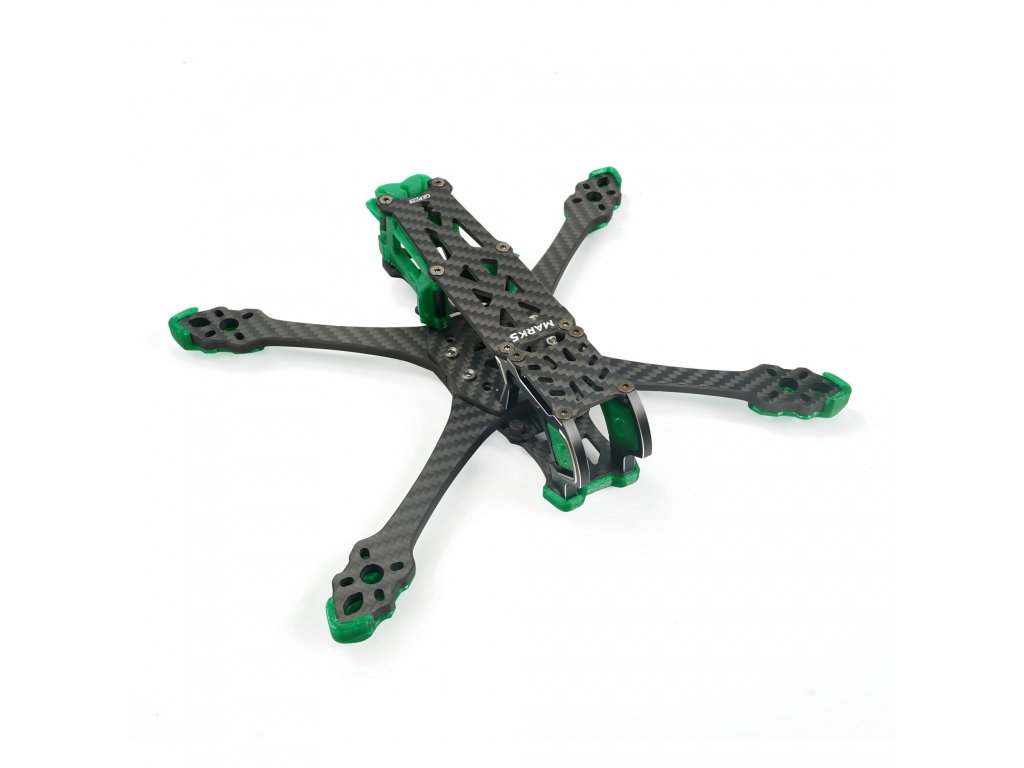

GEP-MK5X-O3-PRO

The upgraded aluminum alloy side plate is made of 7075-T6 aluminum, ensuring strength and durability. It is fully compatible with DJI's new O3 air unit camera. To enhance heat dissipation, TPU soft printing parts for the O3 VTX module have been specially designed along with an air inlet cooling port on the air unit.

The GEP-MK5D-O3-PRO version comes with two different camera mounts, accommodating a wide range of GP action cameras, as well as Naked camera GP 8/10, Insta 360 GO2, Caddx Peanut, and more.

Specifications:

Wheelbase: 225mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Arm plate: 5mm
FC mounting holes: 30.5x30.5mm
Camera installation space: 20mm
Suitable propeller size: 5 inch

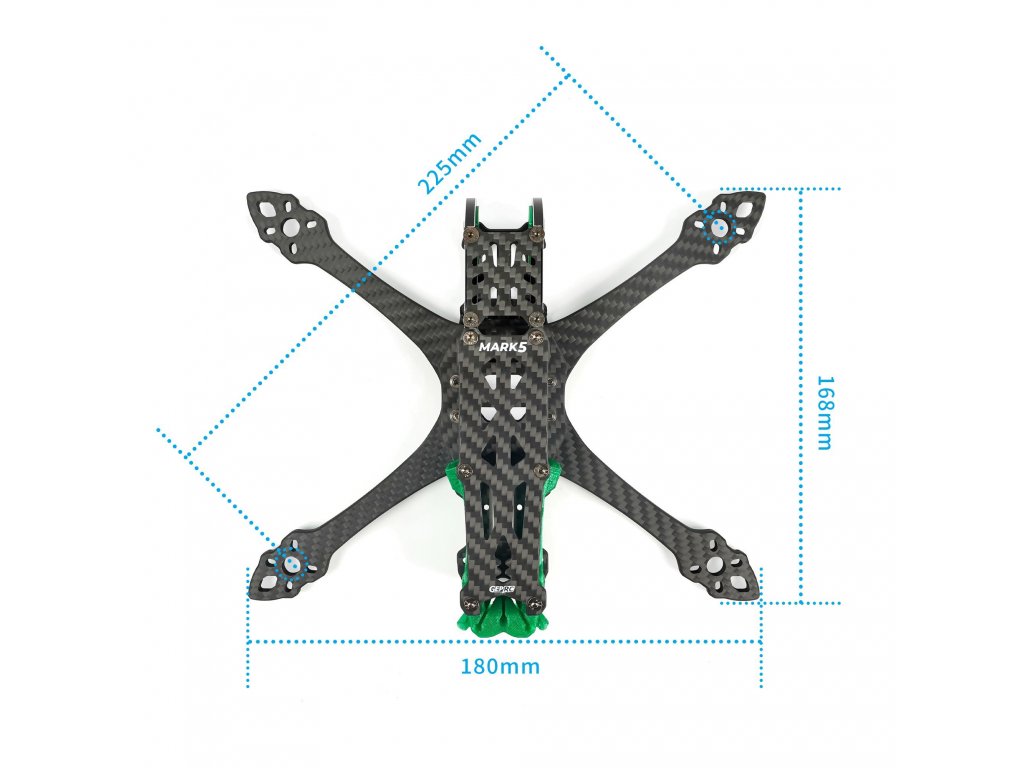

Dimension: 214x168x42mm

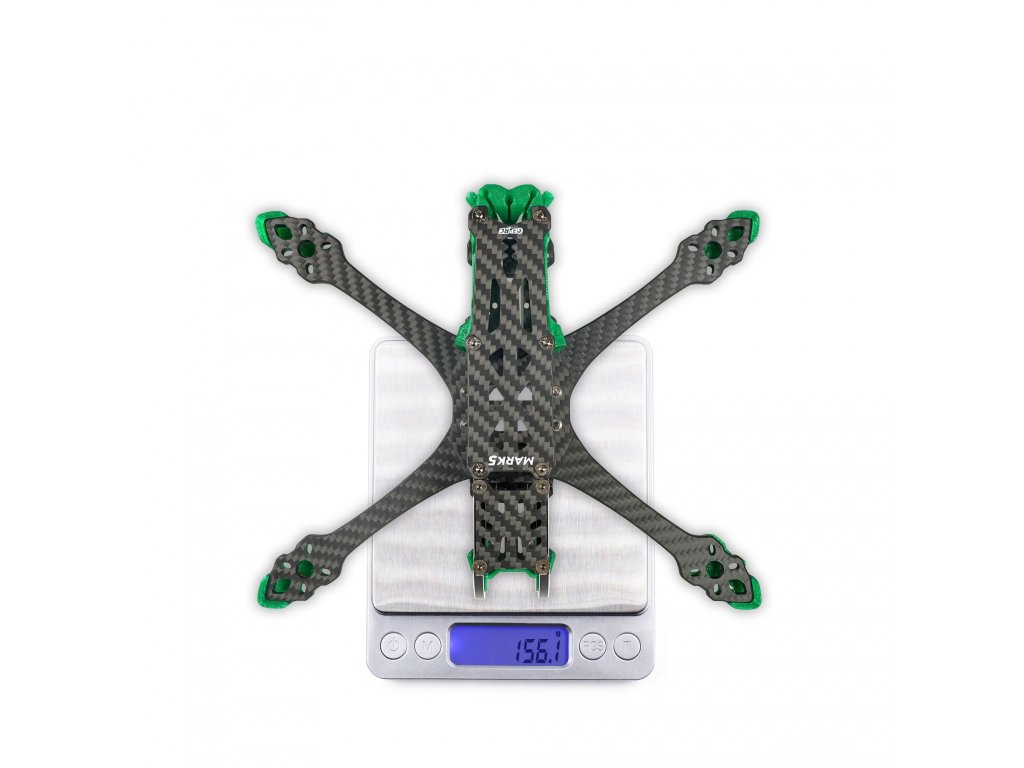

Pro Version Weight: 156.1g

Additional parameters

Category: FPV Frames
Camera Mounting: Mini (20mm)
Drone Type: Freestyle
Material: Carbon fiber
Size: 5 inch
Wheelbase: 225mm
The item has been sold out…

Be the first who will post an article to this item!

Do not fill out this field:

GEPRC is a team of over 100 specialists who are committed to providing users with high-quality FPV drones. There are drones for fun, freestyle, racing, and commercial purposes. Through years of experience accumulation, GEPRC has developed a variety of products, and the company is committed to creating high-quality FPV drones and parts (electronics, motors, frames, etc.) to help more people get into the FPV hobby.
