Frame GEPRC GEP-CT30-O3-COB
Code: GP105772Related products
Product detailed description

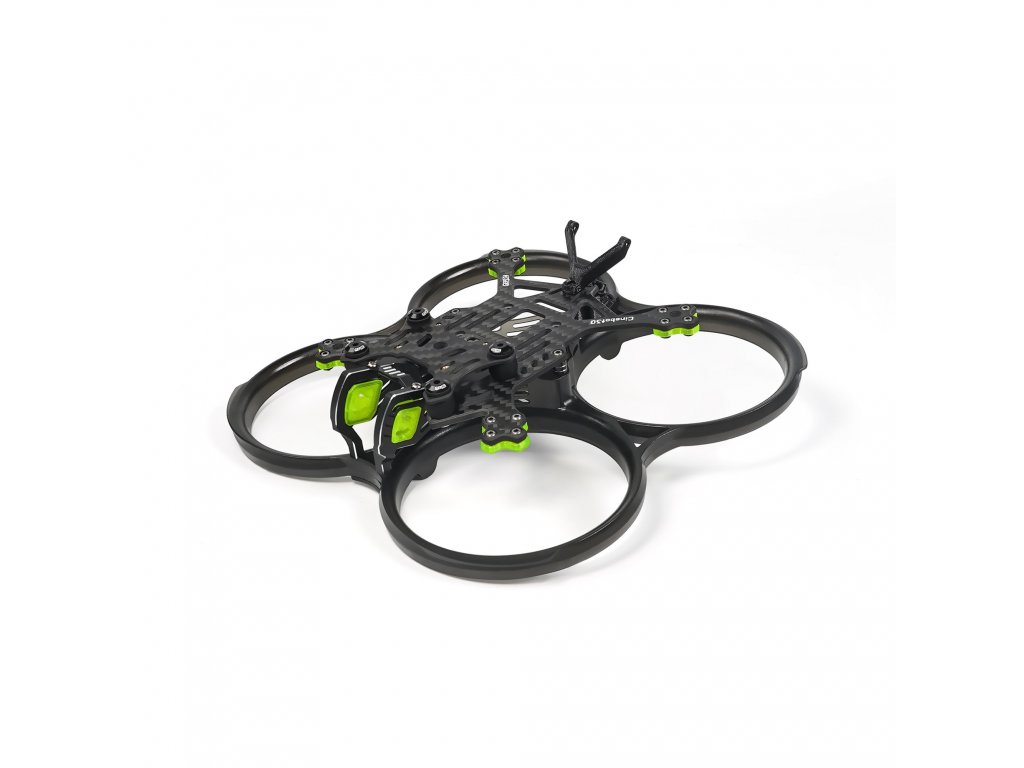

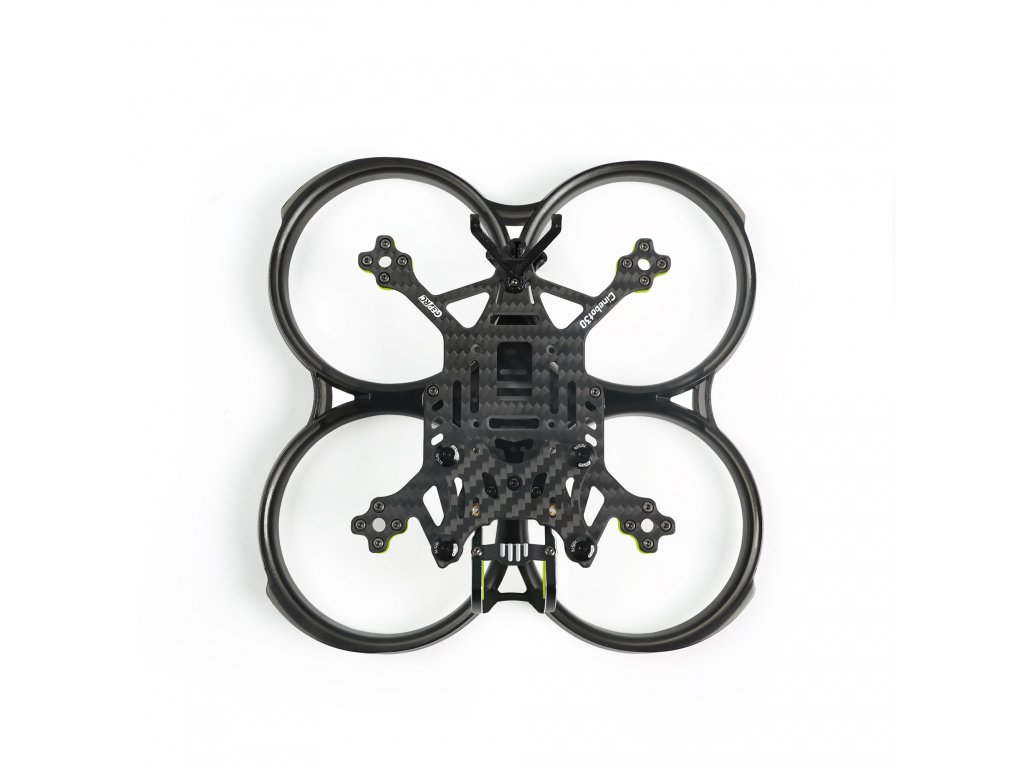

GEP-CT30-O3-COB The GEP-CT30 O3 version of the frame developed by the GEPRC team specifically for the O3 Air Unit. The newly polished gimbal damping module can easily fix high-frequency vibration and jello issues. It can be mounted with multiple action cameras, TPU soft fixing method designed for O3 cameras, to prevent the camera IMU resonance vibration. GEP-CT30 O3 frame supports the installation of mainstream AIO flight controllers with 25.5mm*25.5mm mounting holes and is compatible with various VTX mounting holes on the market such as 20mm*20mm/25.5mm*25.5mm. With 12mm * 12mm motor mounting holes, can be installed with larger 15-18-20 series motors, with strong power output with the 3-inch propeller. Ultra-light fuselage weight for more confident flying. Specification: Model: GEP-CT30 O3 Wheelbase: 127mm Isolation Plate: 2.0mm Main Plate: 3.0mm Bottom Plate: 1.5mm FC Mounting Hole: 25.5mm x 25.5mm VTX Mounting Hole: 20mm x 20mm /25.5 x 25.5 Motor Mounting Hole: 12mm x 12mm FPV Camera Spacing: 20mm Suitable propeller size: 3-inch propeller Weight: 107.3g (with COB light strip)
Additional parameters
| Category: | FPV Frames |
|---|---|
| Material: | Carbon fiber, PC |
| Camera Mounting: | DJI O3 |
| Size: | 3 inch |
| Motor Size: | 1804 |
| Wheelbase: | 126mm |
| Drone Type: | CineWhoop |
| The item has been sold out… | |
