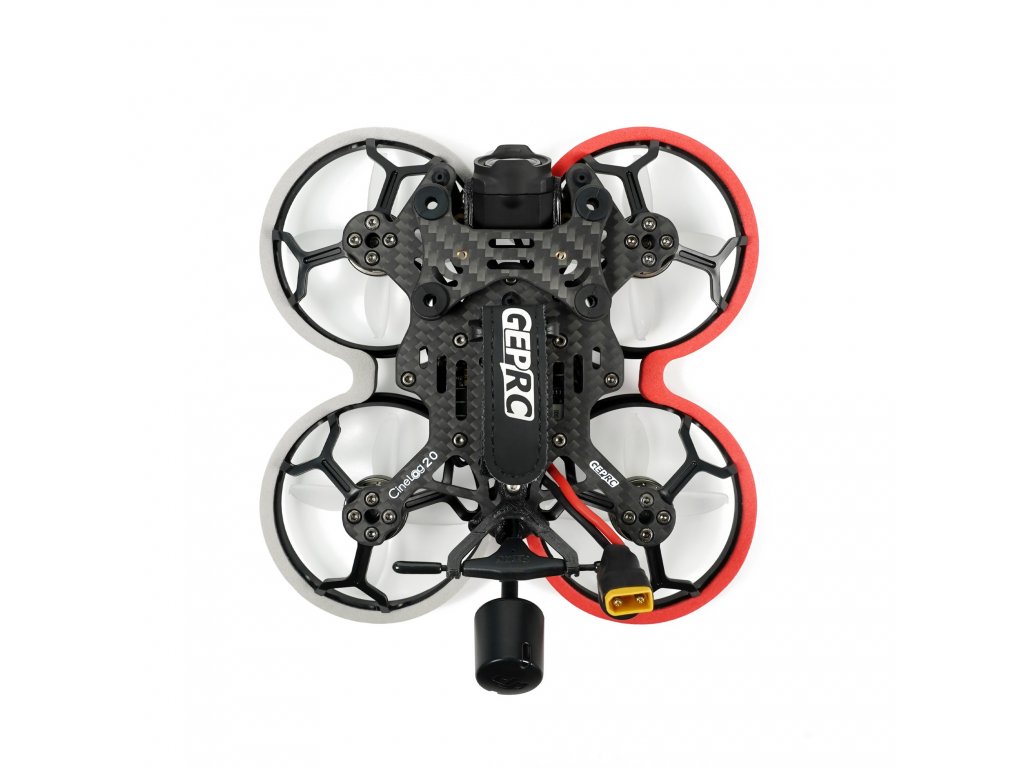

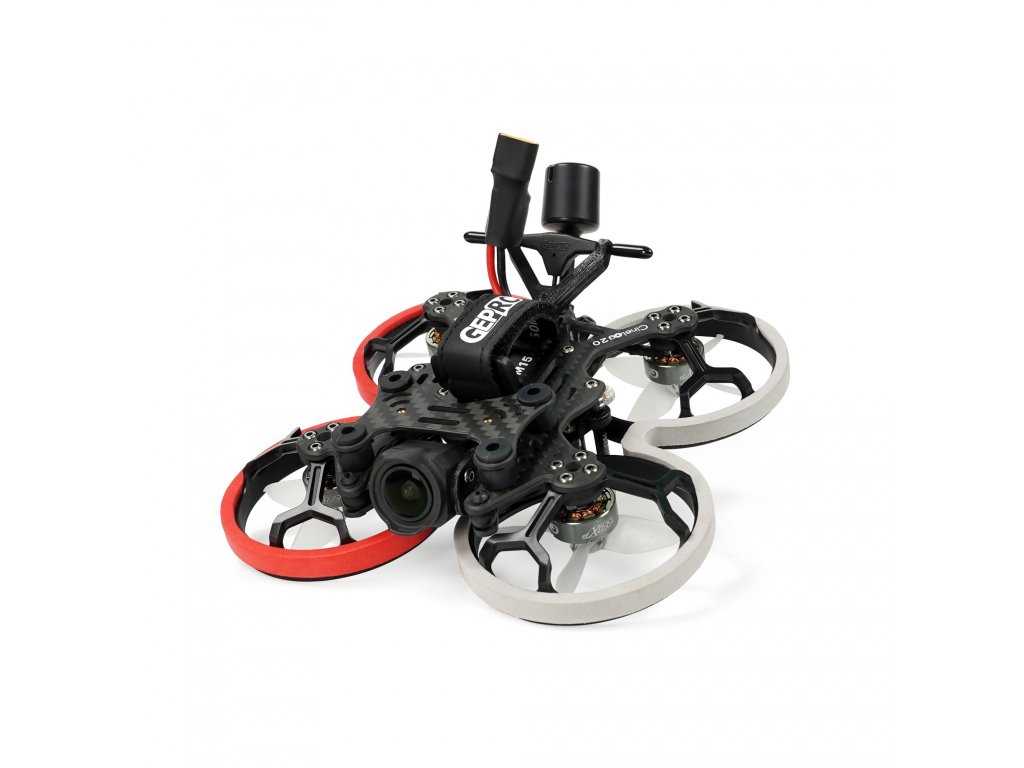

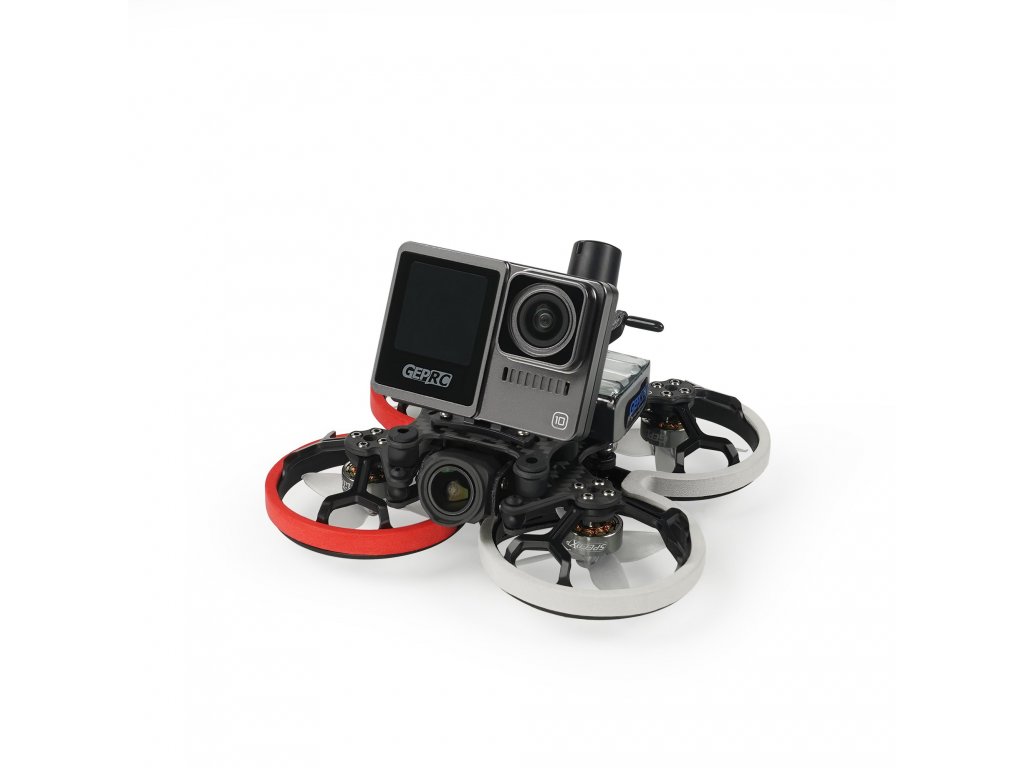

FPV Drone GEPRC Cinelog20 HD O3 TBSNanoRX
Code: GP105642Product detailed description
Cinelog20 HD O3 TBSNanoRX Designed to mount a shock-absorbing gimbal under the independent FPV camera to reduce jello of FPV Goggles image, with good anti-shake effect. Provide mainstream Link Wasp, O3 Air Unit, and Walksnail HD video transmission versions, Bind-N-Fly to save the trouble of building and tuning. 2-inch pusher design, small size and lightweight, more suitable for complex and narrow environments flight shooting. The overall flight feel is delicate and flexible. SPEEDX2 1303.5 5500KV motor with Emax four-blade propellers make the flight shooting unhurried. Continuing the vibration-dampening structure of the CineLog series, which can effectively eliminate the jello of the image caused by the body when flying with a Naked GP camera mounted. Specifications Model: CineLog20 HD O3 Frame: GEP-CL20 Wheelbase: 100mm Gimbal plate: 2.0mm Top plate: 2.5mm Bottom plate: 1.5mm FC system: GEP-F411-35A AIO MCU: STM32F411CEU6 Gyro: ICM 42688-P OSD: Betaflight OSD w/AT7456E chip ESC: 8Bit 35A VTX: O3 AIR Unit Camera: O3 Camera Antenna: 5.8G&2.4G Motor: GR1303.5 5500KV Propeller: EMAX Avan Micro 2×2.4×4 Weight: 140g Receiver: PNP(built-in DJI receiver), ELRS 2.4G, TBS Nano RX/RXSR Recommended battery: LiHv 4S 450mah-660mah Flight time: 4-6min
