FPV Drone GEPRC Cinelog20 Analog TBSNanoRX
Code: GP105536Product detailed description

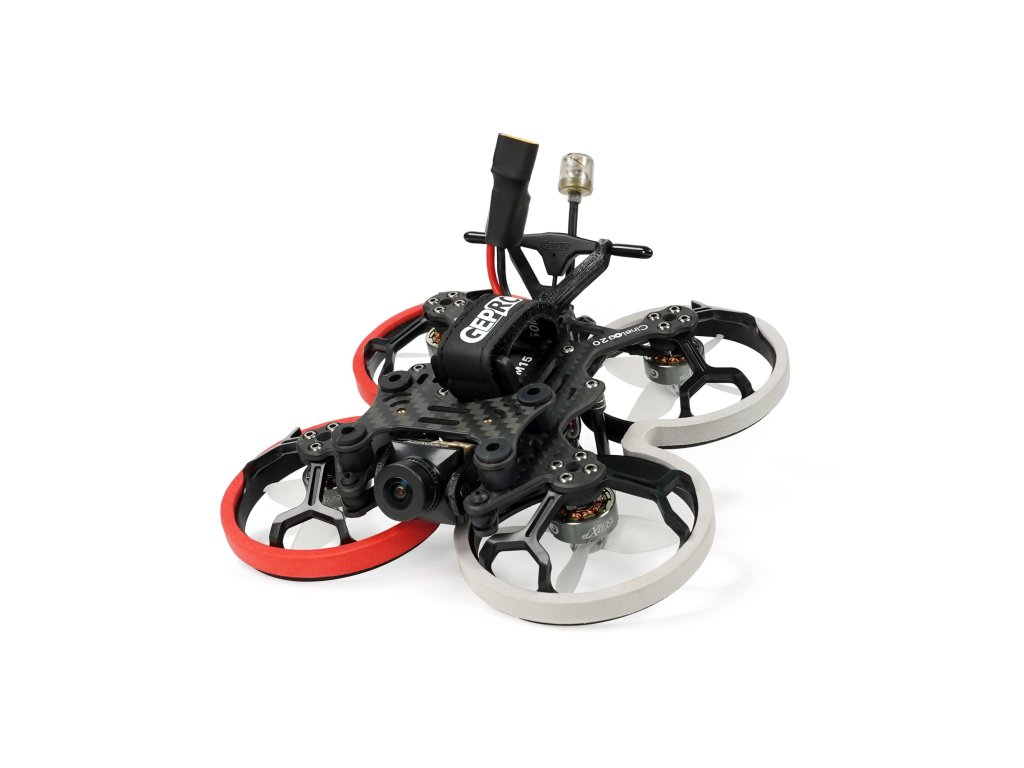

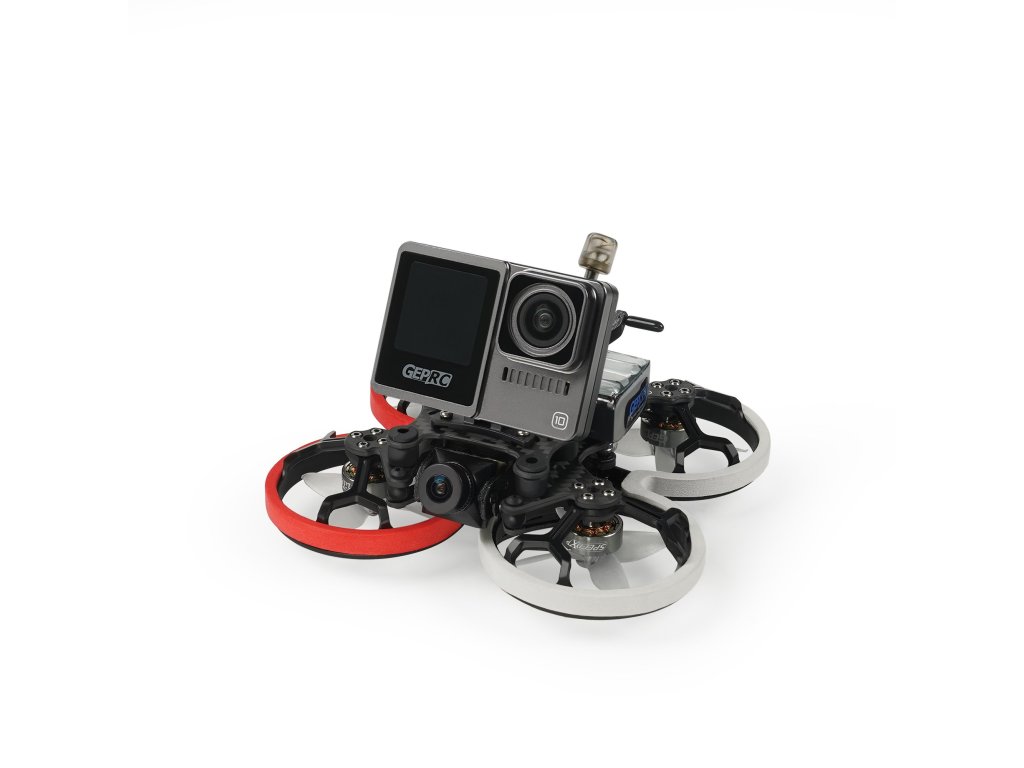

Cinelog20 Analog TBSNanoRX The 2-inch Cinewhoop CineLog20 is for the shooting needs of complex indoor environments. Available in Link Wasp, O3 Air Unit, Walksnail, and Analog four mainstream video transmission systems. The CineLog20 has a lightweight pusher design, and the redesigned camera gimbal vibration reduction solution provides a mounting platform for O3 Air Unit shooting, with an excellent anti-shake effect. The O3 Air Unit version can shoot 4K 120fps video without mounting any camera. It is lighter in weight and has a longer battery life. It adopts GEPRC SPEEDX2 1303.5 5500KV motor and GEP-F411-35A AIO. Equipped with Emax 4-blade propellers, a reasonable and efficient power system makes the CineLog20 very quiet and has a long battery life. The one-piece injection molding camera mount for quickly mounting GEPRC naked GP 8/9/10/11 cameras, Action2, insta360 Go2, Peanut, and other light and small action cameras. Specifications Model: CineLog20 Analog Frame: GEP-CL20 Wheelbase: 100mm Gimbal plate: 2.0mm Top plate: 2.5mm Bottom plate: 1.5mm FC system: GEP-F411-35A AIO MCU: STM32F411CEU6 Gyro: ICM 42688-P OSD: Betaflight OSD w/AT7456E chip ESC: 8Bit 35A VTX: GEPRC 5.8G@600mw Camera: Caddx Ratel2 Antenna: GEPRC Peano 5.8G RHCP MMCX Motor: GR1303.5 5500KV Propeller: EMAX Avan Micro 2×2.4×4 Weight: 116g Receiver: PNP (Without receiver), ELRS 2.4G, TBS Nano RX / RXSR Recommended battery: LiHv 4S 450mAh-660mAh Flight time: 4-6min
