FPV Drone GEPRC Cinebot30 Analog, 6S PNP

Product detailed description

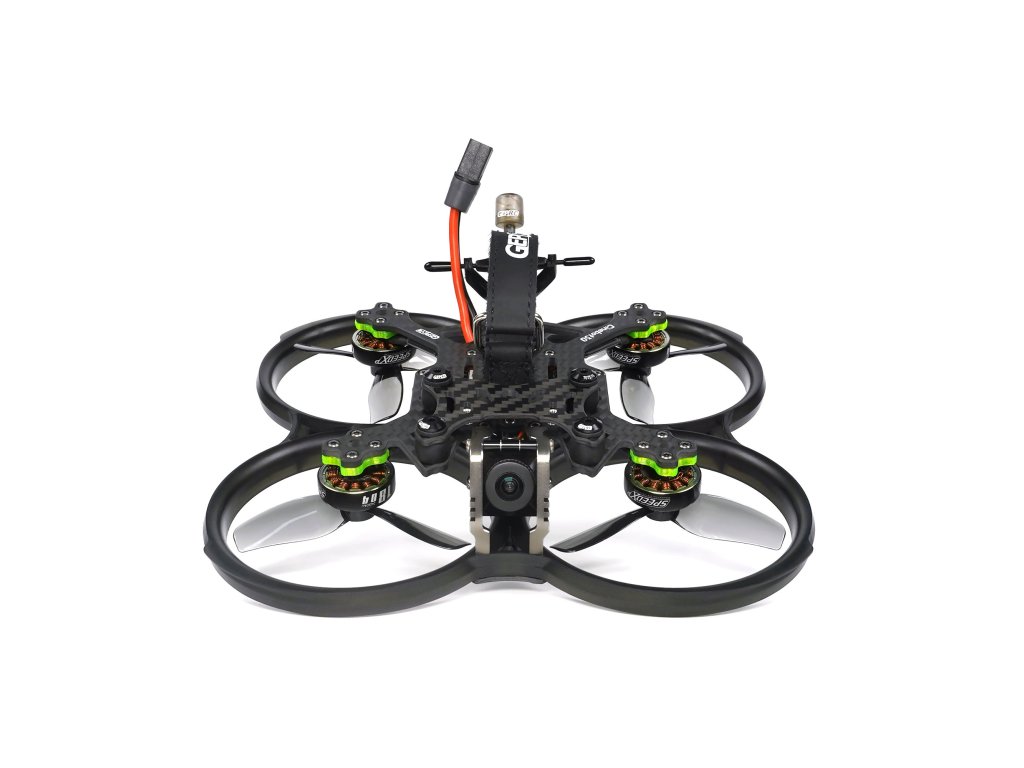

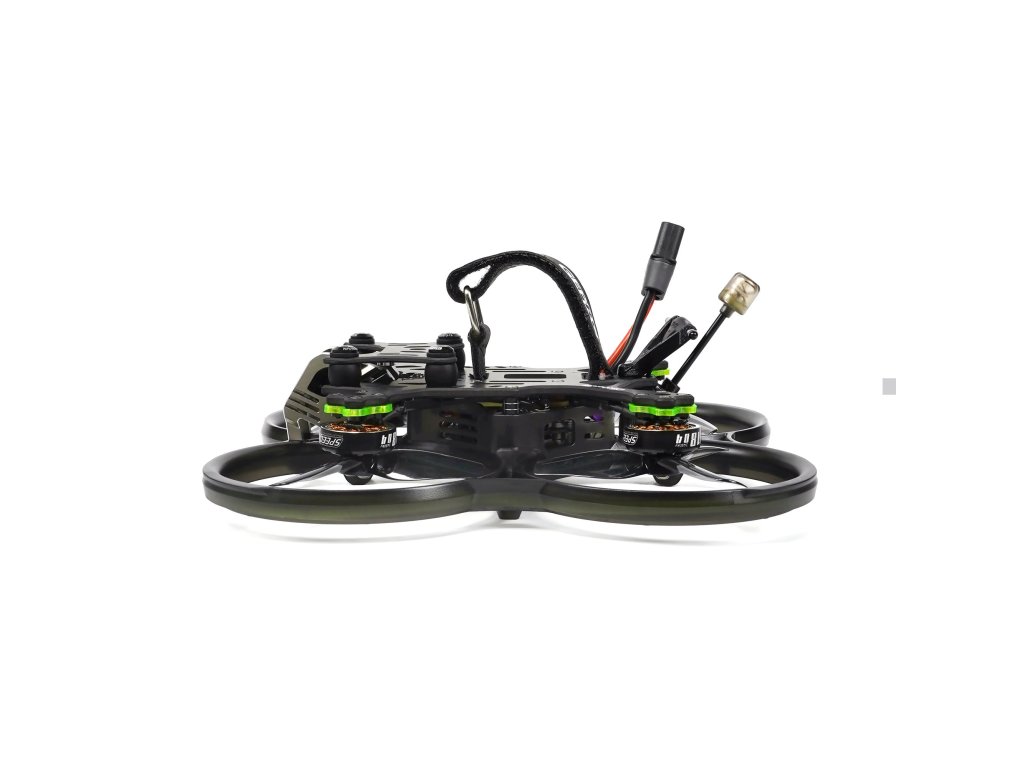

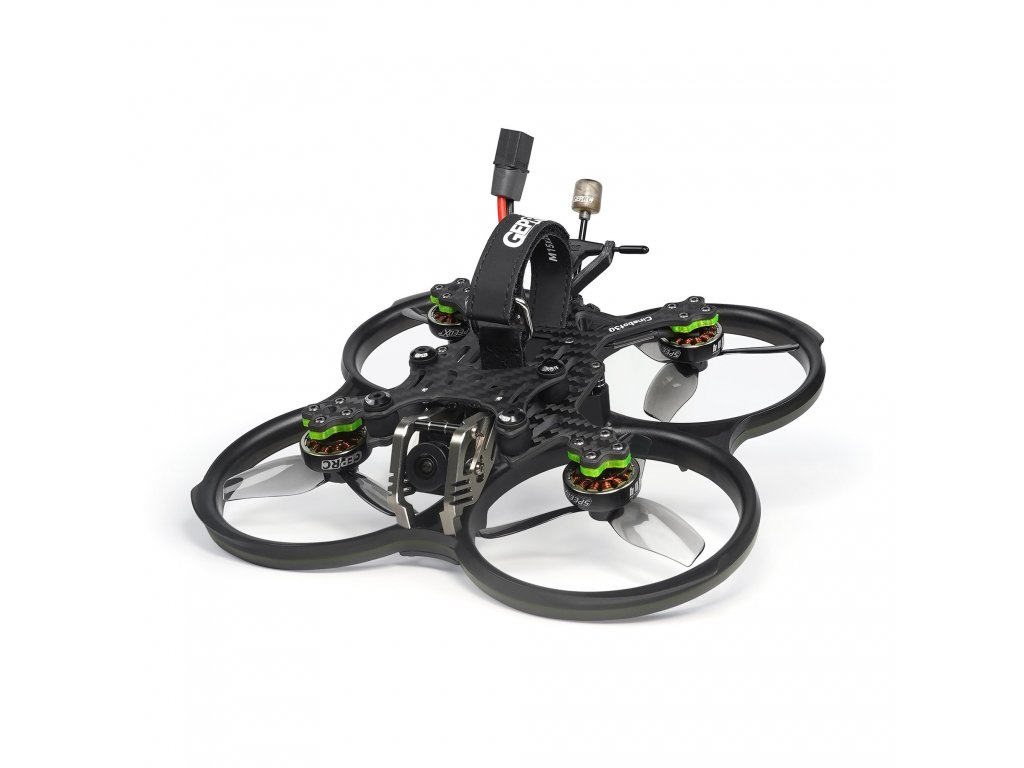

Cinebot30 Analog  PNP (6S)

Cinebot30 is a new generation of Cinematic FPV drones. It has a high-strength 7075 aircraft-grade aluminum alloy bracket for FPV camera escort. The polished gimbal damping module can easily fix high-frequency vibration and jello issues. It can be mounted with GEPRC Naked camera GP8 and GP Black Bones, Insta 360 GO2, and other cameras. The image is stable and clear, and it’s easy to film.
Adopts high-strength one-piece injection-molded propeller guard and high-toughness and impact-resistant PC material for injection molding. A ring-shaped Cob light strip is embedded in the propeller guard, and the light effect is carefully tuned. High-strength grain-cut carbon fiber sheet, the overall strength of the fuselage is upgraded.
Cinebot30 is equipped with a powerful 1804 motor with an optimized motor magnetic circuit and surging torque, which can easily cope with ultra-low altitude shooting. With HQ prop T76mm*3 propeller, it gets the lowest noise effect in its class. Using GEP-F722-45A AIO v2 flight controller, higher performance redundancy, and easy handling of unexpected situations. Finely polished frame design, only 6 screws need to be removed to separate the aircraft top plate and protection frame. Easy to cope with the urgent need to replace the accessories, at any time to restore the state.

Specifications
Model: Cinebot30 Analog Quadcopter
Brand: GEPRC
Frame: GEP-CT30
Wheelbase: 127mm
Isolation Plate: 2mm
Main plate: 3mm
Bottom plate: 1.5mm
FC: GEP-F722-45A AIO V2
MCU: STM32F722RET6
IMU: ICM-42688-P
VTX: GEPRC RAD 1W
Camera: Caddx ratel 2
Propeller: HQ prop T76mm
Antenna: Peano 5.8G 110mm RHCP UFL Antenna
Charger connector: XT60H-M
Motor: SPEEDX2 1804-2450KV (6S Version) / SPEEDX2 1804-3450KV (4S Version)
Weight: Nebula Pro version 222.5g / Avatar version 221g / Analog version 209.2g / Link Wasp version 222.5g (excluding battery, the above are TBS Nano RX version)
Receiver: PNP, Frsky R-XSR, TBS Nano RX, ELRS 2.4G
Recommended Battery: LiPo 4S 1100mAh-1300mAh (4S Version) / LiPo 6S 850mAh-1100mAh(6S Version)
