Frame Pilotix Rocky13 Xclass 13”
Code: 4146Related products
Product detailed description

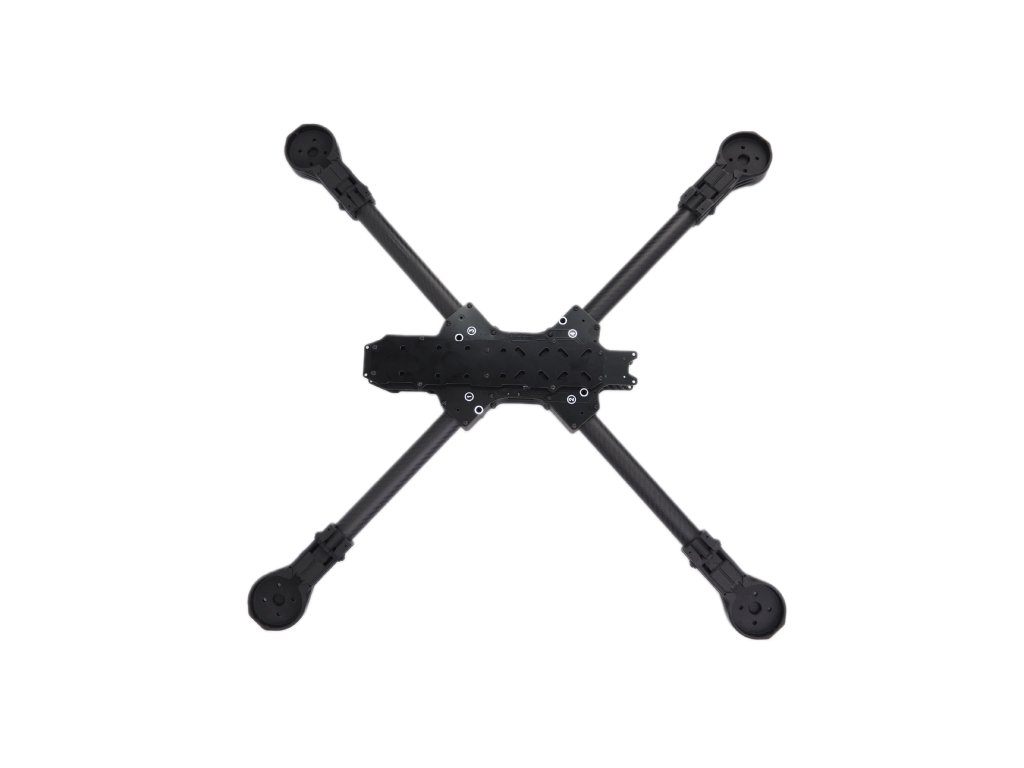

Frame Pilotix Rocky13 Xclass 13” The Frame Pilotix Rocky13 Xclass 13” is a top-tier carbon fiber frame designed for building 13-inch long-range drones. This frame combines exceptional strength with a lightweight design, ensuring optimal performance for extended flights. Specifications: Model: Frame Pilotix 13'' Xclass
Wheelbase: 590mm
Arm tube diameter: 25mm
Top plate width: 140 mm
Top plate length: 300mm
Top plate thickness: 1.6mm
Bottom plate width: 140mm
Bottom plate length: 300mm
Bottom plate thickness: 2mm
Camera mounting: 19mm
Propeller size: 13 inch
FC mounting holes: 30.5x30.5mm
Compatible motor size: 4212
Width: 570mm
Length: 560mm

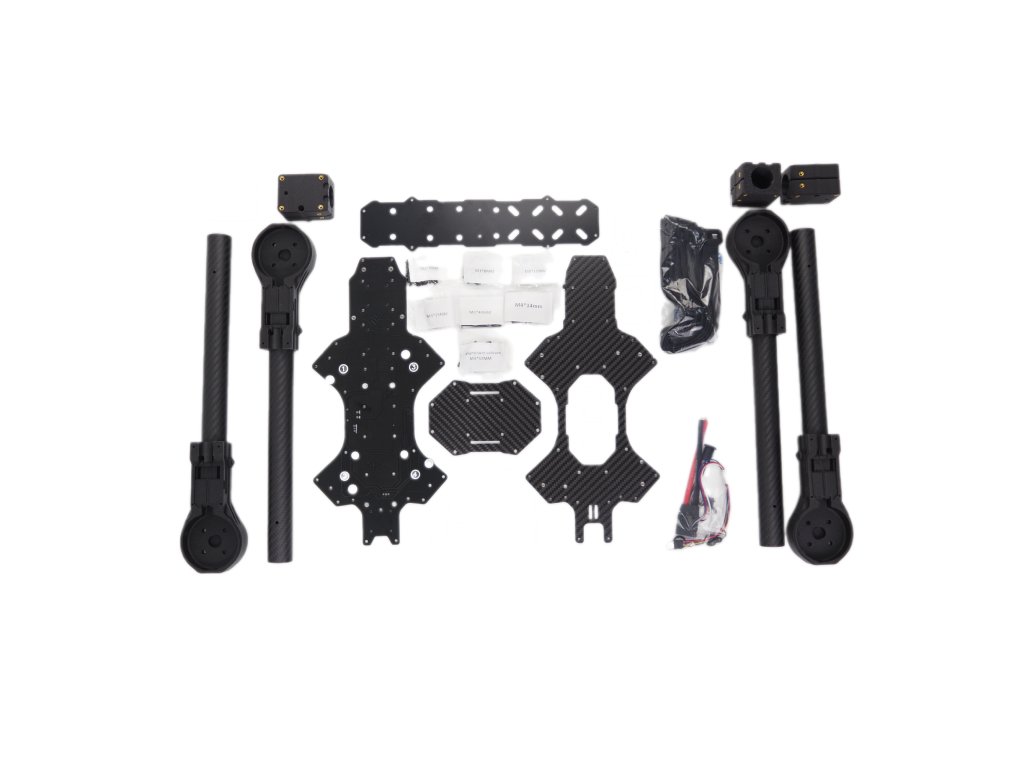

Weight: 1000g Package Includes: 1x Frame Pilotix Rocky13 Xclass 13”
Additional parameters
| Category: | FPV Frames |
|---|---|
| Camera Mounting: | Micro (19mm) |
| Drone Type: | Long Range |
| Material: | Carbon fiber |
| Size: | 13 inch |
