Frame Partizan Edition PT10 V3

Product detailed description

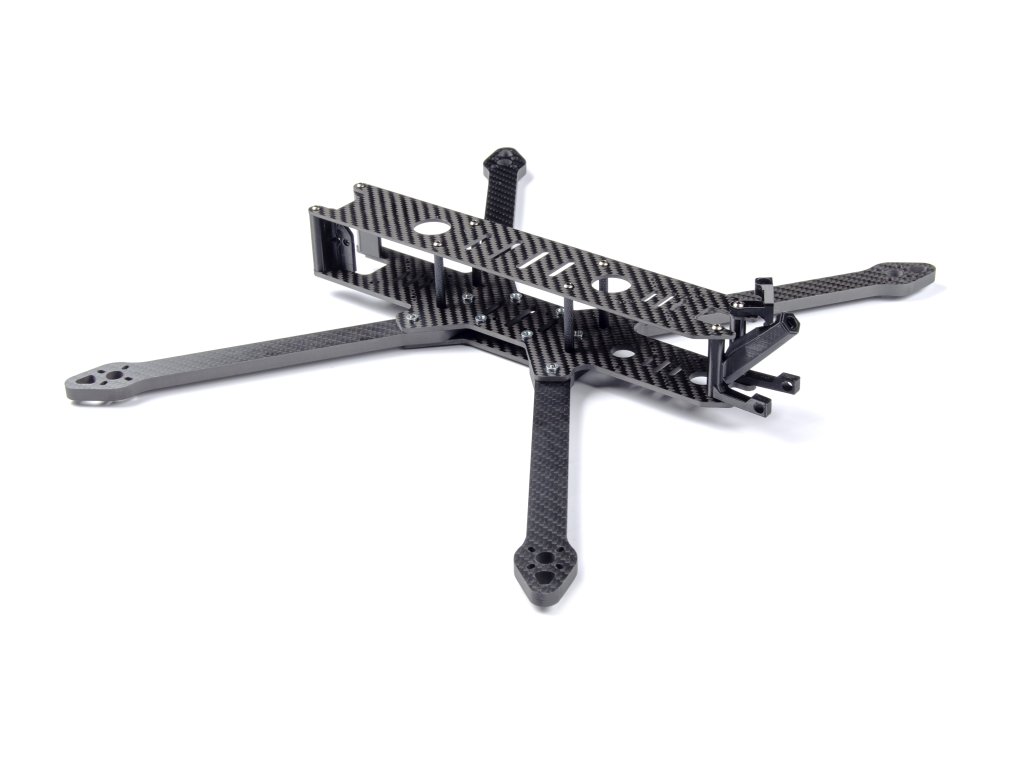

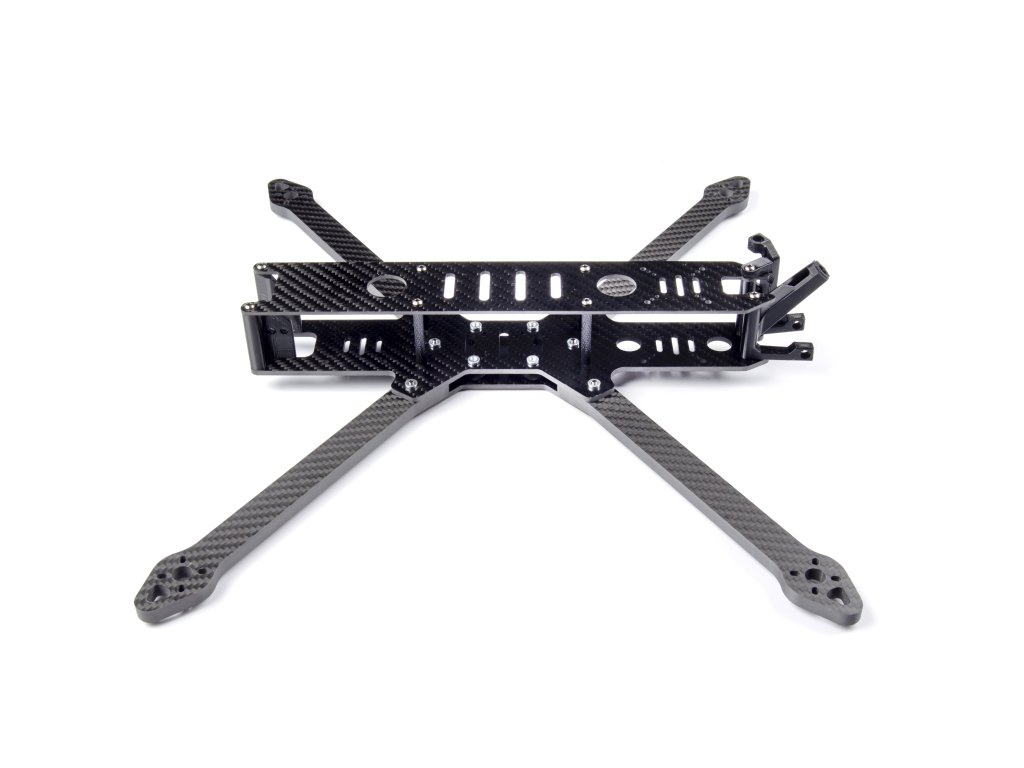

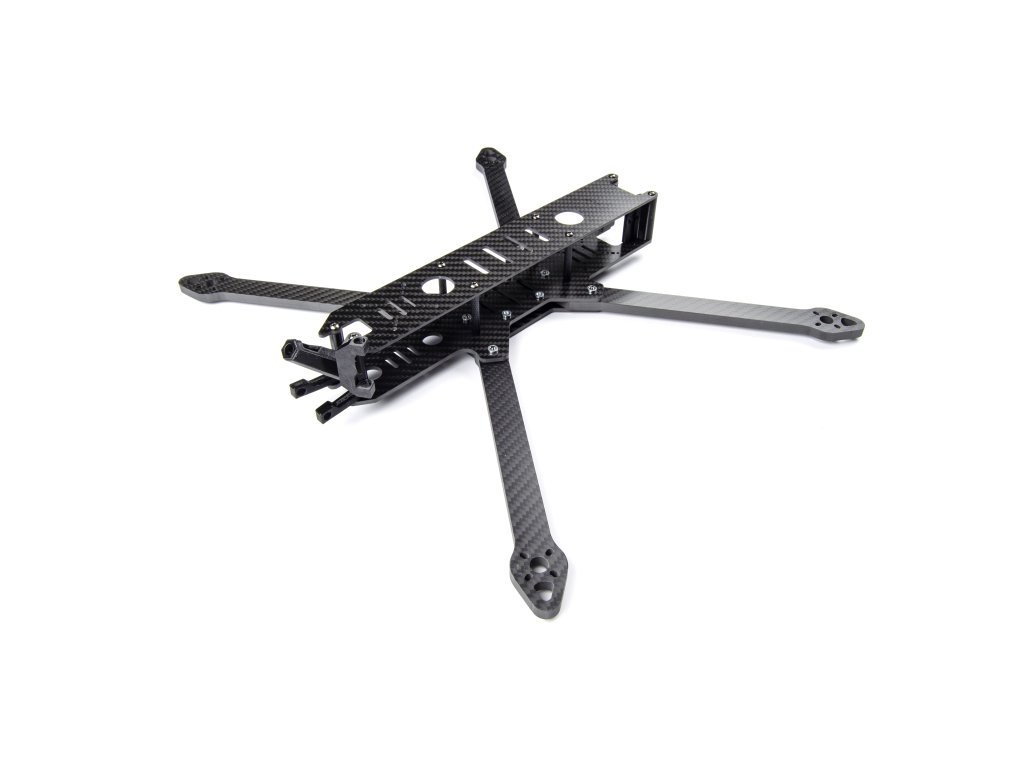

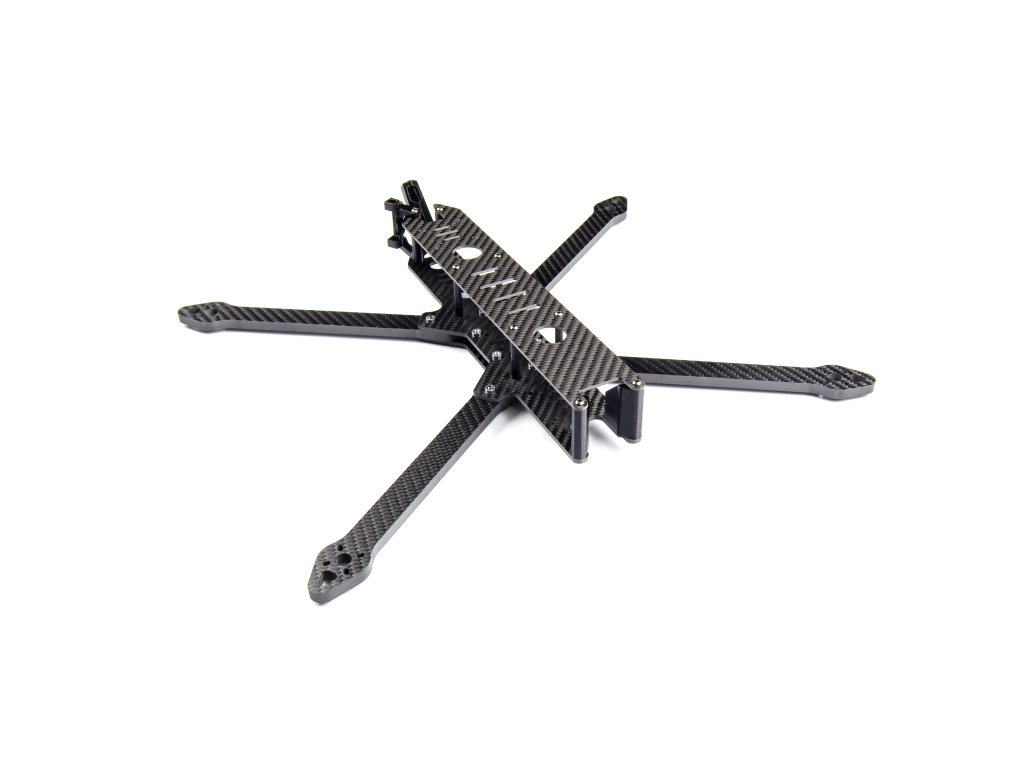

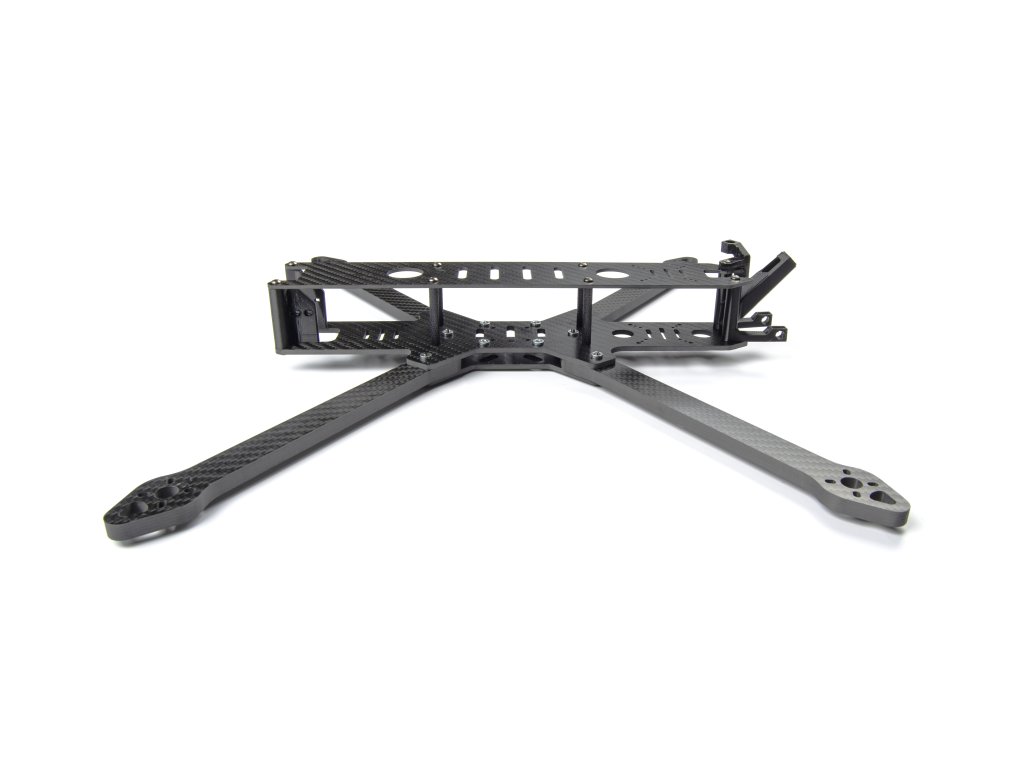

Frame Partizan Edition PT10 V3

The Partizan PT10 V3 frame is designed to accommodate all the necessary components. Each part of the design is carefully thought out to accommodate key modules and ensure easy assembly of drones for various purposes.

The front of the frame has special mounts for the homing module or other smart modules that will work with the camera. For example, installing a servo drive to control the camera's direction allows you to dynamically change the viewing angle during flight.

The central part of the frame for the stack provides easy installation and simple maintenance of key electronic components.

The rear part of the frame provides mounts for two video transmitters (VTX), which opens up new possibilities for setting up and using various configurations of video transmission systems.

The PT10 V3 frame design is symmetrical and perfectly balanced. All elements are securely fixed, which eliminates vibration even under high loads and increases the stability of the drone in flight.

The main part of the frame is suitable for 7‘, 8’, 10‘ and even 13’ assemblies. The only difference is the length of the arms, which allows you to keep a single setup for different configurations without the need for significant changes.

Partizan PT10 V3 is the solution for those who value reliability, versatility and adaptability. This frame will be the perfect base for your drone, regardless of its size or purpose.

Specifications:

Model: Partizan PT10 V3
Wheelbase: 427mm
Arm thickness: 7mm
Top plate thickness: 2mm
Bottom plate thickness: 3mm
Dimensions: 373x321x63mm
FC mounting holes: 30.5mm/20mm
Camera mounting: 19mm
Propeller size: 10 inch
Compatible motor size: 3115
Weight: 373g

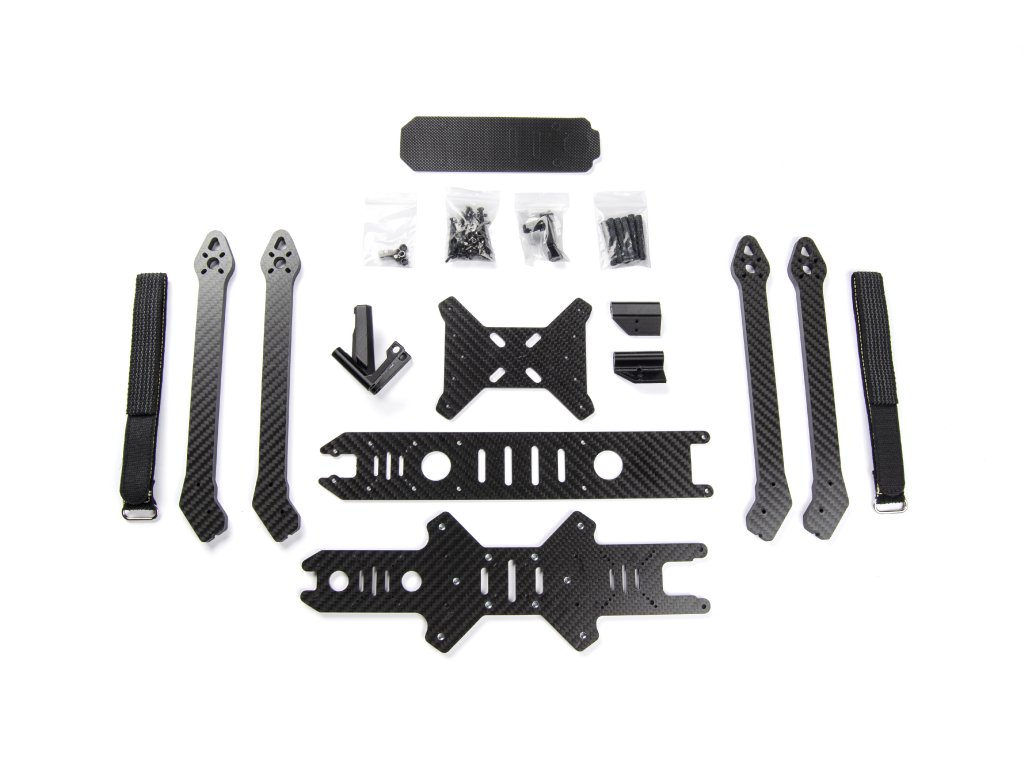

Package Includes:
1x Frame Partizan PT10 V3
