Frame BETAFPV Pavo35 Brushless Whoop

Product detailed description

Frame BETAFPV Pavo35 Brushless Whoop

This is a lightweight and durable spare frame for the BETAFPV Pavo35 brushless whoop drone.

Specifications:

Item: Pavo35 Brushless Whoop Frame
Wheelbase: 148mm
Top Plate: 3mm T700 carbon fiber
Base Plate: 1.5mm T700 carbon fiber
Gimbal Carbon Plate: 2mm T700 carbon fiber
Column: 7075 aluminum alloy CNC
Battery Holder: 7075 aluminum alloy CNC
Whoop Duct: PC injection-molded translucent gray
Whoop Duct Diameter: 92mm
Battery Connector: Fixed XT60
Camera Installation Size: 20mm (compatible with 19mm)
HD VTX Installation Size: 25.5*25.5mm M1.6/20*20mm M2
HD VTX Antenna Mounting Hole Size: 4mm
Flight controller Mounting Hole Size: 25.5*25.5mm
Motor Mounting Hole Size: 4*M2 EQS ø12mm
Weight: 113.9g

Recommend Parts
FC: F722 35A AIO V2
Motor: LAVA Series 2006 Brushless Motors
Propellers: GemFan D90S 3-Blade Propellers(1.5mm Shaft)
Battery: LAVA Series 6S 1100mAh LiPo Battery
Battery Strap: Pavo Series Battery Strap(2PCS)
Filter: BETAFPV ND Filter for DJI O3 Camera
VTX: DJI O3 Air Unit, Walksnail Avatar HD Pro Kit, Caddx Vista Kit, RUNCAM Link, Analog

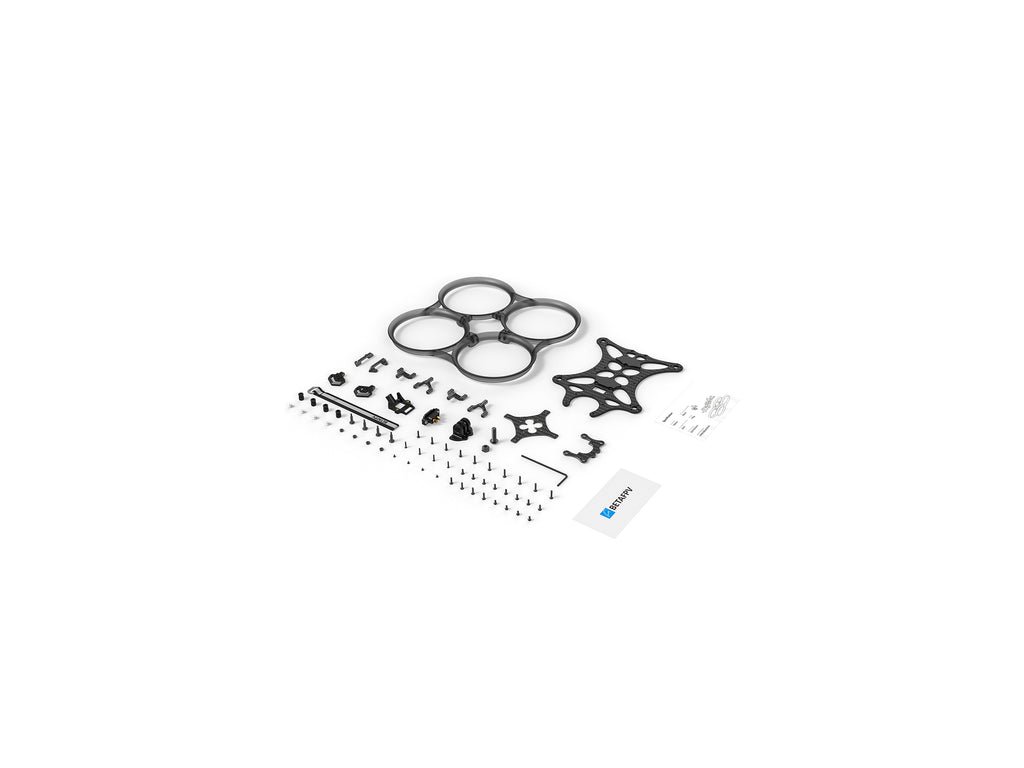

Package Includes:
1x Top Plate
1x Gimbal Carbon Plate
1x Base Plate
2x Battery Tie Holder
4x Y-shaped Aluminum Alloy Bracket
1x Whoop Duct
1x Receiver Holder
1x Amass XT60EW-M Socket (Black)
2x Battery Anti-slip Mat
1x Battery Tie
4x Flight Controller Amping Ball
4x Pan/Tilt Vibration Reduction Ball
4x Pan/Tilt Screws
2x Inner Hex Flat Head Screw M2.5*5
10x Inner Hex Flat Head Screw M2*6
4x Inner Hex Flat Head Screw M2*8
4x Inner Hex Flat Head Screw M2*10
4x Nylon nut M2
1x Accessory package
1x Service Card
1x Frame Manual
