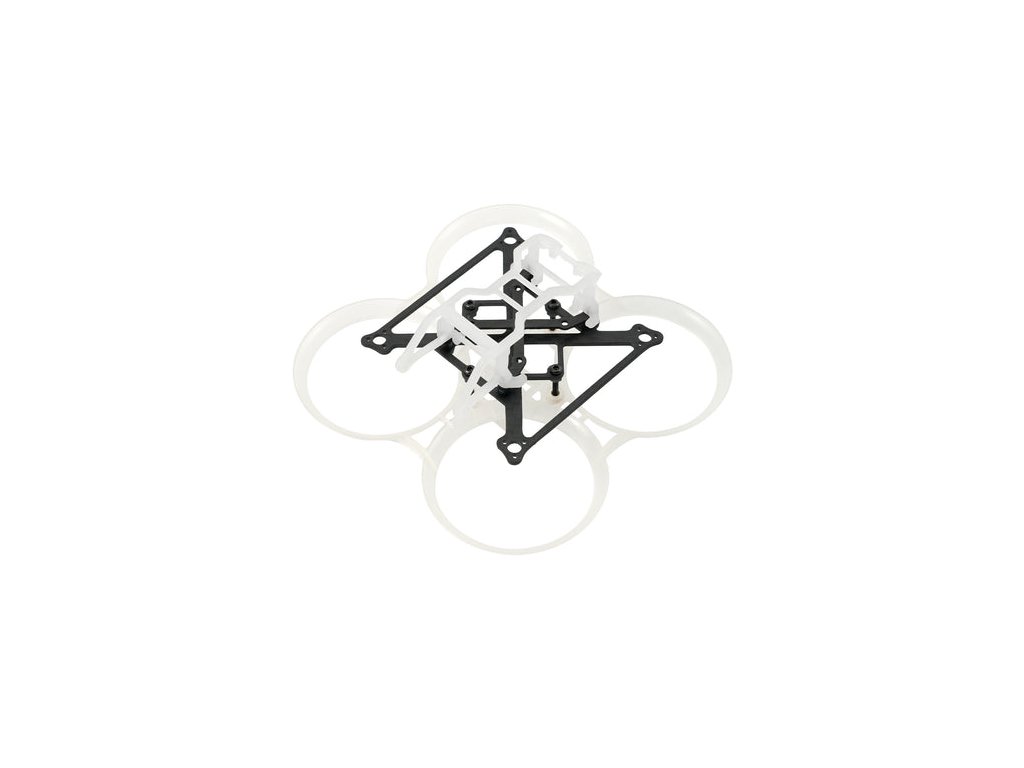

Frame BETAFPV Pavo Pico Brushless Whoop (HD Digital Version) Clear

Product detailed description

Frame BETAFPV Pavo Pico Brushless Whoop (HD Digital Version)

- HD digital VTX bracket made of lightweight and tough injection-molded PP material with an adjusted structure to prevent HD VTX displacement or loss after the crash.
- The Rubber Damper Vibration damping design reduces low-frequency vibrations
- To accommodate a wider range of battery sizes, the main body of the frame can be trimmed through DIY methods. Additionally, larger batteries can be installed by using battery straps or printed components.
- The DJI O3 can be directly installed, while Avatar and Vista require a 20*20 mounting plate and screws (included) for fixation. The naked frame is suitable for users who DIY refit and assemble the HD VTX by themselves

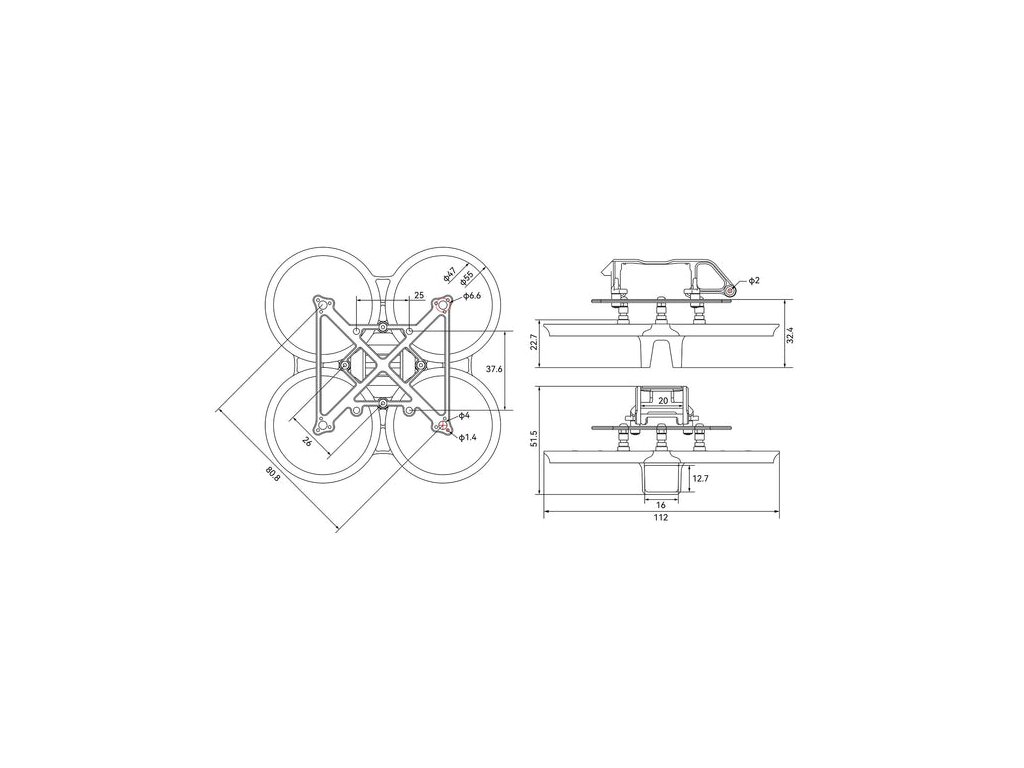

Specifications:

Item: Pavo Pico Brushless Whoop Frame With HD VTX Bracket
Wheelbase: 80.8mm
Battery Slot Size: 16mm*12.7mm
Camera Installation Spacing: 19mm/20mm
Color: Transparent
Weight: 13.80g/11.62g
Motor Mounting Hole Position: 3-M1.4-φ6.6mm
FC Pattern: 26×26mm, suitable for F4 1S 12A AIO Brushless FC V3

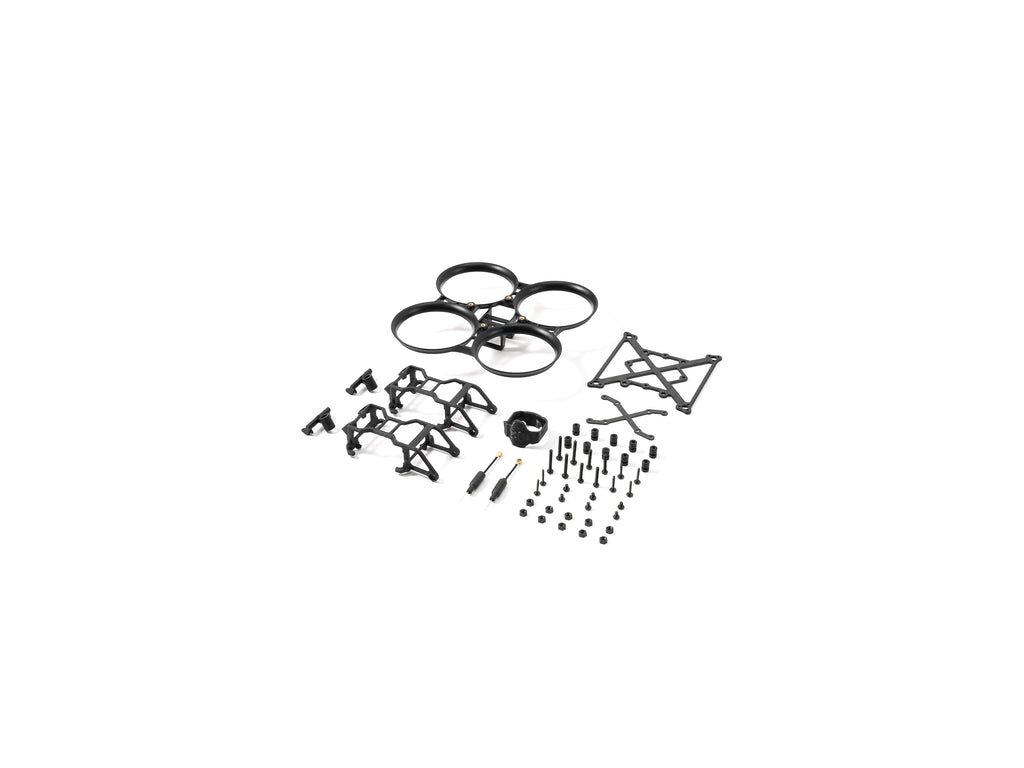

Package Includes:
1x Pavo Pico Top Palte
1x Pavo Pico Whoop Duct
1x Frame FC Screw Package
1x HD VTX Bracket Screw Package
1x 20*20 HD VTX Mounting Plate
2x O3 HD VTX Mounting Bracket
2x O3 HD VTX Antenna Mounting Base
2x 5.8g Copper Tube Antenna
