Frame BETAFPV Meteor75 Air Brushless Whoop Clear Blue

Product detailed description

The new upgraded Meteor75 Air Brushless Whoop Frame achieves a remarkable minimum weight of just 4.45 grams. It maintains exceptional strength and durability while introducing a new Motor Fixed Slot and Motor Gasket and optimizing a low-profile design.

Features:
- The smaller frame height effectively concentrates the lowered profile, delivering an enhanced flying experience.
- The Motor Gasket allows seamless pairing with motors from different brands, effectively preventing propeller strikes. It is compatible with 07-08 series motors and 40mm propellers.

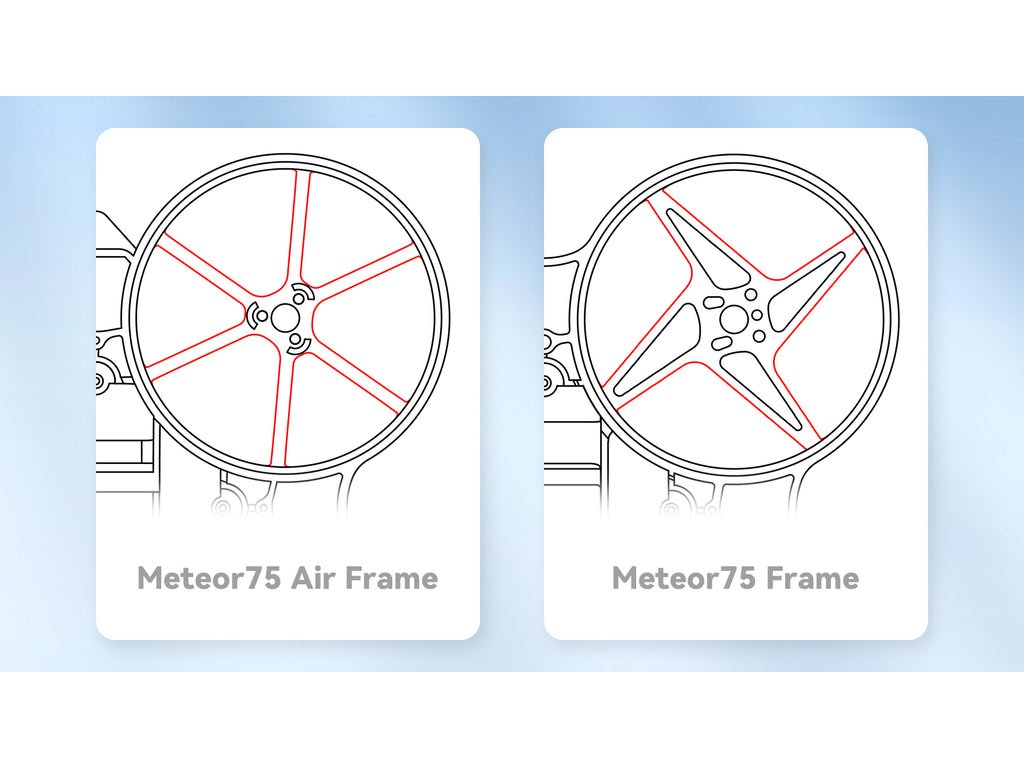

- Compared with the spiral-shaped whoop duct, the outer radial shape requires less material and a smaller plane area, which is beneficial to weight reduction and wind resistance.

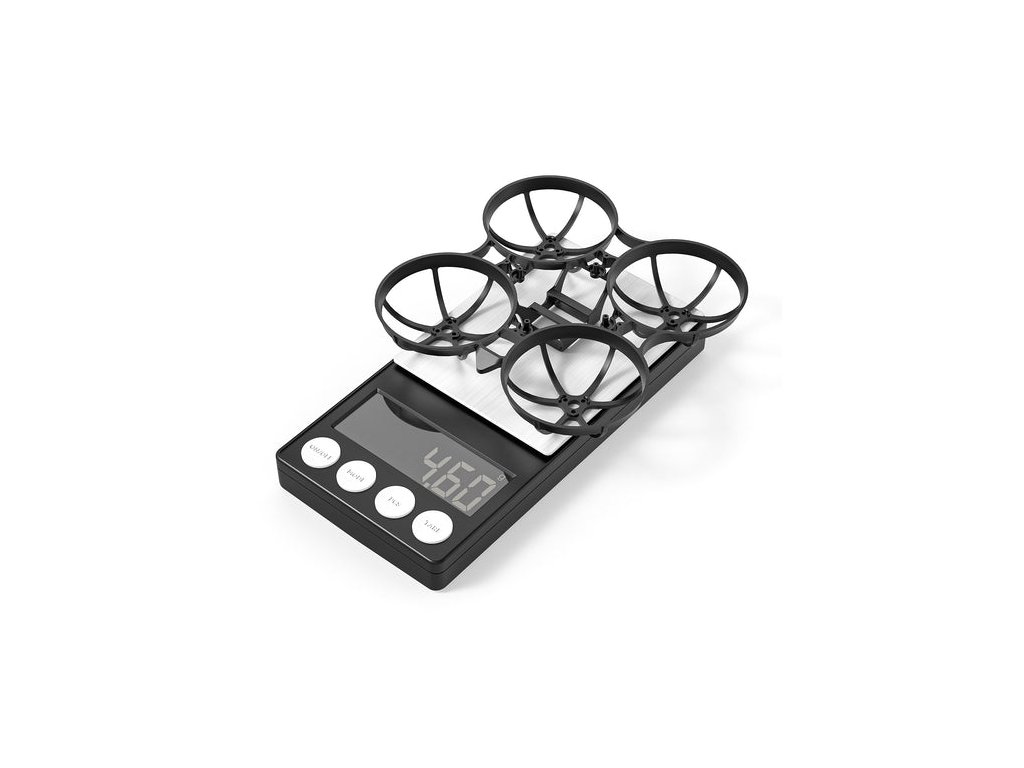

- The weight is reduced from 5.6g to 4.45g, making the flight more flexible, exemplifying the exceptional ultra-light structure of the 75mm whoop drone. Both frames feature the same materials and durability.
- The Meteor75 Air Brushless Whoop Frame has motor fixed slots, facilitating a more expedient and steadfast motor installation process. The correct shaft alignment ensures the smooth, efficient transmission of power from the motor to the flight controller, reduces mechanical stress, and minimizes power wastage.

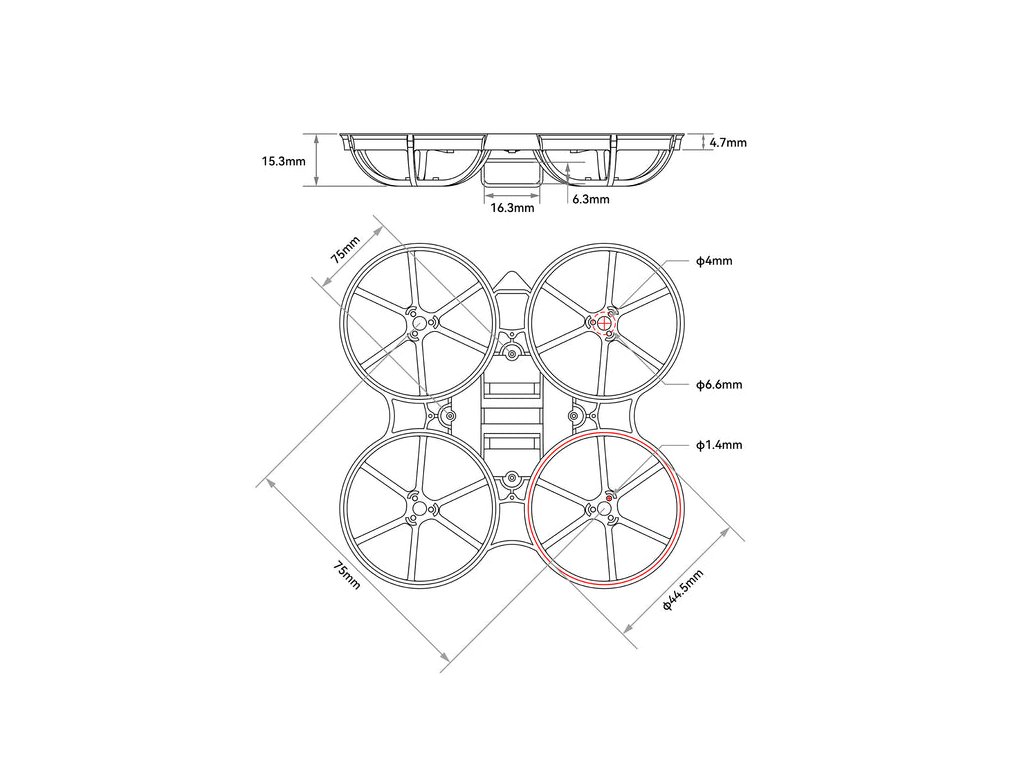

Specifications:

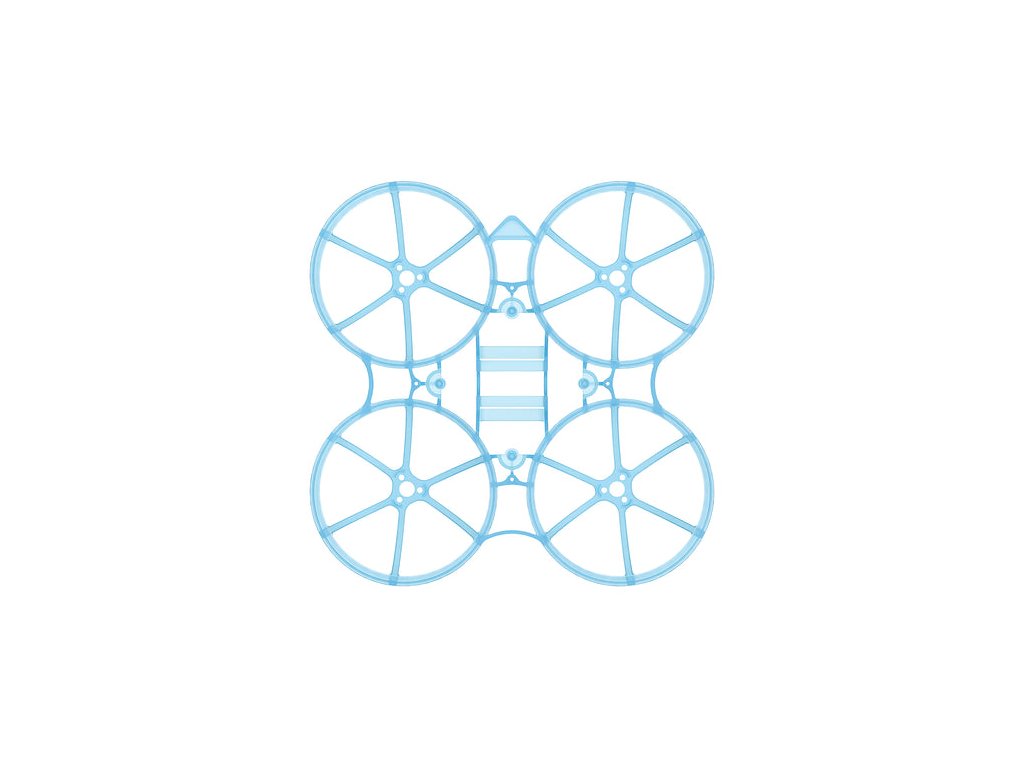

Item: Meteor75 Air Brushless Whoop Frame
Material: PP
Weight: 4.45g
Wheelbase: 75mm
Motor Mounting: 3-M1.4-6.6mm
Flight Control Installation Hole: 26×26mm
Battery Slot Size: 16.3×6.3mm
Color: Transparent Blue

Recommended Parts
Canopy: Micro Air Canopy, Canopy for Micro Camera 2022, Micro Canopy Lite
FC: F4 1S 5A AIO Brushless Flight Controller
Motors: 0702/0702SE Brushless Motors,0802SE Brushless Motors, 1102 Brushless Motors
Propellers: GF 1610 2-Blade Propellers, GF 1635 3-Blade Propellers
Battery: BT2.0 450mAh 30C, BT2.0 550mAh 30C, LAVA 1S 450mAh 75C, LAVA 1S 550mAh 75C
Screws: Meteor Series Motor Fixing Screws Pack (40PCS)

Package:
Item: Meteor75 Air Brushless Whoop Frame
1 * Meteor75 Air Brushless Whoop Frame
4 * Motor Gasket
