FPV Drone CADDXFPV Gofilm 20

Product detailed description

FPV Kit CADDXFPV Gofilm 20

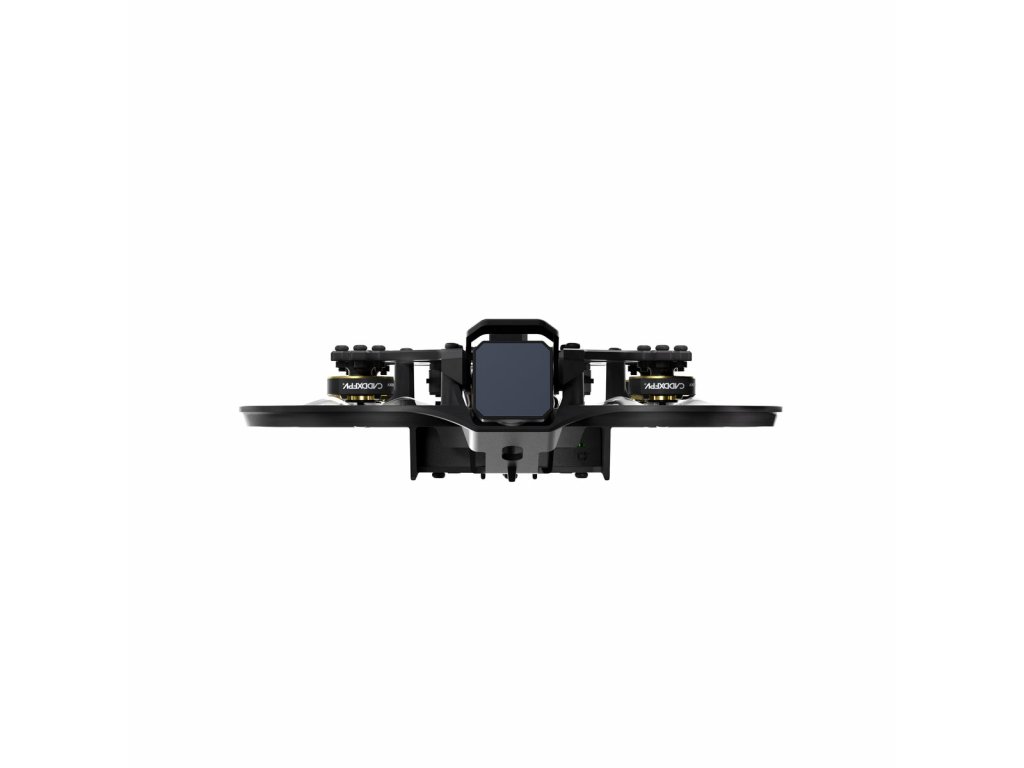

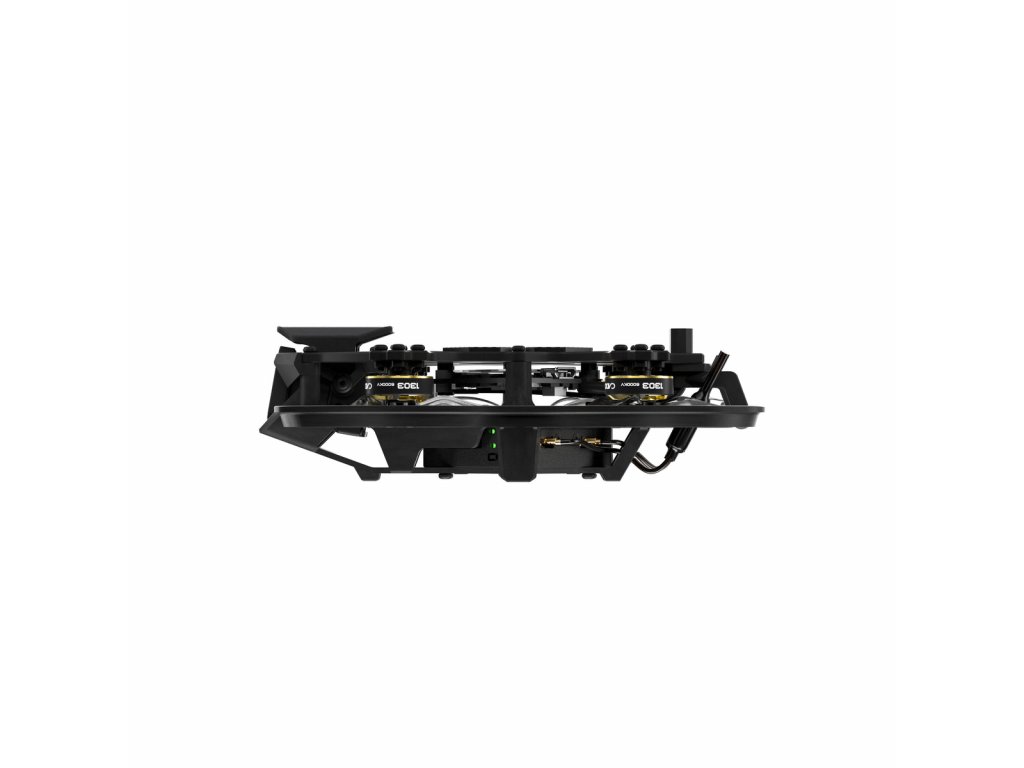

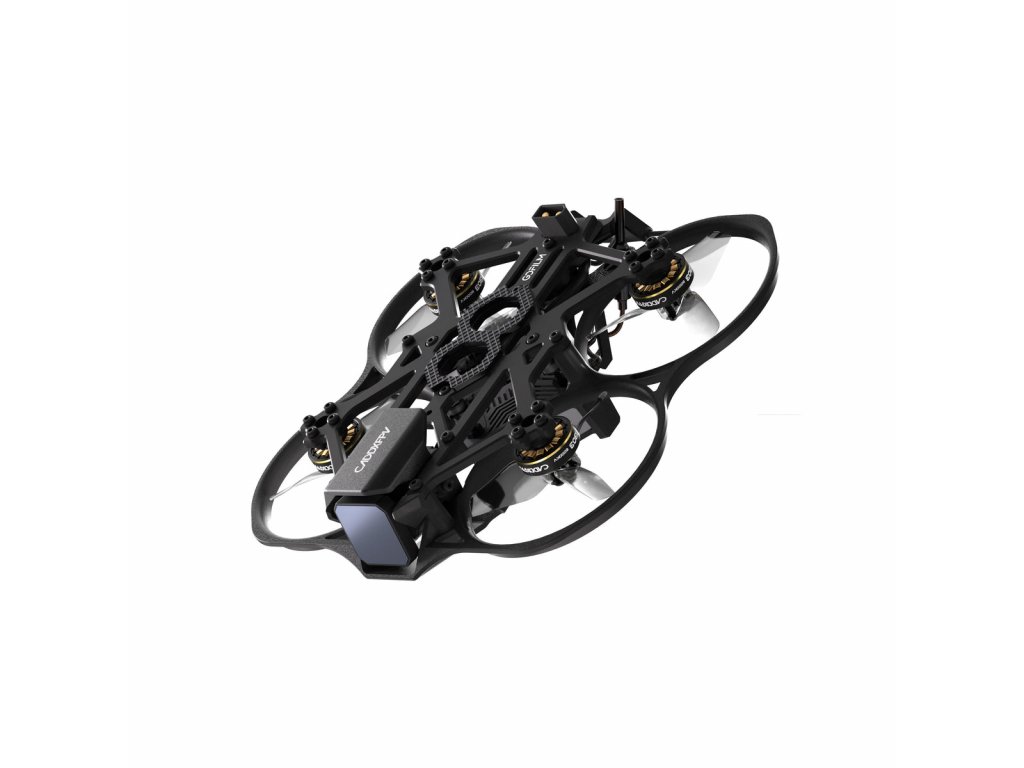

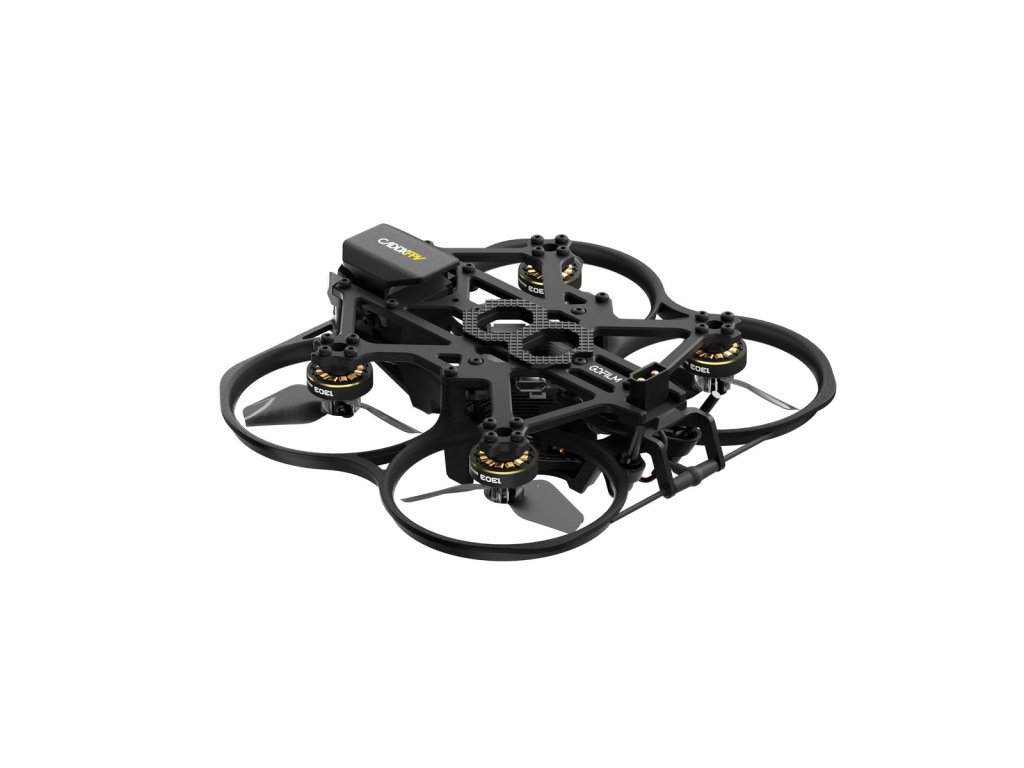

The Gofilm 20 is the first FPV drone from CaddxFPV. Equipped with the Avatar Moonlight Kit, it shoots stable and HD videos without unnecessary latency, making it easy to capture cinema-quality images whether day or night. Gofilm 20 features a lightweight design, occupying a smaller footprint and weighing about 115g, ensuring agile flight and extended endurance. It has a 94mm wheelbase with a damping design and a robust propulsion system.

HD Digital VTX System:
- Standard with the moonlight kit, it offers enhanced image quality and low-light performance for night-time shooting.
- Supports 4K/60fps, ensuring that FPV embraces true 4K. Shooting stable and HD videos without unnecessary latency, brings pilots a smoother FPV experience.
- Equipped with EIS and Gyroflow technology. Supports manual shutter and manual ISO settings.
- The moonlight camera has a 160° FOV, providing you with a more natural and real picture for the ultimate flying experience.
- Additionally, the 25.5mm and 20mm mounting hole designs accommodate various accessories.

Specifications:

Model: Gofilm 20
FC: CADDXF4_AIO_ELRS
VTX: Moonlight Kit
Wheelbase: 94mm
Motor: 1303 6000KV
Propeller: HQprop T2×2×3

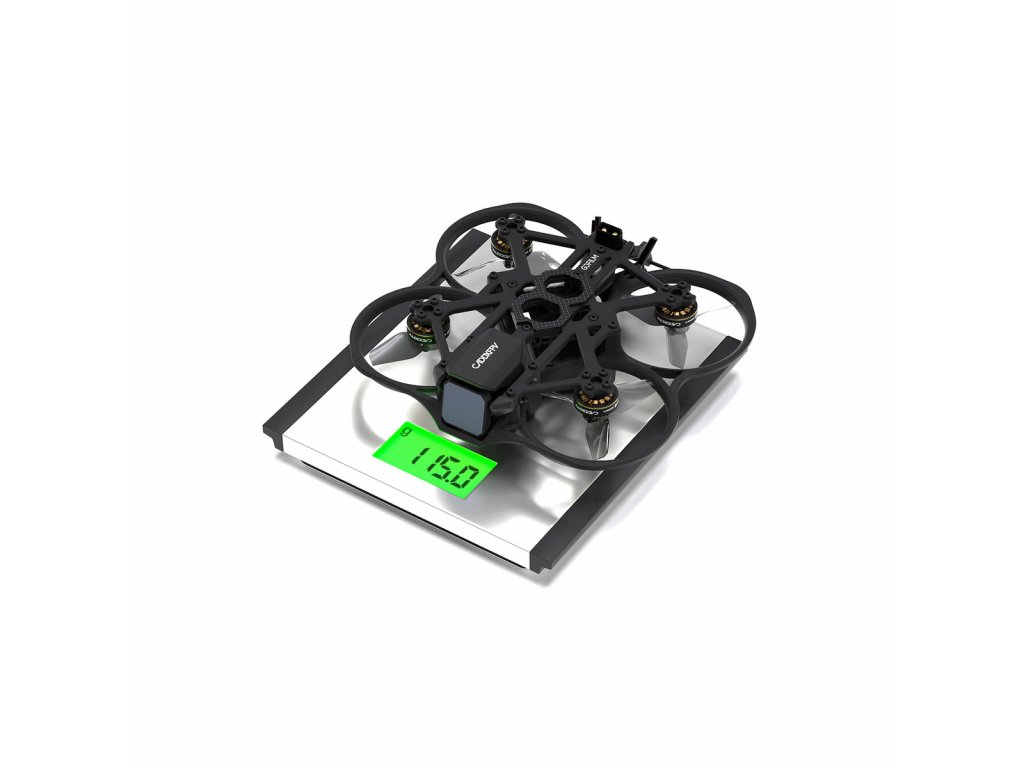

Weight: 115±5g
Size: 133×123×39mm
Flight time: 4S 650mAh & about 5.5 minutes
Receiver: ELRS 2.4G
Battery interface: XT30

FC Parameters:
MCU: STM32F405RGT6
GYRO and IMU: ICM42688
Barometer: BMP280
ExpressLRS receiver: ELRS V3.0 UART
ESC: 20A 4-IN-1
Blackbox: 8MBp
Support Power: 2-4S Lipo/Lihv
Mounting hole Distance: 25.5×25.5mm
Firmware target: CADDXF4_AIO_ELRS

VTX Parameters:
Model: Moonlight Kit
Firmware name: AvatarMoonlight_Sky_X.X.X
Communication Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP): FCC: <30dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm
I/O Interface: JST1.0*4(power cable); JST0.8*6(USB); microSD Card Slot; IPEX-1.
Sensor: Starlight sensor
FOV: Max 160°
Aperture: F2.1
Shutter: Rolling shutter
ISO: 100-25600
Recording resolution: 4K@30/60fps; 2.7K@30/60fps;
1080p@100/60fps; 720p@60fps
Max Mbps: 150Mbps
Video format: MP4 (H.264)
3D DNR: Support
Gyro flow: Support
Built-in EIS: Support
Wide Power Input: 7.4V-25.2V
Power consumption: 12V@1.4A, 8V@2.2A
Memory card type: U3 microSD, Max 256G
Camera size: 19.6mm×19mm×24mm
VTX size: 15.3mm×34.5mm×34.5mm
VTX Installation hole: 20×20mm/25×25mm (M2)
Weight: 38.5g (Antenna not included)
OSD: Canvas mode
Latency: Average delay 22ms
Antenna: 2 (IPEX)

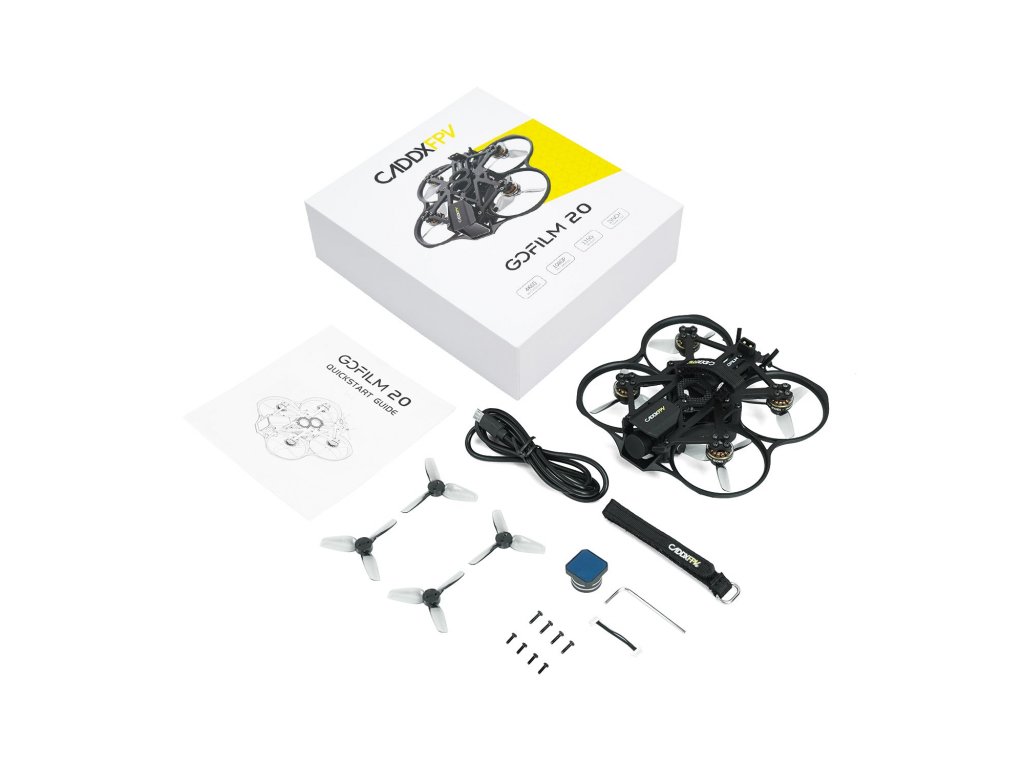

Package Includes:
1x FPV Kit CADDXFPV Gofilm 20
