FPV Drone NewBeeDrone AcroBee75 HD O4 Pusher BNF ELRS 2.4G

Product detailed description

NewBeeDrone AcroBee75 HD O4 Pusher BNF - ELRS

The NewBeeDrone AcroBee75 HD O4 Pusher BNF is a compact and high-performance FPV drone built for HD video enthusiasts and racers. Featuring the advanced BeeBrain HD G4 Flight Controller with an STM32G474 MCU and MPU6000 Gyroscope, it delivers exceptional control, reliability, and responsiveness. The built-in ELRS dual-antenna receiver with an external crystal oscillator ensures stable connections and extended range.

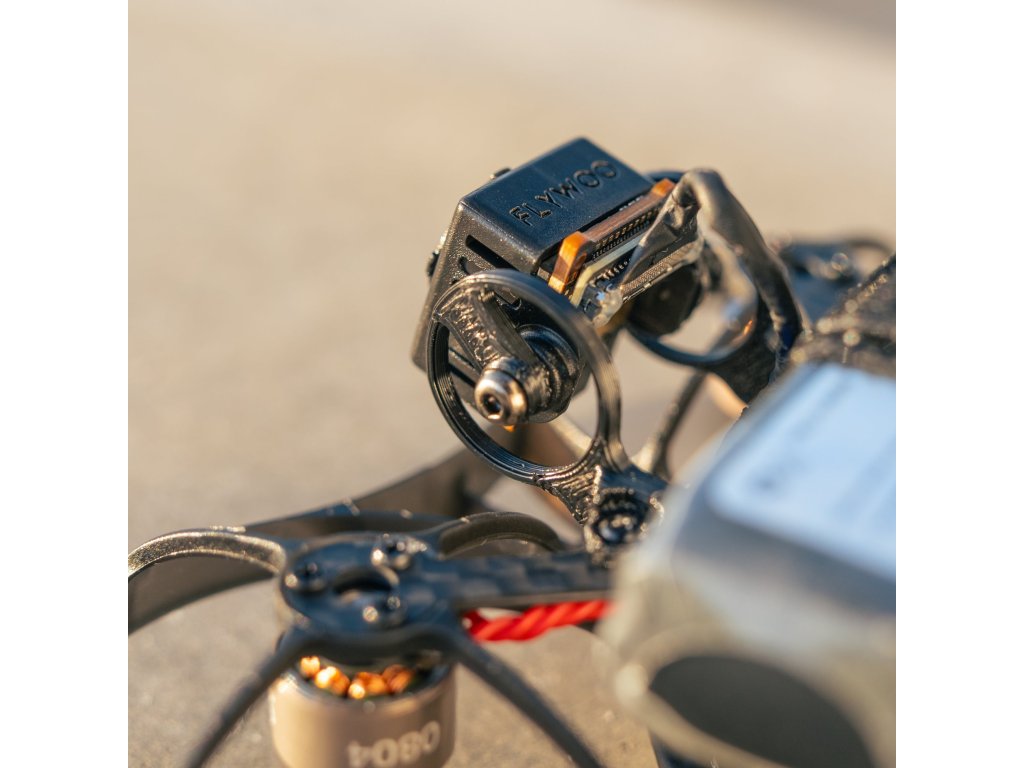

Innovative floating camera mount ensures vibration free video recording. It minimizes jello effect and ensures healthy gyro data for stabilization.

Equipped with Flow 0804 14000KV brushless motors, the AcroBee75 HD O4 Pusher BNF provides smooth and powerful thrust, making it ideal for both freestyle and racing applications. Weighing only 44g without battery, this drone combines portability with durability, ensuring excellent performance indoors and outdoors.

The DJI O4 Air Unit offers crystal-clear HD visuals with low latency, providing an immersive FPV experience. Its inverted pusher design enhances aerodynamic efficiency and stability, while the centered gravity layout ensures precise control and responsiveness during fast maneuvers.

With extended flight time options, the AcroBee75 HD O4 Pusher BNF supports multiple battery configurations. It achieves up to 5 minutes of hover time and 4 minutes of cruising with a 550mAh 2S battery. Upgrade to a 650mAh 2S HV battery for up to 6 minutes of hover time and 5 minutes of cruising, or maximize performance with an 850mAh 2S HV battery offering 7 minutes of hover time and 6 minutes of cruising. (Flight times tested in ideal conditions; actual performance may vary.)

Designed for durability and ease of use, the NewBeeDrone AcroBee75 HD O4 Pusher BNF offers US local shipping and customer support. Whether you’re a beginner or an experienced pilot, this drone delivers cutting-edge performance in a lightweight and compact design.

Specifications:

- Drone Size: 75mm
- Flight Controller: BeeBrain HD G4 Flight Controller ExpressLRS (ELRS) 2.4G
- Frame: Cockroach75 Brushless Frame
- Motors: Flow 0804 14000kv Double Ball Bearing Brushless Motor
- Propellesr: HQ Ultralight Whoop Prop 40MMX2 - 1mm Shaft
- HD VTX & Camera: DJI O4
- Total Weight without battery: 44g


Recommended battery:

- Tattu 450mAh 7.6V High Voltage 95C 2S1P Lipo Battery Pack with XT30 Plug - Long Pack
- Tattu 650mAh 7.6V High Voltage 95C 2S1P Lipo Battery Pack with XT30 Plug - Long Pack
- Tattu 850mAh 7.6V High Voltage 95C 2S1P Lipo Battery Pack with XT30 Plug - Long Pack
- Tattu R-Line 550mAh 7.4V 95C 2S1P Lipo Battery Pack with XT30 Plug


BeeBrain BLV4 HD G4 Flight Controller ELRS2.4G Specifications:

- MCU: STM32G474
- ESC Firmware: Z-H-40 - Bluejay 0.19.2 48kHz.
- ESC Specifications: 1 channel 20A ESC
- Receiver: NBD ExpressLRS 3.0 Diversity (non-SPl)
- Receiver Antenna: 1x BeeT-Antenna 1x 2.4G receiver antenna
- Flight Controller Weight:7.4g (including antenna and XT30 Battery connector)
- Flight Controller Size: Outer dimensions :29 x 29 x 7.6 mm
- Flight Controller Holes: 25.5 x 25.5 mm
- Battery Input: 1-2S
- BEC:10V 2A for DJI O3 (under 2S power only)
- BEC：5V 2A
- UART1: Free
- UART2: TX & RX for EXPRESSLRS 3.0 receiver
- UART3: Free
- UART4: Free
- Flight time with Tattu 450mAh 2S battery is 3:00min (at 7v)

Package includes:

- 1x NewBeeDrone AcroBee75 HD O4 Pusher BNF
- 1x Battery Strap
