FPV Drone iFlight AOS 7 EVO V1.2 HD 6S BNF (TBS)

Product detailed description

FPV Drone iFlight AOS 7 EVO V1.2 HD 6S BNF (TBS)

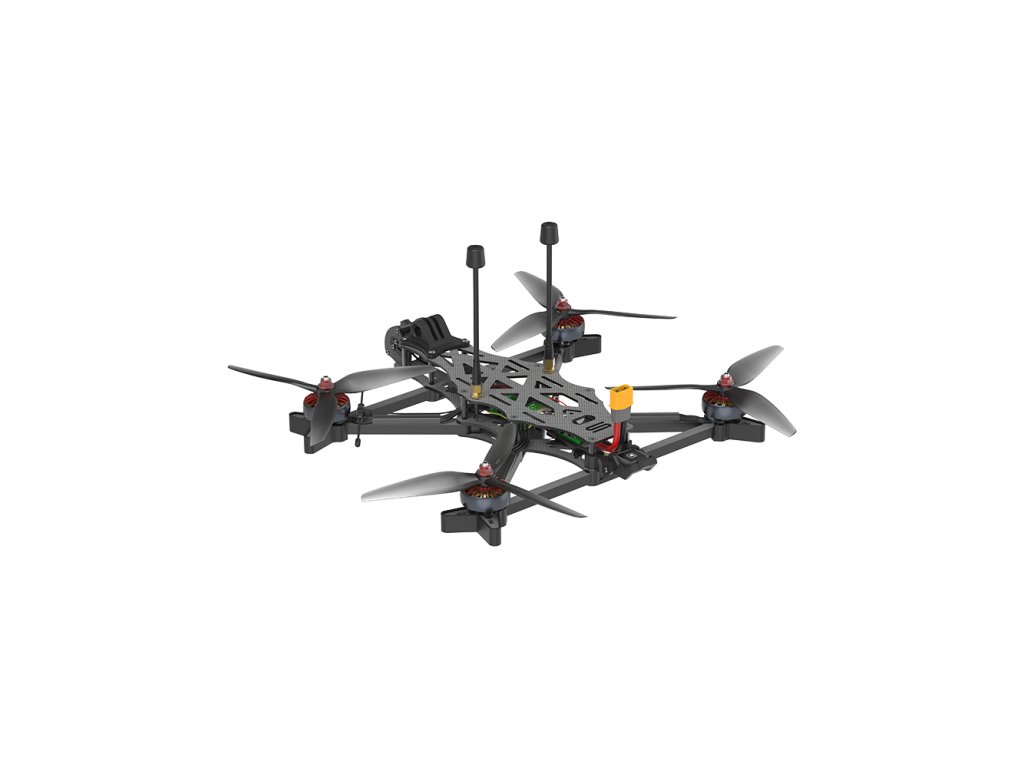

The iFlight AOS 7 EVO V1.2 HD is a highly capable FPV drone designed for both freestyle and long-range flying. Here's a detailed look at its features and specifications:

Features

• Lightweight Design: Optimized for low vibration, allowing for less filtering and higher PID gains.
• Versatile Performance: Combines the best aspects of both freestyle and long-range cruising.
• Advanced Electronics: High-end components and topology optimization.

Specifications

• Frame: 293mm wheelbase, dimensions of 284×228×34.5 mm.
• Flight Controller (FC): BLITZ F722 FC.
• ESC: BLITZ E55 55A 4-in-1 ESC.
• Motors: XING 2806.5 1300KV.
• Propellers: GemFan 7040.
• Takeoff Weight: Approximately 652g.
• Max Speed: 140 km/h in Manual Mode.
• Maximum Takeoff Altitude: 7000 m.
• Max Hover Time: Around 30 minutes with a 6S 2P 8000mAh battery (no load).
• Max Wind Speed Resistance: Level 6.
• Operating Temperature Range: -10° to 40° C (14° to 104° F).
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass.

Video Transmission

• Product Name: DJI O3 Air Unit.
• Communication Bandwidth: Max 40 MHz.
• Field of View (FOV): 155° (single screen).
• Communication Frequency:
  • RX only: 2.400-2.4835 GHz.
  • RX and TX: 5.725-5.850 GHz.
• End-to-End Latency:
  • With DJI FPV Goggles V2:
    • 810p/120fps: Latency lower than 28 ms.
    • 810p/60fps: Latency lower than 40 ms.
  • With DJI Goggles 2:
    • 1080p/100fps: Latency as low as 30 ms.
    • 1080p/60fps: Latency as low as 40 ms.
• Max Video Transmission Bitrate: 50 Mbps.
• Max Video Transmission Range:
  • 10 km (FCC).
  • 2 km (CE).
  • 6 km (SRRC).
• Operating Temperature Range: -10º to 40º C (14° to 104° F).
• Power Input: 7.4-26.4 V.

Packing List

• 1 x AOS 7 EVO V1.2 6S HD BNF (TBS)
• 2 x Antennas.
• 2 x Propeller Pairs.
