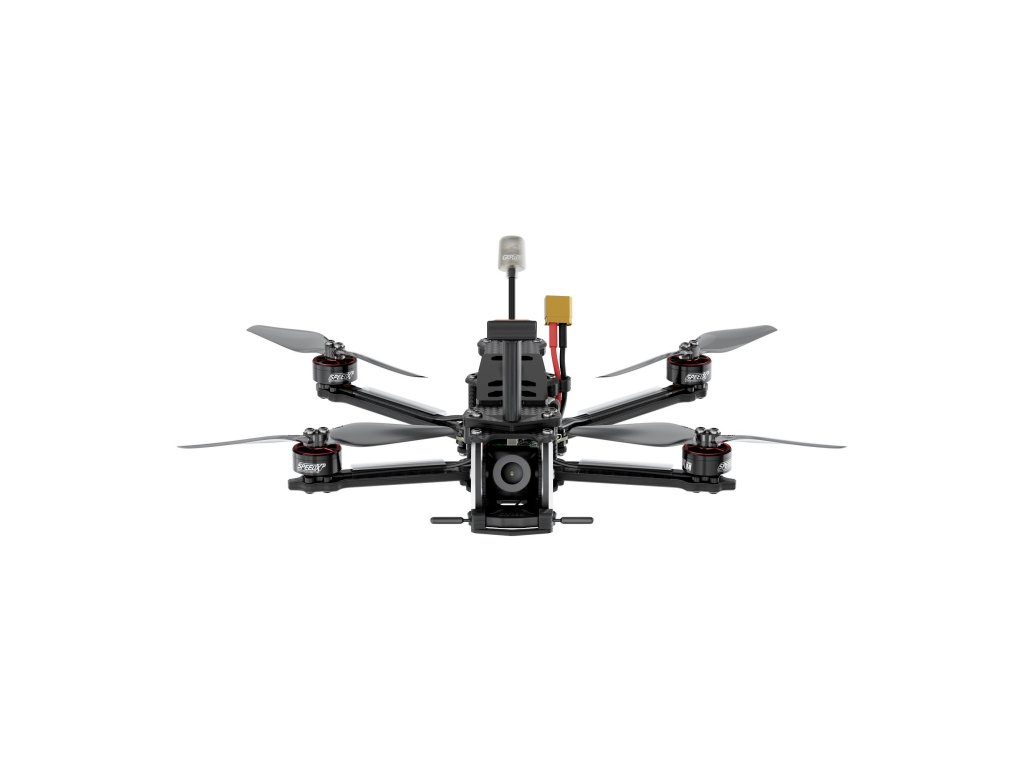

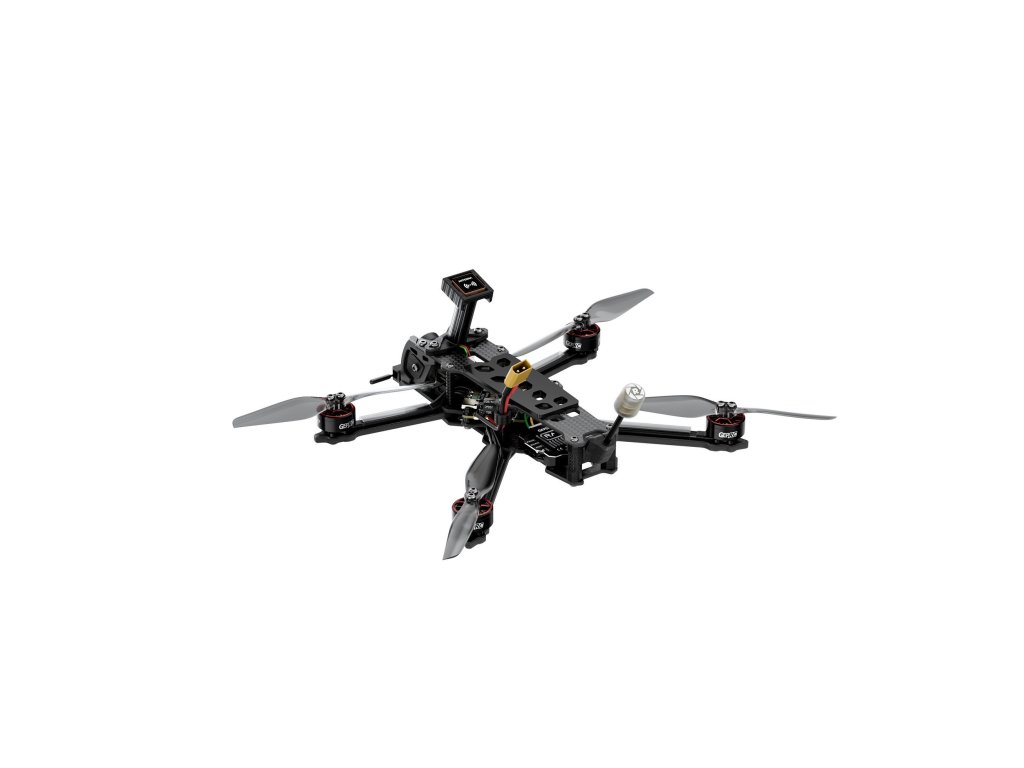

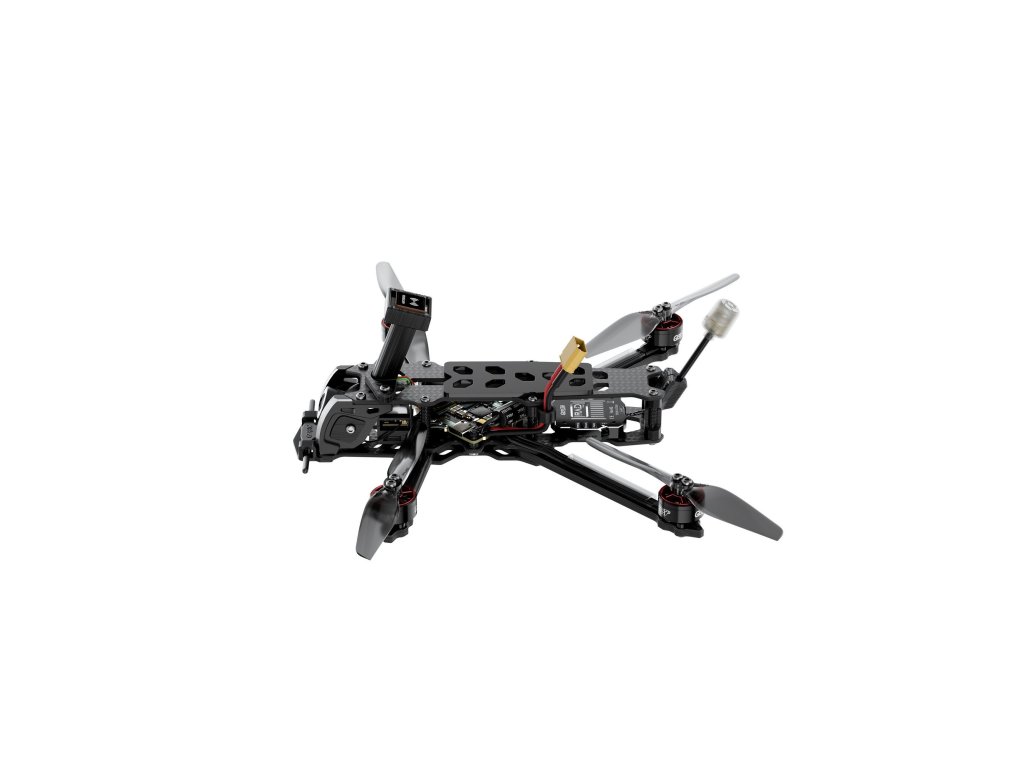

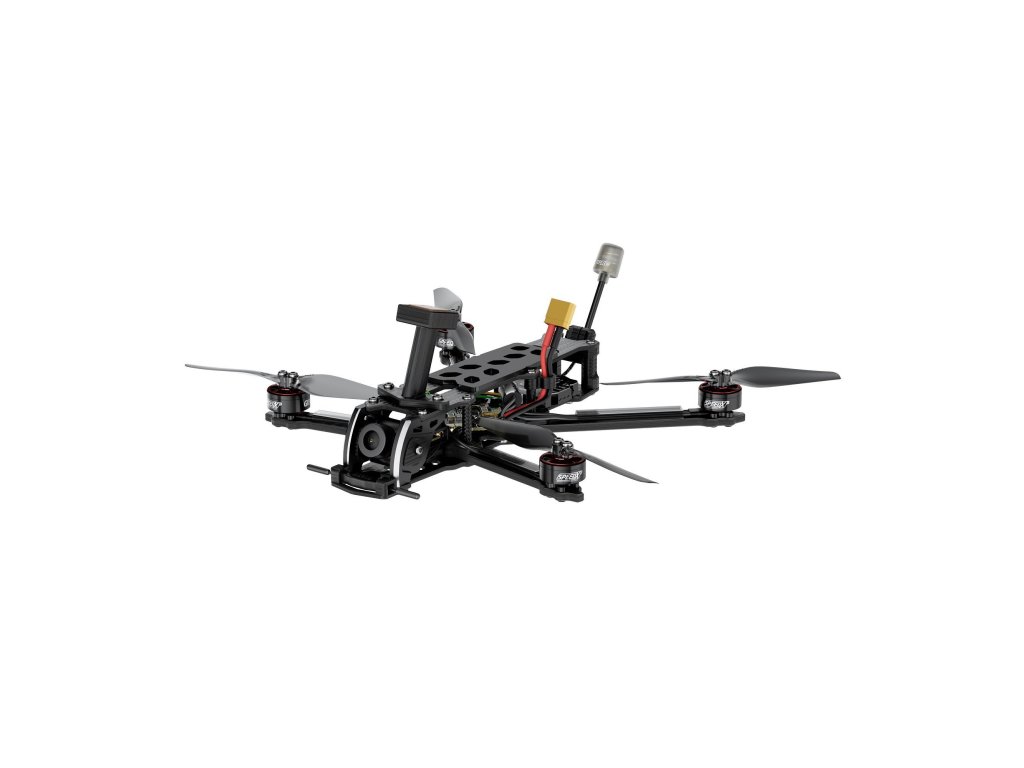

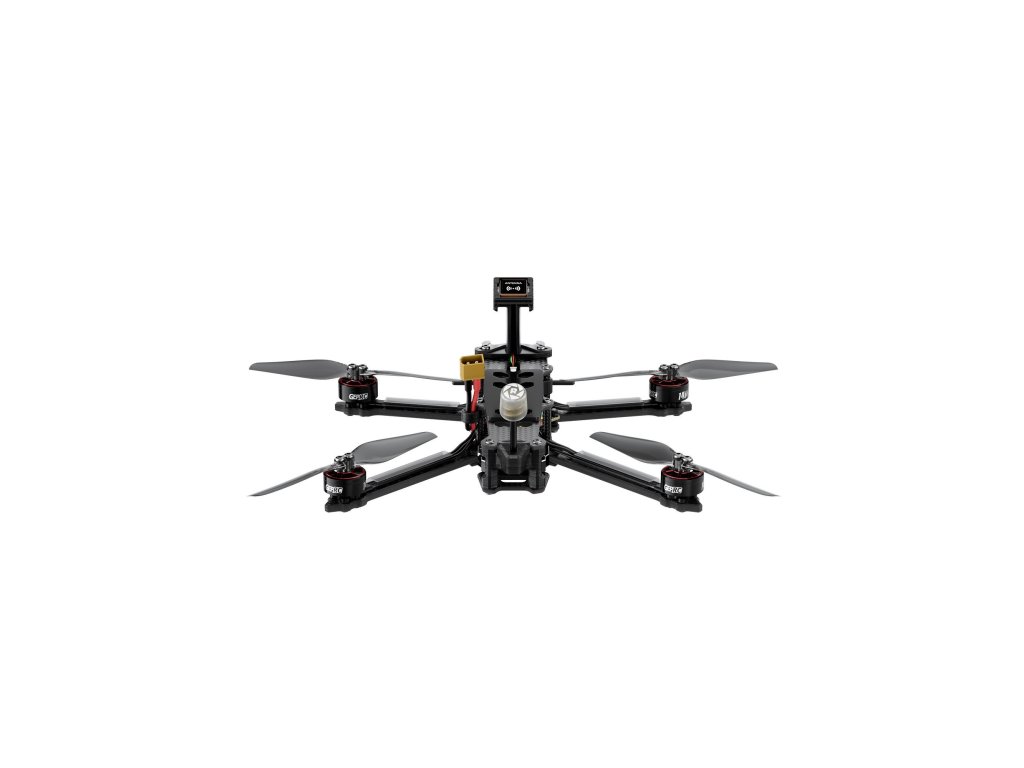

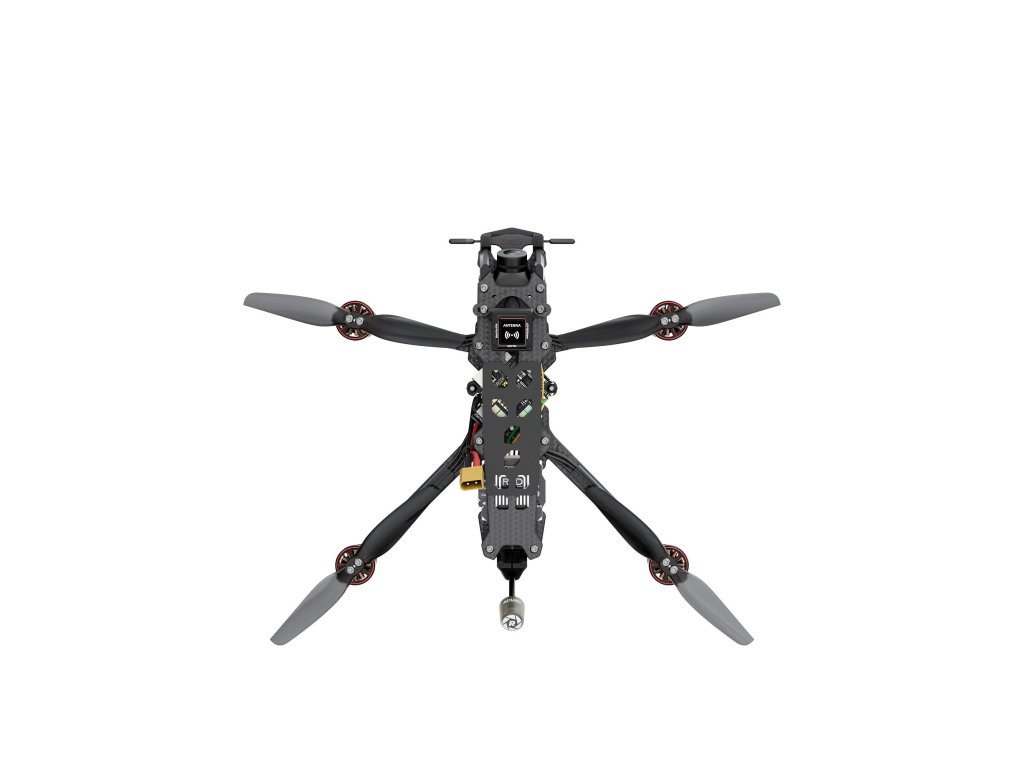

FPV Drone GEPRC Tern-LR40 Analog ELRS2.4

Product detailed description

FPV Drone GEPRC Tern-LR40 Analog ELRS2.4

Please note, this version does not include an M-10 GPS. Feature
FPV Drone Tern-LR40 Analog ELRS2.4

New lightweight design, weight under 249g.
Expand interference GPS fixation method and stay away from interference sources
DC structure cannot see the propellers during flight, which is more suitable for straight-line aerial photography.
Install BB ring to set the battery low voltage alarm
Using GEP-M10nano GPS, the satellite search speed is faster and the rescue mode is more stable.
Compatible gopro mount installation, expandable shooting creation.
Specifications
Model: Tern-LR40
Frame: Tern-LR40 frame
Top plate: 1.5mm
Middle plate: 2.0mm
Bottom plate: 1.5mm
Arm thickness: 3.5mm
FC: Taker G4 45A AIO
MCU: STM32G473CEU6
Gyro: ICM 42688-P
OSD: Betaflight OSD w/AT7456E
ESC: 32Bit 45A
VTX: RAD mini 1W
Camera: Caddx Ratel2
Antenna: GEPRC Peano 5.8G RHCP UFL
Connector：XT30
Motors: GEP-SPEEDX2 1404 3000KV
Propellers: HQProp T4X2.5Grey (2CW+2CCW)
Tern -LR40 Analog ELRS24 version weight: 159g±5g
Receiver: ELRS2.4
Recommended battery: LiPo 4S 660mah-850mah/18650 3000mah
Flight time: 10-25min
Includes

1 x Tern-LR40

2 x HQProp T4X2.5Grey (2CW+2CCW)

2 x battery anti-slip mat

1 x screw pack

4 x  Battery strap M15*170mm

1 x L-shaped screwdriver 1.5mm

1 x  GoPro camera mount holder

1 x T-type Antenna mount

1 x RC Printed
