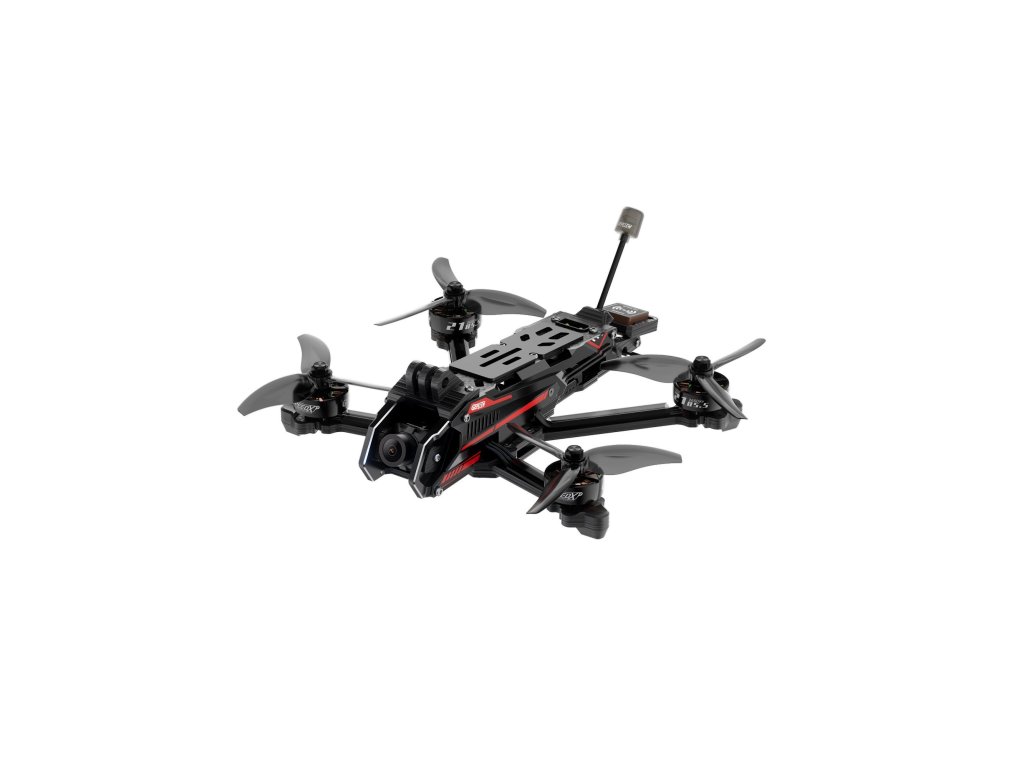

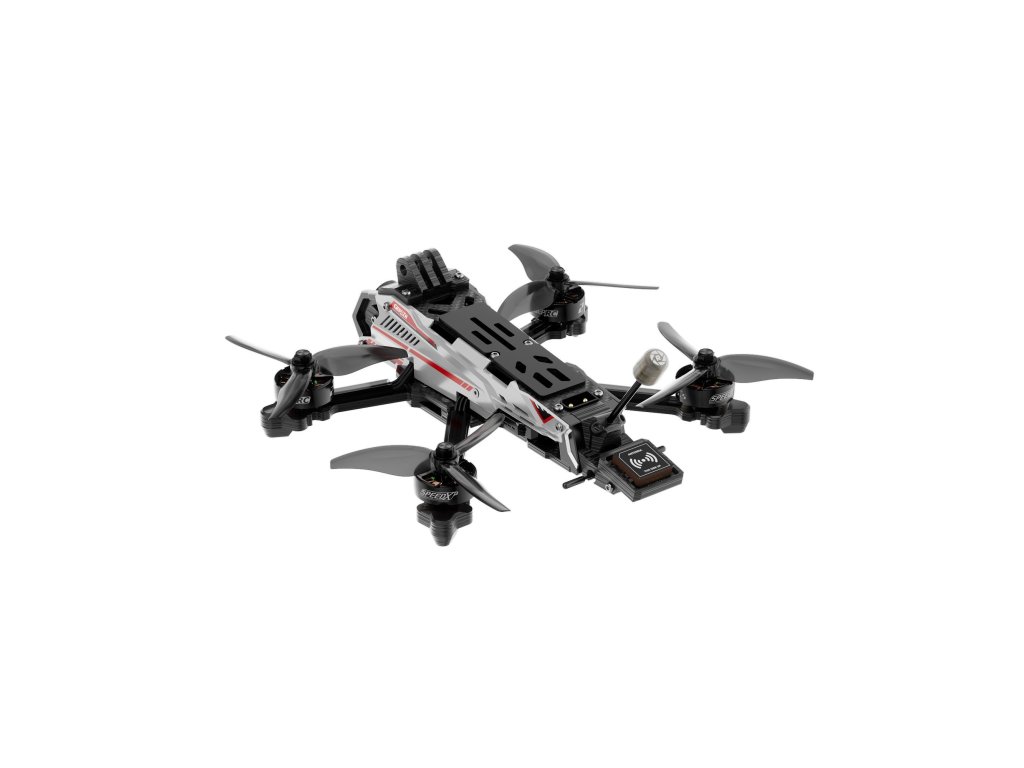

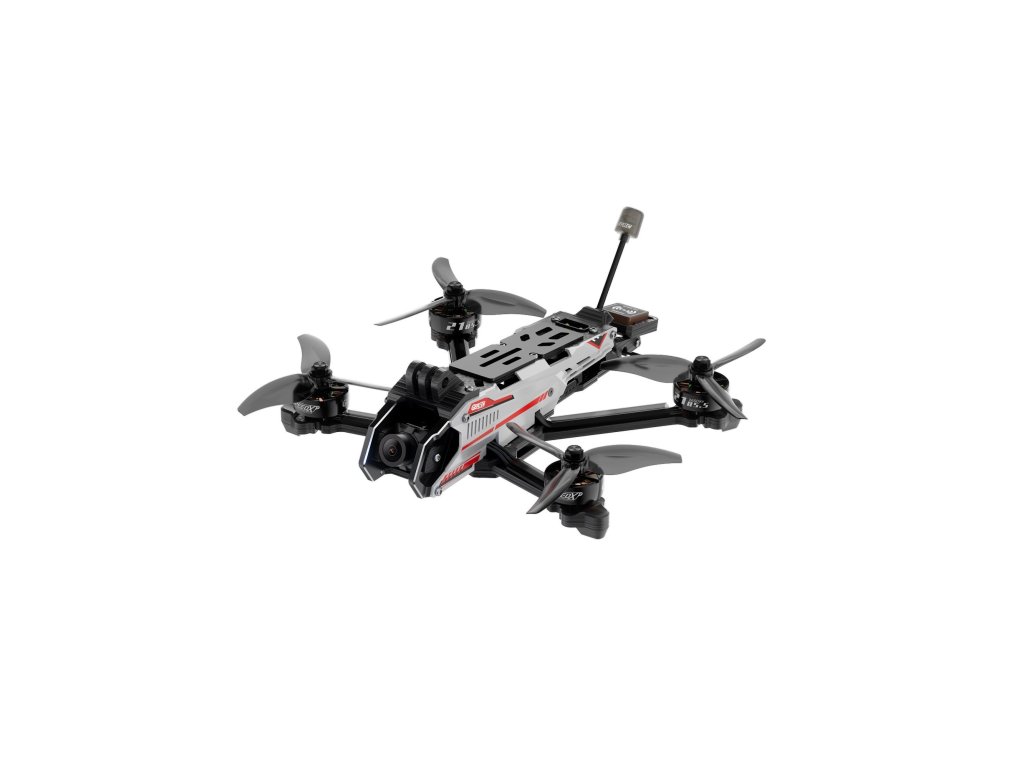

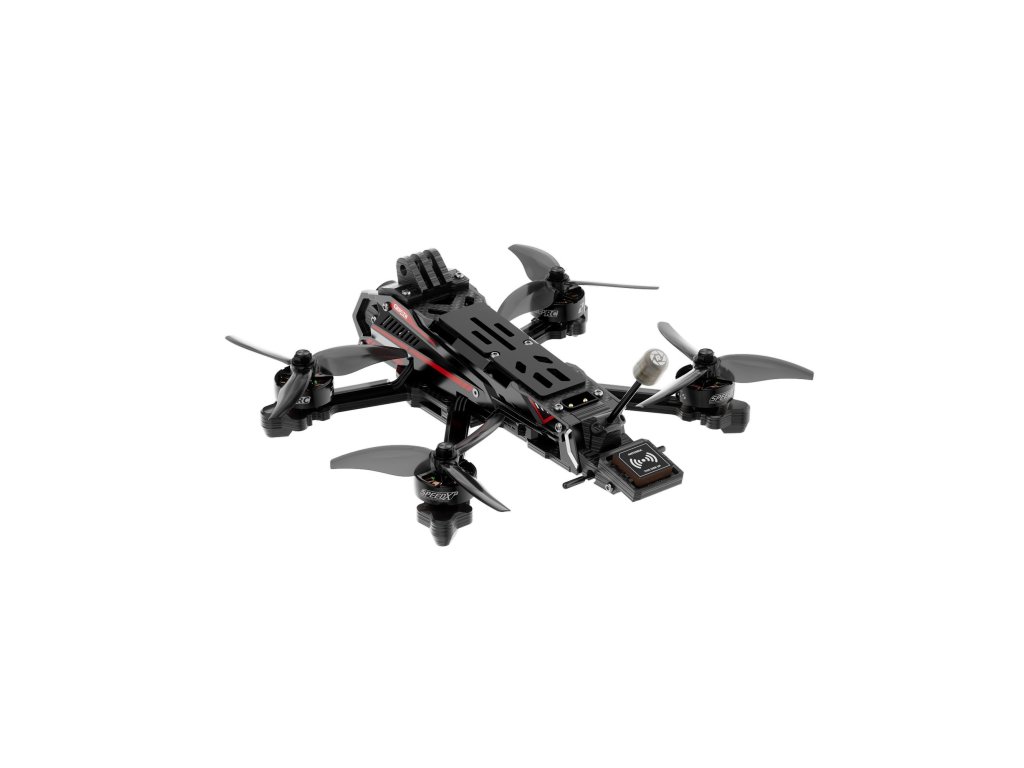

FPV Drone GEPRC DoMain 3.6 Analog GPS TBS NanoRX

Product detailed description

FPV Drone GEPRC DoMain 3.6 Analog GPS TBS NanoRX
Feature

Unique structure design, Increase the stability of the frame structure.
The new side panel design is integrated, supporting DIY side panel decals. Higher creativity and diversity.
Equipped with sufficient power, it can complete difficult freestyle flight.
Support full-size GOPRO or naked GOPRO on itself, Shooting all perfect footages in the view
DC structure design, the frame looks neat and compact.The extraordinary high integration, Without Prop in the view, showing you a pure picture.
Equipped with M-10 GPS to ensure the safety of every flight with rescue mode.
Specifications
Product name: FPV Drone GEPRC DoMain 3.6 Analog GPS TBS NanoRX
Frame：GEP-DoMain Frame
Wheelbase：170mm
Roof thickness：2mm
Base plate thickness: 2.5mm
Arm thickness:4.0mm
Midplate thickness：3mm
FC：TAKER F722 SE
ESC：TAKER  E55A 32Bit 4IN1
MCU： STM32F722RET6
Gyro: MPU6000
OSD：AT7456E
VTX：GEPRC/GEPRC RAD MINI 1W VTX
Camera：Runcam phoenix2p
Antenna：Momoda-MMCX90-R-BR-100MM black background with red words, elbow, right-hand rotation
Motor：SPEEDX2 2105.5  2650KV( M5 Shift)
Propellers: GEMFAN 3630 – 3
Weight: 279g ±5g
Receiver：TBS
Recommend battery：Lipo 6S 1050-1300mah
Connector:XT60
Includes
1 x DoMain

2 x GEMFAN 3630-3(1 pair)

2 x M15*200mm Battery cable tie

1 x Spare screw bag

1 x L-shaped screwdriver(1.5mm)

1 x L-shaped screwdriver (2mm)

1 x M8 Wrench

1x Left and right side panels
